Toyota 86 Grmn

2016-02 → present · chassis GRMN86 · catalogue 265110 · Japan

Supported model Data version 2016-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

20 part groups · 14 illustrations

Illustrations

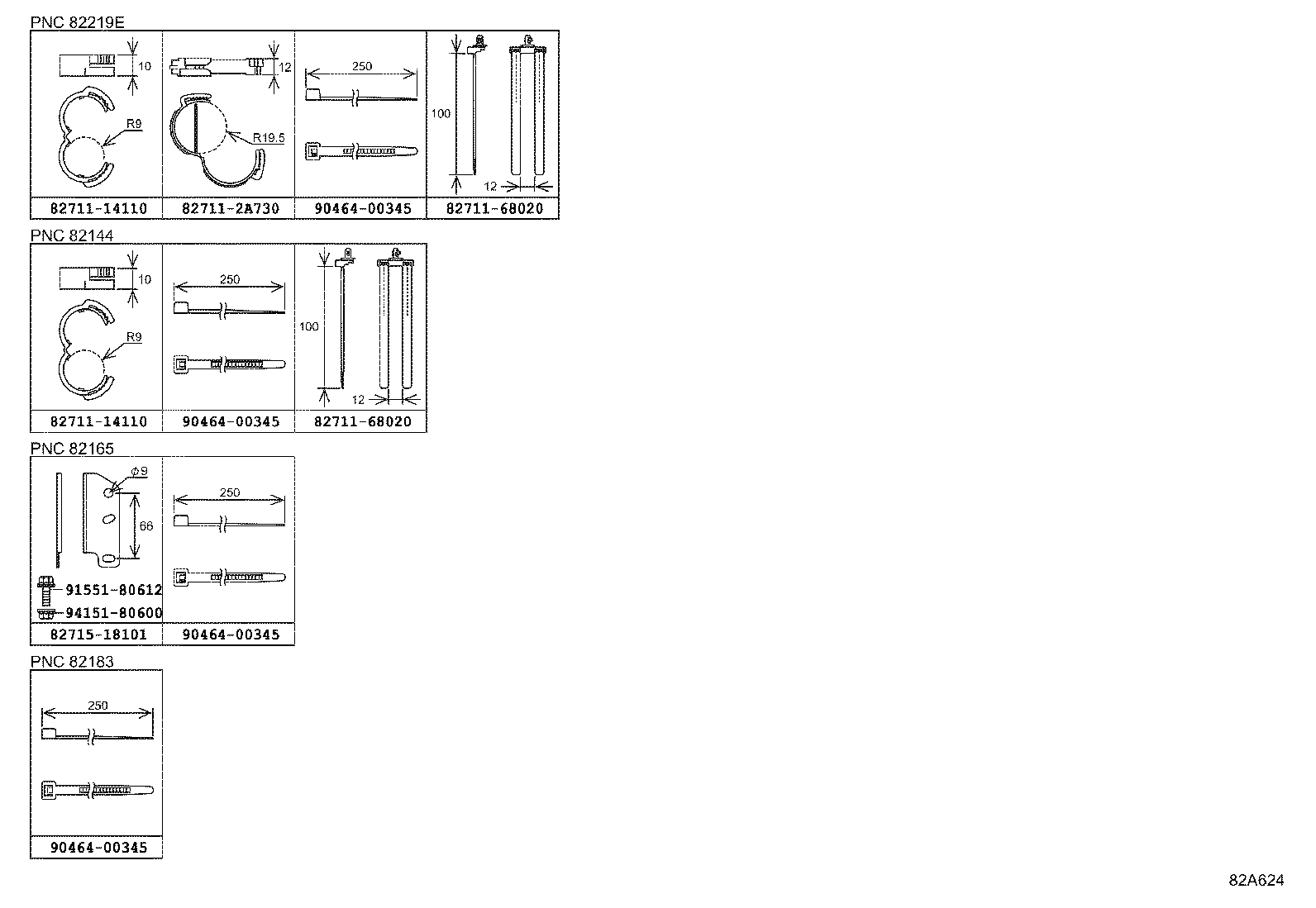

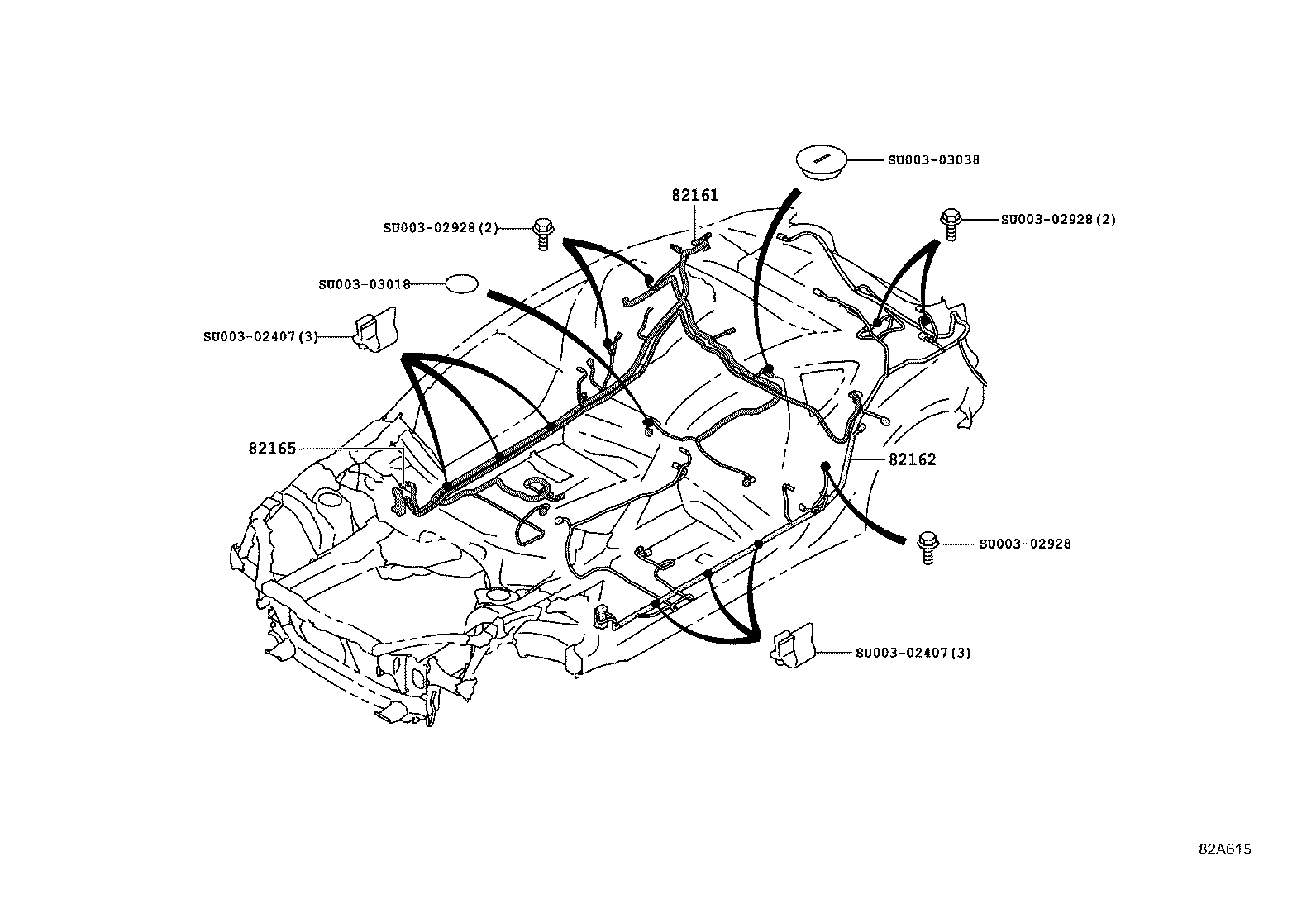

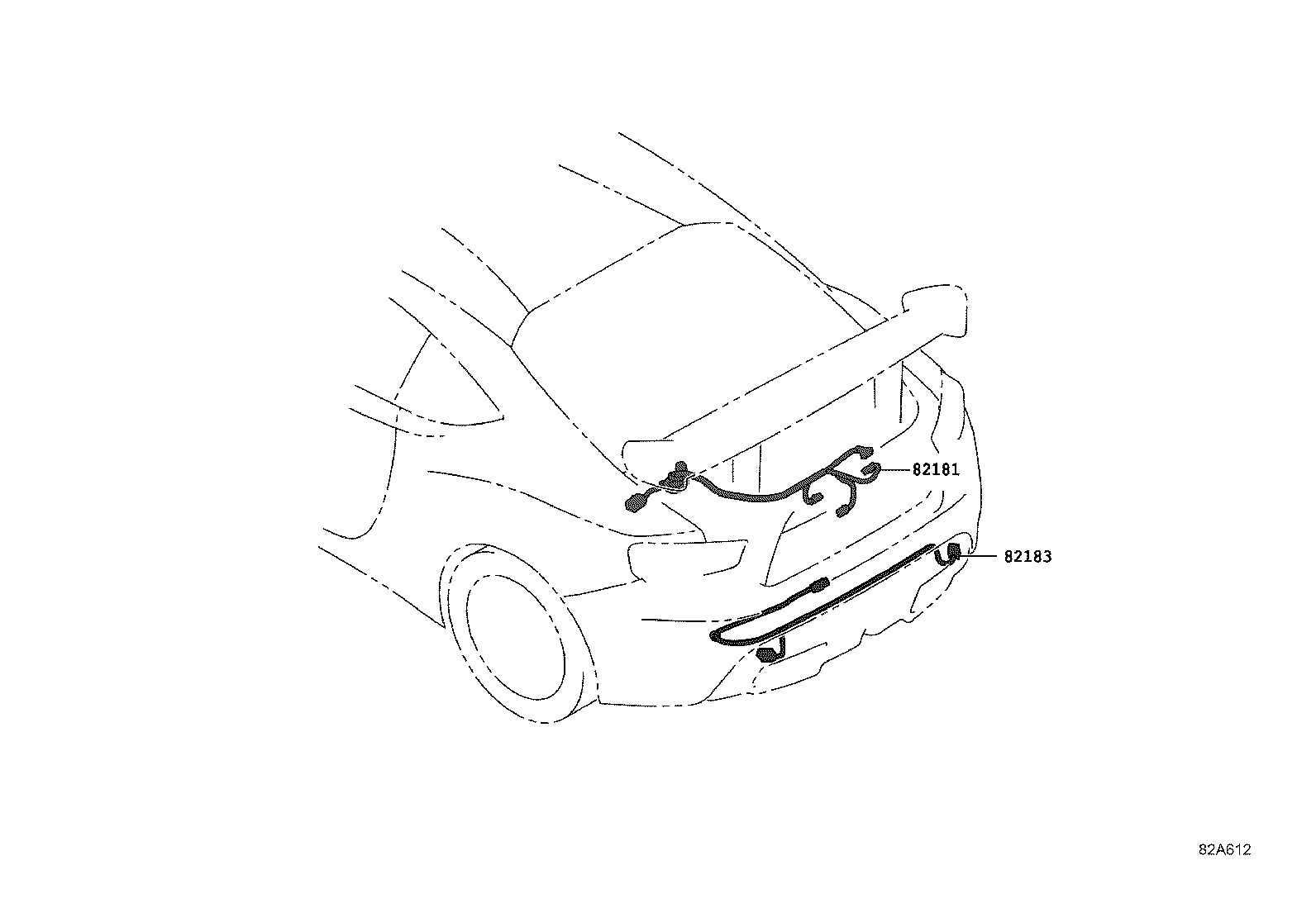

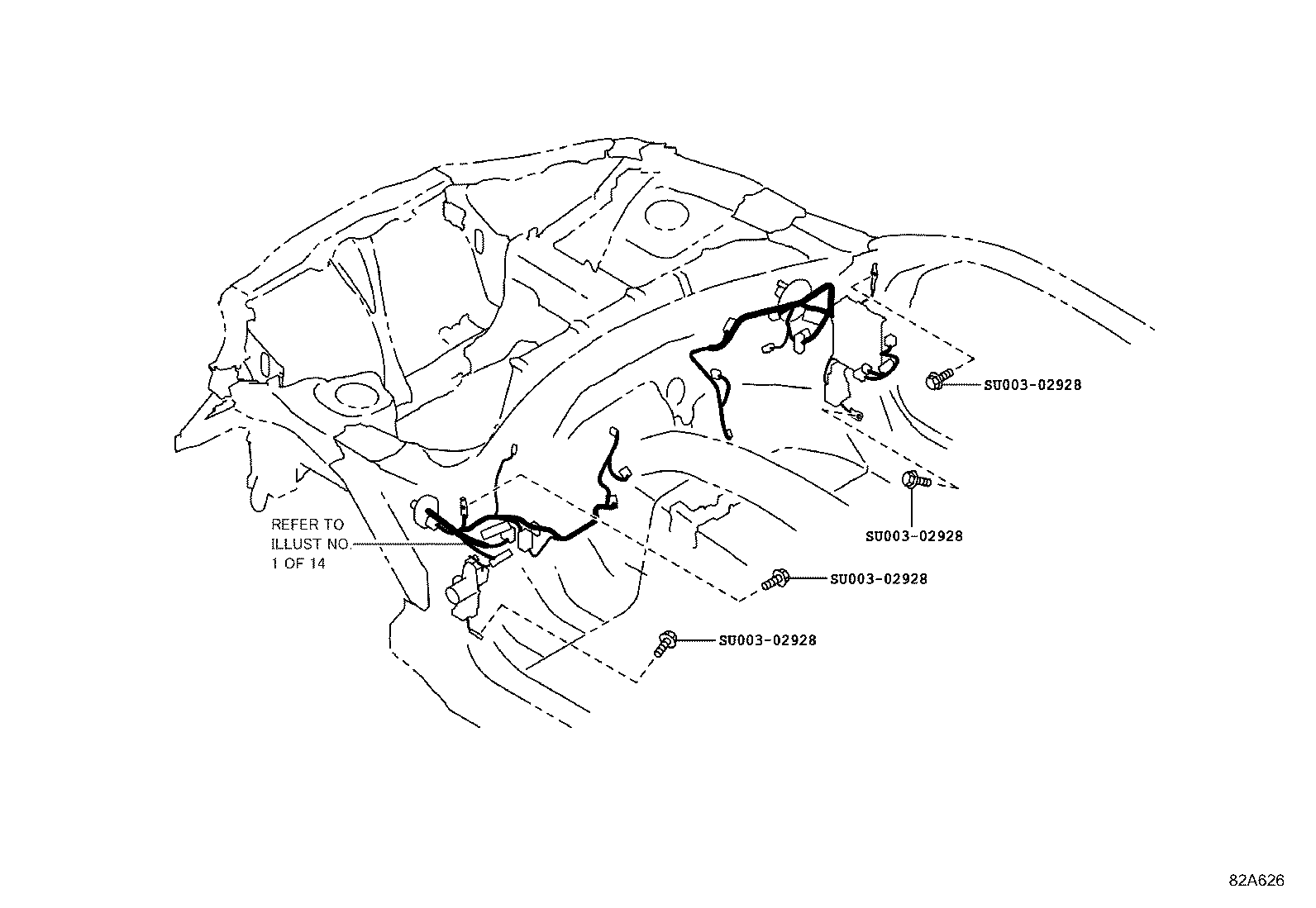

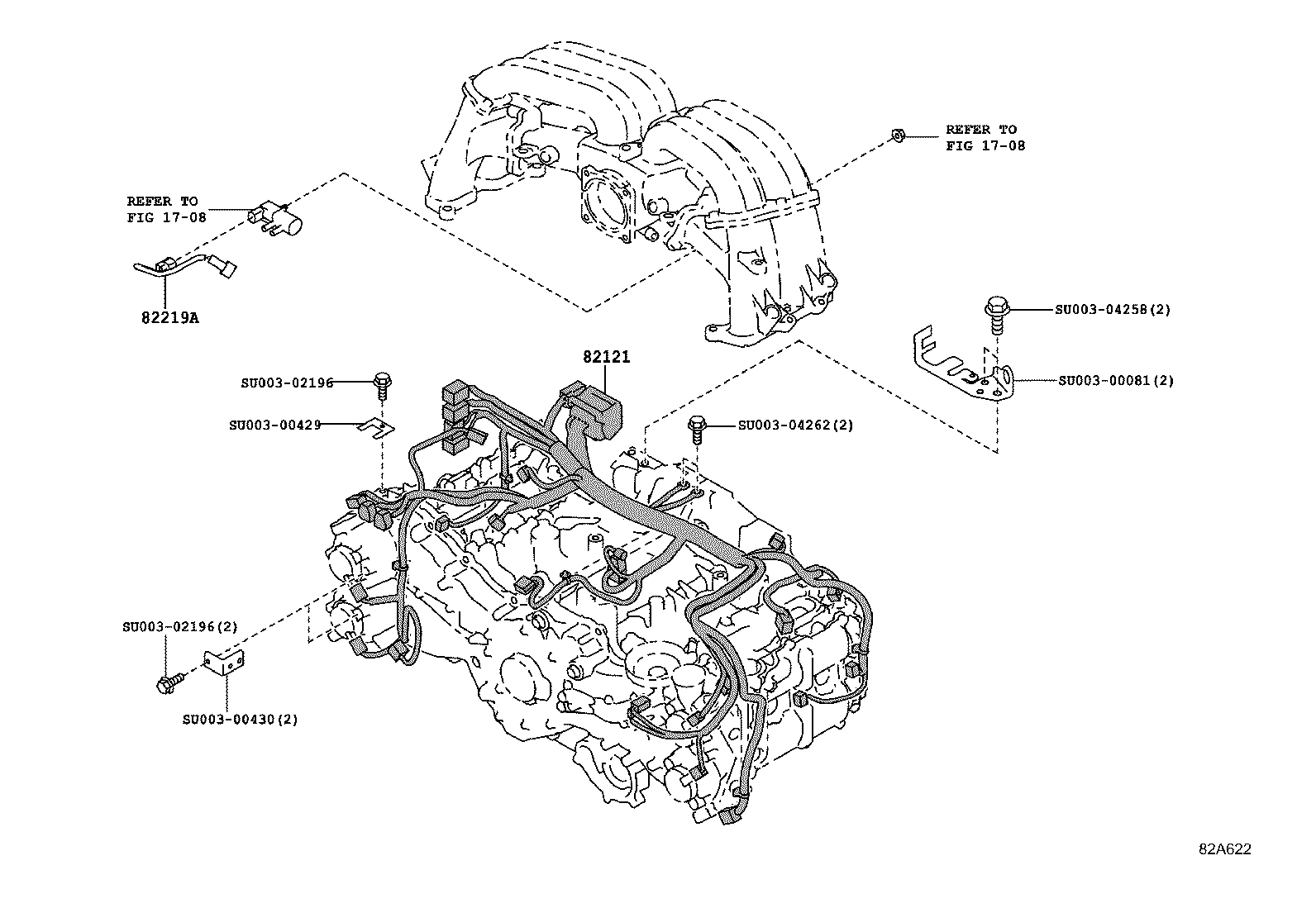

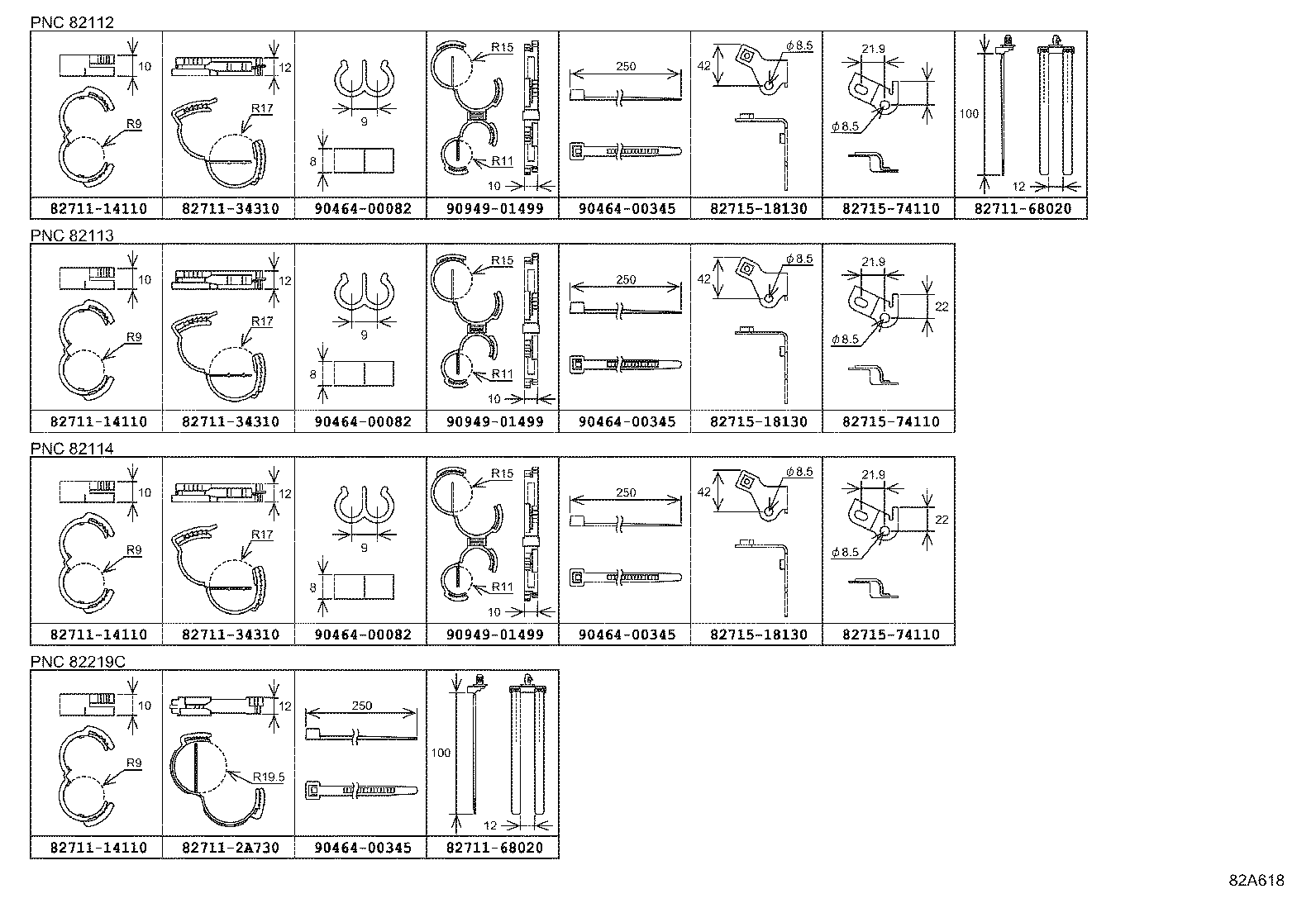

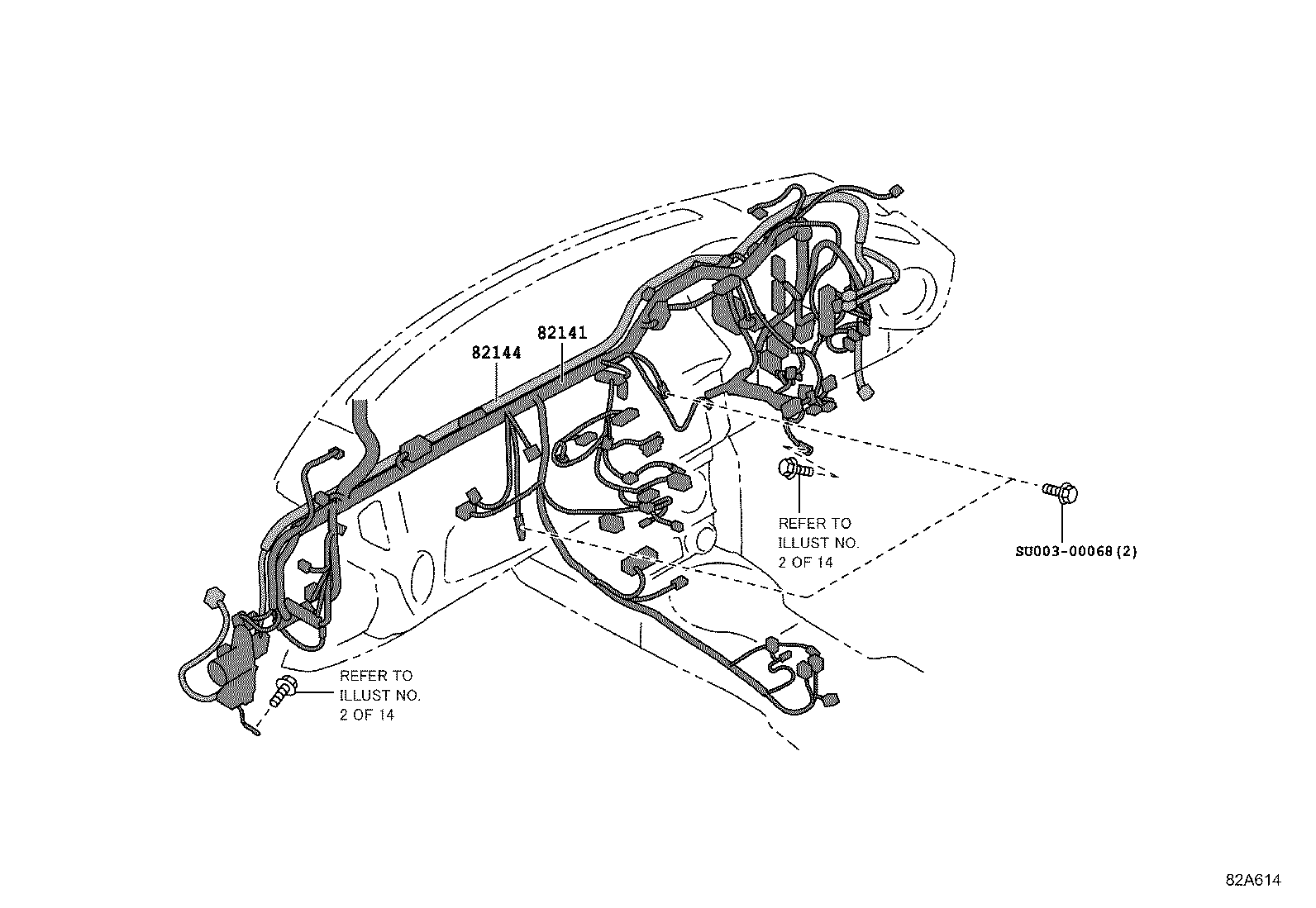

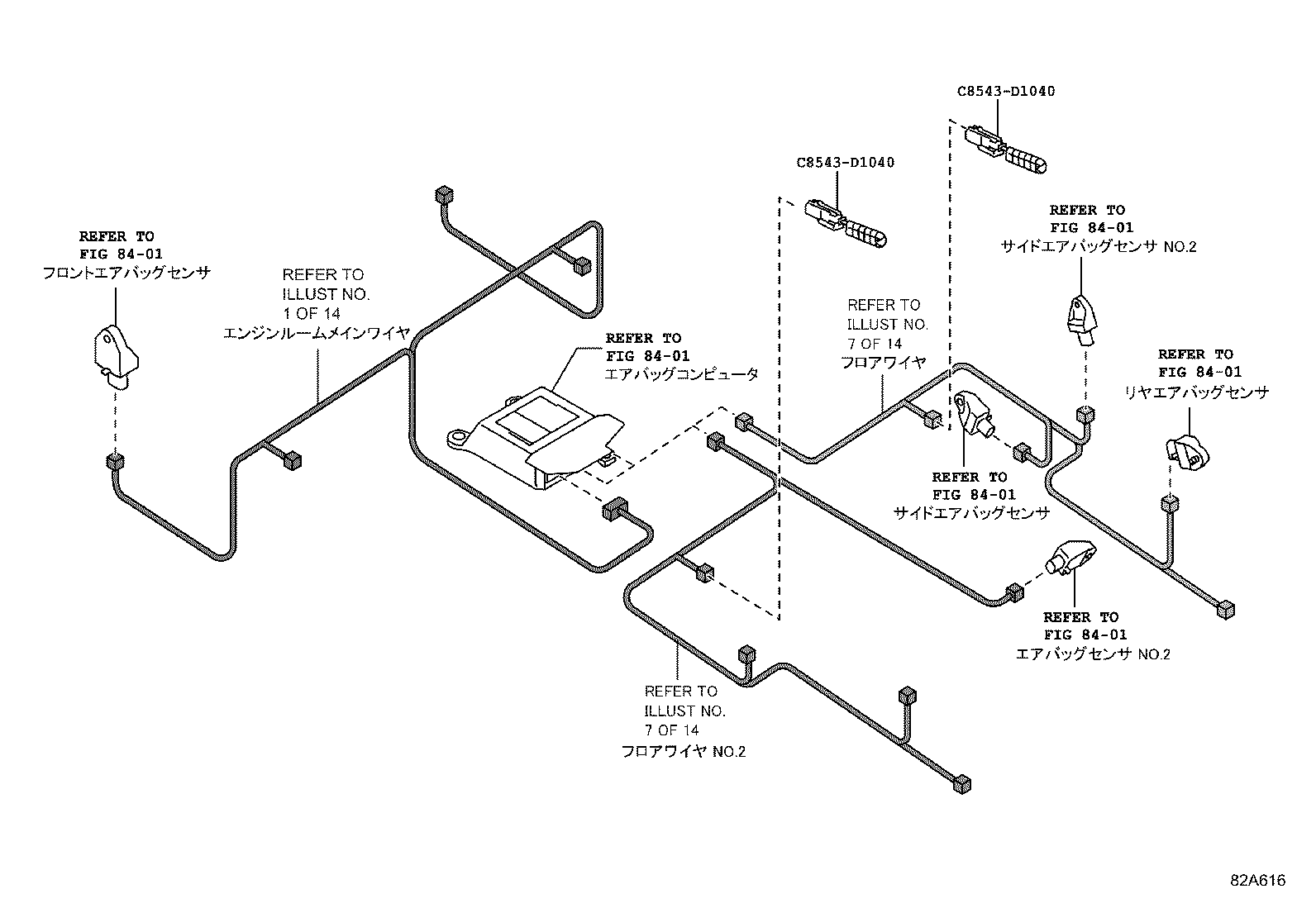

Figure 82A611 82A611 2016-02 → — Figure 82A626 82A626 2016-02 → — Figure 82A622 82A622 2016-02 → — Figure 82A628 82A628 2016-02 → — Figure 82A614 82A614 2016-02 → — Figure 82A629 82A629 2016-02 → — Figure 82A615 82A615 2016-02 → — Figure 82A616 82A616 2016-02 → — Figure 82A630 82A630 2016-02 → — Figure 82A612 82A612 2016-02 → — Figure 82A627 82A627 2016-02 → — Figure 82A617A 82A617A 2016-02 → — Figure 82A618 82A618 2016-02 → — Figure 82A624 82A624 2016-02 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82001C Cable, Bond, NO.2
82112 Wire, Engine Room, NO.2
82113 Wire, Engine Room, NO.3
82114 Wire, Engine Room, NO.4
82121 Wire, Engine
82122 Wire, Engine, NO.2
82141 Wire, Instrument Panel
82144 Wire, Instrument Panel, NO.4
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82161 Wire, Floor
82162 Wire, Floor, NO.2
82165 Wire, Frame, NO.2
82171 Wire, Roof, NO.1
82181 Wire, Luggage Room, NO.1
82183 Wire, Luggage Room, NO.3
82219A Wire, Sensor
82219C Wire, Sensor
82219E Wire, Sensor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
