Toyota 86 Grmn
2016-02 → present · chassis GRMN86 · catalogue 265110 · Japan
Supported model
Data version 2016-02

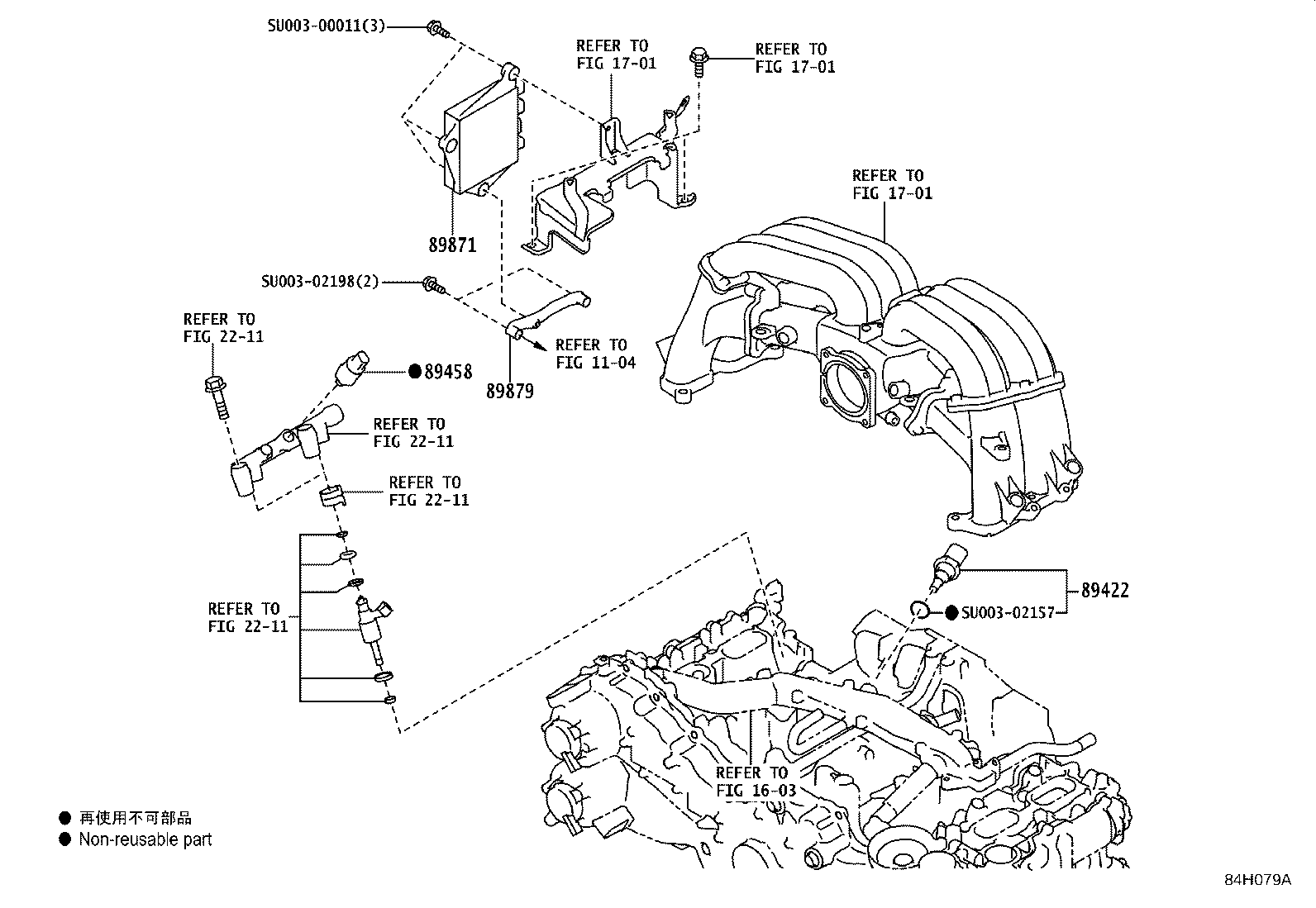

Electronic Fuel Injection System
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 89422 | Sensor, Water Temperature (FOR E.F.I.) |
| 89458 | Sensor, Fuel Pressure |
| 89570A | Computer Assy, Fuel Pump Control |
| 89661 | Computer, Engine Control |
| 89667 | Bracket, Engine Control Computer |
| 89871 | Driver, Injector |
| 89879 | Bracket, Injector Driver |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
