Toyota 86 Grmn

2016-02 → present · chassis GRMN86 · catalogue 265110 · Japan

Supported model Data version 2016-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

8 part groups · 2 illustrations

Illustrations

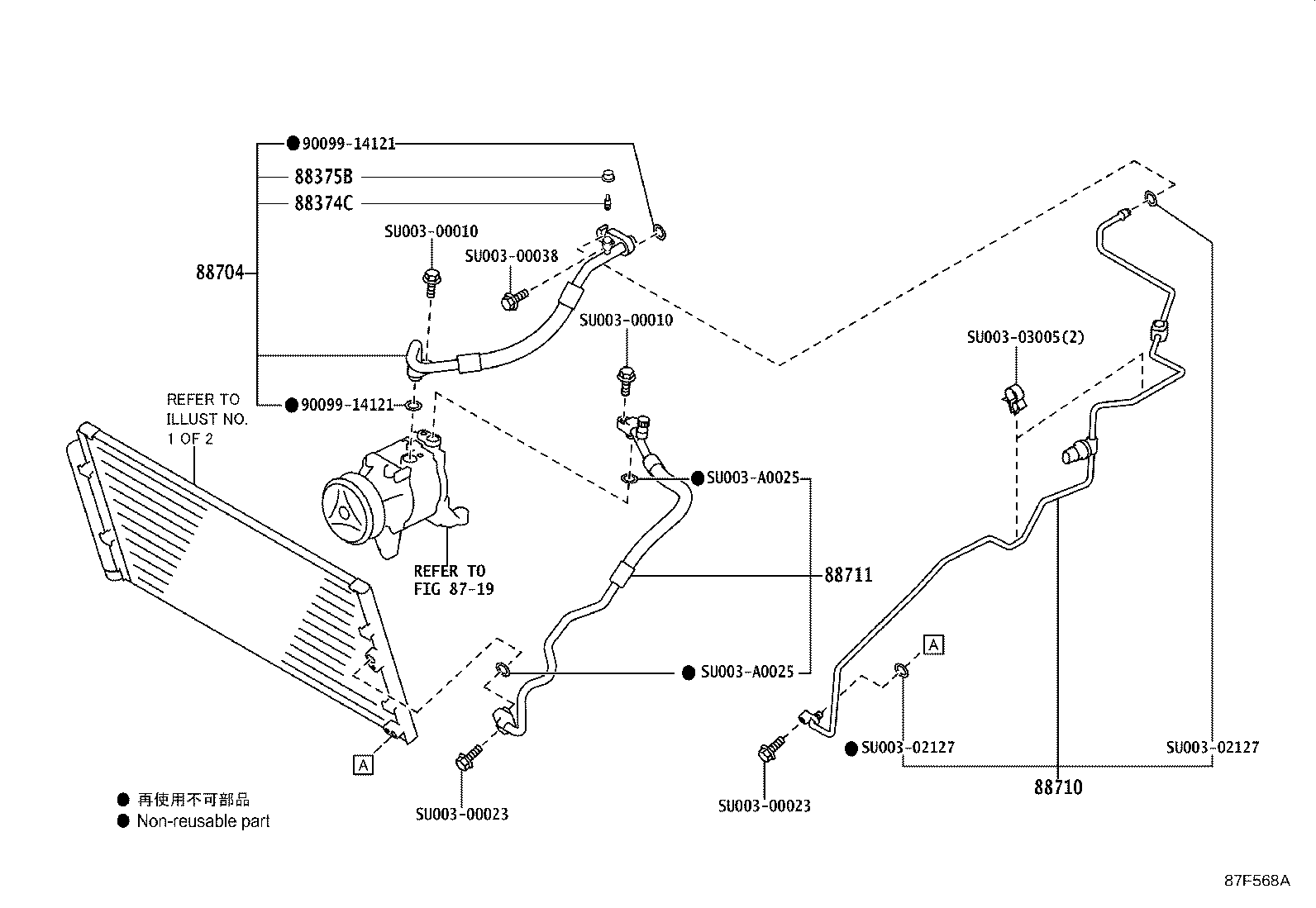

Figure 87F567 87F567 2016-02 → — Figure 87F568A 87F568A 2016-02 → —

Part groups

PNCDescription
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88460 Condenser Assy, Cooler
88463A Bracket, Cooler Condenser, NO.2
88463B Bracket, Cooler Condenser, NO.3
88704 Hose Sub-assy, Suction
88710 Tube Assy, Air Conditioner
88711 Hose, Cooler Refrigerant Discharge, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
