Toyota Corona

1983-01 → 1987-11 · chassis AT150,ST150,16#,CT150 · catalogue 271110 · Japan

Discontinued model Data version 1988-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

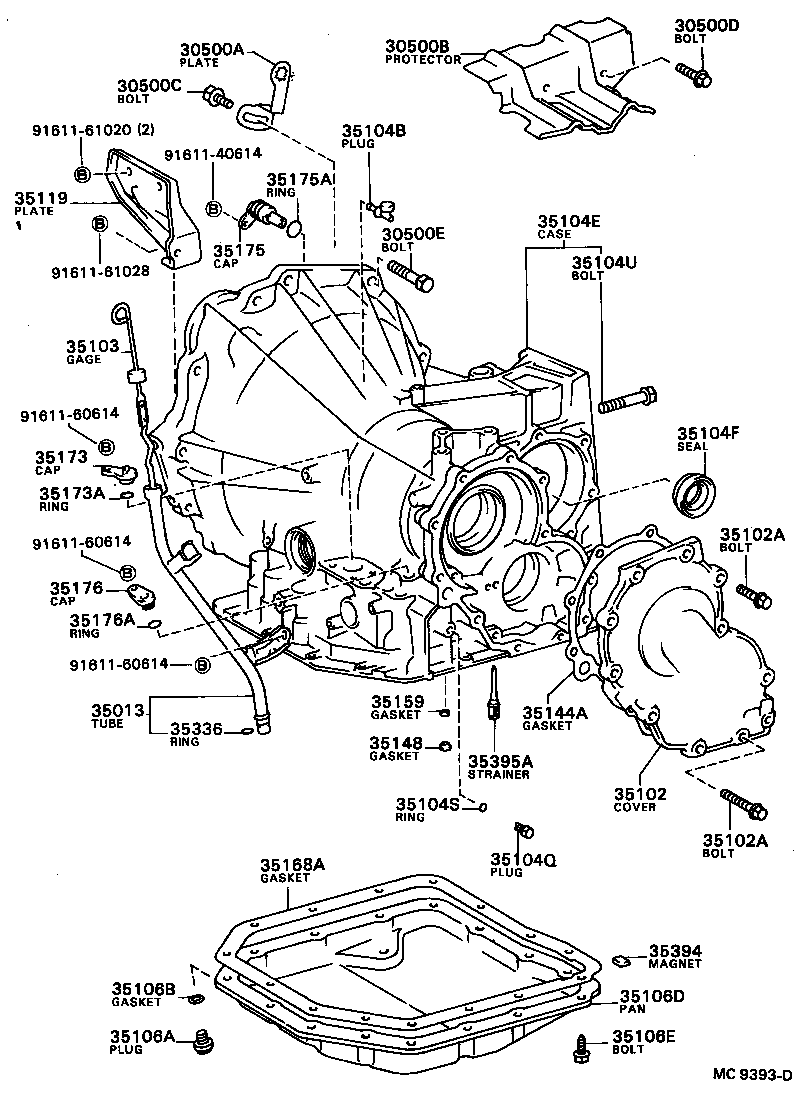

Exploded illustration MC9393D 30500D — BOLT(FOR TRANSAXLE CASE PROTECTOR) (1 parts) 30500B — PROTECTOR, TRANSAXLE CASE (7 parts) 30500A — PLATE, BOLT LOCK(ATM) (1 parts) 30500C — BOLT(FOR PLATE BOLT LOCK) (1 parts) 9161161020 — not listed in this catalogue 35104B — PLUG, BREATHER, NO.1 (ATM) (3 parts) 9161140614 — not listed in this catalogue 35175A — RING, O (FOR TRANSAXLE CASE CAP) (2 parts) 35119 — PLATE, STIFENER, LH (ATM) (3 parts) 35104E — CASE SUB-ASSY, AUTOMATIC TRANSAXLE (9 parts) 30500E — BOLT(FOR TRANSAXLE & ENGINE SETTING) (7 parts) 35175 — CAP, TRANSAXLE CASE, NO.2 (2 parts) 35104U — BOLT (FOR TRANSAXLE CASE) (3 parts) 9161161028 — not listed in this catalogue 35103 — GAGE SUB-ASSY, TRANSMISSION OIL LEVEL (6 parts) 9161160614 — not listed in this catalogue 35104F — SEAL, OIL (FOR TRANSAXLE CASE) (8 parts) 35173 — CAP, TRANSAXLE CASE NO.1 (1 parts) 35173A — RING, O (FOR TRANSAXLE CASE CAP NO.1) (1 parts) 35102A — BOLT (FOR TRANSAXLE REAR COVER SETTING) (4 parts) 9161160614 — not listed in this catalogue 35176 — CAP, WIRE HARNESS (2 parts) 35176A — RING, O (FOR WIRE HARNESS CAP) (2 parts) 9161160614 — not listed in this catalogue 35159 — GASKET, BRAKE DRUM (4 parts) 35013 — TUBE SUB-ASSY, TRANSMISSION OIL FILLER (10 parts) 35144A — GASKET, TRANSAXLE REAR COVER (1 parts) 35336 — RING, O (FOR TRANSMISSION OIL FILLER TUBE) (1 parts) 35148 — GASKET, GOVERNOR APPLY, NO.1 (1 parts) 35395A — STRAINER, GOVERNOR OIL (5 parts) 35102 — COVER SUB-ASSY, TRANSAXLE REAR (3 parts) 35104S — RING, O (FOR TRANSAXLE CASE PLUG NO.1) (1 parts) 35102A — BOLT (FOR TRANSAXLE REAR COVER SETTING) (4 parts) 35104Q — PLUG, NO.1 (FOR TRANSAXLE CASE) (1 parts) 35168A — GASKET, AUTOMATIC TRANSAXLE OIL PAN (3 parts) 35394 — MAGNET, OIL CLEANER (FOR TRANSMISSION) (1 parts) 35106B — GASKET, DRAIN PLUG (ATM) (5 parts) 35106D — PAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL (8 parts) 35106A — PLUG SUB-ASSY, DRAIN (ATM) (3 parts) 35106E — BOLT (FOR TRANSAXLE OIL PAN) (1 parts)
MC9393D · 34 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
111 parts on this figure
Part number Description Fitment Price
30500A — Plate, Bolt Lock(ATM)
31129-32010 Plate, Bolt Lock(ATM)
1983-01 → 1984-08 ended
CT150,ST150 ATM —
30500B — Protector, Transaxle Case
33117-10010 Protector, Transaxle Case
1984-08 → 1986-01 ended
AT150 3FC ¥1,940
33117-10011 Protector, Transaxle Case
1986-01 → 1987-11 ended
AT150 3FC ¥1,940
33117-12020 Protector, Transaxle Case
1983-10 → 1984-08 ended
AT150 3FC ¥1,940
33117-12030 Protector, Transaxle Case
1983-10 → 1987-11 ended
AT150,CT150,ST150 4FC ¥1,940
33117-20010 Protector, Transaxle Case
1985-08 → 1985-12 ended
ST16# 4FC ¥2,210
33117-32020 Protector, Transaxle Case
1983-01 → 1983-10 ended
ST150 3FC ¥2,200
33117-32022 Protector, Transaxle Case
1985-12 → 1987-11 ended
ST16# 4FC ¥2,210
30500C — Bolt(FOR PLATE BOLT LOCK)
90105-08040 Bolt(FOR PLATE BOLT LOCK)
1983-01 → 1984-08 ended
CT150,ST150 ATM ¥180
30500D — Bolt(FOR TRANSAXLE CASE PROTECTOR)
90105-08040 note Bolt(FOR TRANSAXLE CASE PROTECTOR)
1983-01 → 1987-11 ended
AT150,CT150,ST150,16# ATM ¥180
30500E — Bolt(FOR TRANSAXLE & ENGINE SETTING)
90105-08040 note Bolt(FOR TRANSAXLE & ENGINE SETTING)
1984-08 → 1987-11 ended
AT150,CT150,ST150,16# ATM ¥180
90105-08040 note Bolt(FOR TRANSAXLE & ENGINE SETTING)
1983-10 → 1984-08 ended
AT150 ATM ¥180
90105-10055 note Bolt(FOR TRANSAXLE & ENGINE SETTING)
1983-01 → 1984-08 ended
AT150,CT150,ST150 ATM ¥260
90105-10077 note Bolt(FOR TRANSAXLE & ENGINE SETTING)
1984-08 → 1987-11 ended
AT150,CT150,ST150,16# ATM ¥260
90119-12168 note Bolt(FOR TRANSAXLE & ENGINE SETTING)
1984-11 → 1987-11 ended
AT150 ATM ¥170
91619-61245 note Bolt(FOR TRANSAXLE & ENGINE SETTING)
1983-01 → 1987-11 ended
AT150,CT150,ST150,16# ATM ¥120
91619-61255 note Bolt(FOR TRANSAXLE & ENGINE SETTING)
1983-10 → 1984-11 ended
AT150 ATM ¥120
35013 — Tube Sub-assy, Transmission Oil Filler
35013-12140 Tube Sub-assy, Transmission Oil Filler
1983-10 → 1986-09 ended
AT150 3FC ¥1,710
35013-12141 Tube Sub-assy, Transmission Oil Filler
1986-09 → 1987-11 ended
AT150 3FC ¥1,730
35013-20160 Tube Sub-assy, Transmission Oil Filler
1983-01 → 1983-10 ended
ST150 3FC ¥1,570
35013-20160 Tube Sub-assy, Transmission Oil Filler
1985-11 → 1987-11 ended
ST160 5F ¥1,570
35013-20170 Tube Sub-assy, Transmission Oil Filler
1983-10 → 1987-11 ended
ST150 4FC ¥2,300
35013-20190 Tube Sub-assy, Transmission Oil Filler
1983-10 → 1987-11 ended
CT150 4FC ¥2,320
35013-20200 Tube Sub-assy, Transmission Oil Filler
1984-05 → 1987-11 ended
AT150 4FC ¥2,520
35013-20220 Tube Sub-assy, Transmission Oil Filler
1985-08 → 1985-10 ended
ST16# 4FC ¥1,560
35013-20220 Tube Sub-assy, Transmission Oil Filler
1985-10 → 1985-11 ended
ST160 5F ¥1,560
35013-20240 Tube Sub-assy, Transmission Oil Filler
1985-10 → 1987-11 ended
ST162 4FC ¥1,730
35102 — Cover Sub-assy, Transaxle Rear
35102-12020 Cover Sub-assy, Transaxle Rear
1986-12 → 1987-11 ended
AT150 3FC ¥24,300
35102-20020 Cover Sub-assy, Transaxle Rear
1983-01 → 1986-12 ended
AT150,ST150 3FC ¥24,300
35102-20050 Cover Sub-assy, Transaxle Rear
1983-10 → 1987-11 ended
AT150,CT150,ST150 4FC ¥35,100
35102A — Bolt (FOR TRANSAXLE REAR COVER SETTING)
90105-08050 note Bolt (FOR TRANSAXLE REAR COVER SETTING)
1983-01 → 1987-11 ended
AT150,ST150 3FC ¥200
90105-08056 note Bolt (FOR TRANSAXLE REAR COVER SETTING)
1983-01 → 1987-11 ended
AT150,ST150 3FC ¥130
90105-08065 note Bolt (FOR TRANSAXLE REAR COVER SETTING)
1983-01 → 1987-11 ended
AT150,CT150,ST150 4FC ¥180
90105-08068 note Bolt (FOR TRANSAXLE REAR COVER SETTING)
1983-10 → 1987-11 ended
AT150,CT150,ST150 4FC ¥230
35103 — Gage Sub-assy, Transmission Oil Level
35103-12060 Gage Sub-assy, Transmission Oil Level
1983-10 → 1987-11 ended
AT150 3FC ¥1,440
35103-12070 Gage Sub-assy, Transmission Oil Level
1984-05 → 1987-11 ended
AT150 4FC ¥1,440
35103-20110 Gage Sub-assy, Transmission Oil Level
1983-10 → 1987-11 ended
CT150,ST150 4FC ¥1,430
35103-20120 Gage Sub-assy, Transmission Oil Level
1986-09 → 1987-11 ended
ST16# 4FC ¥1,180
35103-32010 Gage Sub-assy, Transmission Oil Level
1983-01 → 1983-10 ended
ST150 3FC ¥1,320
35103-32010 Gage Sub-assy, Transmission Oil Level
1985-08 → 1986-09 ended
ST16# 4FC ¥1,320
35104B — Plug, Breather, NO.1 (ATM)
90930-03084 Plug, Breather, NO.1 (ATM)
1983-10 → 1987-11 ended
AT150,CT150,ST150 4FC ¥450
90930-03089 Plug, Breather, NO.1 (ATM)
1985-08 → 1987-11 ended
ST16# 4FC ¥370
90930-03089 Plug, Breather, NO.1 (ATM)
1983-01 → 1987-11 ended
AT150,ST150 3FC ¥370
35104E — Case Sub-assy, Automatic Transaxle
35104-12060 Case Sub-assy, Automatic Transaxle
1983-10 → 1984-09 ended
AT150 3FC ¥86,300
35104-12061 Case Sub-assy, Automatic Transaxle
1984-09 → 1986-01 ended
AT150 3FC ¥86,300
35104-12062 Case Sub-assy, Automatic Transaxle
1986-01 → 1986-08 ended
AT150 3FC ¥86,200
35104-12063 Case Sub-assy, Automatic Transaxle
1986-08 → 1987-04 ended
AT150 3FC ¥86,500
35104-12161 Case Sub-assy, Automatic Transaxle
1987-04 → 1987-11 ended
AT150 3FC ¥92,100
35104-32010 Case Sub-assy, Automatic Transaxle
1983-01 → 1983-10 ended
ST150 3FC ¥86,300
35104-32031 Case Sub-assy, Automatic Transaxle
1985-08 → 1986-07 ended
ST16# 4FC ¥95,100
35104-32050 Case Sub-assy, Automatic Transaxle
1986-07 → 1987-02 ended
ST16# 4FC ¥86,500
35104-32051 Case Sub-assy, Automatic Transaxle
1987-02 → 1987-11 ended
ST16# 4FC ¥92,500
35104F — Seal, Oil (FOR TRANSAXLE CASE)
90310-35002 Seal, Oil (FOR TRANSAXLE CASE)
1983-10 → 1987-10 ended
CT150,ST150 4FC ¥190
90311-34005 Seal, Oil (FOR TRANSAXLE CASE)
1983-10 → 1987-11 ended
AT150 3FC ¥270
90311-34010 Seal, Oil (FOR TRANSAXLE CASE)
1984-04 → 1987-10 ended
AT150 4FC ¥660
90311-34013 Seal, Oil (FOR TRANSAXLE CASE)
1987-10 → 1987-11 ended
AT150 4FC ¥660
90311-35010 Seal, Oil (FOR TRANSAXLE CASE)
1983-01 → 1983-10 ended
ST150 3FC ¥350
90311-35010 Seal, Oil (FOR TRANSAXLE CASE)
1985-08 → 1987-09 ended
ST16# 4FC ¥350
90311-35019 Seal, Oil (FOR TRANSAXLE CASE)
1987-09 → 1987-11 ended
ST16# 4FC ¥400
90311-35020 Seal, Oil (FOR TRANSAXLE CASE)
1987-10 → 1987-11 ended
CT150,ST150 4FC ¥190
35104Q — Plug, NO.1 (FOR TRANSAXLE CASE)
90341-08001 Plug, NO.1 (FOR TRANSAXLE CASE)
1983-01 → 1987-11 ended
AT150,CT150,ST150,16# ATM ¥120
35104S — Ring, O (FOR TRANSAXLE CASE PLUG NO.1)
90301-06196 Ring, O (FOR TRANSAXLE CASE PLUG NO.1)
1983-01 → 1987-11 ended
AT150,CT150,ST150,16# ATM ¥170
35104U — Bolt (FOR TRANSAXLE CASE)
90105-10008 note Bolt (FOR TRANSAXLE CASE)
1983-10 → 1987-11 ended
AT150 3FC ¥370
90105-12052 note Bolt (FOR TRANSAXLE CASE)
1983-01 → 1983-10 ended
ST150 3FC ¥370
90105-12052 note Bolt (FOR TRANSAXLE CASE)
1985-08 → 1987-11 ended
ST16# 4FC ¥370
35106A — Plug Sub-assy, Drain (ATM)
90341-10006 Plug Sub-assy, Drain (ATM)
1983-10 → 1987-11 ended
AT150,CT150,ST150 4FC ¥210
90341-18016 Plug Sub-assy, Drain (ATM)
1983-01 → 1987-11 ended
AT150,ST150 3FC ¥190
90341-18016 Plug Sub-assy, Drain (ATM)
1985-08 → 1987-11 ended
ST16# 4FC ¥190
35106B — Gasket, Drain Plug (ATM)
12157-10010 Gasket, Drain Plug (ATM)
1983-01 → 1983-05 ended
ST150 3FC ¥100
35178-30010 Gasket, Drain Plug (ATM)
1983-10 → 1987-11 ended
AT150,CT150,ST150 4FC ¥190
90430-18007 Gasket, Drain Plug (ATM)
1983-05 → 1984-08 ended
AT150,ST150 3FC ¥210
90430-18008 Gasket, Drain Plug (ATM)
1984-08 → 1987-11 ended
AT150 3FC ¥110
90430-18008 Gasket, Drain Plug (ATM)
1985-08 → 1987-11 ended
ST16# 4FC ¥110
35106D — Pan Sub-assy, Automatic Transaxle Oil
35106-10020 Pan Sub-assy, Automatic Transaxle Oil
1984-09 → 1986-02 ended
AT150 3FC ¥8,500
35106-10020 Pan Sub-assy, Automatic Transaxle Oil
1985-08 → 1986-02 ended
ST16# 4FC ¥8,500
35106-10021 Pan Sub-assy, Automatic Transaxle Oil
1986-02 → 1987-11 ended
ST16# 4FC ¥8,600
35106-10021 Pan Sub-assy, Automatic Transaxle Oil
1986-02 → 1987-11 ended
AT150 3FC ¥8,600
35106-12050 Pan Sub-assy, Automatic Transaxle Oil
1983-10 → 1987-11 ended
AT150,CT150,ST150 4FC ¥8,700
35106-32010 Pan Sub-assy, Automatic Transaxle Oil
1983-01 → 1983-05 ended
ST150 3FC ¥5,400
35106-32020 note Pan Sub-assy, Automatic Transaxle Oil
1983-01 → 1983-05 ended
ST150 3FC ¥7,900
35106-32020 Pan Sub-assy, Automatic Transaxle Oil
1983-05 → 1984-09 ended
AT150,ST150 3FC ¥7,900
35106E — Bolt (FOR TRANSAXLE OIL PAN)
90119-06173 Bolt (FOR TRANSAXLE OIL PAN)
1983-01 → 1987-11 ended
AT150,CT150,ST150,16# ATM ¥80
35119 — Plate, Stifener, LH (ATM)
33119-20070 Plate, Stifener, LH (ATM)
1985-08 → 1986-09 ended
ST162 4FC ¥3,240
33119-32010 Plate, Stifener, LH (ATM)
1983-01 → 1987-11 ended
ST150,160 ATM ¥1,190
33119-32030 Plate, Stifener, LH (ATM)
1986-09 → 1987-11 ended
ST162 4FC ¥4,100
35144A — Gasket, Transaxle Rear Cover
34112-32010 Gasket, Transaxle Rear Cover
1983-01 → 1987-11 ended
AT150,ST150 3FC ¥860
35148 — Gasket, Governor Apply, NO.1
35148-16010 Gasket, Governor Apply, NO.1
1983-01 → 1987-11 ended
AT150,CT150,ST150,16# ATM ¥740
35159 — Gasket, Brake Drum
35159-20010 Gasket, Brake Drum
1985-10 → 1987-11 ended
AT150,CT150,ST150 4FC ¥670
35159-32010 Gasket, Brake Drum
1983-01 → 1985-10 ended
AT150,CT150,ST150,16# ATM ¥680
35159-32011 Gasket, Brake Drum
1985-10 → 1987-11 ended
ST16# 4FC ¥840
35159-32011 Gasket, Brake Drum
1985-10 → 1987-11 ended
AT150 3FC ¥840
35168A — Gasket, Automatic Transaxle Oil Pan
35168-12020 Gasket, Automatic Transaxle Oil Pan
1983-10 → 1987-11 ended
AT150,CT150,ST150 4FC ¥780
35168-32010 Gasket, Automatic Transaxle Oil Pan
1983-01 → 1987-11 ended
AT150,ST150 3FC ¥790
35168-32010 Gasket, Automatic Transaxle Oil Pan
1985-08 → 1987-11 ended
ST16# 4FC ¥790
35173 — Cap, Transaxle Case NO.1
35173-20010 Cap, Transaxle Case NO.1
1983-01 → 1983-10 ended
ST150 3FC ¥810
35173A — Ring, O (FOR TRANSAXLE CASE CAP NO.1)
96721-19017 Ring, O (FOR TRANSAXLE CASE CAP NO.1)
1983-01 → 1983-10 ended
ST150 3FC ¥160
35175 — Cap, Transaxle Case, NO.2
35175-32010 Cap, Transaxle Case, NO.2
1985-08 → 1987-11 ended
ST16# 4FC ¥1,070
35175-32010 Cap, Transaxle Case, NO.2
1983-01 → 1987-11 ended
AT150,ST150 3FC ¥1,070
35175A — Ring, O (FOR TRANSAXLE CASE CAP)
90301-21002 Ring, O (FOR TRANSAXLE CASE CAP)
1983-01 → 1987-11 ended
AT150,ST150 3FC ¥270
90301-21002 Ring, O (FOR TRANSAXLE CASE CAP)
1985-08 → 1987-11 ended
ST16# 4FC ¥270
35176 — Cap, Wire Harness
35176-32010 Cap, Wire Harness
1983-01 → 1983-10 ended
ST150 3FC ¥1,070
35176-32010 Cap, Wire Harness
1985-08 → 1987-11 ended
ST160 4FC ¥1,070
35176A — Ring, O (FOR WIRE HARNESS CAP)
96721-24013 Ring, O (FOR WIRE HARNESS CAP)
1983-01 → 1983-10 ended
ST150 3FC ¥160
96721-24013 Ring, O (FOR WIRE HARNESS CAP)
1985-08 → 1987-11 ended
ST160 4FC ¥160
35336 — Ring, O (FOR TRANSMISSION OIL FILLER TUBE)
90301-09173 Ring, O (FOR TRANSMISSION OIL FILLER TUBE)
1983-01 → 1987-11 ended
AT150,CT150,ST150,16# ATM ¥140
35394 — Magnet, Oil Cleaner (FOR TRANSMISSION)
35394-30011 Magnet, Oil Cleaner (FOR TRANSMISSION)
1983-01 → 1987-11 ended
AT150,CT150,ST150,16# ATM ¥360
35395A — Strainer, Governor Oil
35395-20010 Strainer, Governor Oil
1983-10 → 1987-11 ended
AT150,CT150,ST150 4FC ¥380
35395-32010 Strainer, Governor Oil
1983-01 → 1985-11 ended
AT150,ST150 3FC ¥390
35395-32010 Strainer, Governor Oil
1985-08 → 1985-11 ended
ST160 4FC ¥390
35395-32011 Strainer, Governor Oil
1985-11 → 1987-11 ended
ST160 4FC ¥380
35395-32011 Strainer, Governor Oil
1985-11 → 1987-11 ended
AT150 3FC ¥380
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
