Toyota Corona

1983-01 → 1987-11 · chassis AT150,ST150,16#,CT150 · catalogue 271110 · Japan

Discontinued model Data version 1988-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Carburetor Assembly

9 part groups · 2 illustrations

Illustrations

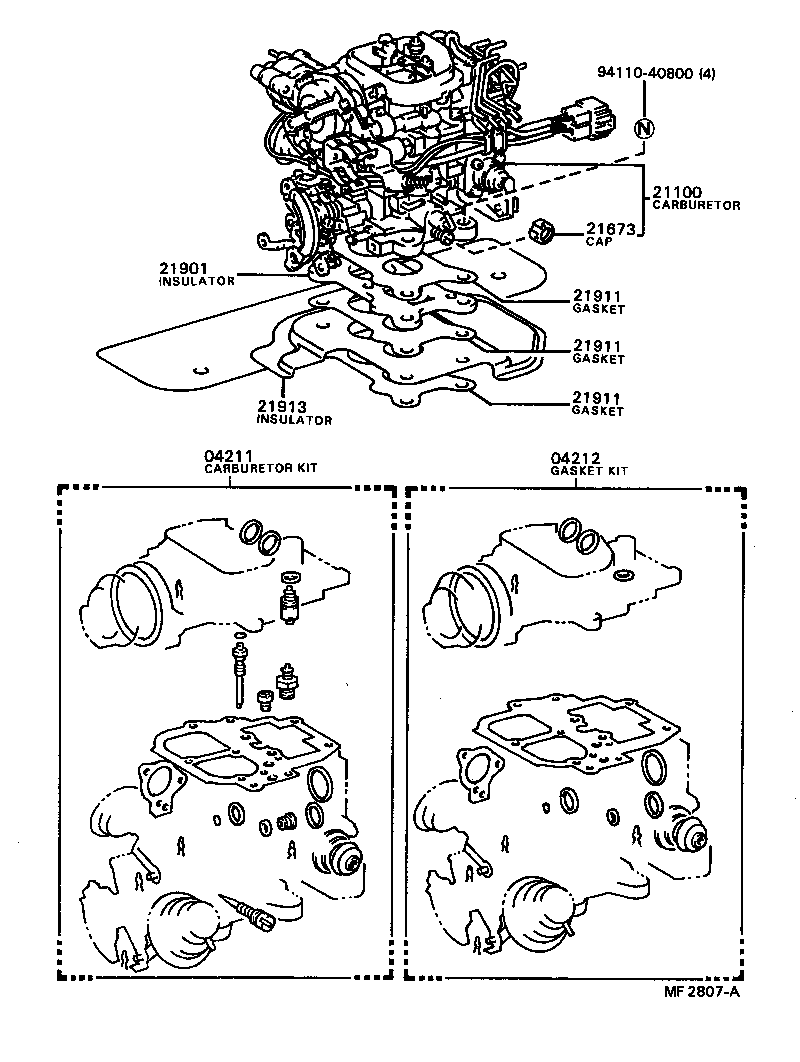

Figure MF3091C MF3091C 1983-01 → — Figure MF2807A MF2807A 1983-01 → 1983-10

Part groups

PNCDescription
04211 Carburetor Kit
04212 Gasket Kit, Carburetor
21100 Carburetor Assy
21673 Cap, Idle Limit
21901 Insulator Sub-assy, Carburetor Heat, NO.1
21909 Insulator Sub-assy, Carburetor Heat, NO.3
21911 Gasket, Carburetor
21913 Insulator, Carburetor Heat, NO.2
21916 Gasket, Carburetor, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
