Toyota Corona

1983-01 → 1987-11 · chassis AT150,ST150,16#,CT150 · catalogue 271110 · Japan

Discontinued model Data version 1988-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

25 part groups · 10 illustrations

Illustrations

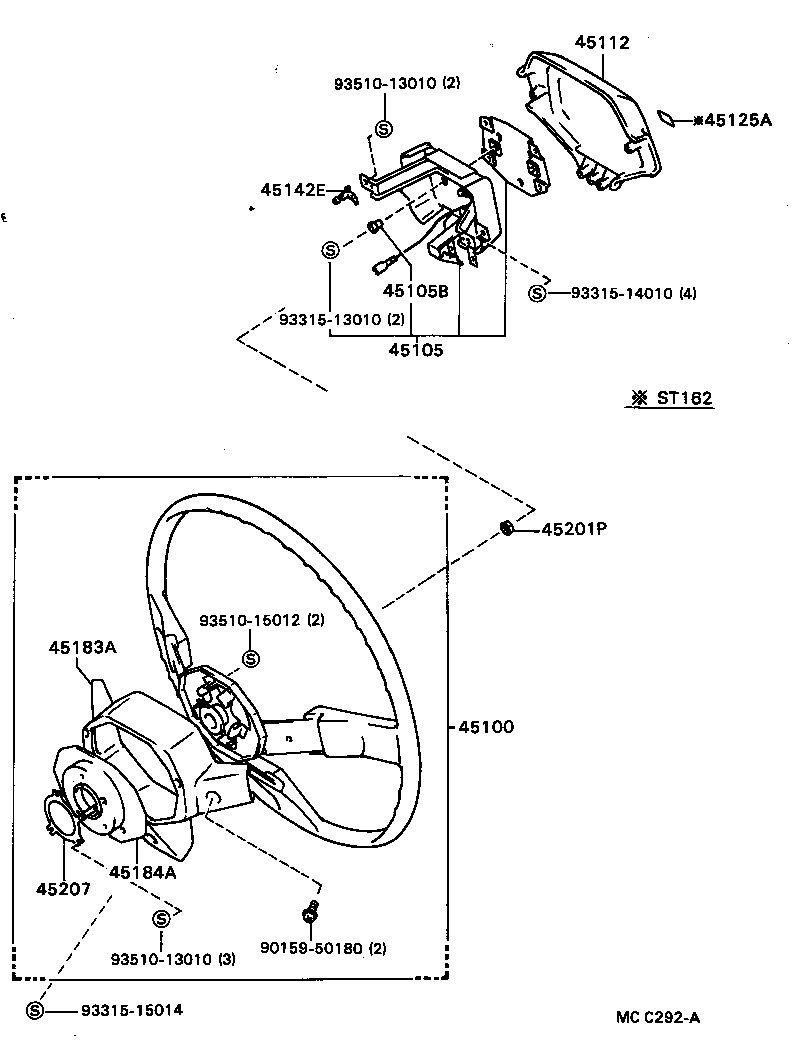

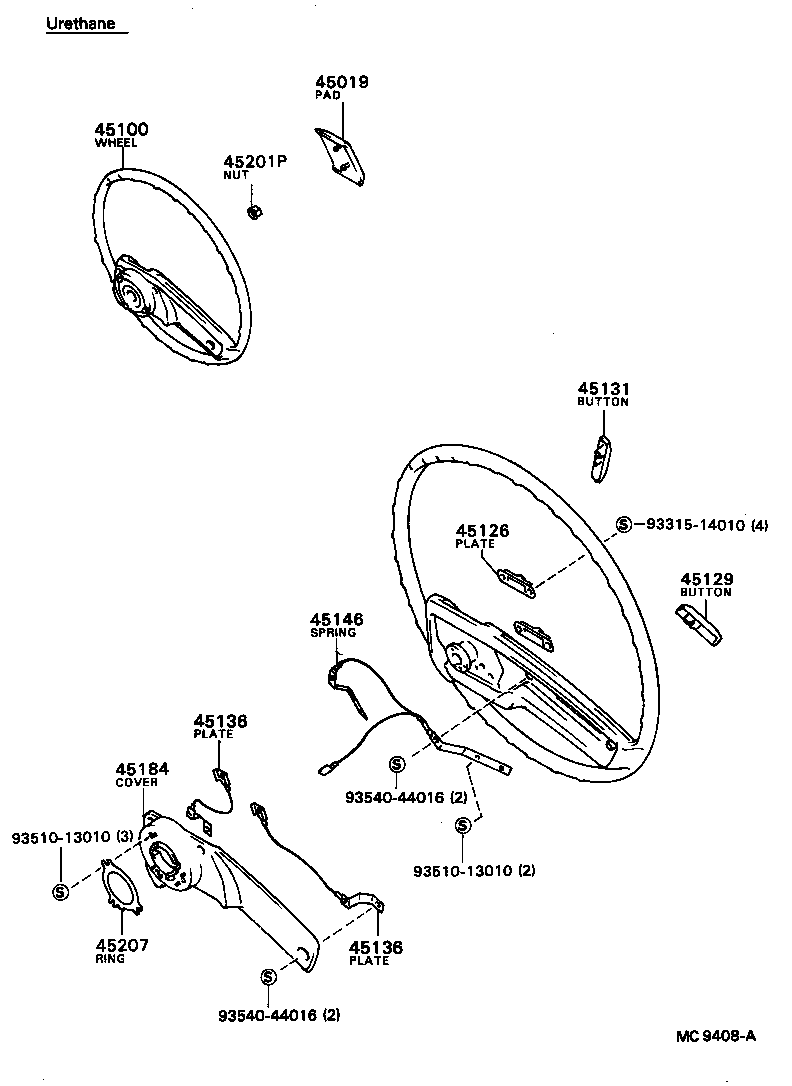

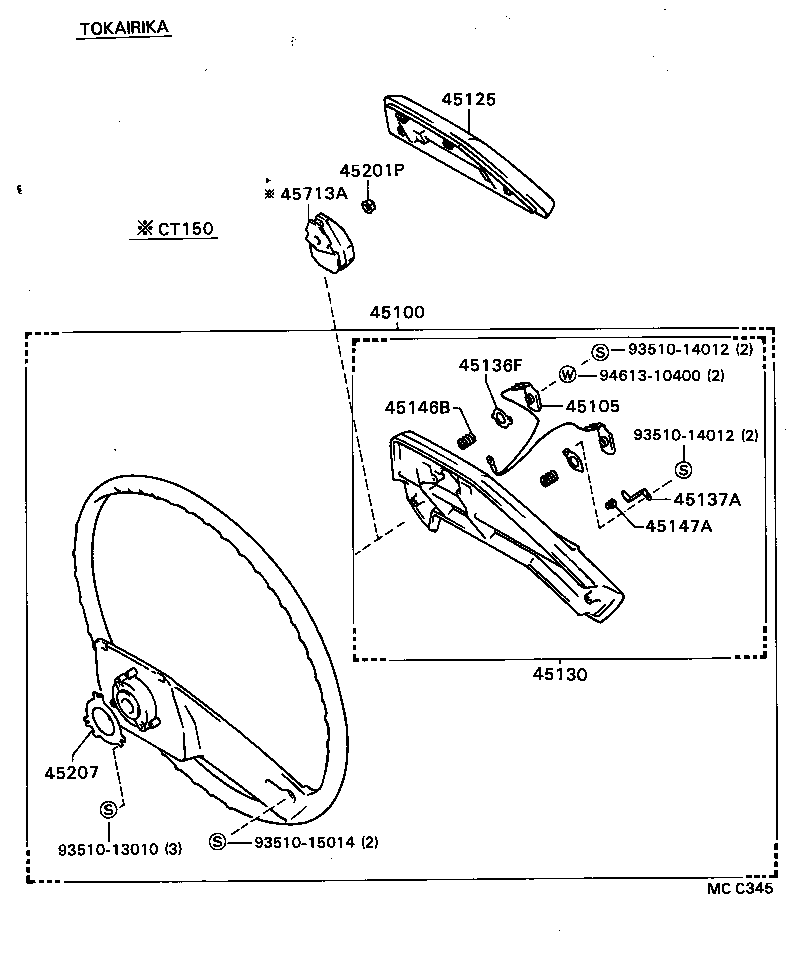

Figure MC9407A MC9407A 1983-01 → 1983-10 Figure MC9408A MC9408A 1983-01 → 1983-10 Figure MCA476 MCA476 1983-10 → 1985-08 Figure MCA477B MCA477B 1983-10 → 1985-08 Figure MCA478 MCA478 1983-10 → 1985-08 Figure MCA478 MCA478 1984-09 → 1985-04 Figure MCC344A MCC344A 1985-08 → — Figure MCC345 MCC345 1985-08 → — Figure MCC346B MCC346B 1985-08 → — Figure MCC292A MCC292A 1985-08 → —

Part groups

PNCDescription
45019 Pad Sub-assy, Steering Wheel
45100 Wheel Assy, Steering
45105 Plate Sub-assy, Horn Button Contact, NO.1
45105B Spacer(FOR HORN BUTTON CONTACT PLATE)
45112 Pad, Steering Wheel
45125 Mark, Steering Wheel Pad
45125A Mark, Horn
45126 Plate, Steering Wheel Pad Set
45129 Button, Horn, NO.2
45130 Button Assy, Horn
45131 Button, Horn, NO.1
45136 Plate, Horn Button Contact
45136A Cord(FOR HORN CONTACT RING)
45136F Plate, Horn Button Contact, NO.1
45137A Plate, Horn Button Contact, NO.2
45142E Piece, Horn Contact
45146 Spring, Horn Button Contact
45146B Spring, Horn Button Contact, NO.1
45147A Spring, Horn Button Contact, NO.2
45183A Cover, Steering Wheel Boss, Lower NO.1
45184 Cover, Steering Wheel Boss, Lower
45184A Cover, Steering Wheel Boss, Lower NO.2
45201P Nut, Steering Wheel Set
45207 Ring, Horn Contact
45713A Damper, Steering Shake
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
