Toyota Corona

1983-01 → 1987-11 · chassis AT150,ST150,16#,CT150 · catalogue 271110 · Japan

Discontinued model Data version 1988-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

15 part groups · 2 illustrations

Illustrations

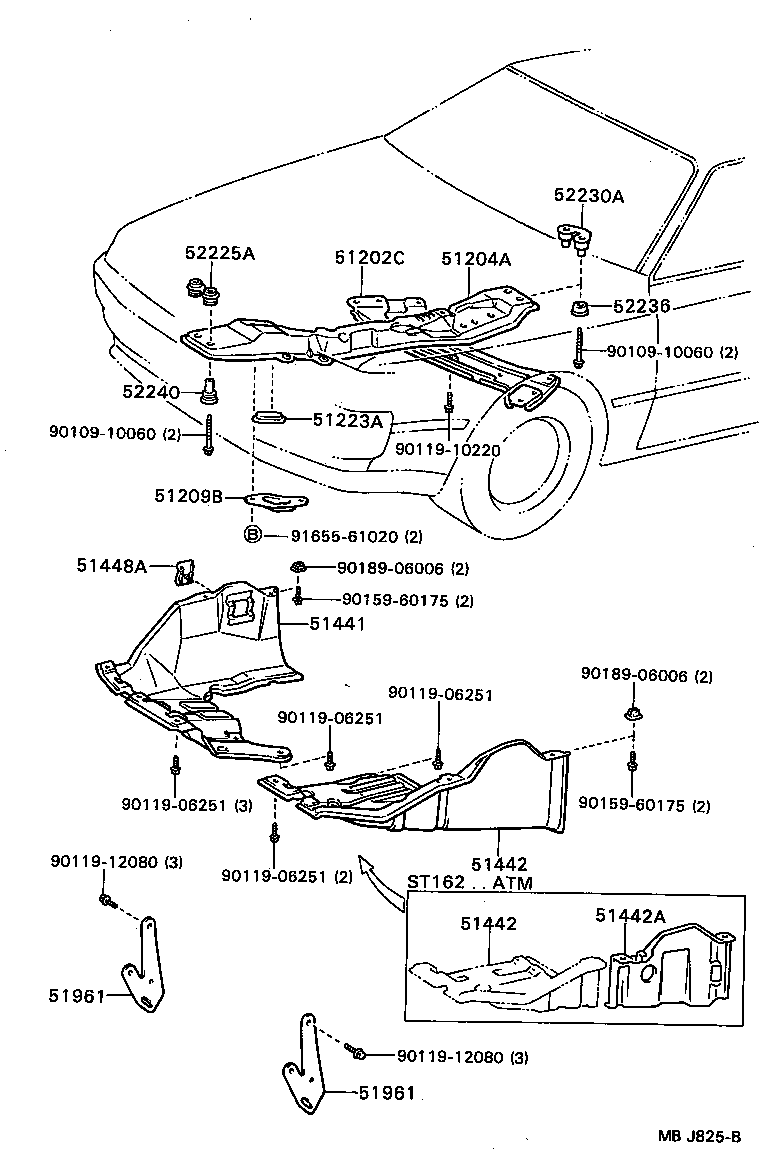

Figure MBE850D MBE850D 1983-01 → — Figure MBJ825B MBJ825B 1985-08 → —

Part groups

PNCDescription
51202C Crossmember Sub-assy, Front Suspension, Lower
51204A Member Sub-assy, Engine Mounting, Center
51209B Protector Sub-assy, Center Member, Front
51223A Cover, Engine Mounting Hole
51441 Cover, Engine Under, NO.1
51442 Cover, Engine Under, NO.2
51442A Cover, Engine Under, Front NO.3
51447 Guide, Engine Under Cover Air
51448A Cover, Engine Side Under, RH
51961 Hook, NO.1
51962 Hook, NO.2
52225A Cushion, Center Member Mounting, Front Upper
52230A Cushion Assy, Center Member Mounting, Rear Upper
52236 Cushion, Center Member Mounting, Rear Lower
52240 Cushion Assy, Center Member Mounting, Front Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
