Toyota Corona

1983-01 → 1987-11 · chassis AT150,ST150,16#,CT150 · catalogue 271110 · Japan

Discontinued model Data version 1988-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

25 part groups · 9 illustrations

Illustrations

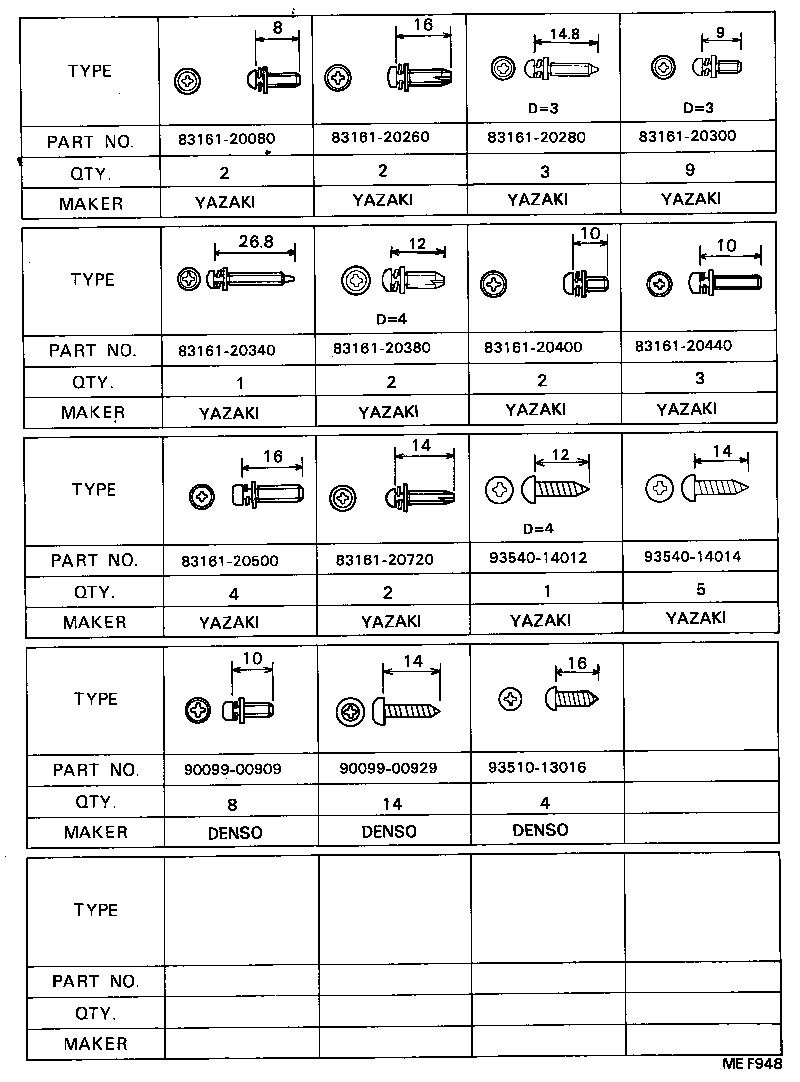

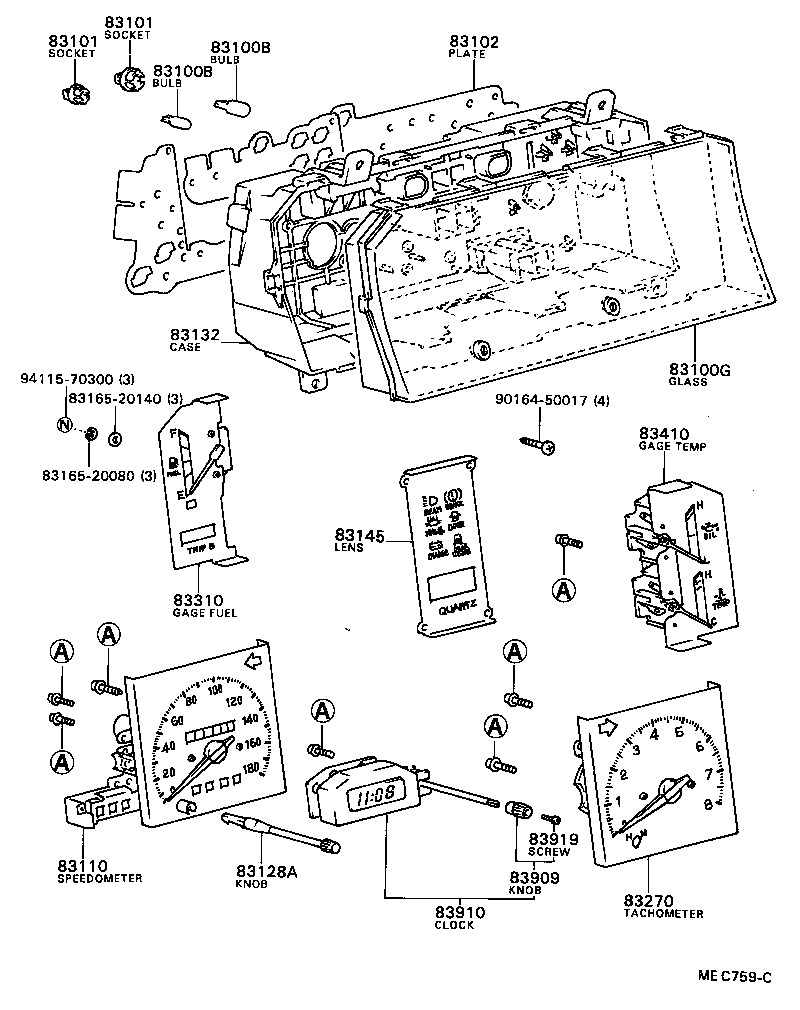

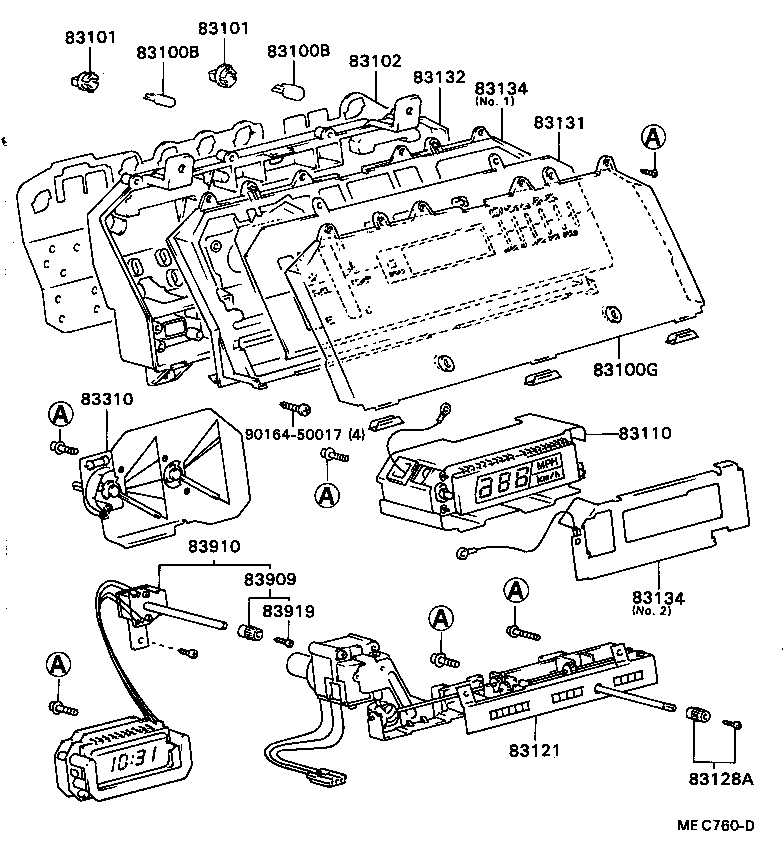

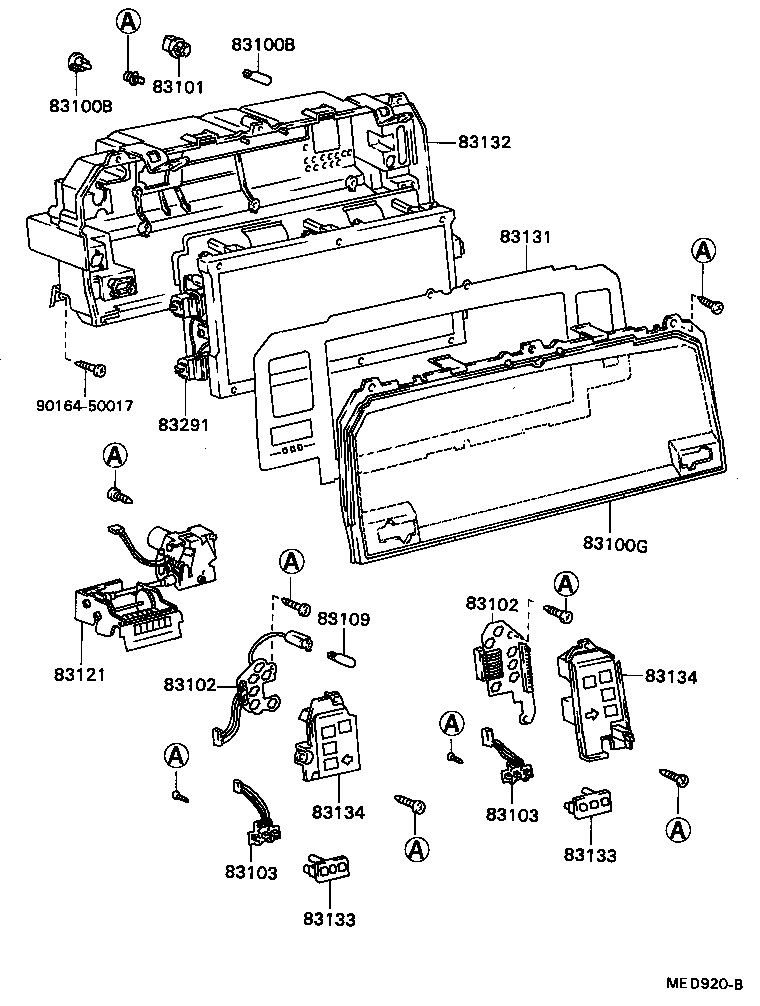

Figure MEC758C MEC758C 1983-01 → — Figure MEC759C MEC759C 1983-01 → — Figure MEC759C MEC759C 1985-04 → 1985-08 Figure MEC759C MEC759C 1985-08 → — Figure MEC759C MEC759C 1985-12 → — Figure MEC760D MEC760D 1983-01 → 1983-10 Figure MED920B MED920B 1983-10 → — Figure MEF948 MEF948 1983-01 → — Figure MEC761B MEC761B 1983-01 → —

Part groups

PNCDescription
83100B Bulb, Combination Meter, NO.1
83100G Glass, Combination Meter
83101 Socket Sub-assy, Combination Meter Bulb
83102 Plate Sub-assy, Combination Meter Circuit, NO.1
83103 Plate Sub-assy, Combination Meter Circuit, NO.2
83109 Bulb, Combination Meter, NO.2
83110 Speedometer Assy
83121 Counter, Total
83128A Knob, Meter
83131 Dial, Meter, NO.1
83132 Case, Combination Meter
83133 Plate, Combination Meter, NO.1
83134 Cover, Combination Meter, NO.1
83145 Lens, Meter, NO.1
83180 Detector Assy, Revolution
83189 Bracket, Meter
83270 Tachometer Assy, Engine
83291 Computer, Combination Meter
83310 Gage Assy, Fuel Receiver
83410 Gage Assy, Water Temperature Receiver
83710 Cable Assy, Speedometer Drive, NO.1
83710A Cable Assy, Speedometer Drive, NO.2
83909 Knob, Clock
83910 Clock Assy
83919 Screw, Clock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
