Toyota Corona

1983-01 → 1987-11 · chassis AT150,ST150,16#,CT150 · catalogue 271110 · Japan

Discontinued model Data version 1988-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Set

5 part groups · 3 illustrations

Illustrations

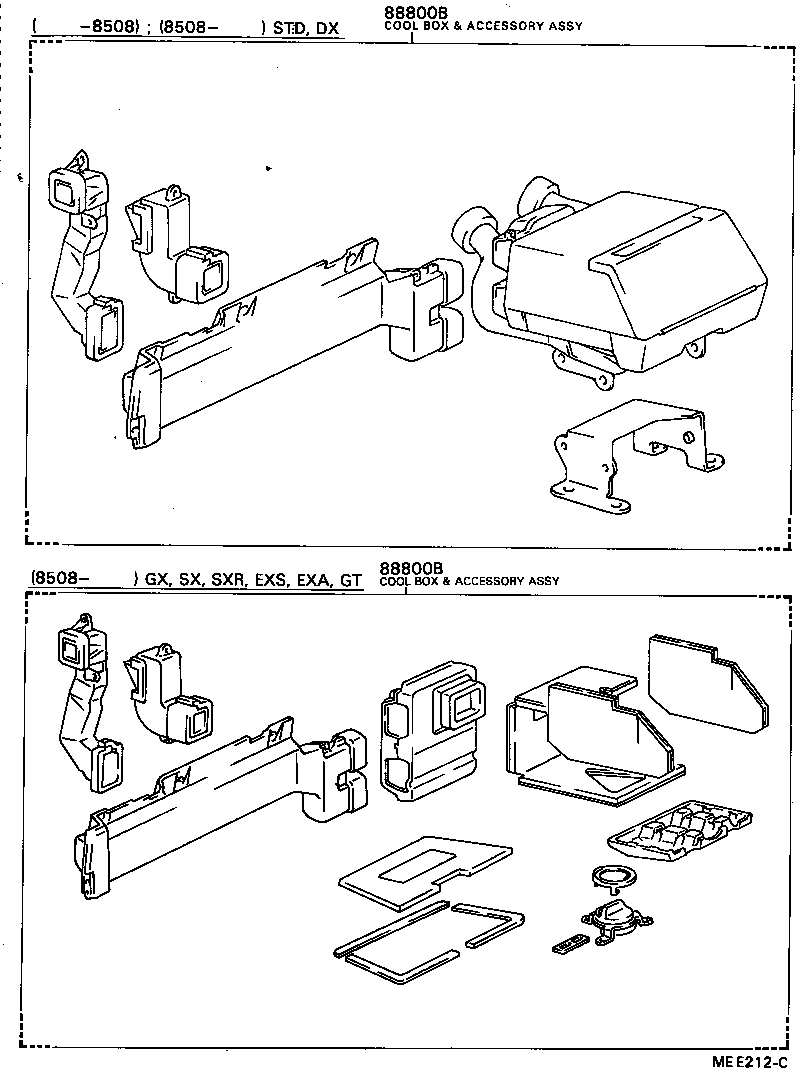

Figure MEC778D MEC778D 1983-01 → 1983-10 Figure MEE211B MEE211B 1983-10 → — Figure MEE212C MEE212C 1983-01 → —

Part groups

PNCDescription
88300 Cooler & Accessory Assy
88800B Cool Box And Accessory Assy, NO.1
88820 Air Conditioner & Accessory Sub-assy, NO.1
88820A Air Conditioner & Accessory Sub-assy, NO.2
88860 Accessory Assy, Automatic Air Conditioner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
