Toyota Corona

1983-01 → 1987-11 · chassis AT150,ST150,16#,CT150 · catalogue 271110 · Japan

Discontinued model Data version 1988-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Heater Unit & Blower

13 part groups · 2 illustrations

Illustrations

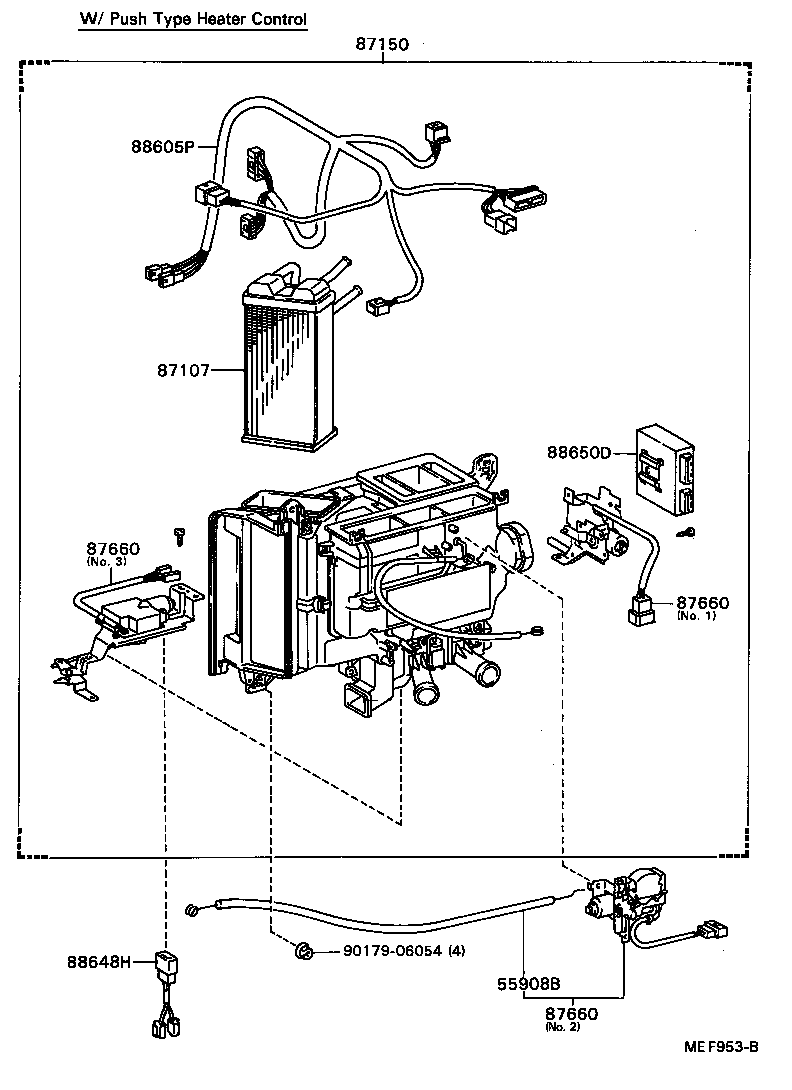

Figure MEC779G MEC779G 1983-01 → — Figure MEF953B MEF953B 1985-08 → —

Part groups

PNCDescription
55908B Cable Sub-assy, Air Inlet Damper Control
87104 Motor Sub-assy, Heater Blower
87105 Fan Sub-assy, Heater Blower
87107 Unit Sub-assy, Heater Radiator
87130 Blower Assy, Heater, Front
87130C Relay, Heater Blower Motor
87138 Resistor, Heater Blower
87150 Radiator Assy, Heater
87660 Servo Assy, Air Conditioner
88585A Shaft, Heater Air Damper
88605P Harness Sub-assy, Air Conditioner Wiring
88648H Wire, Air Conditioner
88650D Amplifier Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
