Toyota Corona
1983-01 → 1987-11 · chassis AT150,ST150,16#,CT150 · catalogue 271110 · Japan
Discontinued model
Data version 1988-05

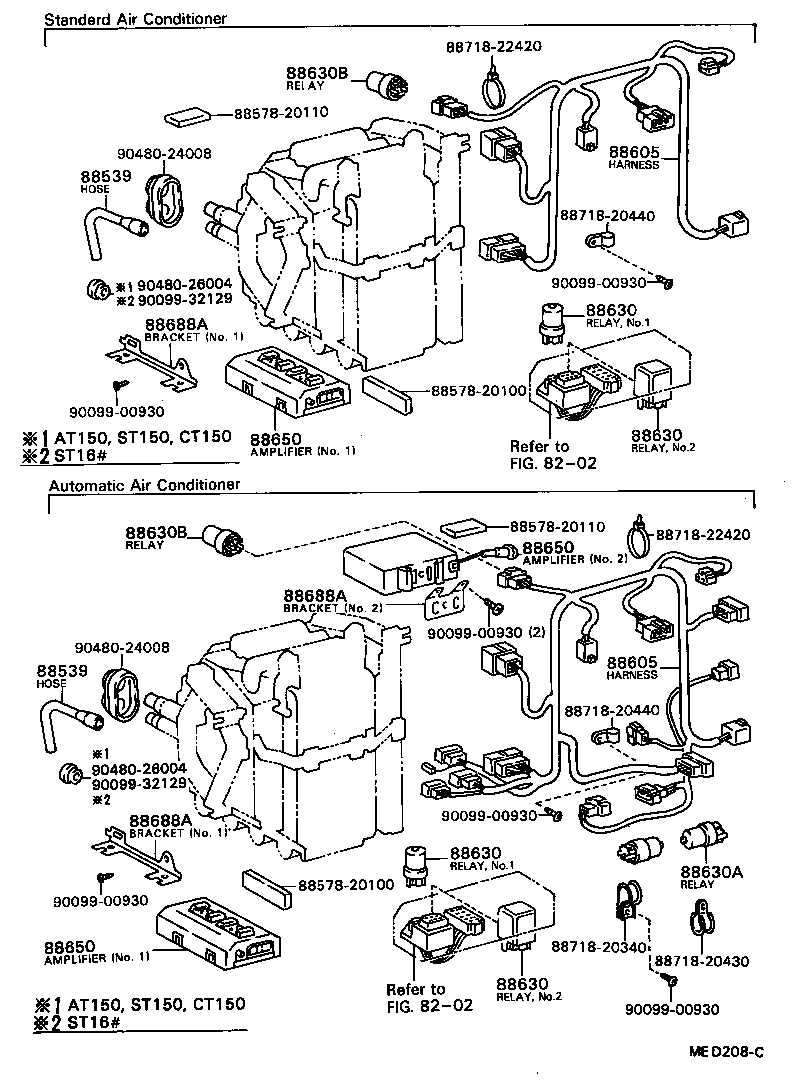

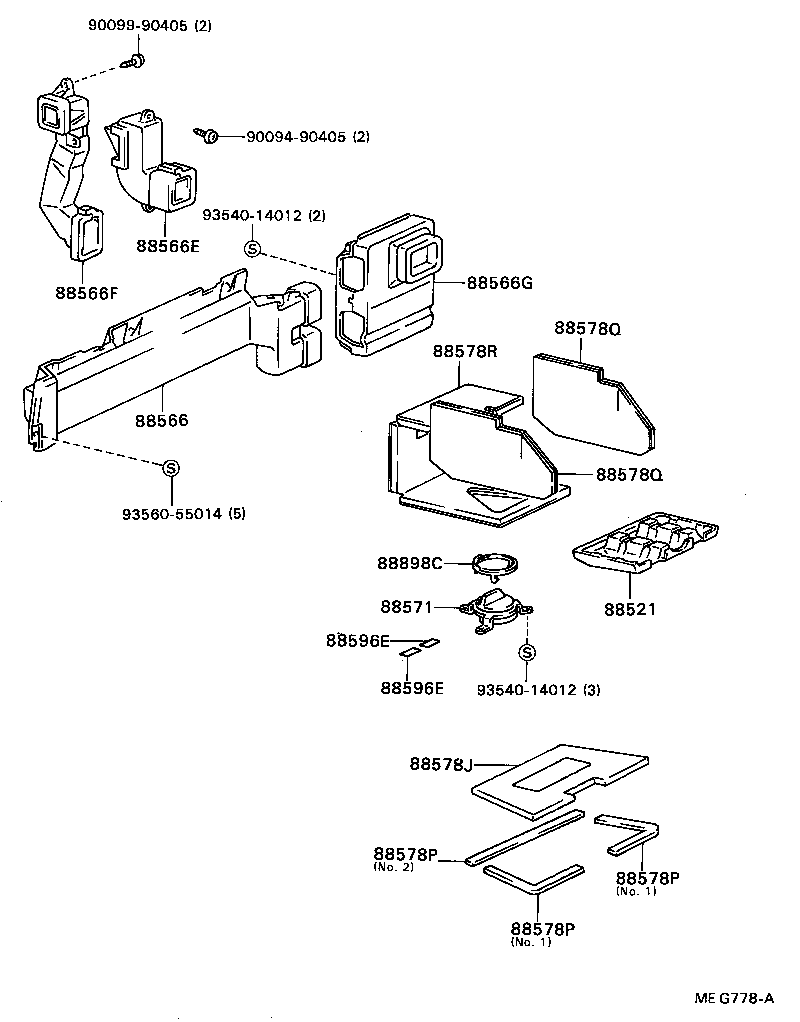

Heating & Air Conditioning - Cooler Unit
27 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 88501 | Evaporator Sub-assy, Cooler, NO.1 |
| 88510 | Unit Assy, Cooler |
| 88515 | Valve, Cooler Expansion |
| 88520 | Box Assy, Cooling |
| 88521 | Case, Cooler Unit |
| 88539 | Hose, Cooler Unit Drain, NO.1 |
| 88566 | Duct, Cooler Air, NO.1 |
| 88566E | Duct, Cooler Air, NO.2 |
| 88566F | Duct, Cooler Air, NO.3 |
| 88566G | Duct, Cooler Air, NO.4 |
| 88571 | Grille, Air Outlet |
| 88578J | Packing, Cool Box, NO.1 |
| 88578P | Packing, Cool Box, NO.2 |
| 88578Q | Packing, Cool Box, NO.3 |
| 88578R | Packing, Cool Box, NO.4 |
| 88596E | Plate, Caution |
| 88605 | Harness Sub-assy, Cooler Wiring, NO.1 |
| 88625 | Thermistor, Cooler, NO.1 |
| 88630 | Relay Assy, Cooler |
| 88630A | Relay Assy, Cooler |
| 88630B | Relay Assy, Cooler |
| 88645G | Switch, Pressure |
| 88650 | Amplifier Assy, Cooler Stabilizer |
| 88688A | Bracket, Cooler Stabilizer Amplifier |
| 88688T | Bracket (FOR COOL BOX) |
| 88716F | Pipe, Cooler Refrigerant Liquid, F |
| 88898C | Ring, Cool Box |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
