Toyota Corona

1983-01 → 1987-11 · chassis AT150,ST150,16#,CT150 · catalogue 271110 · Japan

Discontinued model Data version 1988-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Vacuum Piping

10 part groups · 8 illustrations

Illustrations

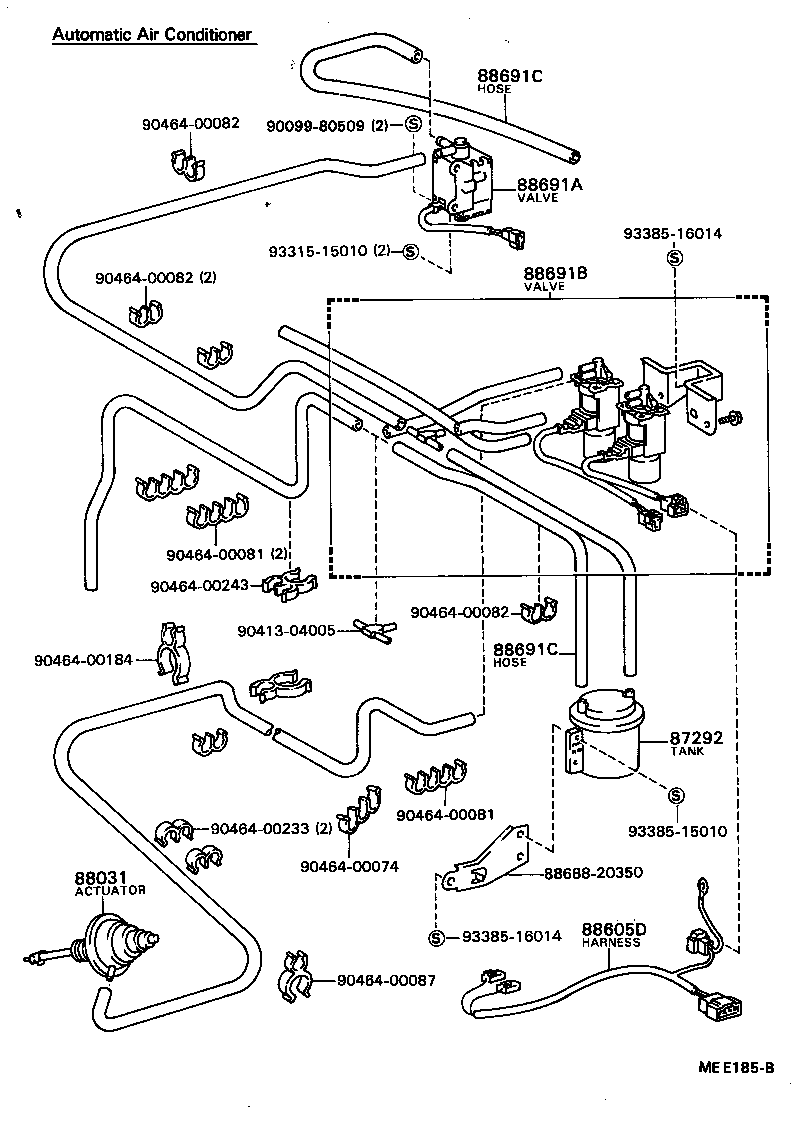

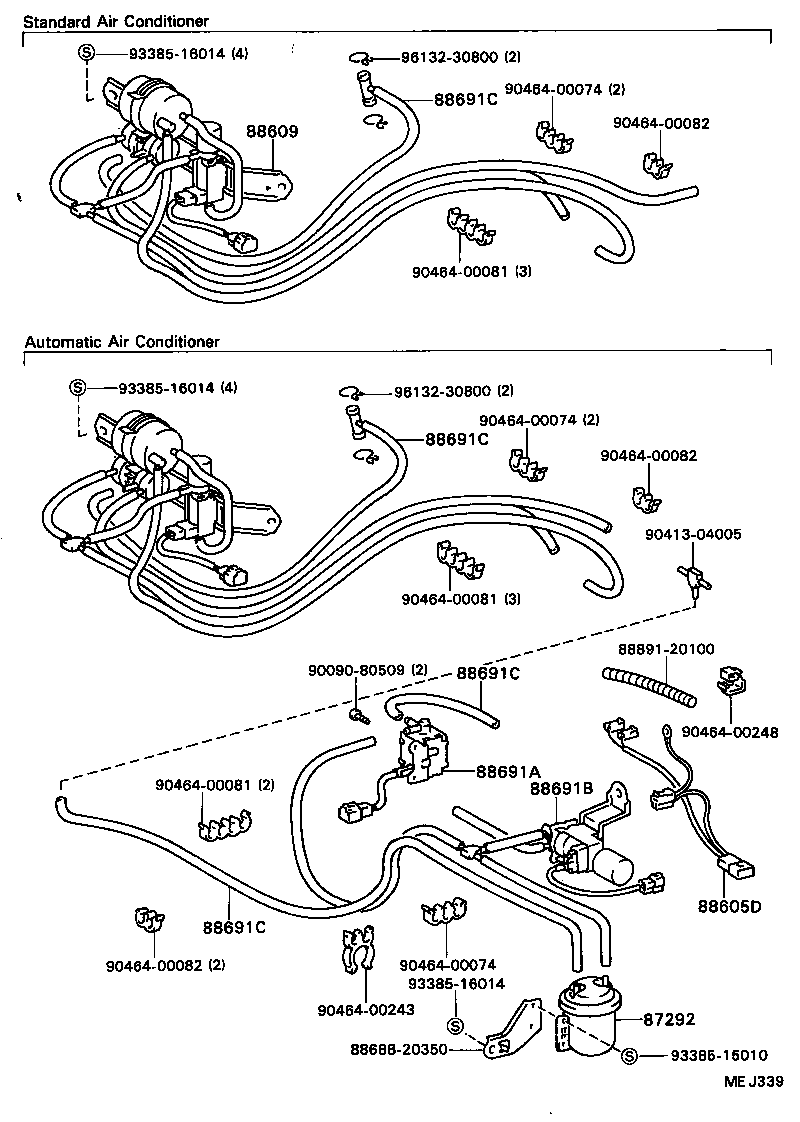

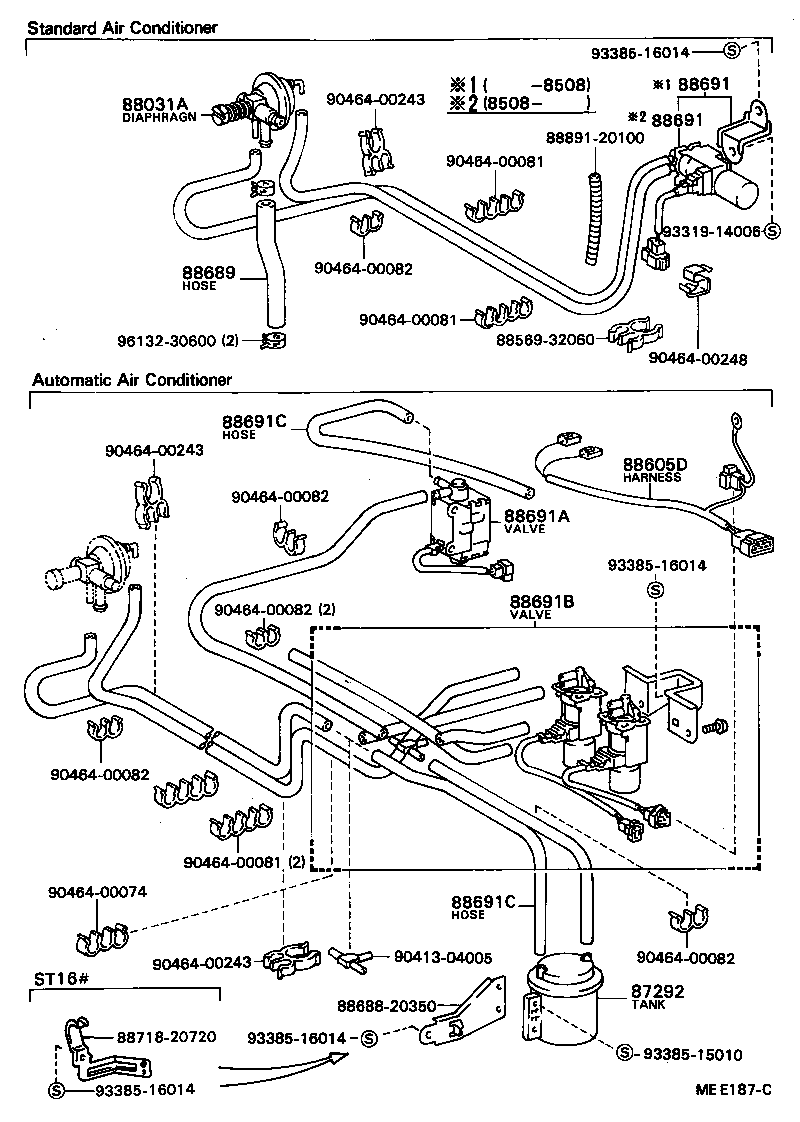

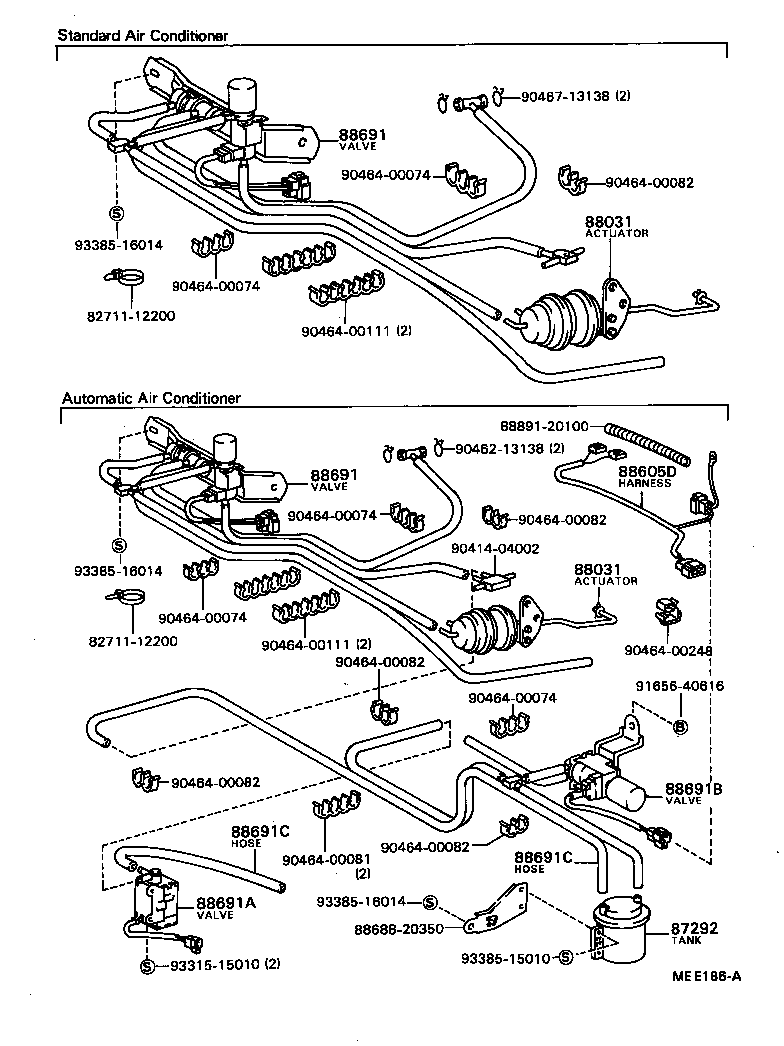

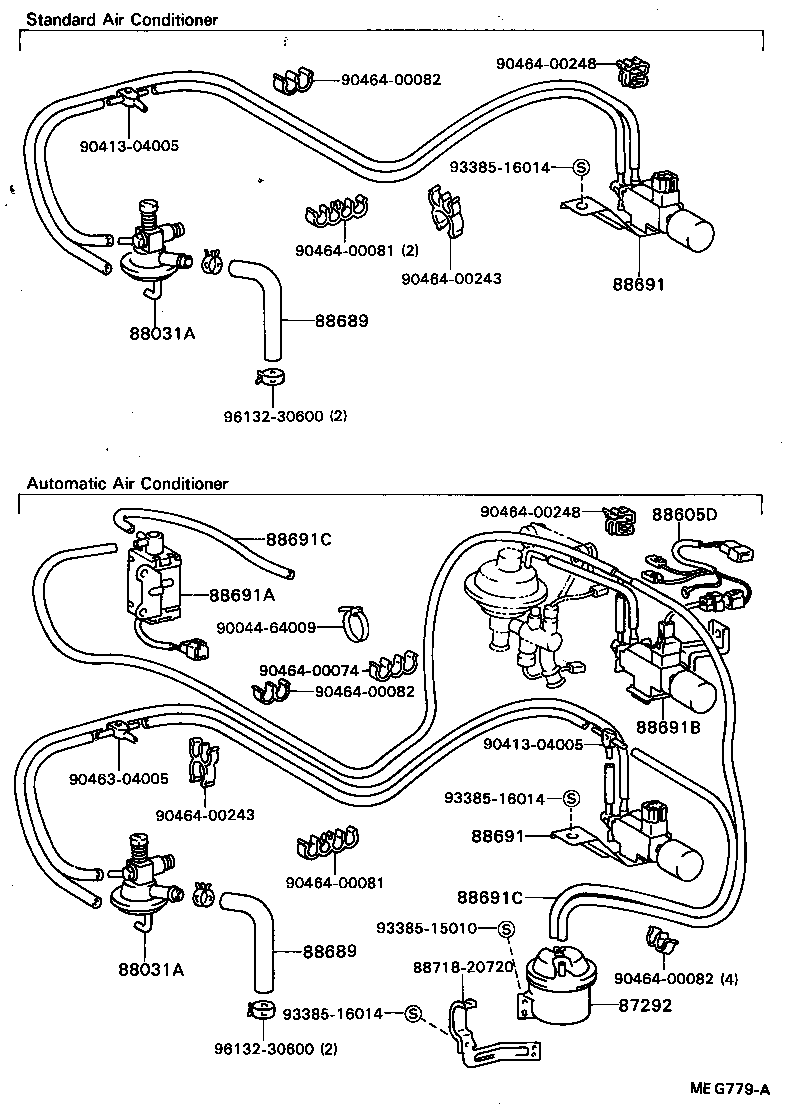

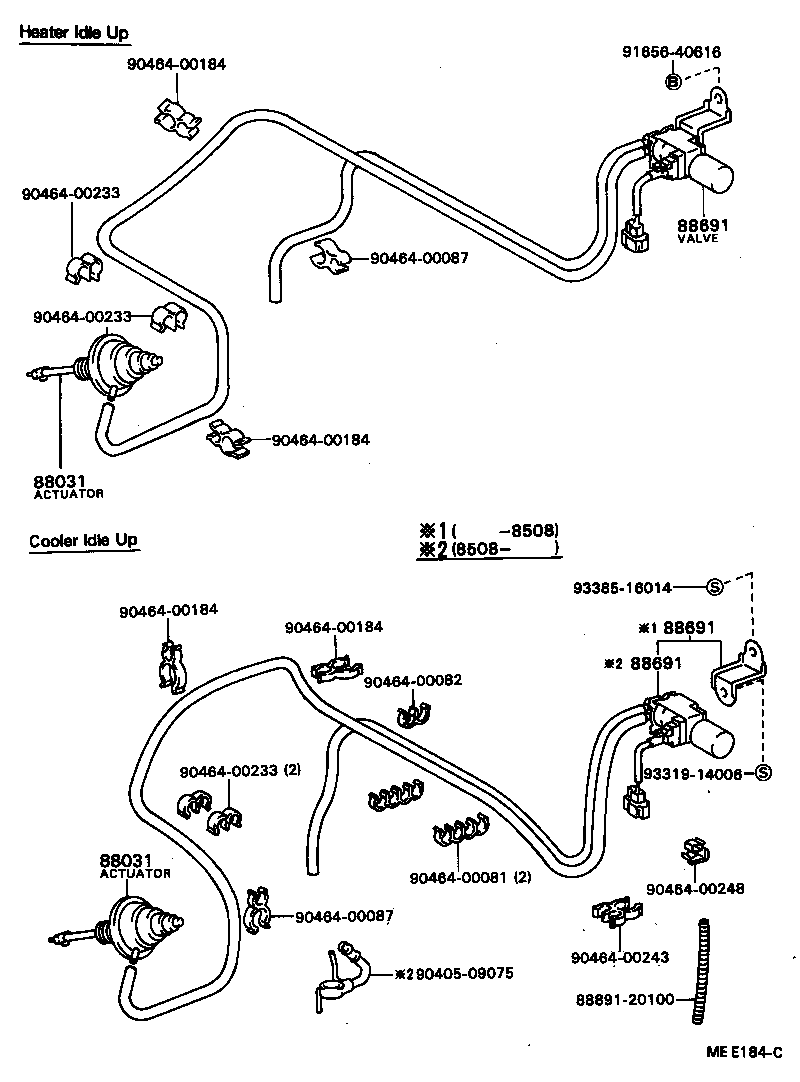

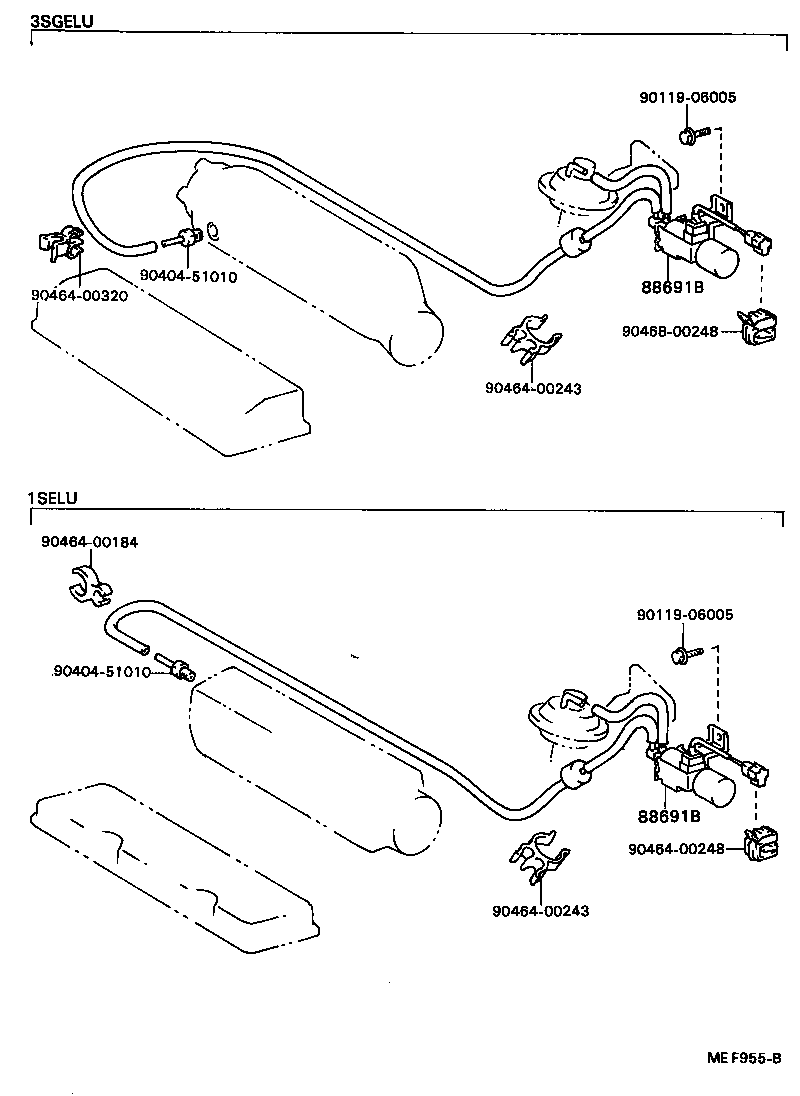

Figure MED210A MED210A 1983-01 → 1983-10 Figure MEE187C MEE187C 1983-10 → — Figure MEG779A MEG779A 1985-08 → — Figure MEE184C MEE184C 1983-10 → — Figure MEE185B MEE185B 1983-10 → — Figure MEE186A MEE186A 1983-10 → 1985-08 Figure MEJ339 MEJ339 1985-08 → — Figure MEF955B MEF955B 1985-08 → —

Part groups

PNCDescription
87292 Tank, Vacuum
88031 Actuator Set, Idle-up
88031A Diaphragm Sub-assy, Idle-up Actuator
88605D Wire, Air Conditioner
88609 Device Sub-assy, Idle UP
88689 Hose, Damper Control Diaphragm Vacuum
88691 Valve, Magnet (FOR IDLE UP DEVICE)
88691A Valve, Magnet (FOR BLOWER CHANGING-OVER DEVICE)
88691B Valve, Magnet (FOR WATER VALVE)
88691C Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
