Toyota Corona

1987-12 → 1992-11 · chassis AT17#,ST17#,CT17#,ET176 · catalogue 271120 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

36 part groups · 10 illustrations

Illustrations

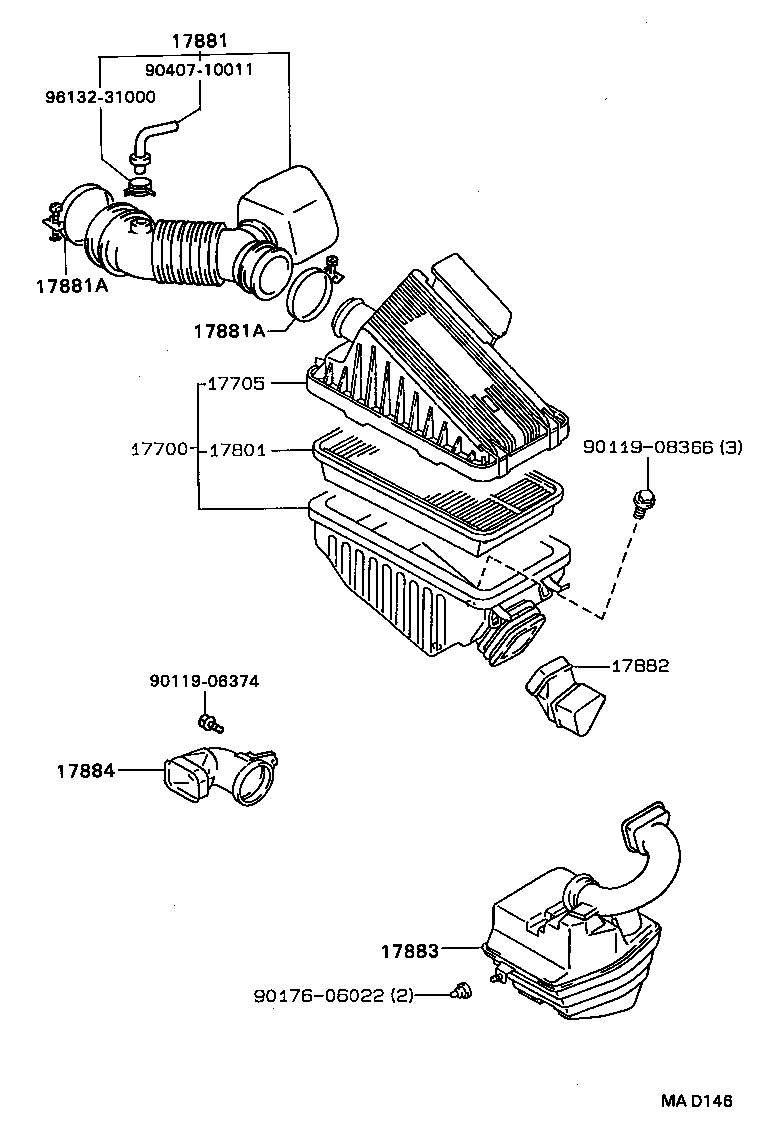

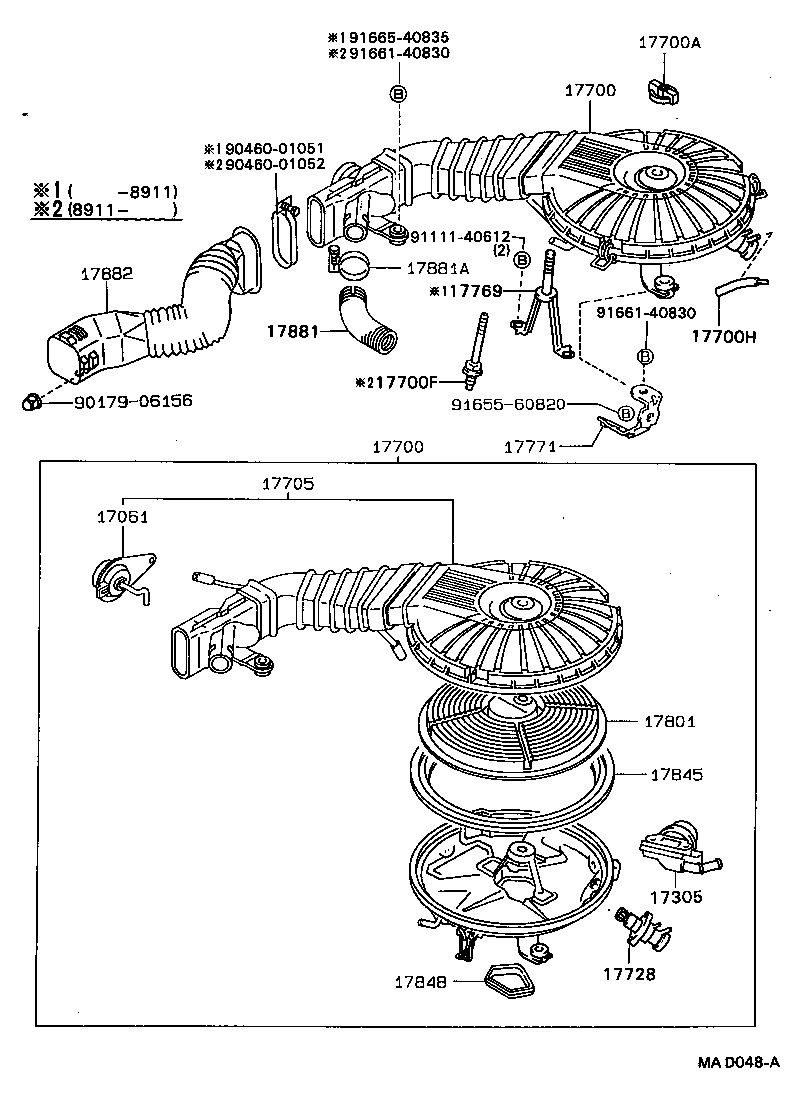

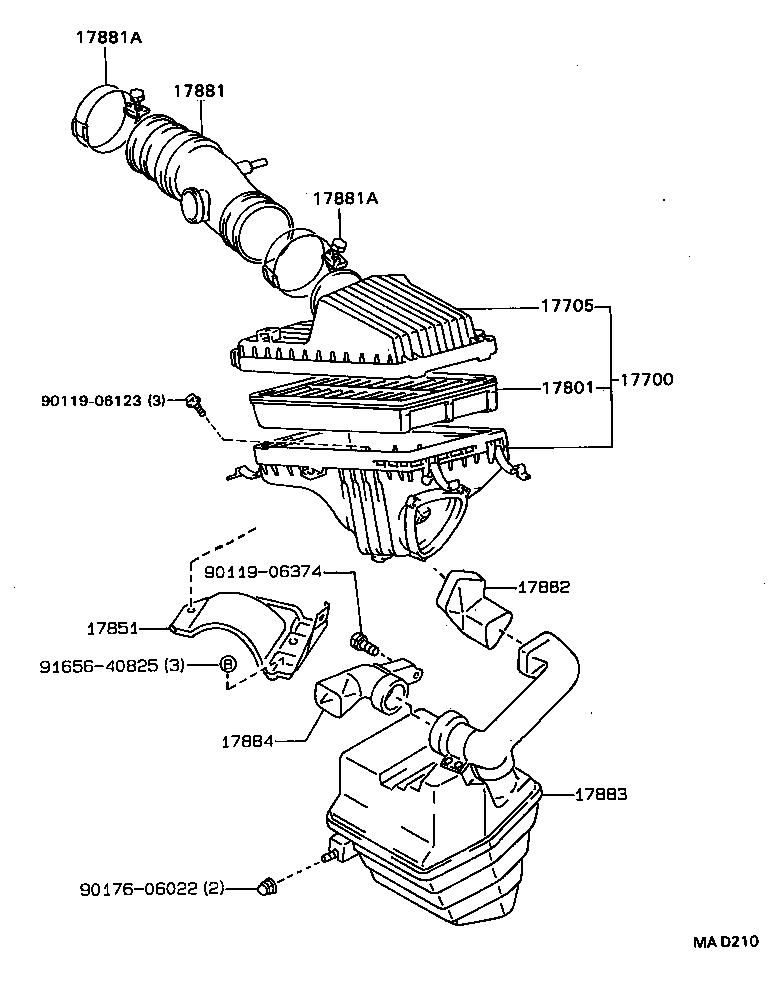

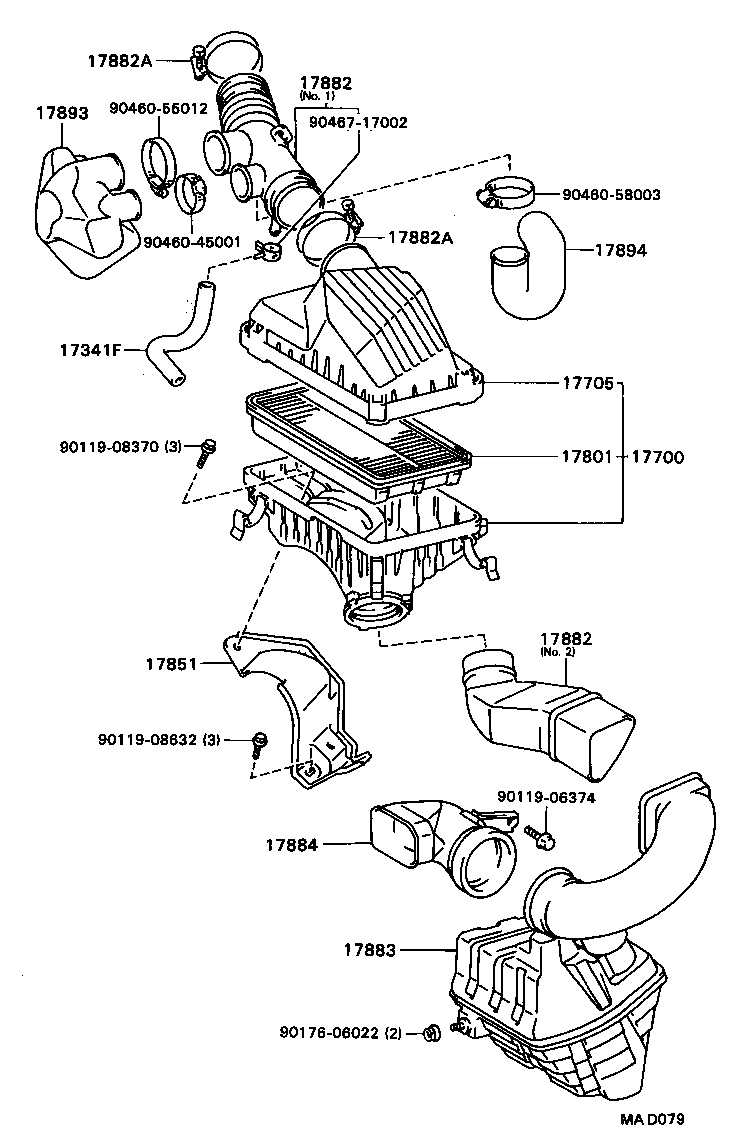

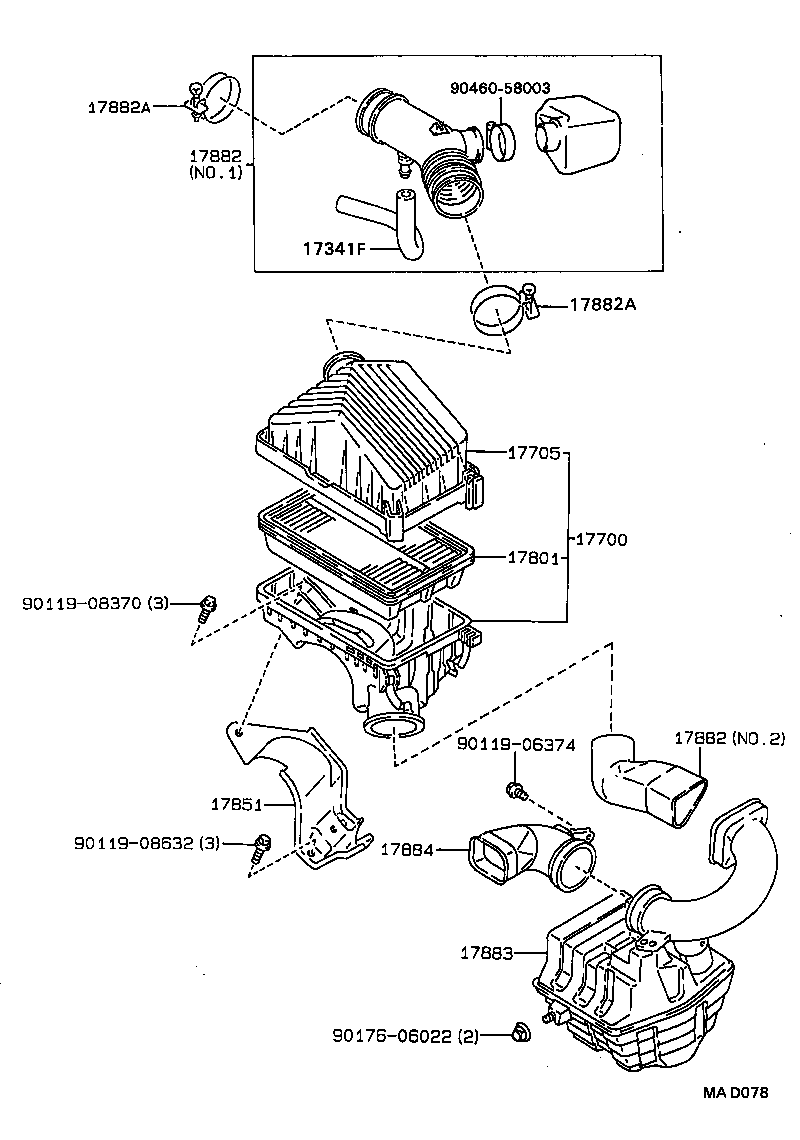

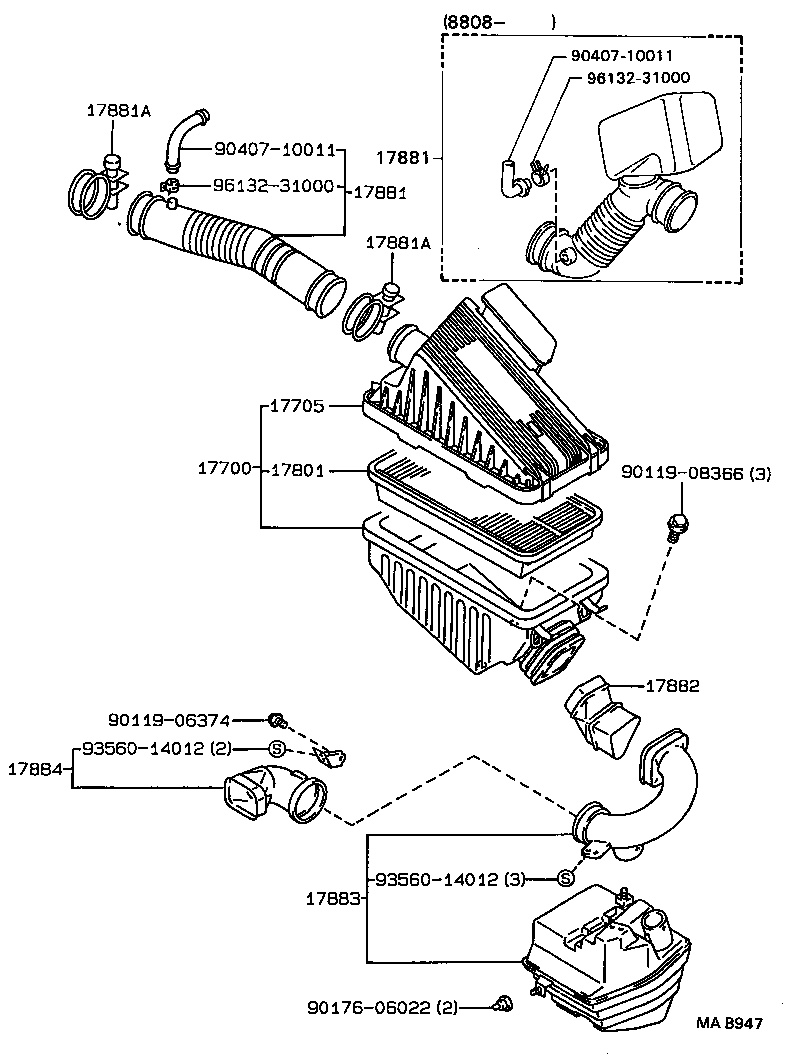

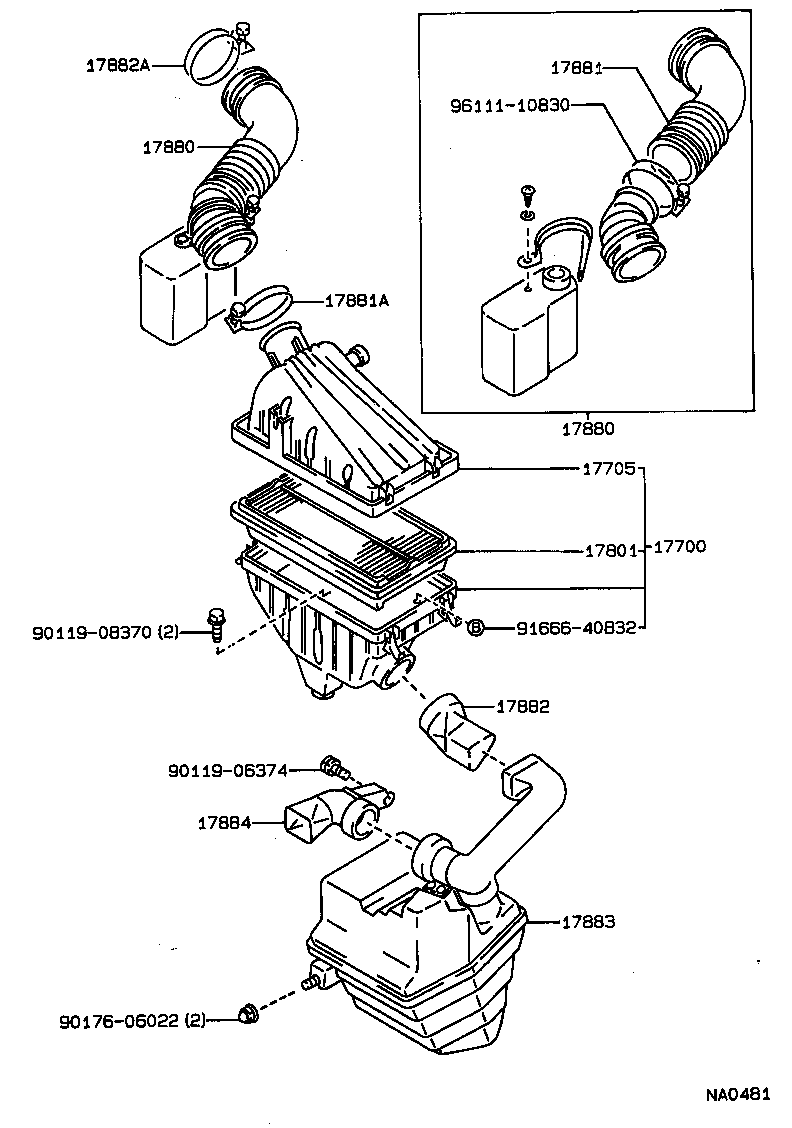

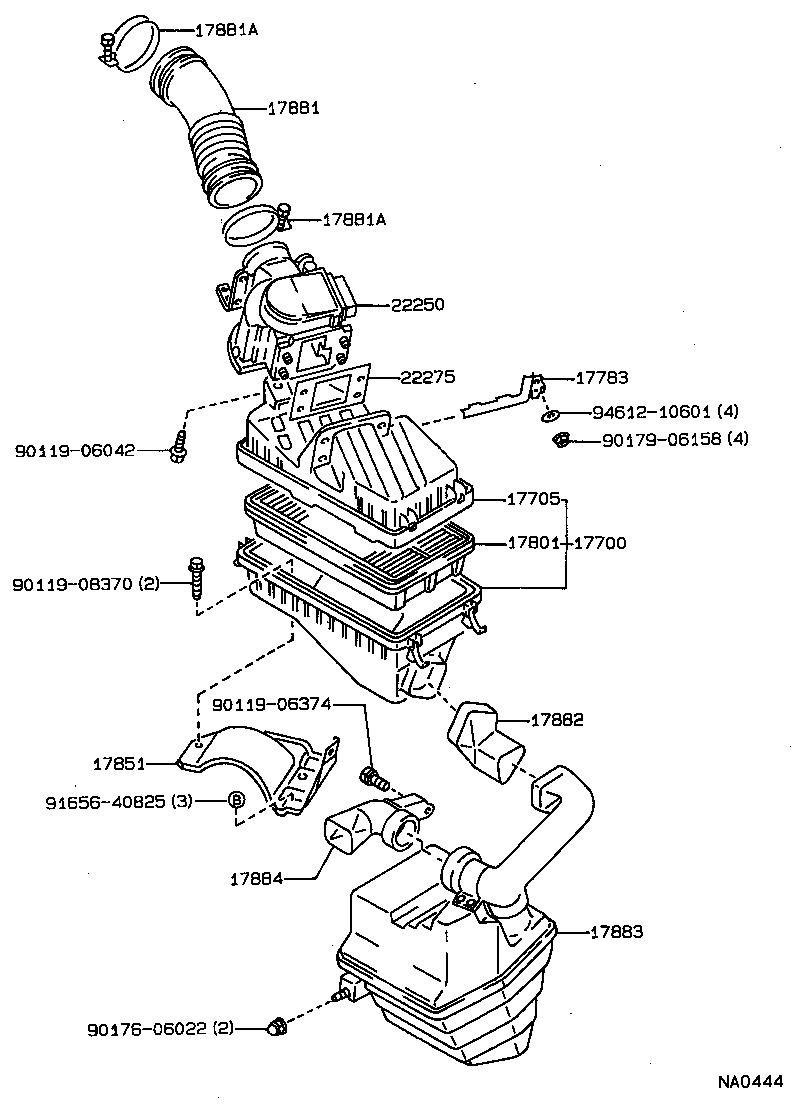

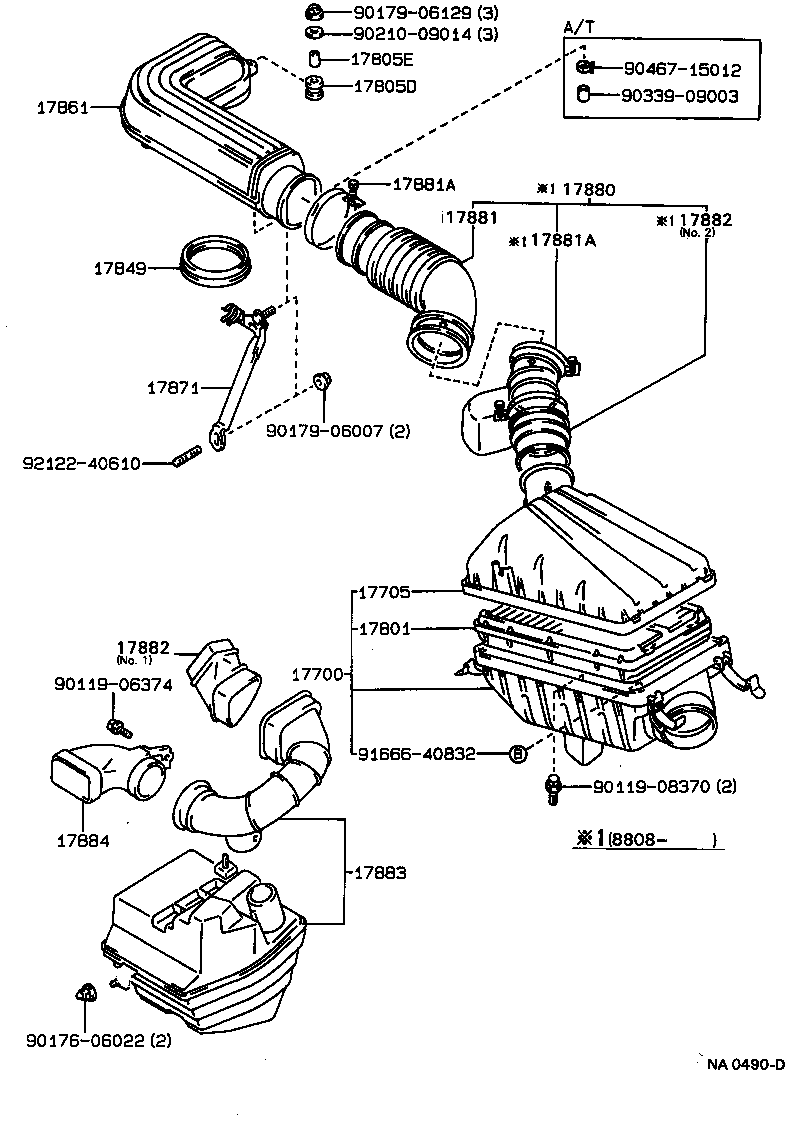

Figure NA0355B NA0355B 1987-12 → 1989-11 Figure MAD078 MAD078 1988-08 → — Figure MAD079 MAD079 1989-11 → — Figure MAB947 MAB947 1987-12 → 1989-11 Figure MAD146 MAD146 1989-11 → — Figure MAD048A MAD048A 1987-12 → — Figure NA0490D NA0490D 1987-12 → 1989-11 Figure NA0444 NA0444 1987-12 → 1989-11 Figure MAD210 MAD210 1989-11 → — Figure NA0481 NA0481 1987-12 → —

Part groups

PNCDescription
17061 Diaphragm Sub-assy
17305 Valve Sub-assy, Reed
17341F Hose, Air, NO.1
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17700F Bolt, Stud(FOR AIR CLEANER SETTING)
17700H Hose, Air
17705 Cap Sub-assy, Air Cleaner
17728 Valve, Thermostatic
17751 Inlet, Air Cleaner, NO.1
17769 Support, Air Cleaner
17771 Bracket, Air Cleaner Inlet Duct
17783 Plate, Air Cleaner Baffle
17785 Silencer, Air Cleaner
17787A Bracket, Air Cleaner Silencer
17801 Element Sub-assy, Air Cleaner Filter
17805D Grommet(FOR INTAKE AIR CONNECTOR)
17805E Collar(FOR INTAKE AIR CONNECTOR)
17845 Gasket, Air Cleaner Cap
17848 Gasket, Air Cleaner TO Carburetor
17849 Gasket, Intake Air Connector
17851 Bracket, Air Cleaner Support
17861 Connector, Intake Air
17871 Stay, Air Connector
17880 Hose Assy, Air Cleaner
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17883 Hose, Air Cleaner, NO.3
17884 Hose, Air Cleaner, NO.4
17889 Box, Air Cleaner Hose, NO.2
17893 Resonator, Intake Air
17894 Bracket, Resonator
22250 Meter Assy, Intake Air Flow
22275 Gasket, Air Flow Meter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
