Toyota Corona
1987-12 → 1992-11 · chassis AT17#,ST17#,CT17#,ET176 · catalogue 271120 · Japan
Discontinued model
Data version 1993-06

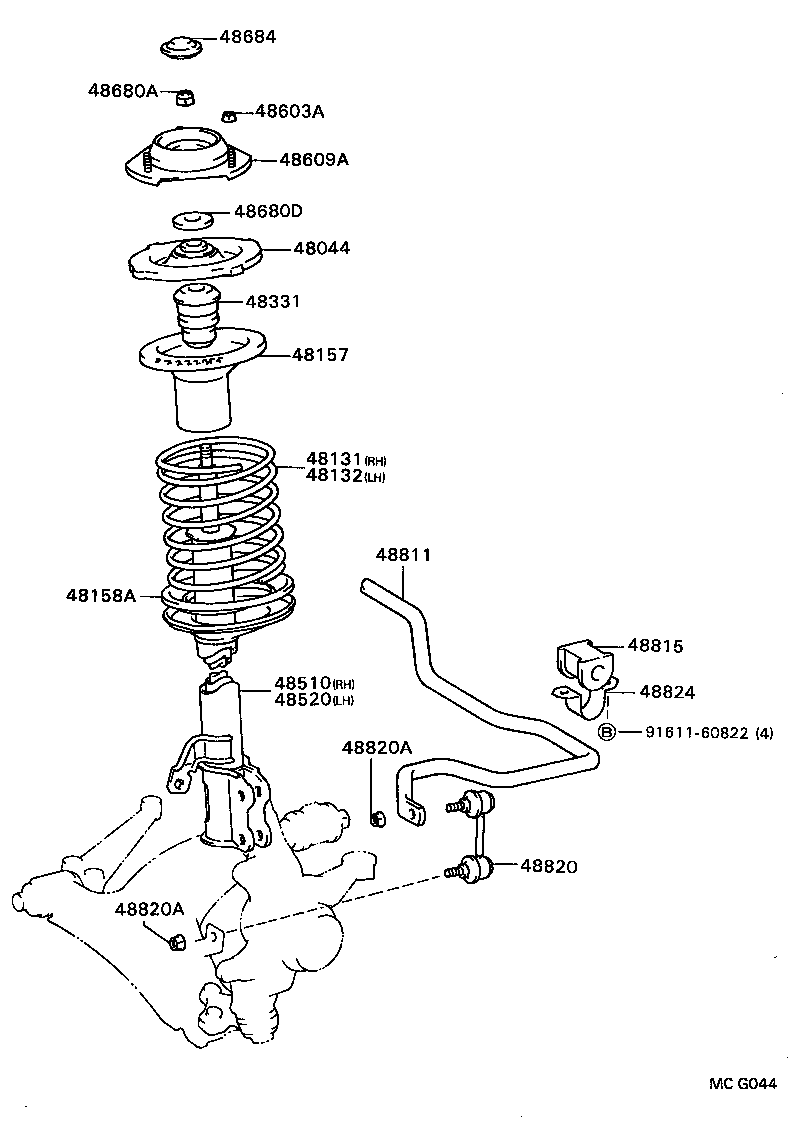

Front Spring & Shock Absorber
30 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 48044 | Seat Sub-assy, Front Spring, NO.1 |
| 48054 | Seat Sub-assy, Front Spring, NO.2 |
| 48064 | Cover Sub-assy, Front Suspension Support, RH |
| 48064A | Seal, Dust(FOR FRONT SUSPENSION SUPPORT COVER) |
| 48064B | Grommet(FOR FRONT SUSPENSION SUPPORT COVER) |
| 48064C | Ring, Set(FOR FRONT SUSPENSION SUPPORT COVER) |
| 48065 | Cover Sub-assy, Front Suspension Support, LH |
| 48131 | Spring, Front Coil, RH |
| 48132 | Spring, Front Coil, LH |
| 48157 | Insulator, Front Coil Spring, Upper |
| 48158A | Insulator, Front Coil Spring, Lower |
| 48331 | Bumper, Front Spring, NO.1 |
| 48510 | Absorber Assy, Shock, Front RH |
| 48511 | Absorber, Shock Front, RH(FOR CARTRIDGE TYPE) |
| 48512 | Absorber, Shock Front, LH(FOR CARTRIDGE TYPE) |
| 48520 | Absorber Assy, Shock, Front LH |
| 48527A | Cap, Front Shock Absorber, RH |
| 48528 | Cap, Front Shock Absorber, LH |
| 48603A | Nut(FOR FRONT SUSPENSION SUPPORT) |
| 48609A | Support Sub-assy, Front Suspension |
| 48680A | Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER) |
| 48680D | Seal, Dust(FOR FRONT SUSPENSION SUPPORT) |
| 48684 | Cover, Bearing Dust |
| 48810 | Link Assy, Front Stabilizer, LH |
| 48811 | Bar, Stabilizer, Front |
| 48815 | Bush, Front Stabilizer Bar, NO.1 |
| 48820 | Link Assy, Front Stabilizer |
| 48820A | Nut(FOR FRONT STABILIZER LINK) |
| 48820B | Link Assy, Front Stabilizer, RH |
| 48824 | Bracket, Stabilizer, Front |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
