Toyota Corona
1987-12 → 1992-11 · chassis AT17#,ST17#,CT17#,ET176 · catalogue 271120 · Japan
Discontinued model
Data version 1993-06

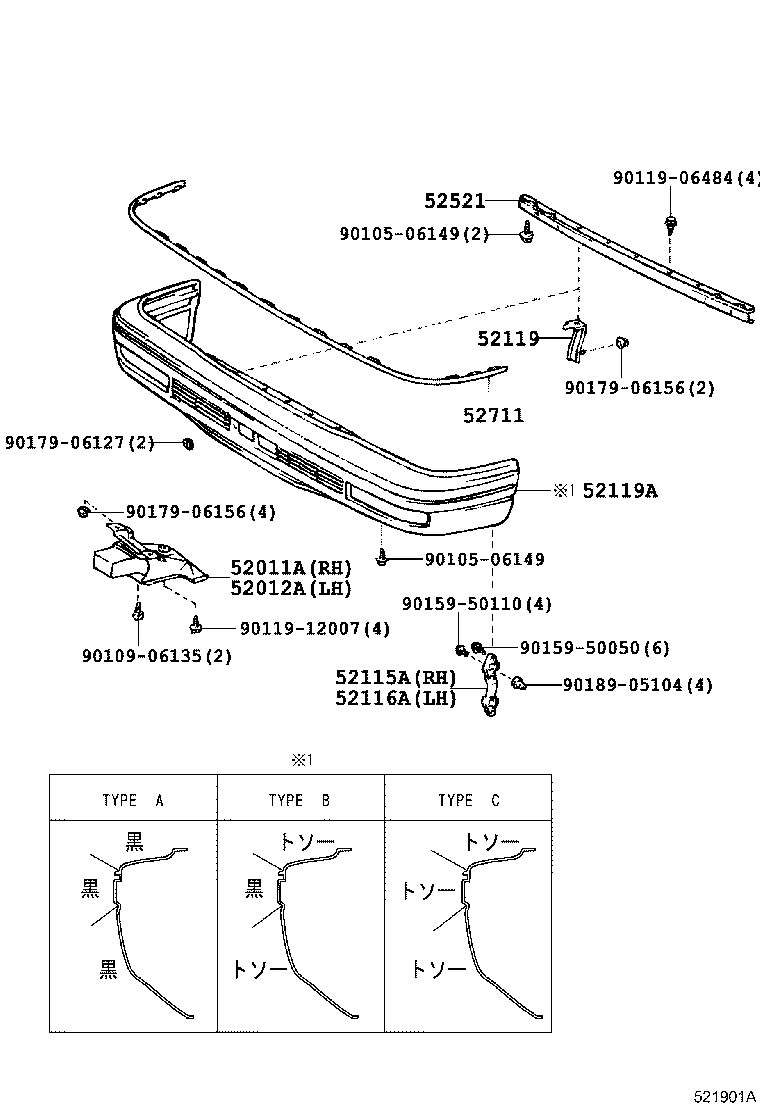

Front Bumper & Bumper Stay
9 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 52011A | Arm Sub-assy, Front Bumper, RH |
| 52012A | Arm Sub-assy, Front Bumper, LH |
| 52115A | Support, Front Bumper Side, RH |
| 52116A | Support, Front Bumper Side, LH |
| 52119 | Stay, Front Bumper, Center |
| 52119A | Cover, Front Bumper |
| 52123D | Plate, Front Bumper Reinforcement |
| 52521 | Retainer, Front Bumper, Upper Center |
| 52711 | Moulding, Front Bumper |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
