Toyota Corona

1987-12 → 1992-11 · chassis AT17#,ST17#,CT17#,ET176 · catalogue 271120 · Japan

Discontinued model Data version 1993-06

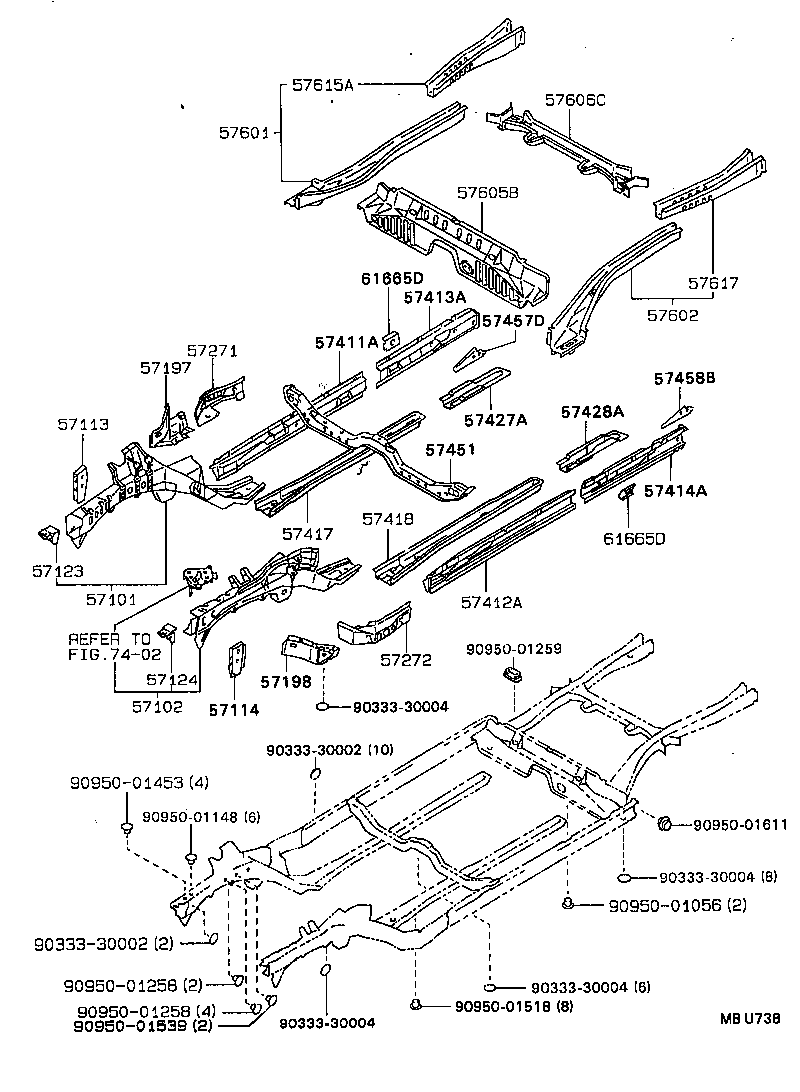

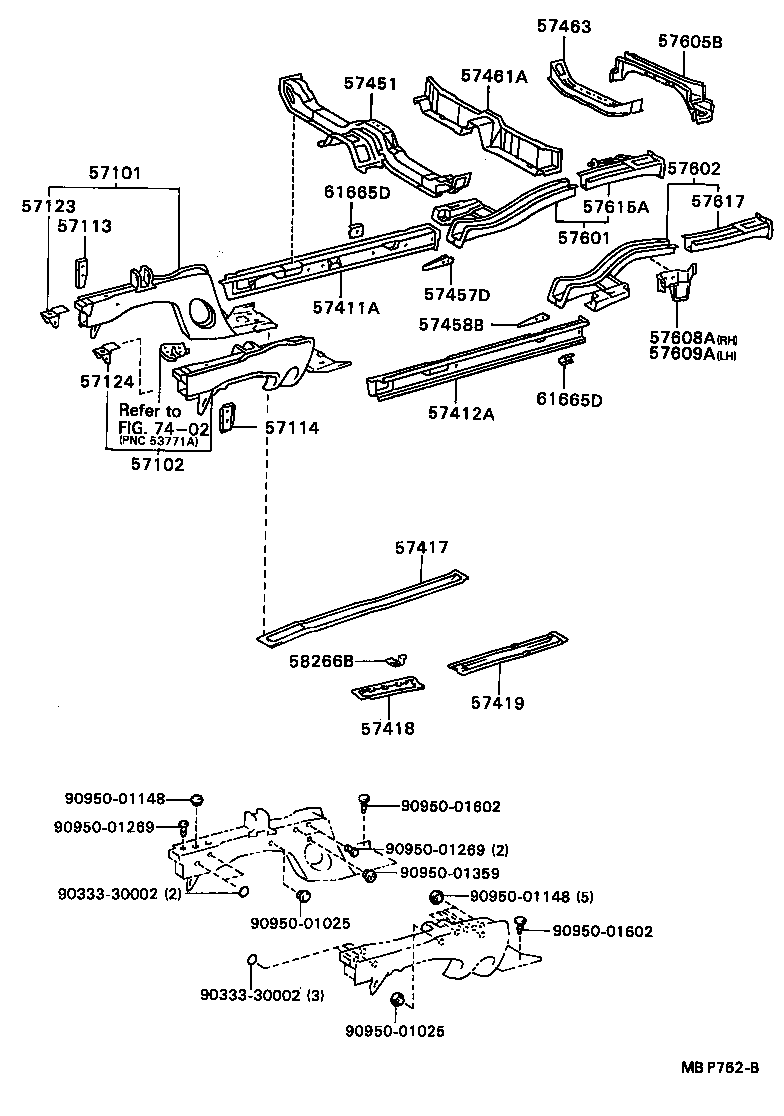

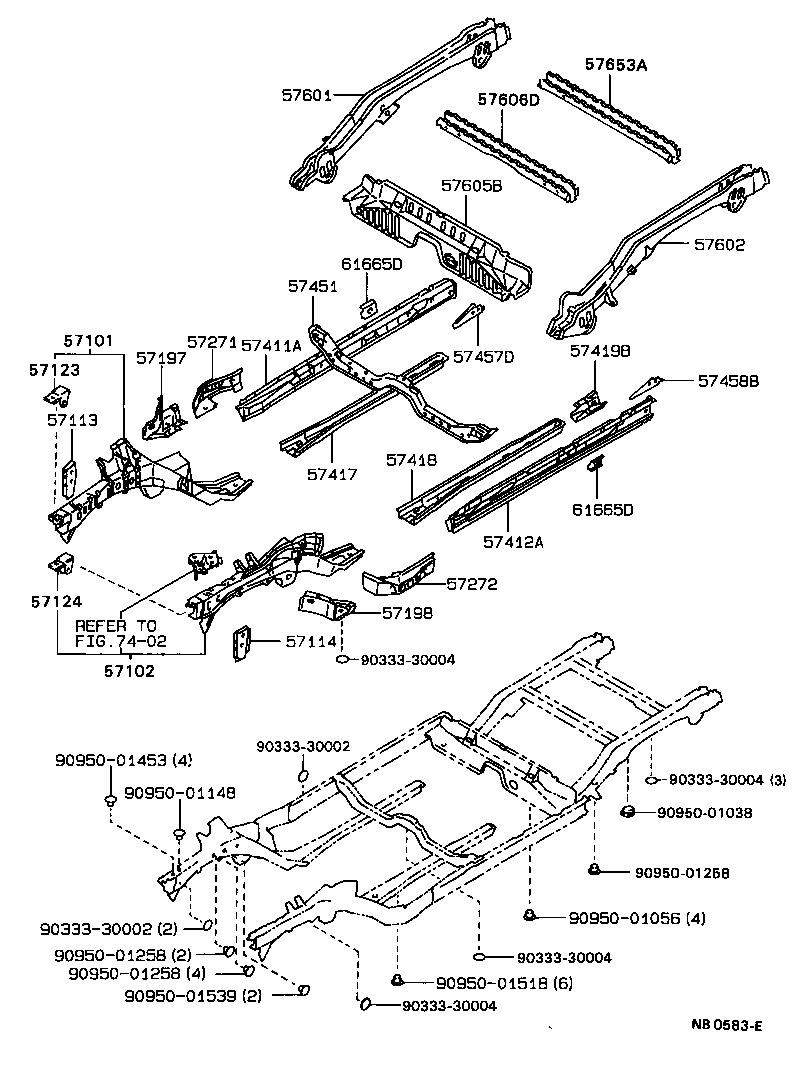

Floor Side Member

37 part groups · 4 illustrations

PNC	Description
57101	Member Sub-assy, Front Side, RH
57102	Member Sub-assy, Front Side, LH
57113	Extension, Front Side Member, RH
57114	Extension, Front Side Member, LH
57123	Support, Front Side Member, RH
57124	Support, Front Side Member, LH
57197	Box, Torque, Front RH
57198	Box, Torque, Front LH
57271	Extension, Steering Gear Box Support Member, RH
57272	Extension, Steering Gear Box Suport Member, LH
57411A	Member, Floor Side, Inner RH
57412A	Member, Floor Side, Inner LH
57413A	Member, Floor Side, Inner Rear RH
57414A	Member, Floor Side, Inner Rear LH
57417	Reinforcement, Front Floor Under, RH
57418	Reinforcement, Front Floor Under, LH
57419	Reinforcement, Front Floor Under, LH NO.2
57419B	Reinforcement, Front Floor Under, Rear
57427A	Reinforcement, Front Floor, NO.3 RH
57428A	Reinforcement, Front Floor, NO.3 LH
57451	Member, Front Floor Cross
57457D	Patch, Floor Side Member, Rear RH
57458B	Patch, Floor Side Member, Rear LH
57461A	Member, Center Floor Cross
57463	Member, Center Floor Cross, NO.3
57601	Member Sub-assy, Rear Floor Side, RH
57602	Member Sub-assy, Rear Floor Side, LH
57605B	Member Sub-assy, Rear Floor Cross, NO.1
57606C	Member Sub-assy, Rear Floor Cross, NO.2
57606D	Member Sub-assy, Rear Absorber Mounting
57608A	Member Sub-assy, Rear Floor Cross, NO.4
57609A	Member Sub-assy, Rear Floor Cross, NO.5
57615A	Member, Rear Floor Side, Rear RH
57617	Member, Rear Floor Side, Rear LH
57653A	Member, Rear Floor Cross, NO.2
58266B	Bracket, Fuel Tube Clamp
61665D	Plate, Safety Belt Anchorage

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
