Toyota Corona
1987-12 → 1992-11 · chassis AT17#,ST17#,CT17#,ET176 · catalogue 271120 · Japan
Discontinued model
Data version 1993-06

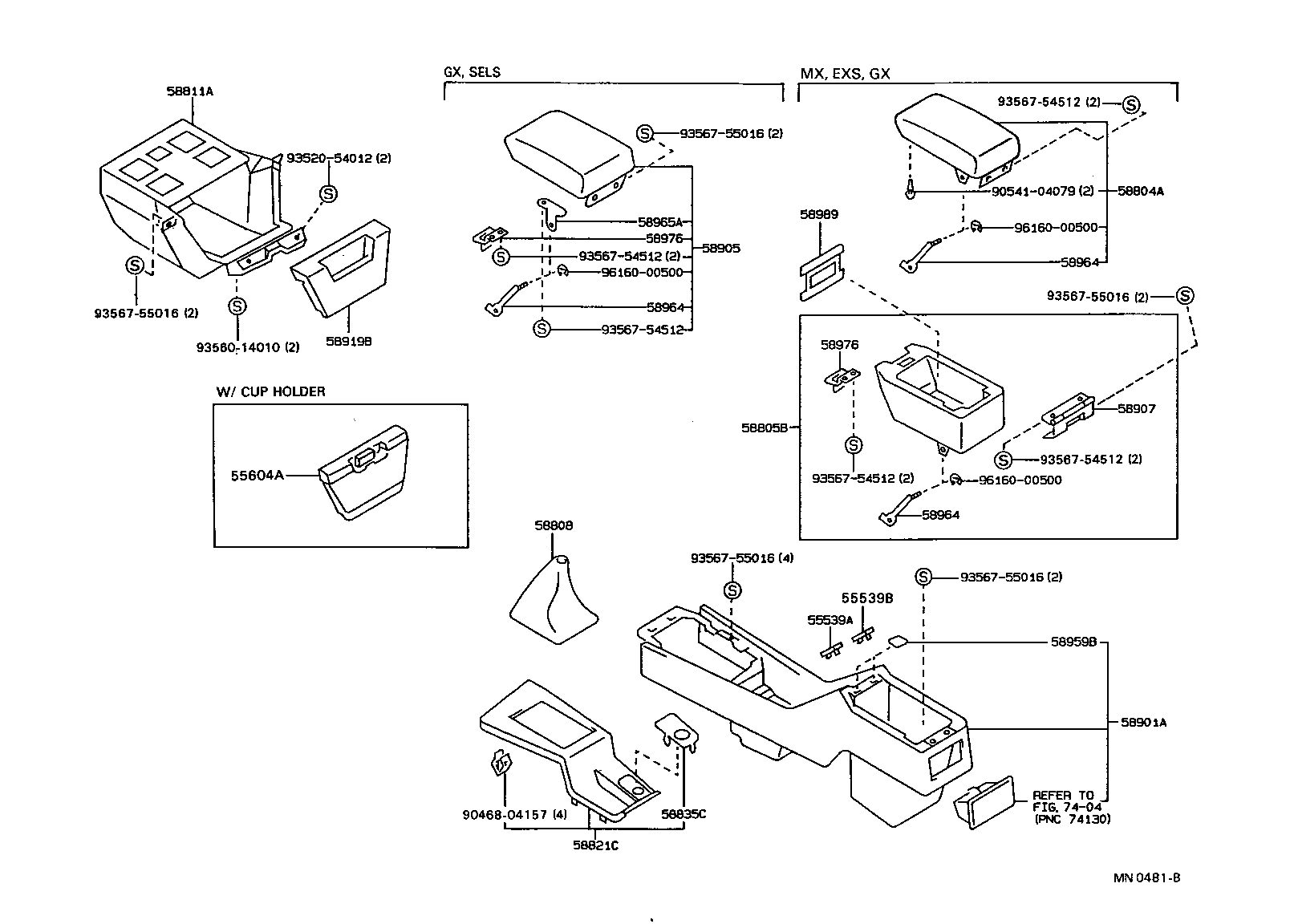

Console Box & Bracket
19 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55539A | Cover, Spare Switch Hole |
| 55539B | Cover, Spare Switch Hole, NO.2 |
| 55604A | Holder Sub-assy, Instrument Panel Cup |
| 58804A | Panel Sub-assy, Console, Upper |
| 58805B | Panel Sub-assy, Console, Lower |
| 58808 | Cover Sub-assy, Shifting Hole |
| 58811A | Box, Console, Front |
| 58815A | Carpet, Console Box |
| 58821C | Panel, Console, Upper |
| 58835C | Ornament, Console Box |
| 58901A | Box Sub-assy, Console, Rear |
| 58905 | Door Sub-assy, Console Compartment |
| 58907 | Hinge Sub-assy, Console Compartment Door |
| 58919B | Plate, Console Box |
| 58959B | Cushion, Console Compartment Door |
| 58964 | Stopper, Console Compartment Door, NO.1 |
| 58965A | Stopper, Console Compartment Door, NO.2 |
| 58976 | Striker, Console Compartment Door Lock |
| 58989 | Panel, Console Compartment Door |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
