Toyota Corona
1987-12 → 1992-11 · chassis AT17#,ST17#,CT17#,ET176 · catalogue 271120 · Japan
Discontinued model
Data version 1993-06
Side Member

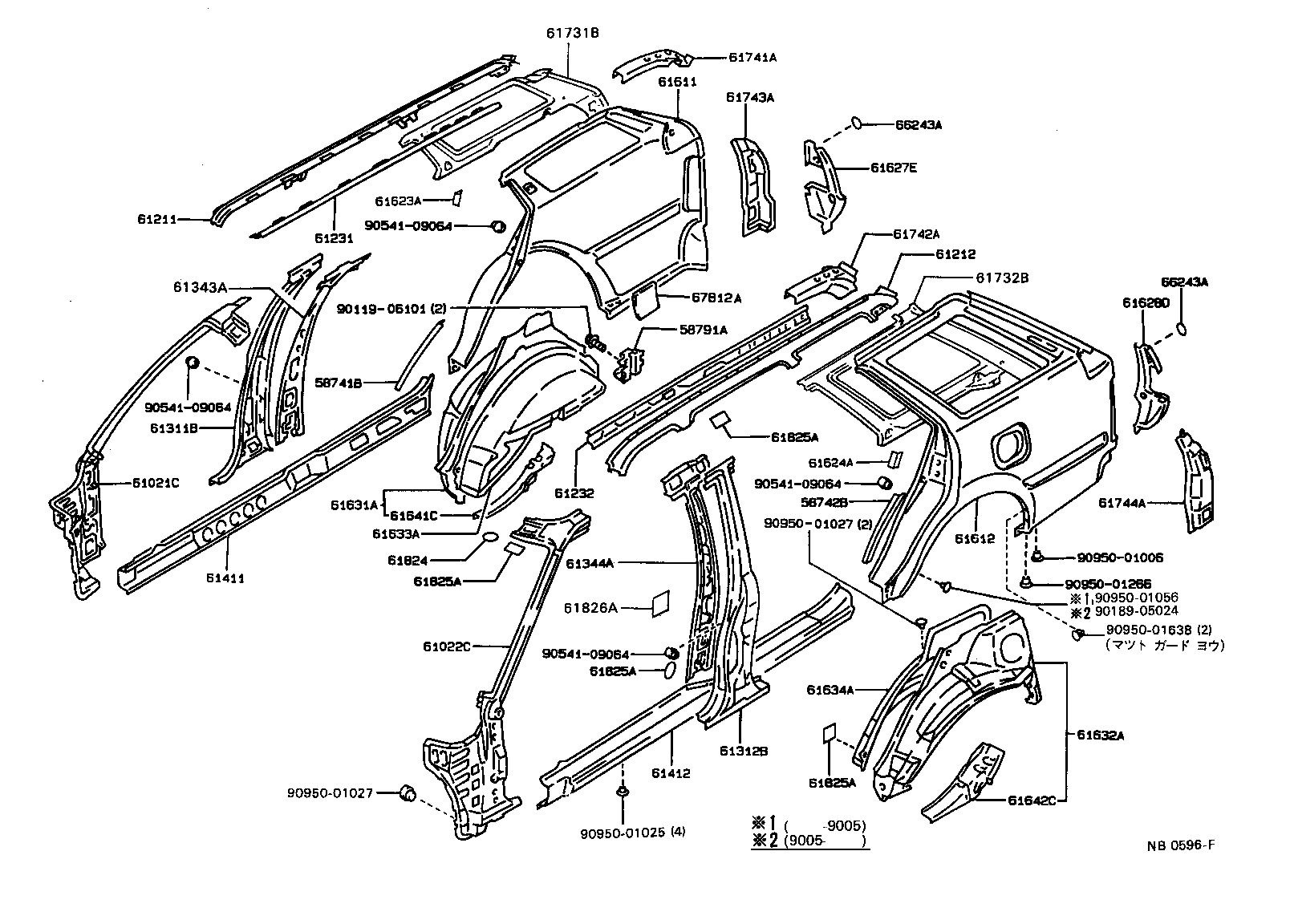

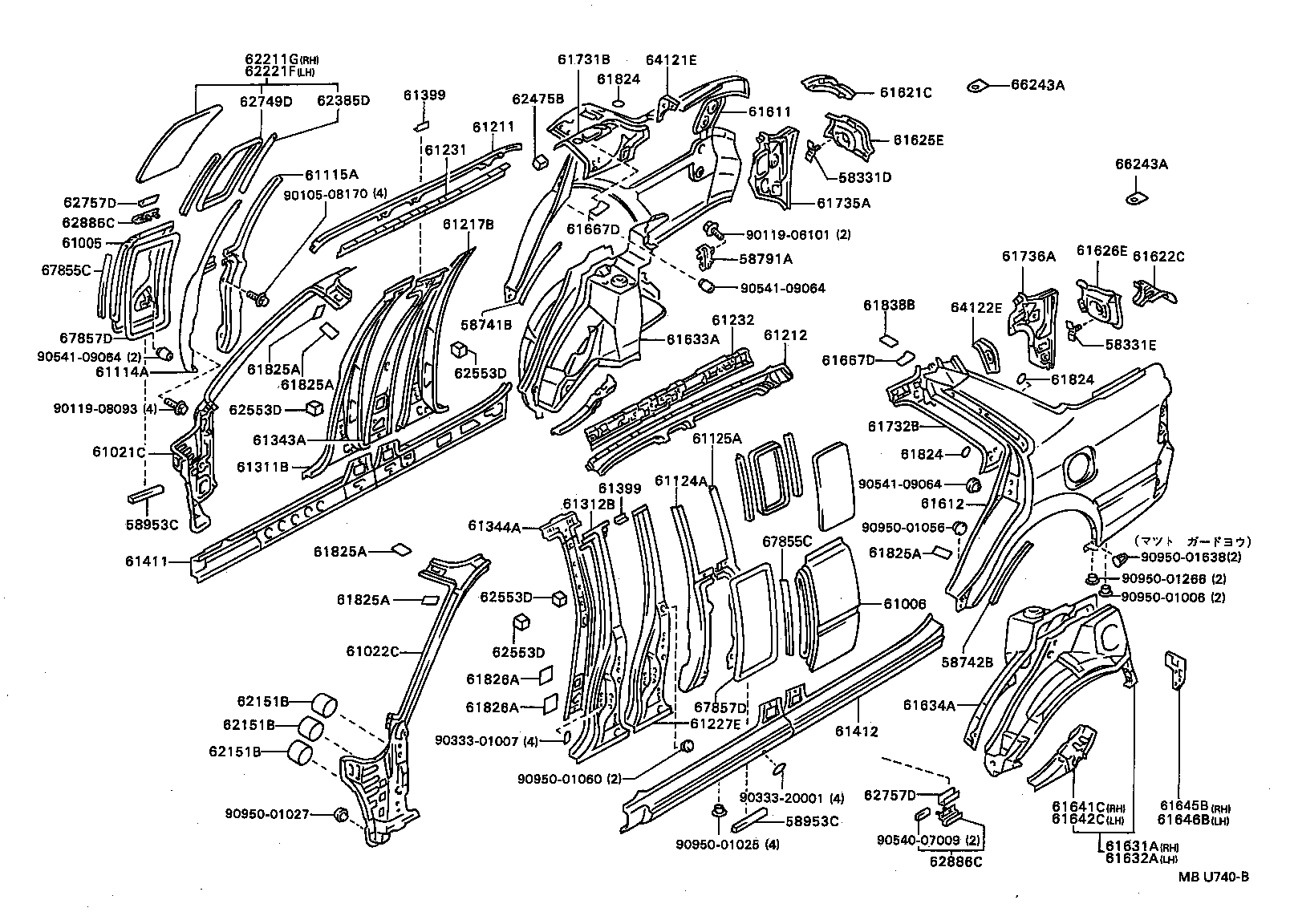

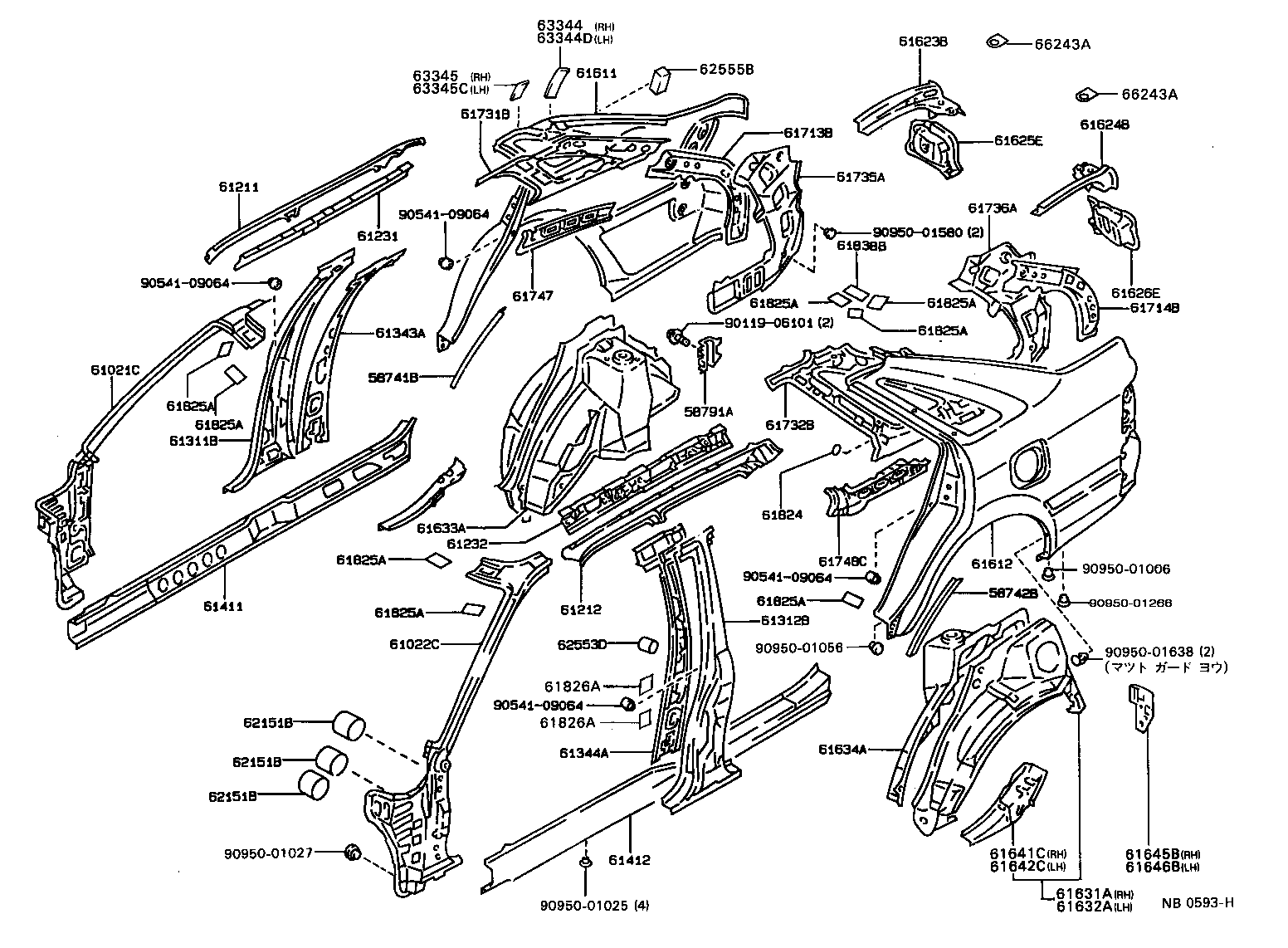

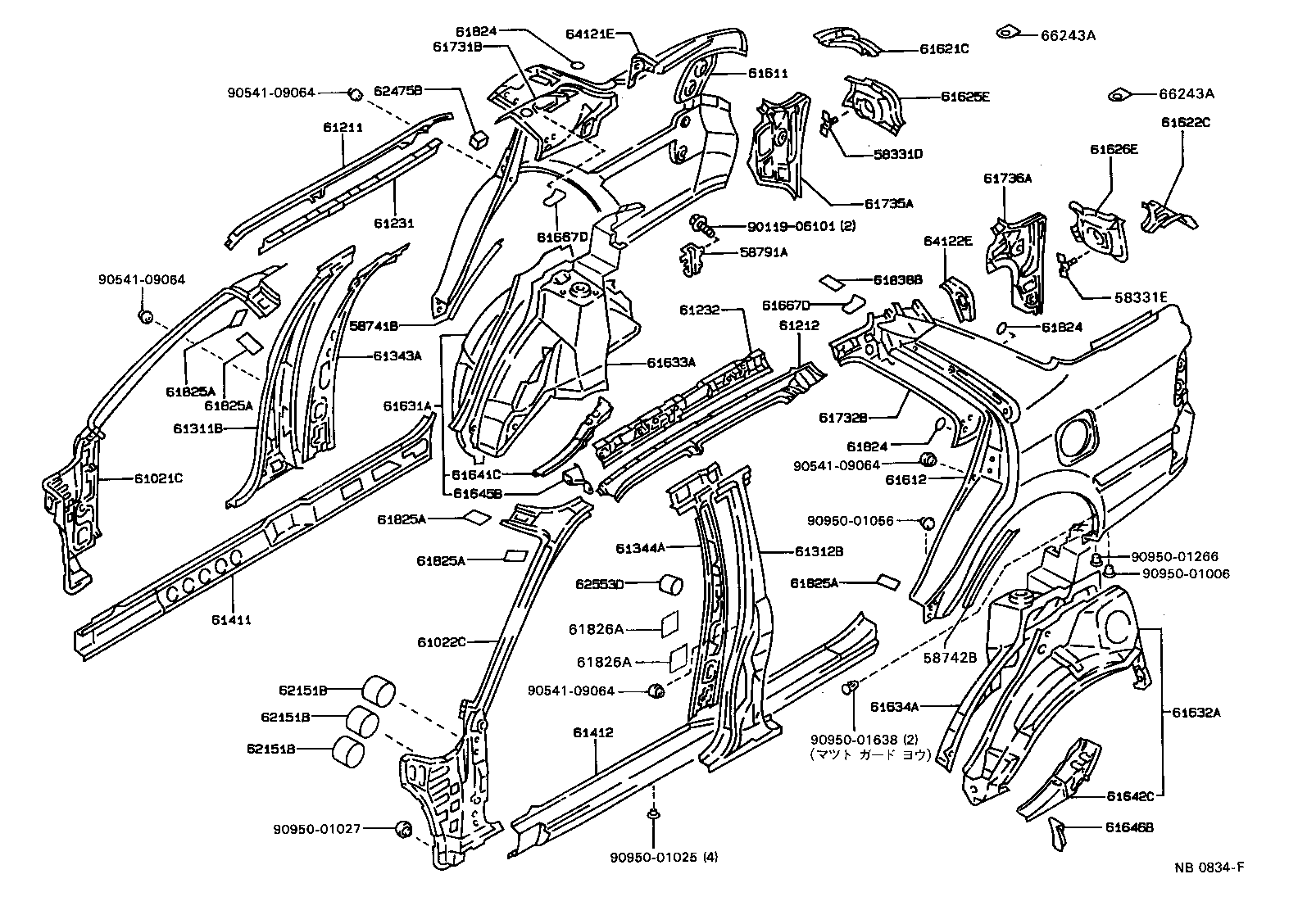

84 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 58331D | Bracket, Luggage Compartment Trim, NO.1 |
| 58331E | Bracket, Luggage Compartment Trim, NO.1 |
| 58741B | Protector, Quarter Panel, RH |
| 58742B | Protector, Quarter Panel, LH |
| 58791A | Carrier, Jack |
| 58953C | Packing, Box Panel |
| 61005 | Panel Sub-assy, Side, RH |
| 61006 | Panel Sub-assy, Side, LH |
| 61021C | Pillar Sub-assy, Front Body, RH |
| 61022C | Pillar Sub-assy, Front Body, LH |
| 61114A | Panel, NO.3 Side, RH |
| 61115A | Panel, NO.4 Side, RH |
| 61124A | Panel, NO.3 Side, LH |
| 61125A | Panel, NO.4 Side, LH |
| 61211 | Rail, Roof Side, Outer RH |
| 61212 | Rail, Roof Side, Outer LH |
| 61217B | Pillar, NO.4 Outer, RH |
| 61227E | Pillar, NO.4 Outer, LH |
| 61231 | Rail, Roof Side, Inner RH |
| 61232 | Rail, Roof Side, Inner LH |
| 61311B | Pillar, Center Body, Outer RH |
| 61312B | Pillar, Center Body, Outer LH |
| 61343A | Pillar, Center Body, Inner RH |
| 61344A | Pillar, Center Body, Inner LH |
| 61399 | Patch, Center Body Pillar, Outer NO.2 |
| 61411 | Panel, Rocker, Outer RH |
| 61412 | Panel, Rocker, Outer LH |
| 61611 | Panel, Quarter, RH |
| 61612 | Panel, Quarter, LH |
| 61621C | Trough, Luggage Compartment Opening, RH |
| 61622C | Trough, Luggage Compartment Opening, LH |
| 61623A | Extension, Quarter Panel, Outer RH |
| 61623B | Trough, Back Door Opening, Rear RH |
| 61624A | Extension, Quarter Panel, Outer LH |
| 61624B | Trough, Back Door Opening, Rear LH |
| 61625E | Extension, Quarter Panel, Inner Rear RH |
| 61626E | Extension, Quarter Panel, Inner Rear LH |
| 61627E | Extension, Quarter Panel, Rear Lower RH |
| 61628D | Extension, Quarter Panel, Rear Lower LH |
| 61631A | Panel, Quarter Wheel House, Outer RH |
| 61632A | Panel, Quarter Wheel House, Outer LH |
| 61633A | Panel, Quarter Wheel House, Inner RH |
| 61634A | Panel, Quarter Wheel House, Inner LH |
| 61641C | Gusset, Quarter Wheel House, Front RH |
| 61642C | Gusset, Quarter Wheel House, Front LH |
| 61645B | Gusset, Quarter Wheel House, Rear RH |
| 61646B | Gusset, Quarter Wheel House, Rear LH |
| 61667D | Seal, Quarter Panel |
| 61713B | Reinforce, Roof Side, Outer RH |
| 61714B | Reinforce, Roof Side, Outer LH |
| 61731B | Panel, Roof Side, Inner RH |
| 61732B | Panel, Roof Side, Inner LH |
| 61735A | Panel, Roof Side, Inner Rear RH |
| 61736A | Panel, Roof Side, Inner Rear LH |
| 61741A | Reinforcement, Back Door Opening, Upper RH |
| 61742A | Reinforcement, Back Door Opening, Upper LH |
| 61743A | Reinforcement, Back Door Opening Side, RH |
| 61744A | Reinforcement, Back Door Opening Side, LH |
| 61747 | Brace, Roof Side Inner TO Wheel House, RH |
| 61748C | Brace, Roof Side Inner TO Wheel House, LH |
| 61824 | Plate, Noise Control, NO.1 |
| 61825A | Plate, Noise Control, NO.2 |
| 61826A | Plate, Noise Control, NO.3 |
| 61838B | Plate, Noise Control, NO.5 |
| 62151B | Pad, Cowl Side Silencer |
| 62211G | Glass, Side Window, Rear RH |
| 62221F | Glass, Side Window, Rear LH |
| 62385D | Seal, Side Window, NO.1 |
| 62475B | Seal, Roof Side, Inner |
| 62553D | Pad, Pillar, NO.3 |
| 62555B | Pad, Pillar, NO.5 |
| 62749D | Seal, Side Window Flame |
| 62757D | Protector, Side Window Glass |
| 62886C | Support, Side Window Guard |
| 63344 | Pad, Roof Silencer, NO.4 |
| 63344D | Pad, Roof Silencer, NO.4 |
| 63345 | Pad, Roof Silencer, NO.5 |
| 63345C | Pad, Roof Silencer, NO.5 |
| 64121E | Bracket, Luggage Compartment Door Hinge, RH |
| 64122E | Bracket, Luggage Compartment Door Hinge, LH |
| 66243A | Protector, Rear Body, NO.1 |
| 67812A | Pad, Quarter Panel Silencer |
| 67855C | Weatherstrip, Center Door Front |
| 67857D | Weatherstrip, Center Door, Center |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
