Toyota Corona
1987-12 → 1992-11 · chassis AT17#,ST17#,CT17#,ET176 · catalogue 271120 · Japan
Discontinued model
Data version 1993-06

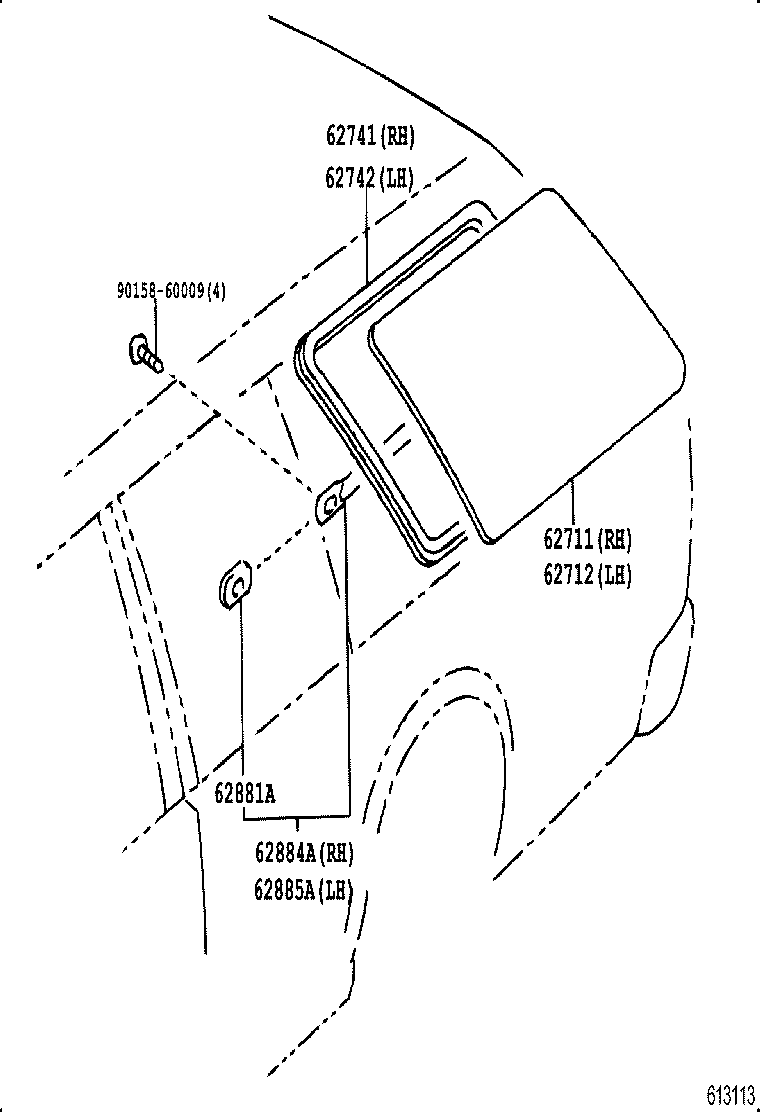

Quarter Window
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62711 | Glass, Quarter Window, RH |
| 62712 | Glass, Quarter Window, LH |
| 62741 | Weatherstrip, Quarter Window, RH |
| 62742 | Weatherstrip, Quarter Window, LH |
| 62881A | Bracket, Quarter Window Guard |
| 62884A | Guard, Quarter Window, RH |
| 62885A | Guard, Quarter Window, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
