Toyota Corona

1987-12 → 1992-11 · chassis AT17#,ST17#,CT17#,ET176 · catalogue 271120 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Package Tray Panel & Luggage Compartment Mat

28 part groups · 2 illustrations

Illustrations

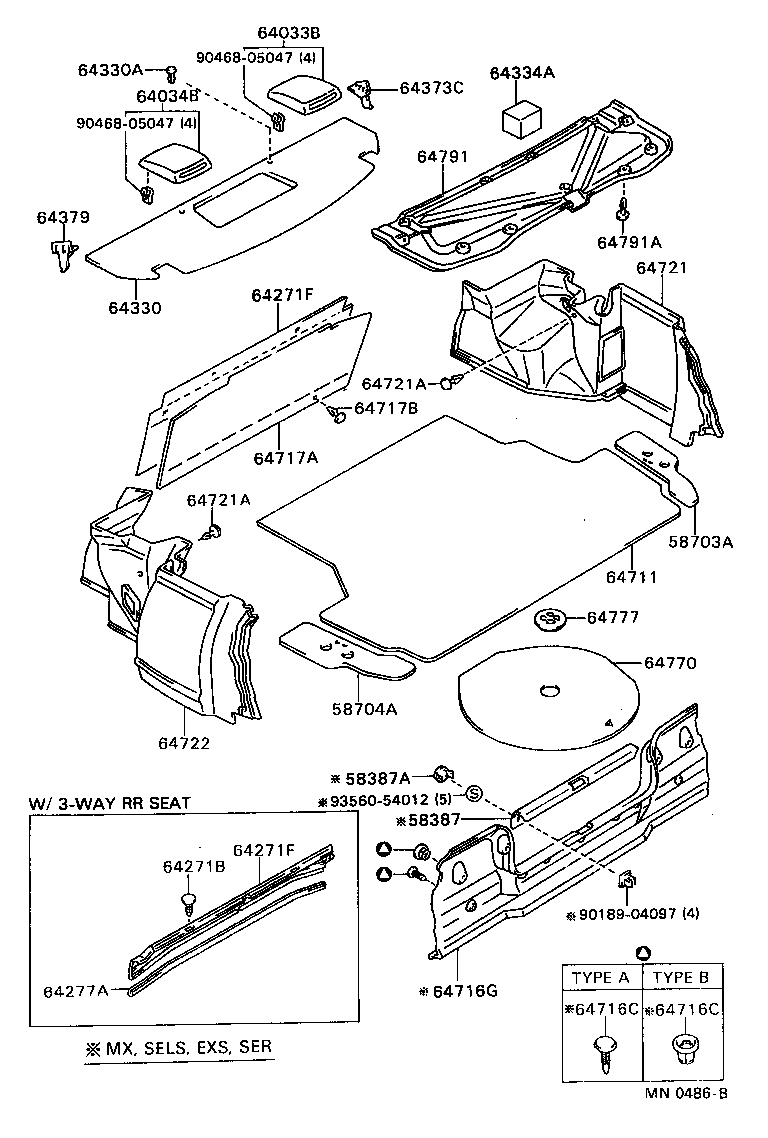

Figure MBM785A MBM785A 1987-12 → — Figure MN0486B MN0486B 1987-12 → —

Part groups

PNCDescription
58387 Plate, Rear Floor Finish
58387A Plug, Hole(FOR REAR FLOOR FINISH PLATE)
58703A Cover Sub-assy, Luggage Compartment Side, RH
58704A Cover Sub-assy, Luggage Compartment Side, LH
64033B Grille Sub-assy, Rear Speaker, RH
64034B Grille Sub-assy, Rear Speaker, LH
64271B Clip(FOR ROOM PARTITION BOARD)
64271F Trim, Room Partition
64277A Moulding, Room Partition Trim
64330 Panel Assy, Package Tray Trim
64330A Clip(FOR PACKAGE TRAY TRIM PANEL)
64334A Pad, Package Tray Trim
64373C Stopper, Package Tray Trim, RH
64379 Stopper, Package Tray Trim, LH
64711 Mat, Luggage Compartment Floor
64714D Cover, Luggage Compartment Trim, Side, RH
64715D Cover, Luggage Compartment Trim, Side, LH
64716C Clip(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
64716G Cover, Luggage Compartment Trim, Rear
64717A Cover, Luggage Compartment Trim, Front
64717B Clip(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)
64721 Cover, Luggage Compartment Trim, Inner RH
64721A Clip(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
64722 Cover, Luggage Compartment Trim, Inner LH
64770 Cover Assy, Spare Wheel
64777 Clamp, Spare Wheel Cover
64791 Cover, Back Door Trim
64791A Clip(FOR BACK DOOR TRIM)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
