Toyota Corona

1987-12 → 1992-11 · chassis AT17#,ST17#,CT17#,ET176 · catalogue 271120 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

18 part groups · 7 illustrations

Illustrations

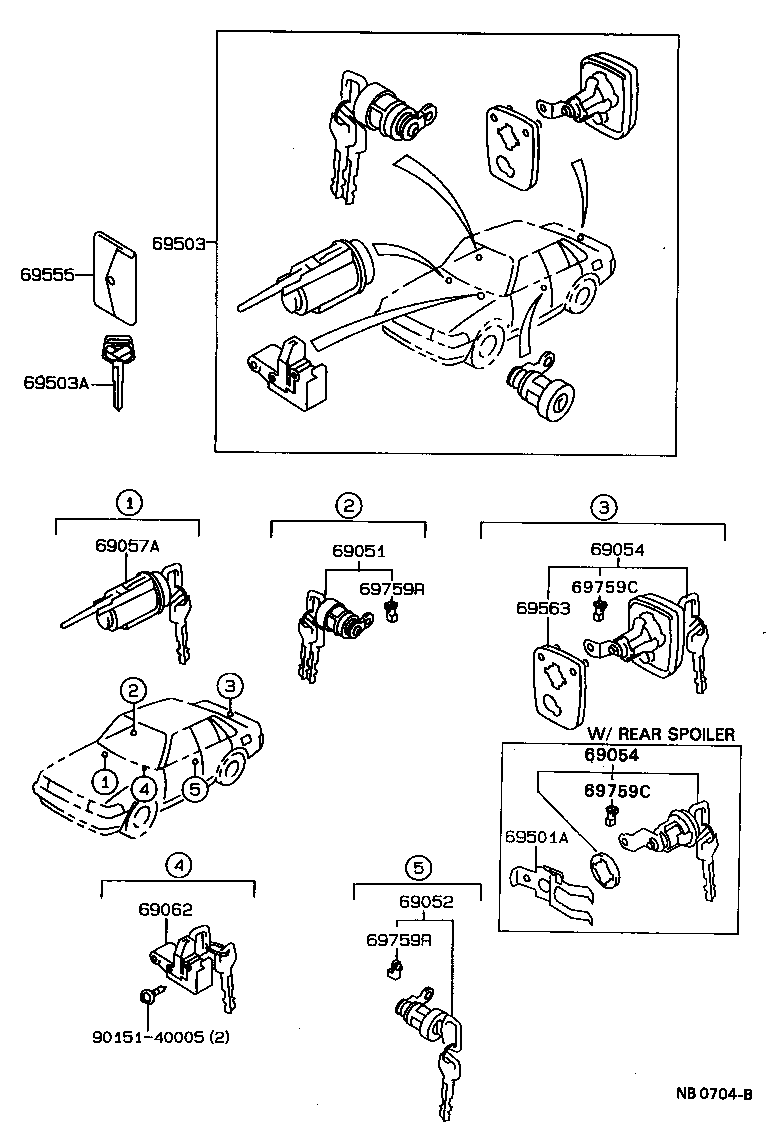

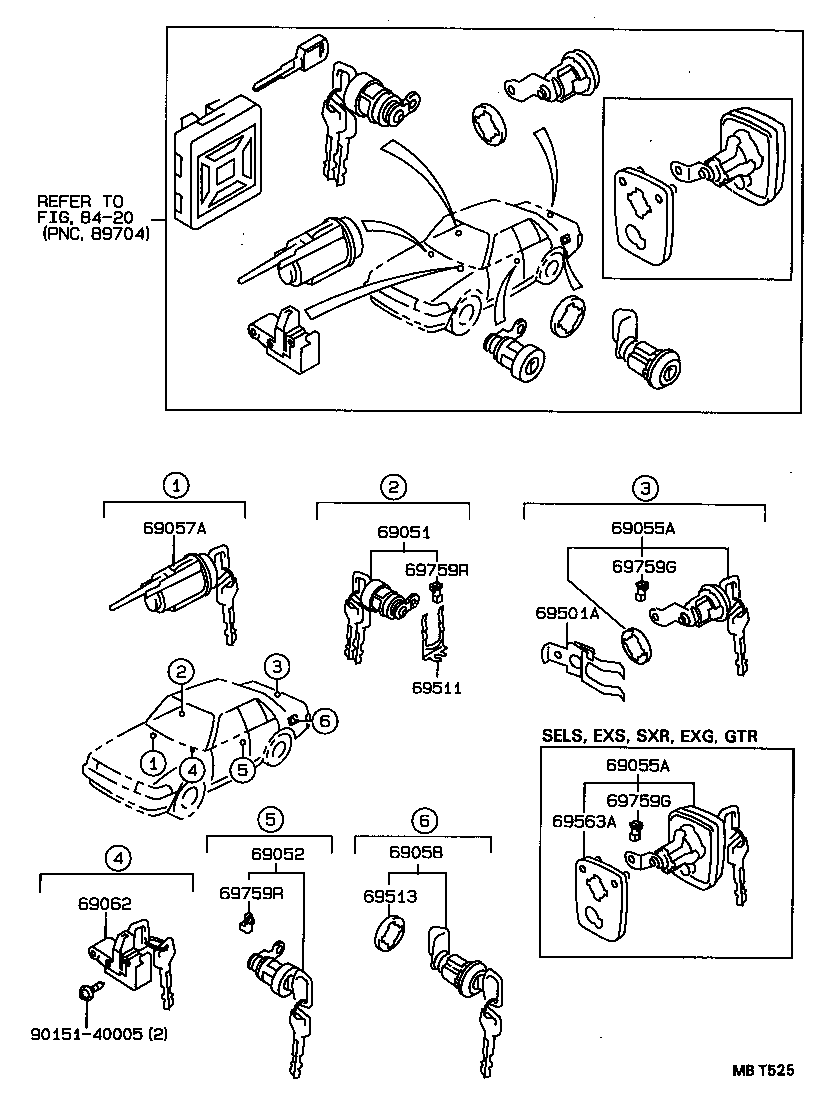

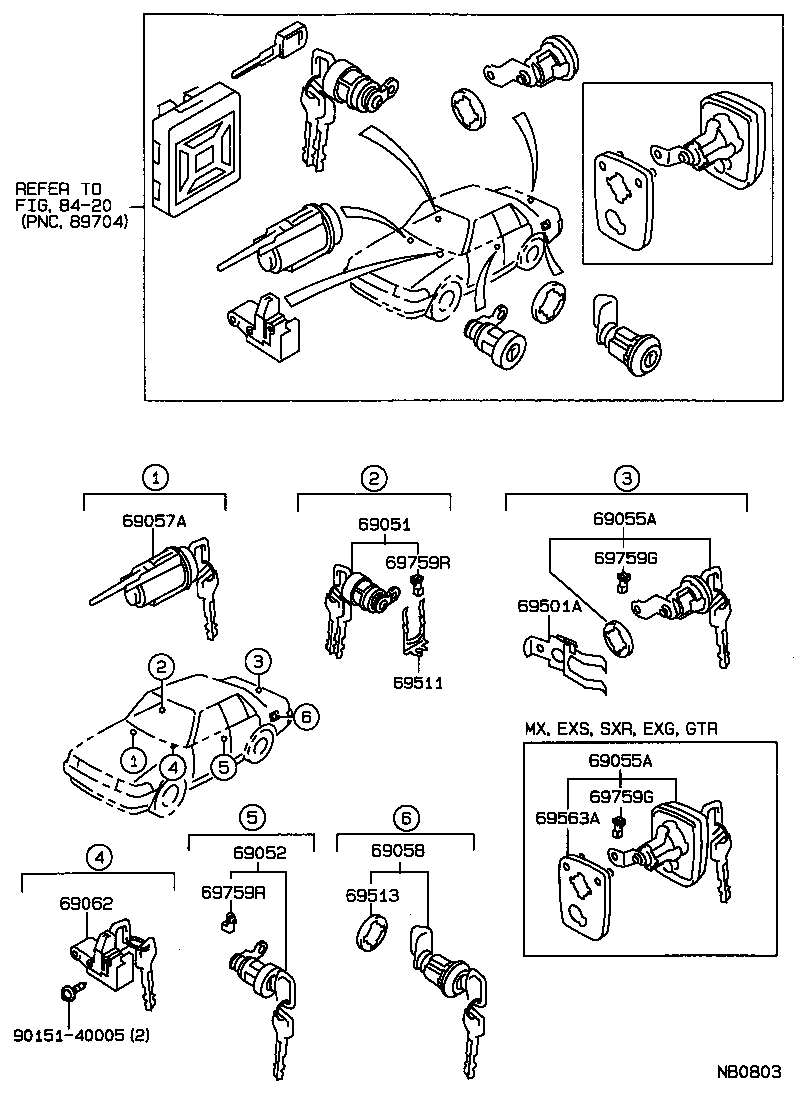

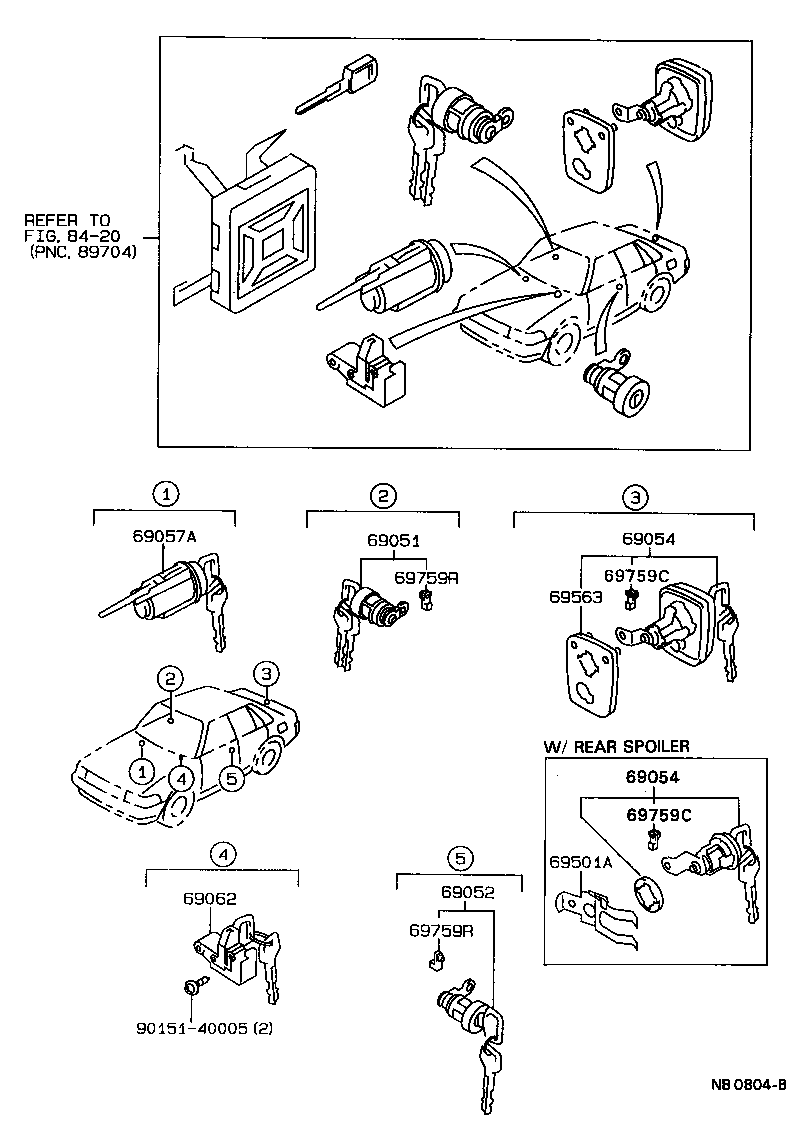

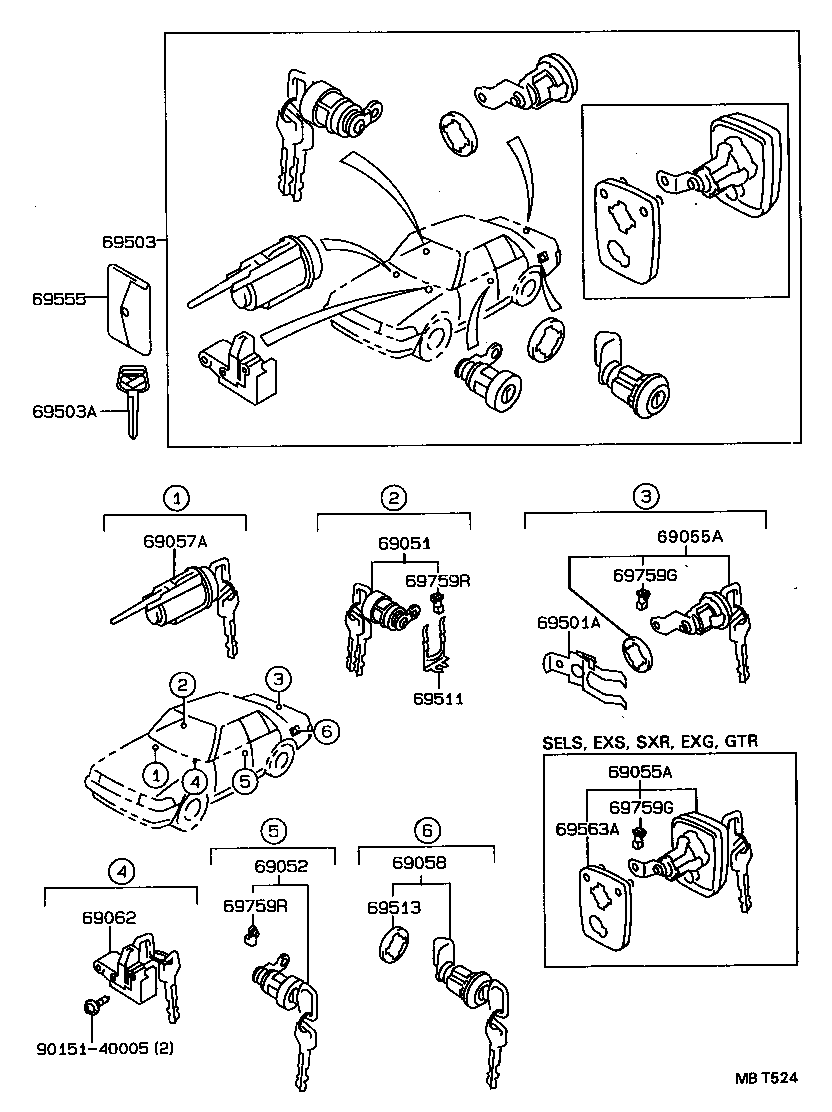

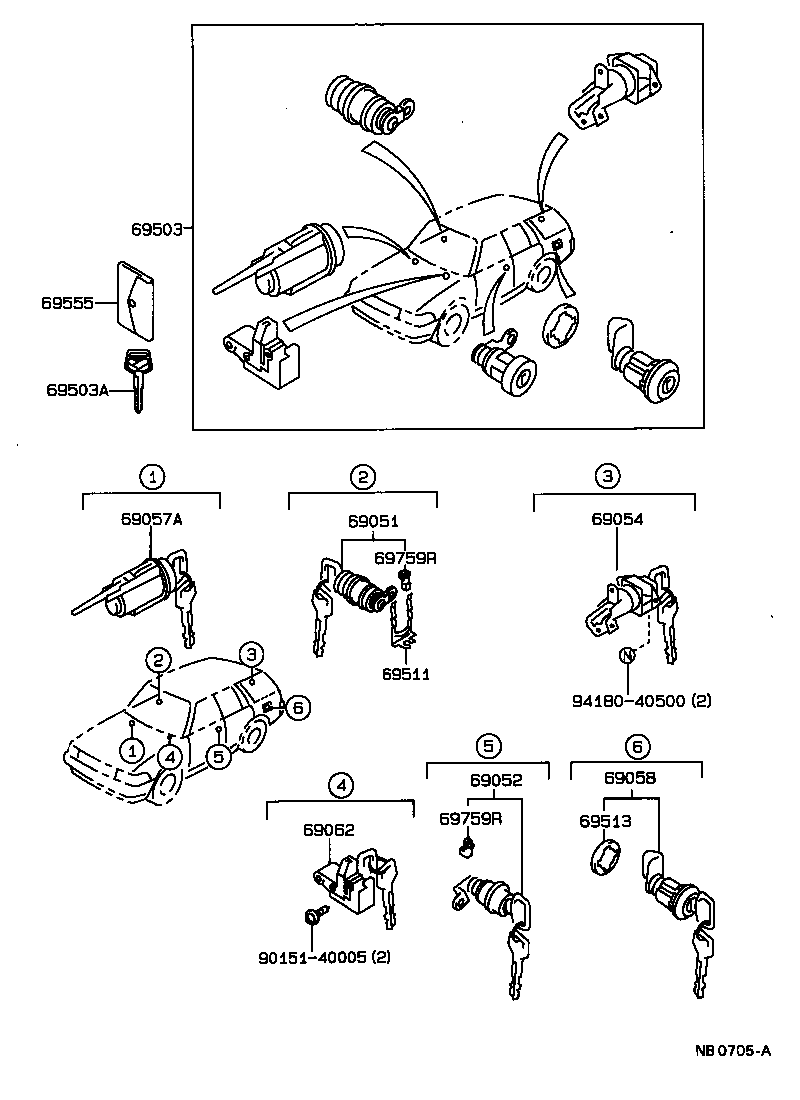

Figure NB0703A NB0703A 1987-12 → 1989-11 Figure NB0803 NB0803 1987-12 → 1989-11 Figure MBT524 MBT524 1989-11 → — Figure MBT525 MBT525 1989-11 → — Figure NB0704B NB0704B 1987-12 → — Figure NB0804B NB0804B 1987-12 → — Figure NB0705A NB0705A 1987-12 → —

Part groups

PNCDescription
69051 Cylinder & Key Set, Door Lock, RH
69052 Cylinder & Key Set, Door Lock, LH
69054 Cylinder & Key Set, Back Door Lock
69055A Cylinder & Key Set, Luggage Compartment Lock
69057A Cylinder & Key Set, Ignition Switch Lock
69058 Cylinder & Key Set, Fuel Filler Lid
69062 Cylinder & Key Set, Glove Compartment Lock
69501A Retainer Sub-assy, Back Door Cylinder
69503 Cylinder Set, Lock
69503A Key, Blank
69511 Retainer, Front Door Lock Cylinder
69513 Pad, Fuel Filler Lid Lock Cylinder
69555 Cover, Key
69563 Pad, Back Door Lock Cylinder
69563A Pad, Luggage Compartment Door Lock Cylinder
69759C Snap, Back Door Lock Cylinder
69759G Snap, Luggage Door Lock Cylinder
69759R Snap, Front Door Lock Cylinder
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
