Toyota Corona

1987-12 → 1992-11 · chassis AT17#,ST17#,CT17#,ET176 · catalogue 271120 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

55 part groups · 8 illustrations

Illustrations

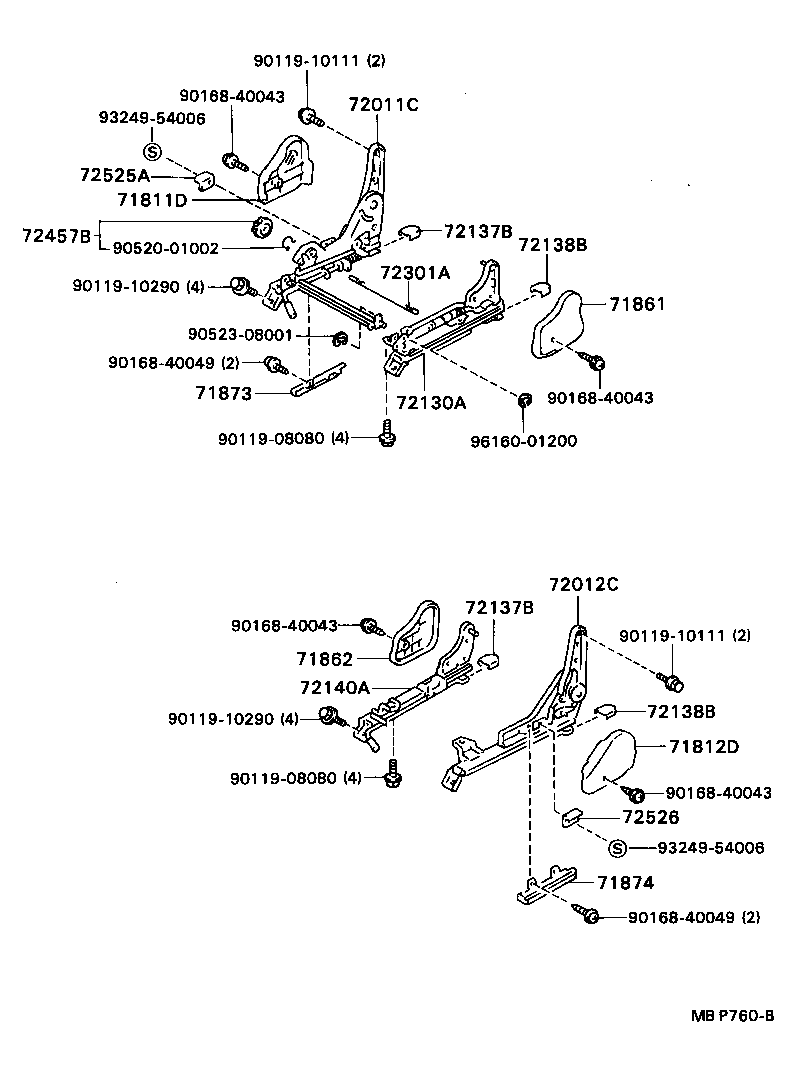

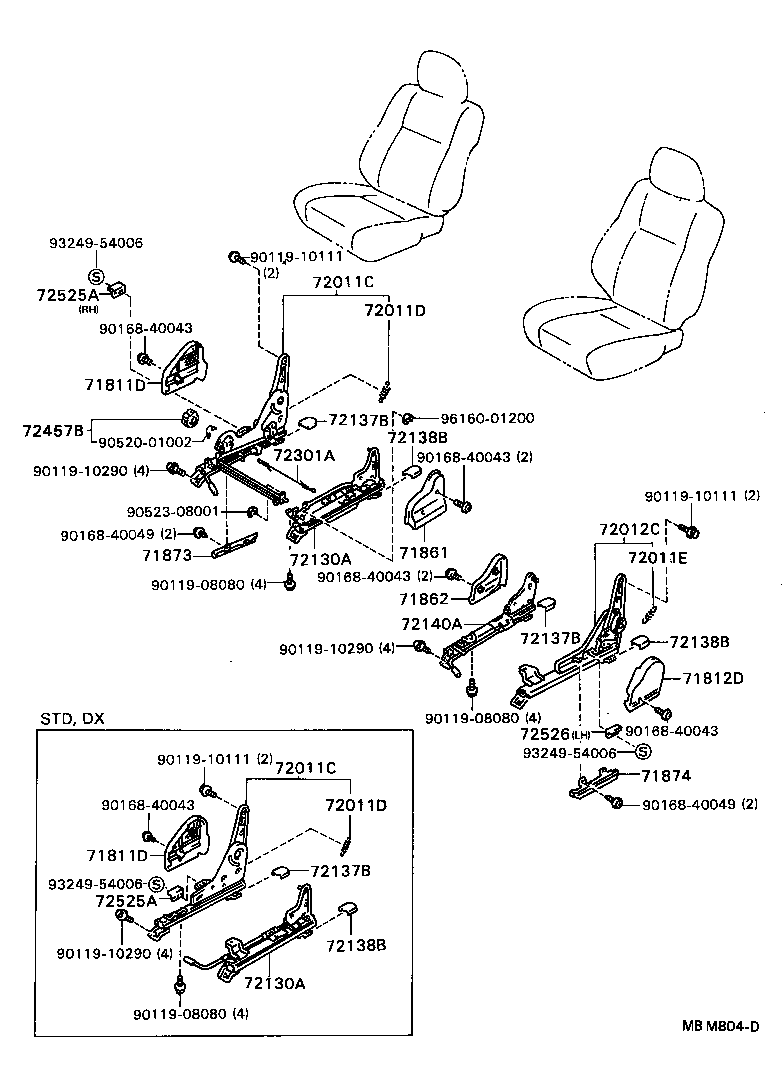

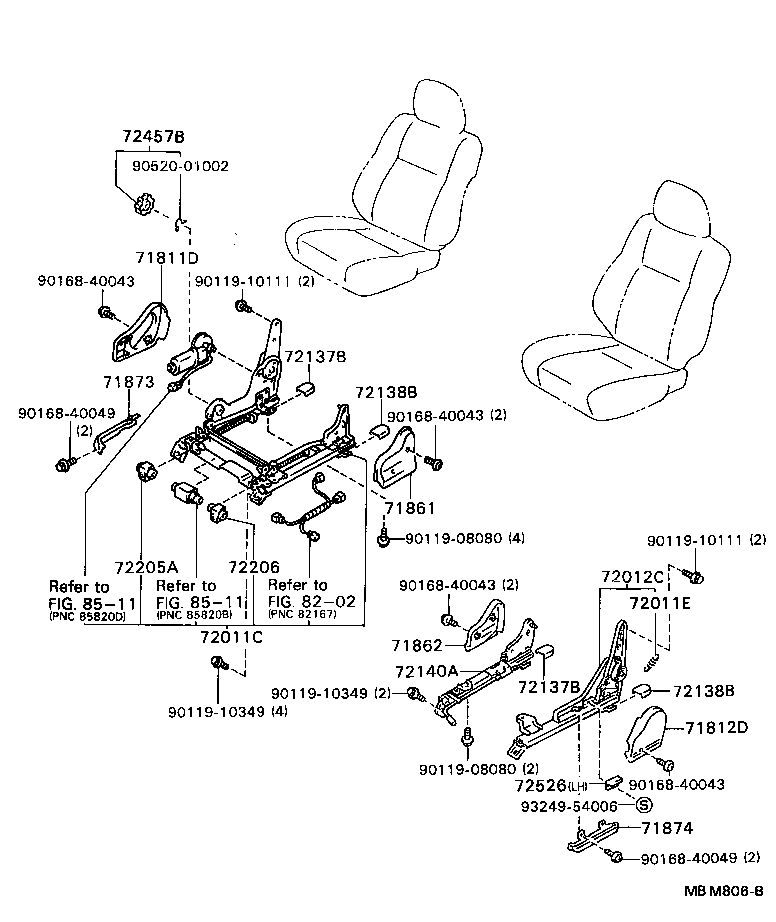

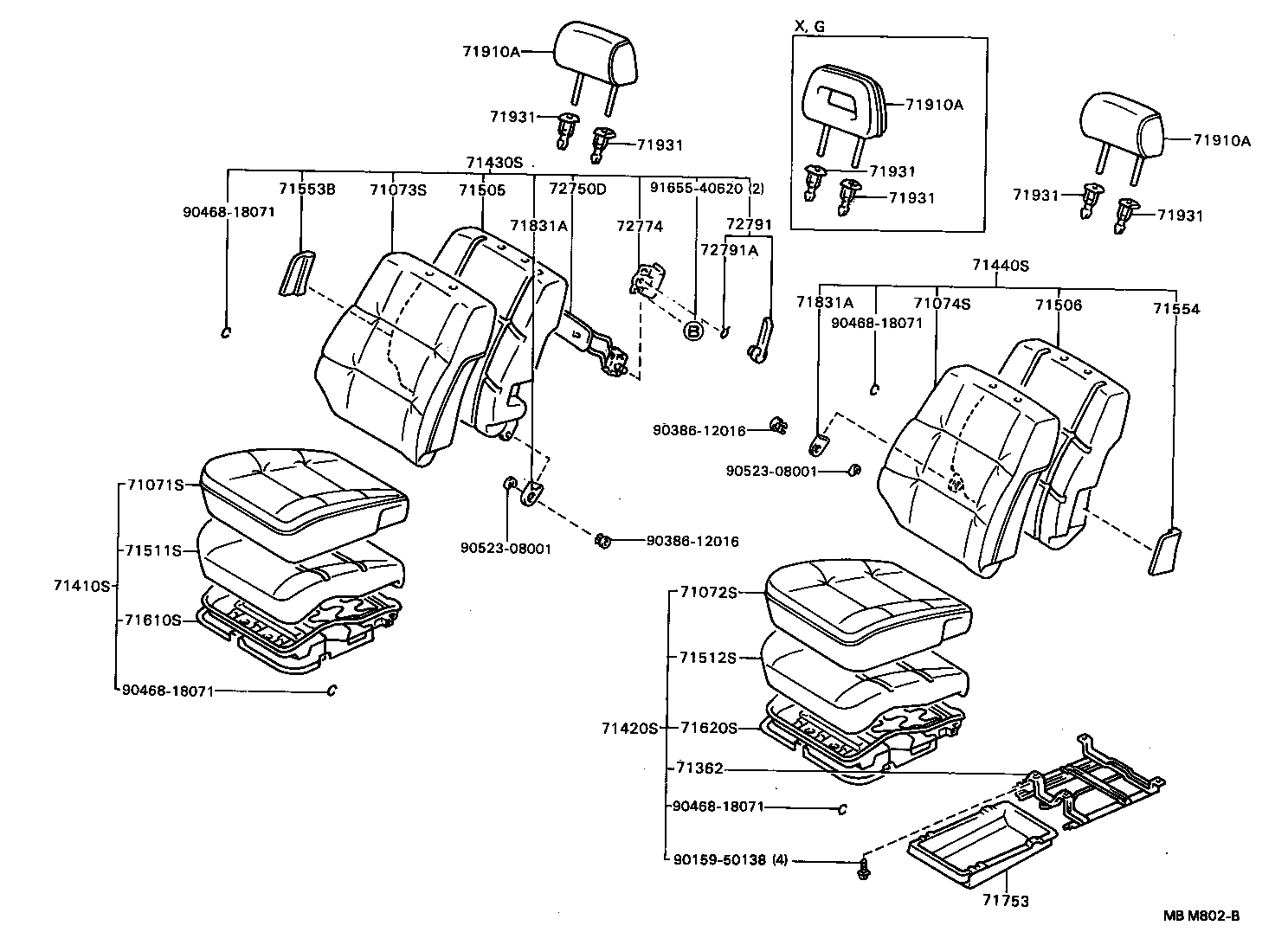

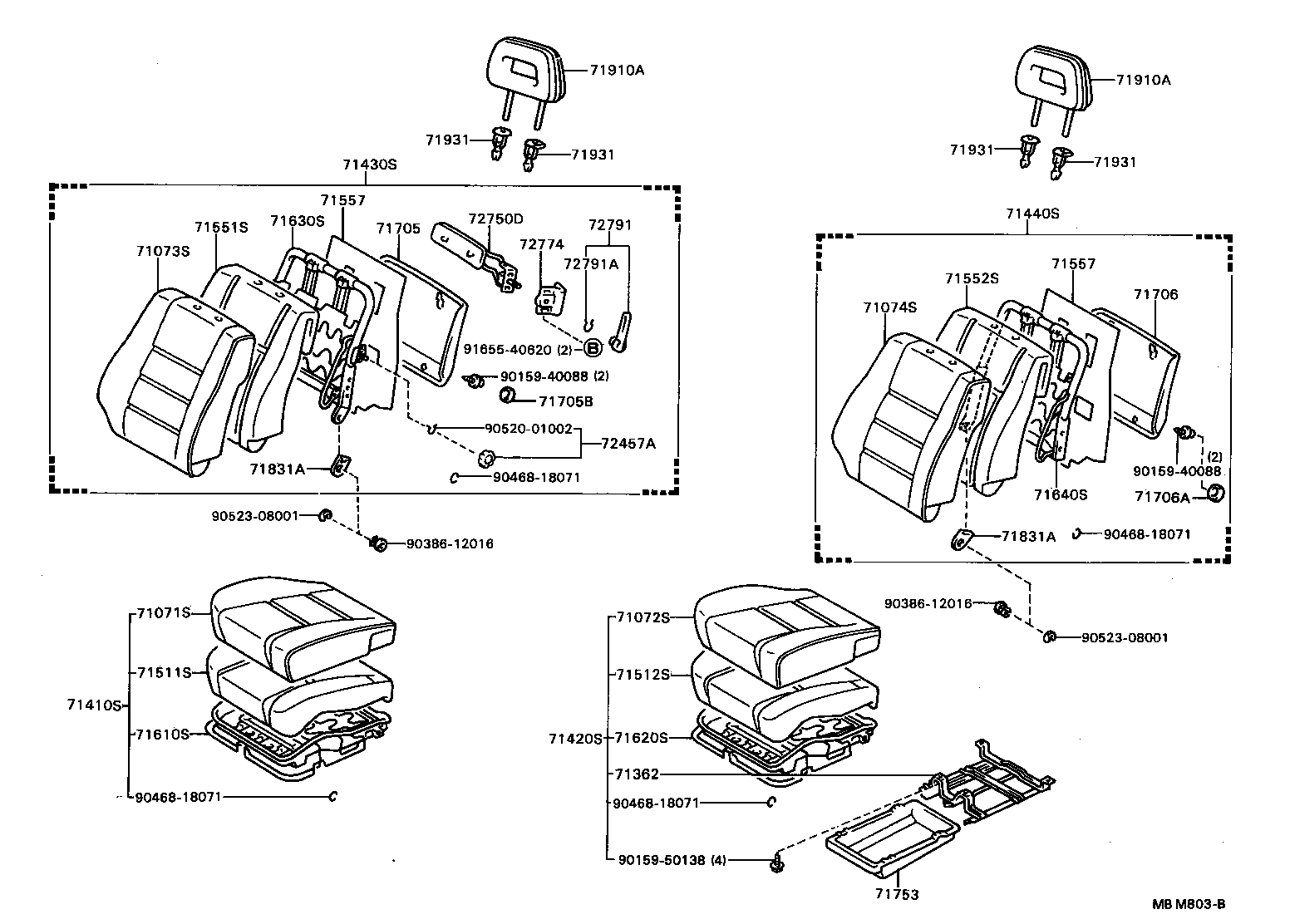

Figure MBM800B MBM800B 1987-12 → — Figure MBM802B MBM802B 1987-12 → — Figure MBM803B MBM803B 1987-12 → — Figure MBM804D MBM804D 1987-12 → — Figure MBM804D MBM804D 1990-06 → — Figure MBM806B MBM806B 1987-12 → — Figure MBM806B MBM806B 1988-12 → 1989-06 Figure MBP760B MBP760B 1988-08 → —

Part groups

PNCDescription
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71362 Bracket, Front Seat Set, NO.2
71410S Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71420S Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71430S Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71505 Pad Sub-assy, Front Seatback W/Frame, RH
71506 Pad Sub-assy, Front Seatback W/Frame, LH
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71553B Pad, Front Seatback, B
71554 Pad, Front Seatback, C
71557 Cloth, Front Seatback Under
71610S Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71620S Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71630S Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71640S Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71705 Board Sub-assy, Front Seatback, RH
71705B Cap(FOR FRONT SEATBACK BOARD)
71706 Board Sub-assy, Front Seatback, LH
71706A Cap, Front Seatback Board
71753 Tray, Front Seat Under
71811D Shield, Front Seat Cushion, RH
71812D Shield, Front Seat Cushion, LH
71831A Cover, Front Seat Hinge
71861 Shield, Front Seat Cushion, Inner RH
71862 Shield, Front Seat Cushion, Inner LH
71873 Shield, Front Seat Cushion, Lower RH
71874 Shield, Front Seat Cushion, Lower LH
71910A Headrest Assy, Front Seat
71931 Support, Front Seat Headrest
72011C Adjuster Sub-assy, Front Seat, RH
72011D Spring, Tension, RH(FOR FRONT SEAT ADJUSTER OUTER)
72011E Spring, Tension, LH(FOR FRONT SEAT ADJUSTER OUTER)
72012C Adjuster Sub-assy, Front Seat, LH
72130A Track Assy, Front Seat, Inner RH
72137B Cover, Seat Track, RH
72138B Cover, Seat Track, LH
72140A Track Assy, Front Seat,Inner LH
72205A Housing Sub-assy, Power Seat, NO.1
72206 Housing Sub-assy, Power Seat, NO.2
72301A Wire Sub-assy, Seat Track Equalizing, RH
72457A Knob, Seat Adjuster
72457B Knob, Vertical Seat Adjuster, RH
72525A Handle, Reclining Adjuster Release, RH
72526 Handle, Reclining Adjuster Release, LH
72750D Adjuster Assy, Lumbar Support, RH
72774 Protector, Lumbar Support Spring
72791 Lever, Lumbar Support
72791A Ring, Shaft Snap(FOR LUMBER SUPPORT LEVER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
