Toyota Corona

1987-12 → 1992-11 · chassis AT17#,ST17#,CT17#,ET176 · catalogue 271120 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate (EXTERIOR & INTERIOR)

16 part groups · 3 illustrations

Illustrations

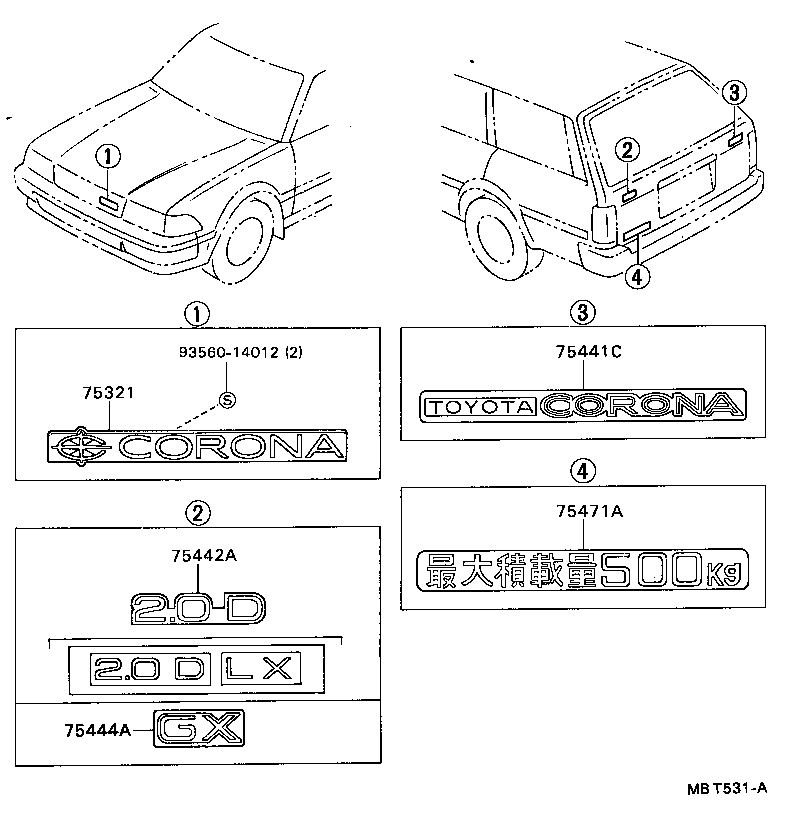

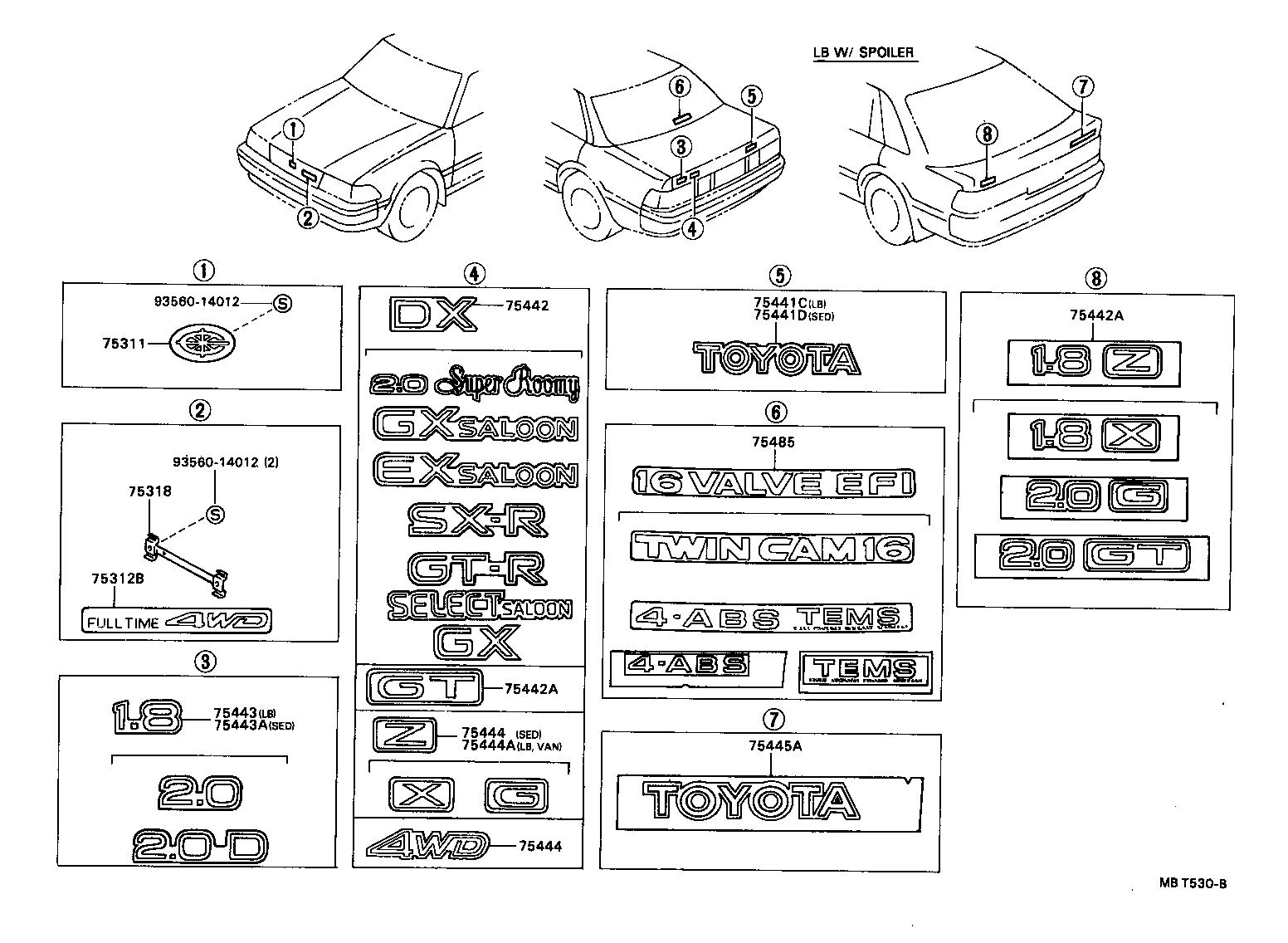

Figure MBM919E MBM919E 1987-12 → 1989-11 Figure MBT530B MBT530B 1989-11 → — Figure MBT531A MBT531A 1987-12 → —

Part groups

PNCDescription
75311 Emblem, Radiator Grille (OR FRONT PANEL)
75312B Emblem, Radiator Grille, NO.2
75318 Retainer, Radiator Grille Emblem
75321 Plate, Radiator Grille OR Front Panel Name
75441C Plate, Back Door Name
75441D Plate, Luggage Compartment Door Name, NO.1
75442 Plate, Luggage Compartment Door Name, NO.2
75442A Plate, Back Door Name, NO.2
75443 Plate, Back Door Name, NO.3
75443A Plate, Luggage Compartment Door, NO.3
75444 Plate, Luggage Compartment Door, NO.4
75444A Plate, Back Door Name, NO.4
75445 Plate, Luggage Compartment Door Name, NO.5
75445A Plate, Back Door Name, NO.5
75471A Mark, Maximum Load
75485 Plate, Back Window Name
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
