Toyota Corona

1987-12 → 1992-11 · chassis AT17#,ST17#,CT17#,ET176 · catalogue 271120 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

27 part groups · 3 illustrations

Illustrations

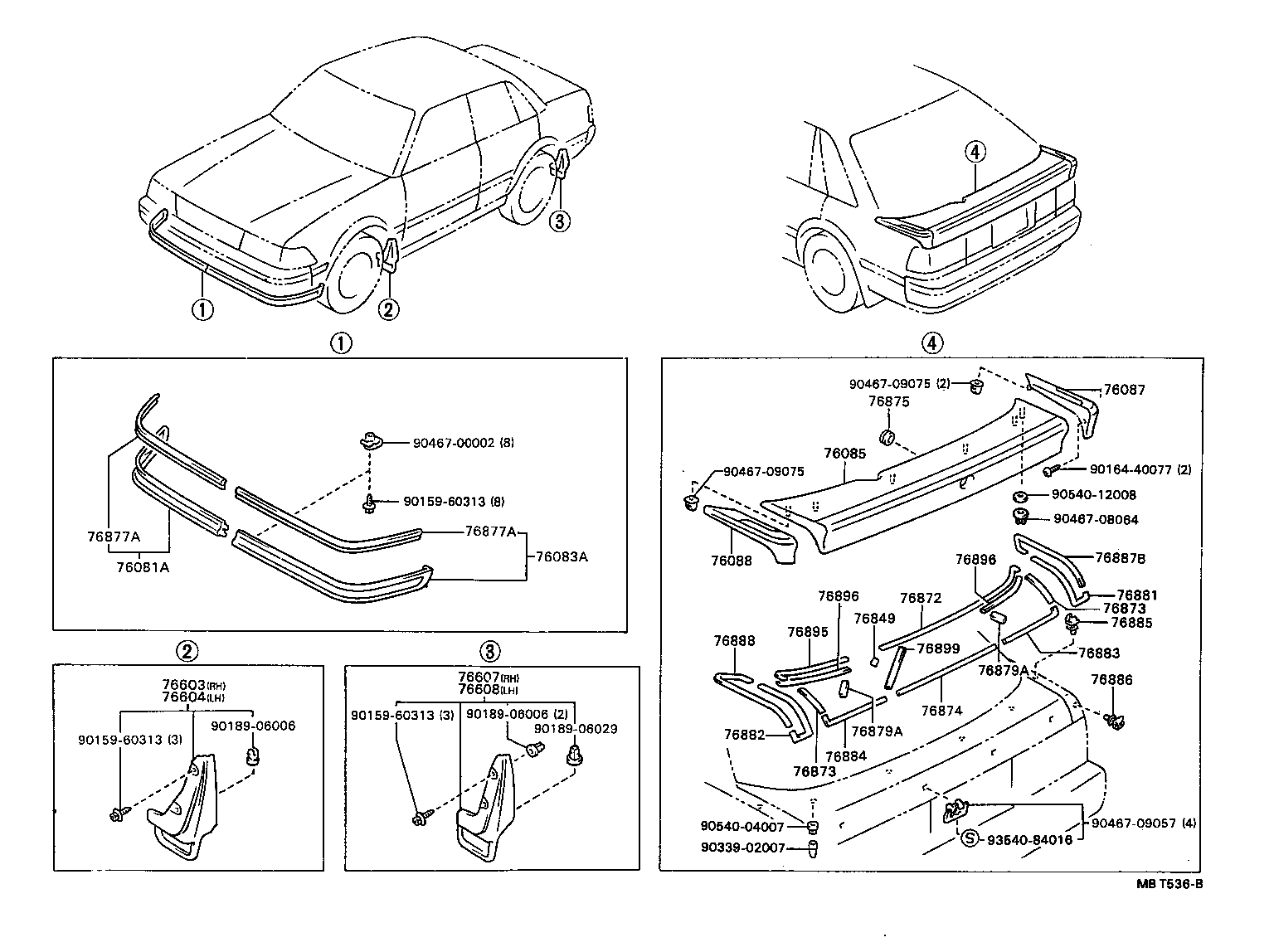

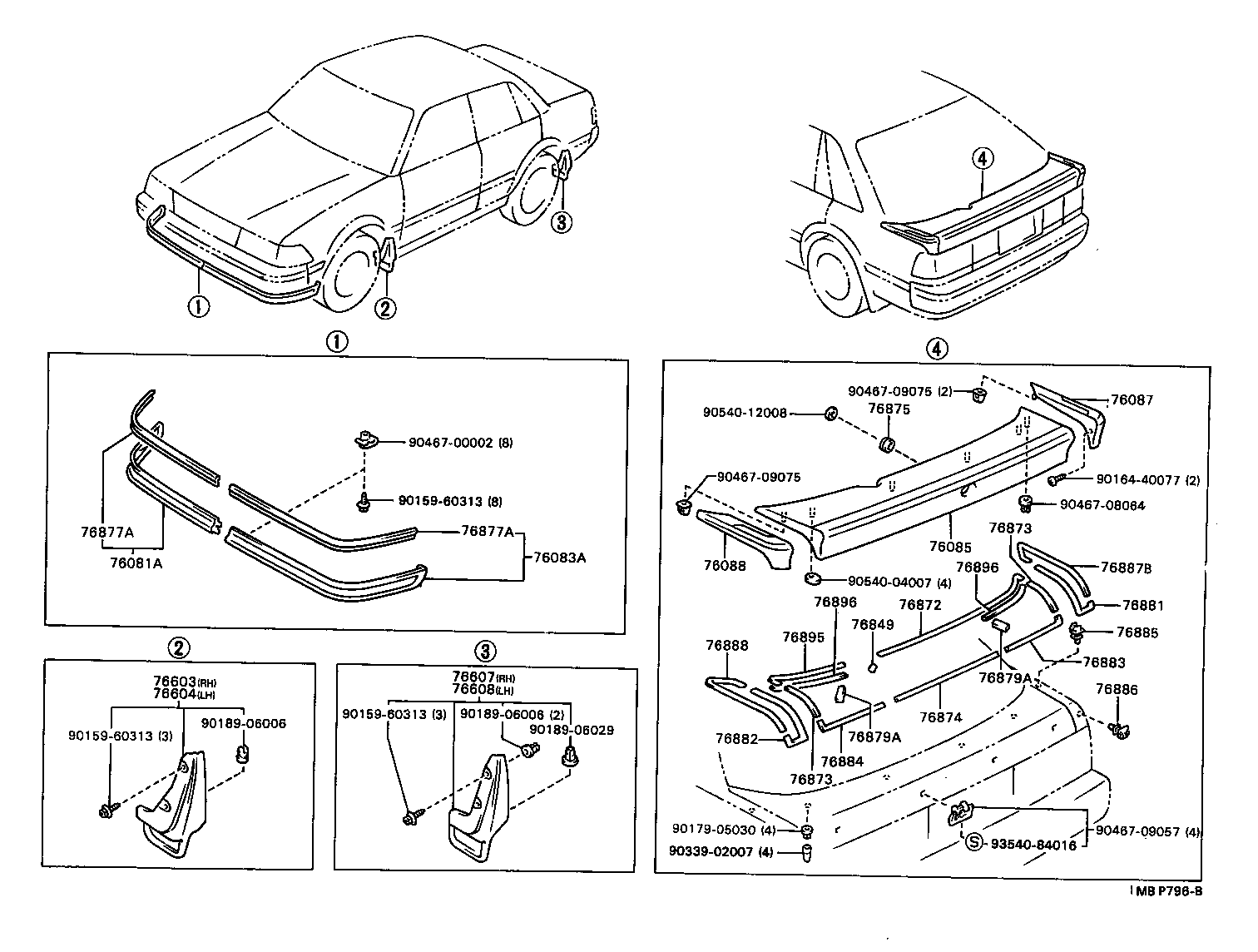

Figure MBM930B MBM930B 1987-12 → 1988-02 Figure MBP796B MBP796B 1988-02 → 1989-11 Figure MBT536B MBT536B 1989-11 → —

Part groups

PNCDescription
76081A Spoiler Sub-assy, Front RH
76083A Spoiler Sub-assy, Front LH
76085 Spoiler Sub-assy, Rear
76087 Spoiler Sub-assy, Rear NO.1
76088 Spoiler Sub-assy, Rear NO.2
76603 Mudguard Sub-assy, Front Fender, RH
76604 Mudguard Sub-assy, Front Fender, LH
76607 Mudguard Sub-assy, Quarter Panel, Rear RH
76608 Mudguard Sub-assy, Quarter Panel, Rear LH
76849 Protector, Rear Spoiler, NO.12 LH
76872 Protector, Rear Spoiler, NO.1
76873 Protector, Rear Spoiler, NO.2
76874 Protector, Rear Spoiler, NO.3
76875 Protector, Rear Spoiler, NO.4
76877A Protector, Front Spoiler
76879A Spacer, Rear Spoiler
76881 Protector, Rear Spoiler Side, NO.1 RH
76882 Protector, Rear Spoiler Side, NO.1 LH
76883 Protecter, Rear Spoiler, NO.7 RH
76884 Protecter, Rear Spoiler, NO.7 LH
76885 Retainer, Rear Spoiler, NO.5
76886 Retainer, Rear Spoiler, NO.6
76887B Protector, Rear Spoiler Side, NO.2
76888 Protector, Rear Spoiler Side, NO.3
76895 Protector, Rear Spoiler, NO.5
76896 Protector, Rear Spoiler, NO.6
76899 Protector, Rear Spoiler, Side NO.6
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
