Toyota Corona

1987-12 → 1992-11 · chassis AT17#,ST17#,CT17#,ET176 · catalogue 271120 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

115 part groups · 12 illustrations

Illustrations

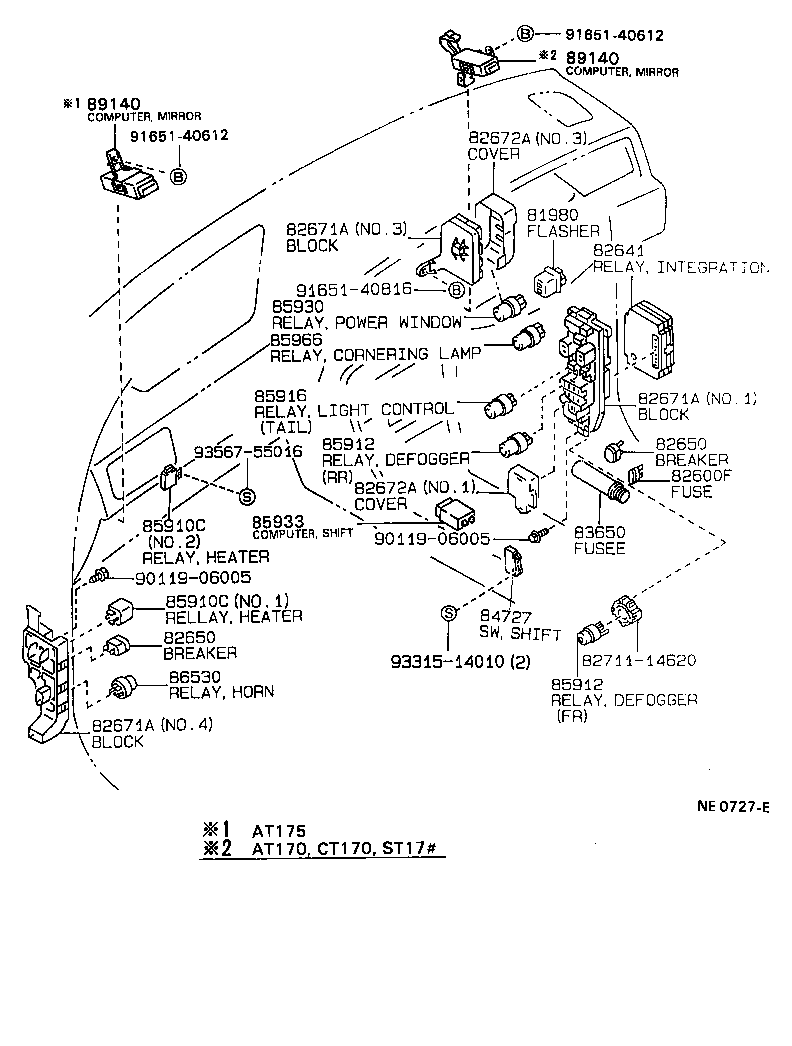

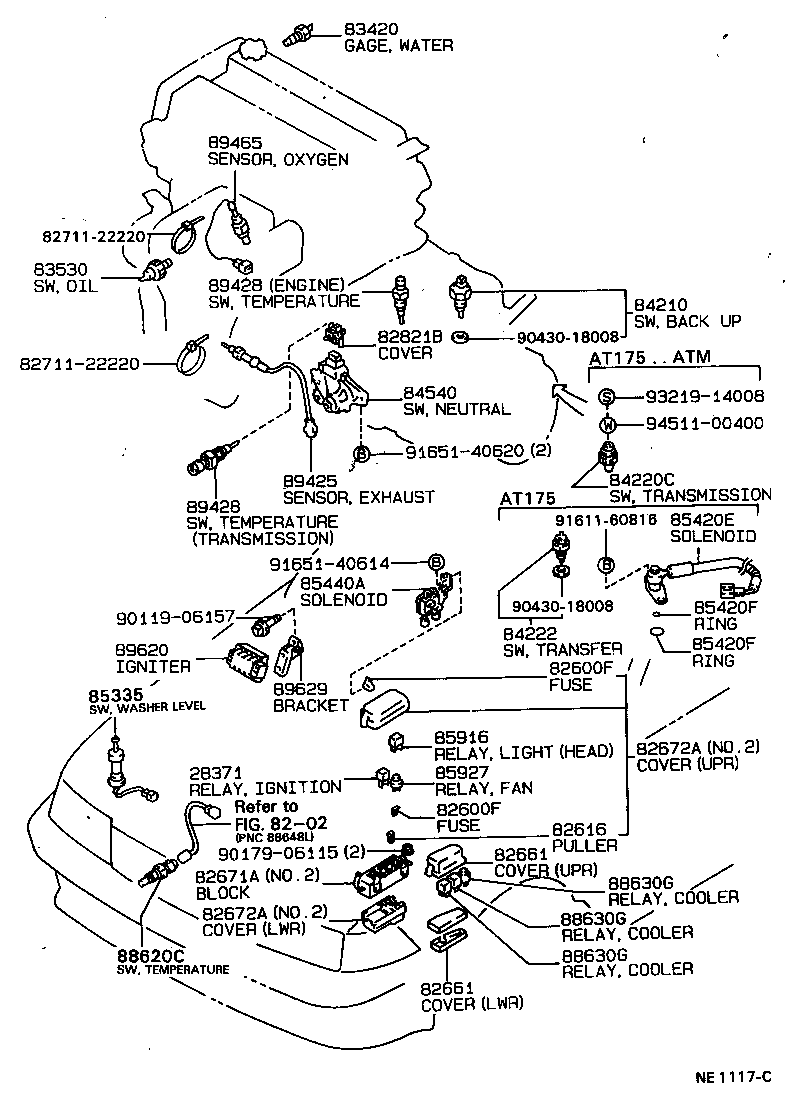

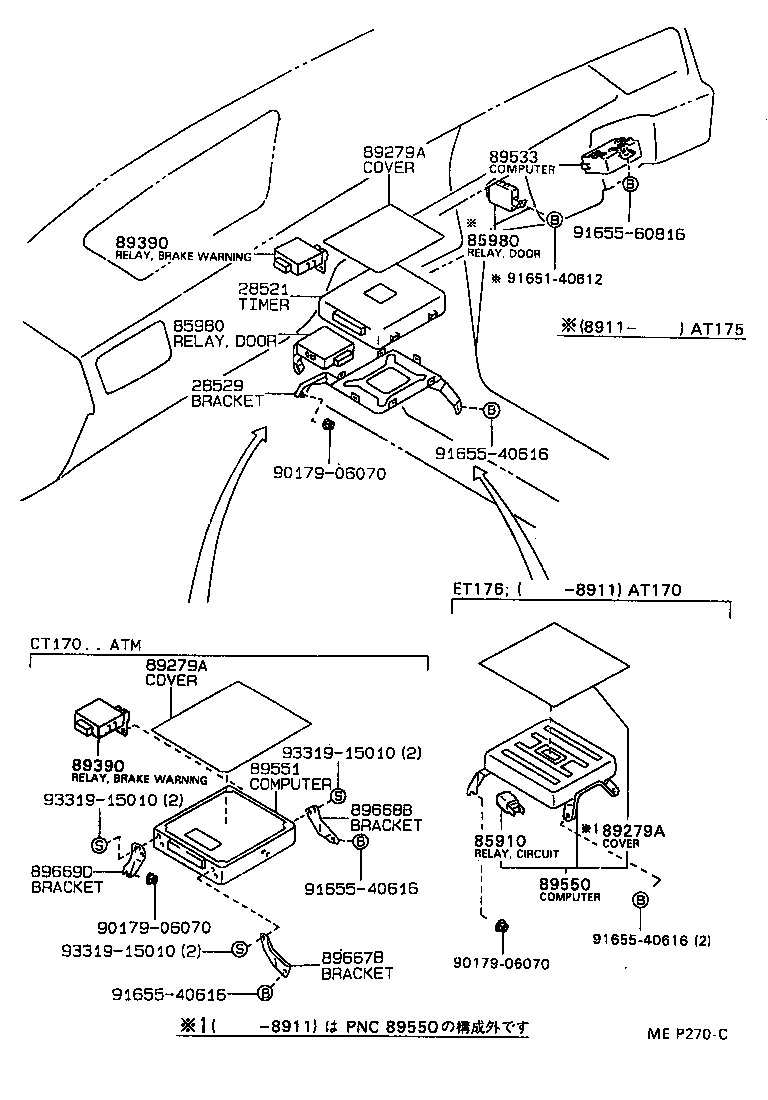

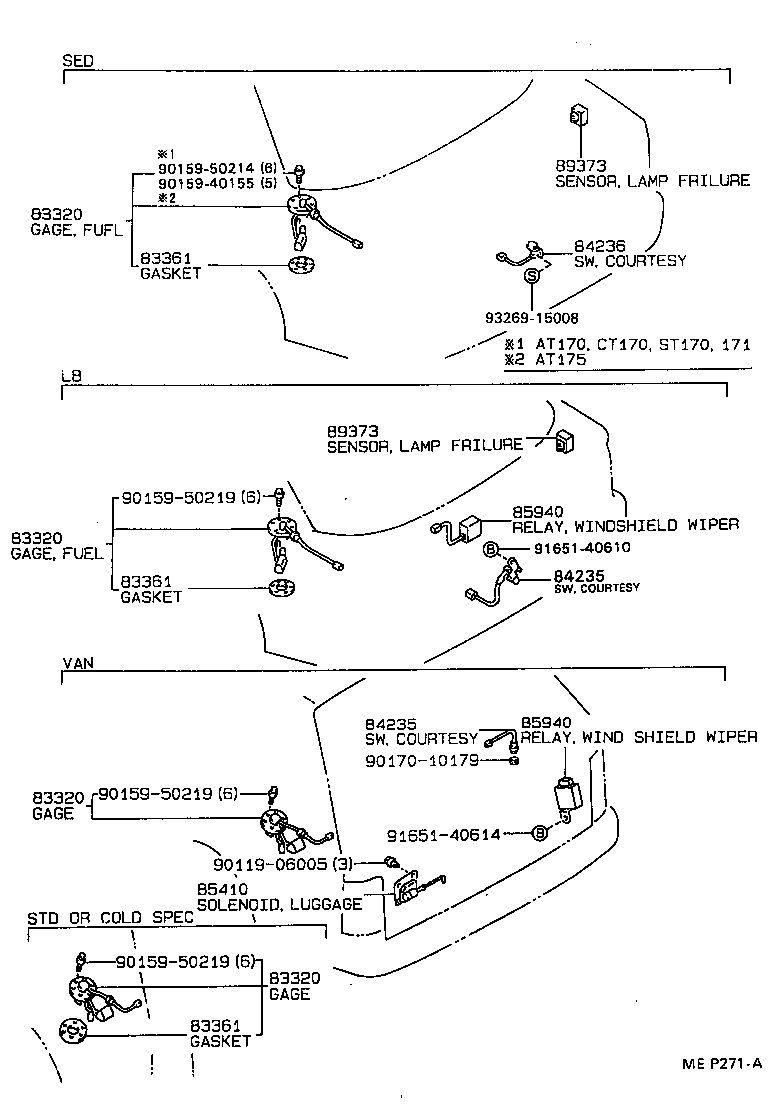

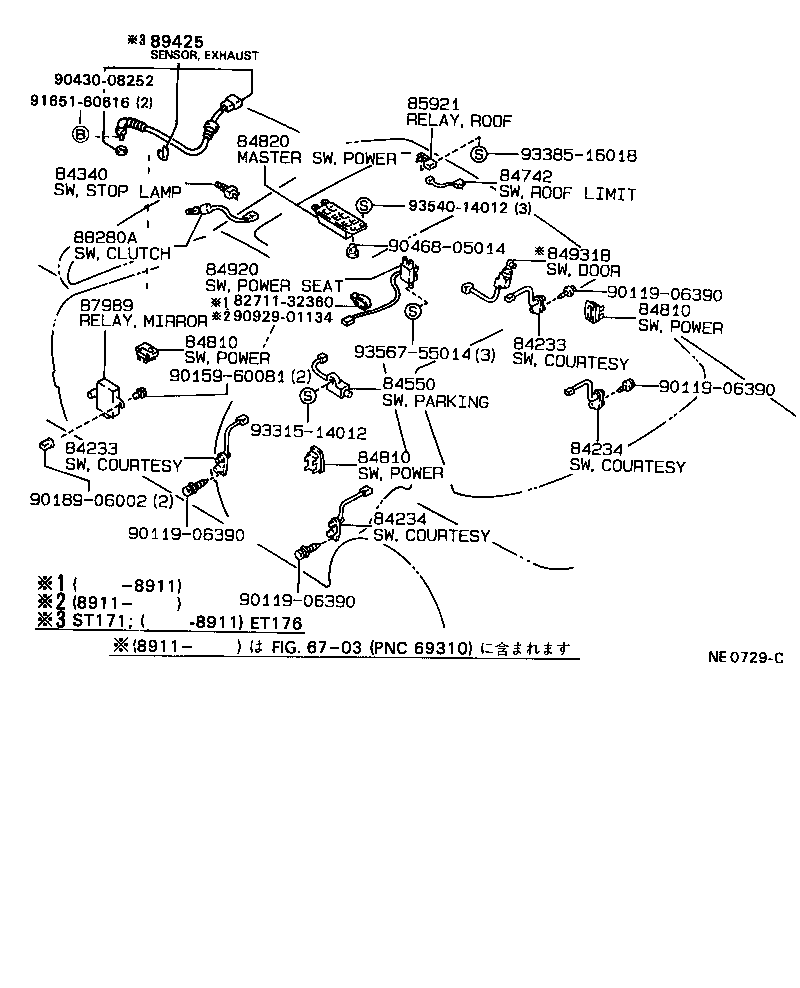

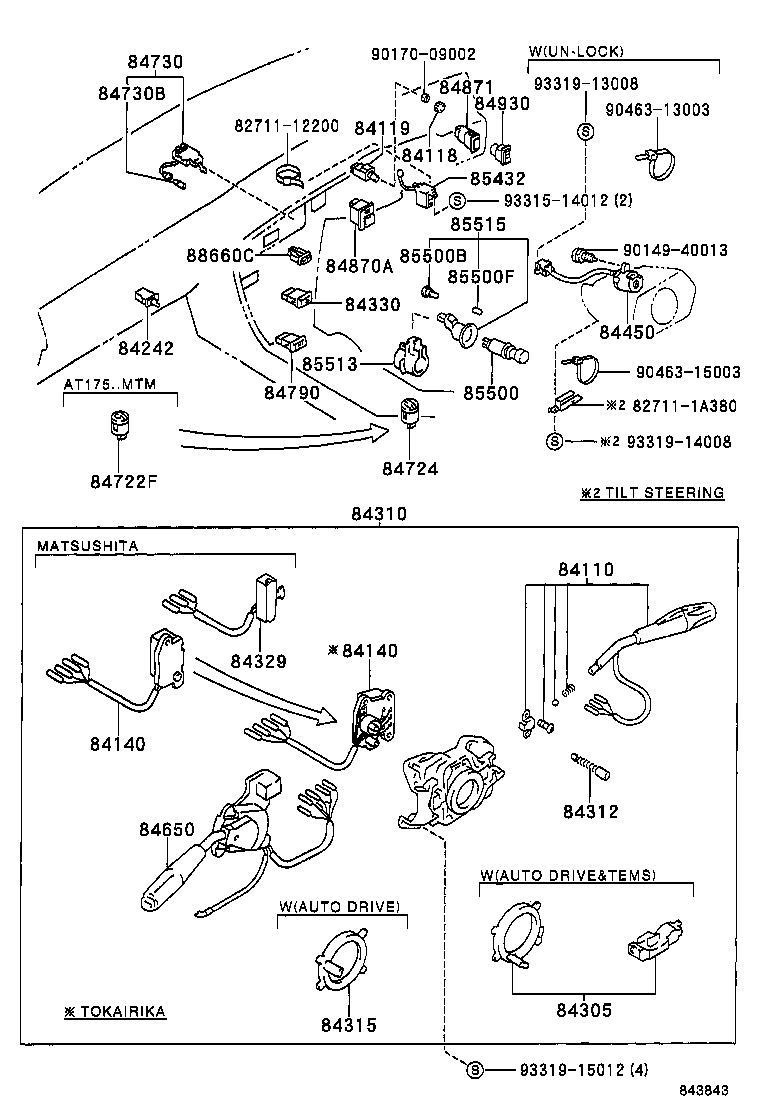

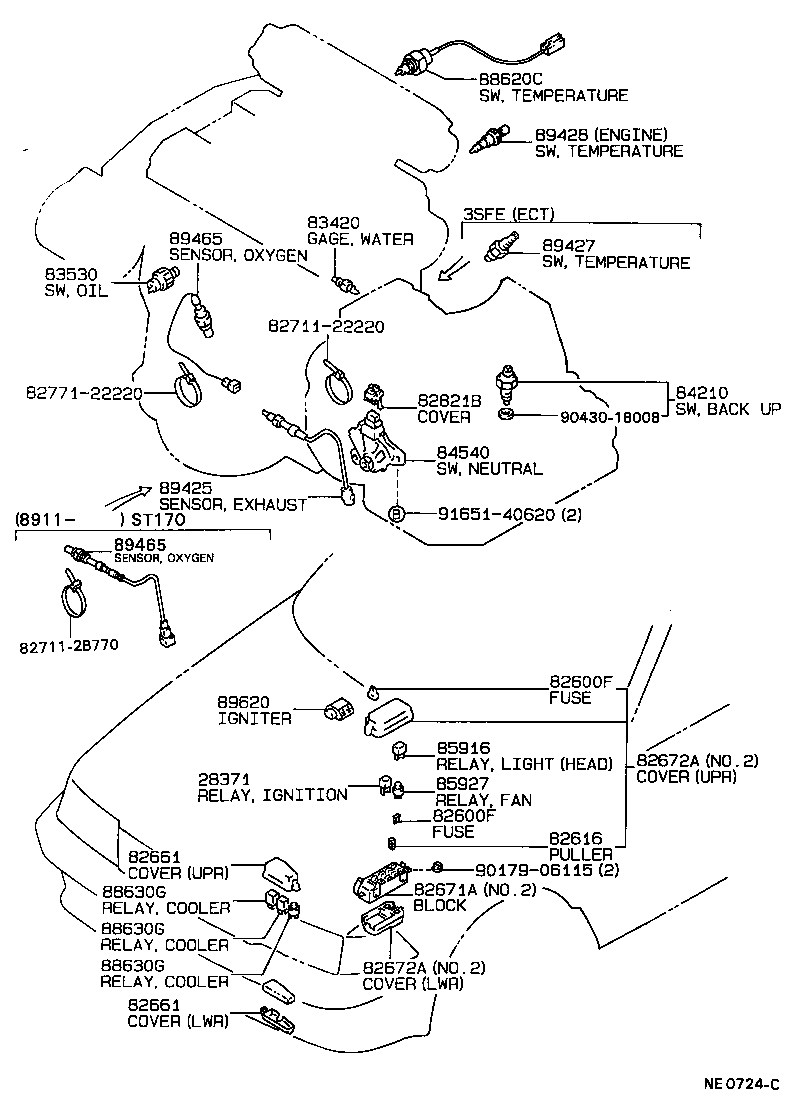

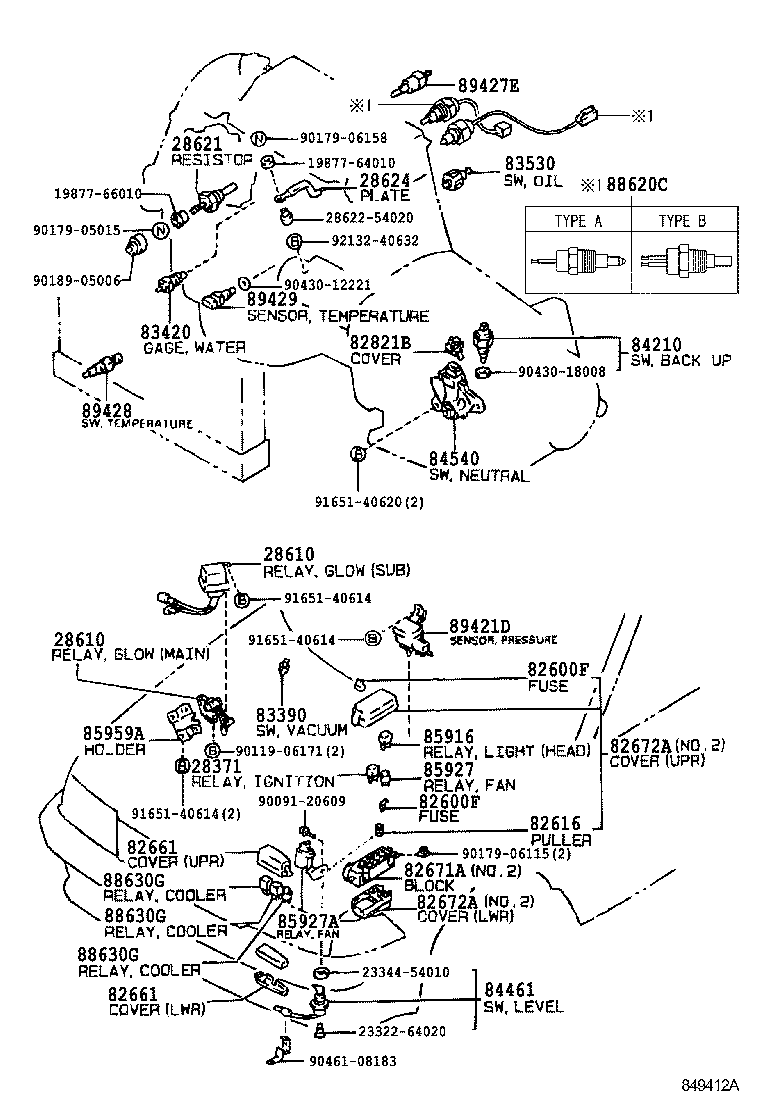

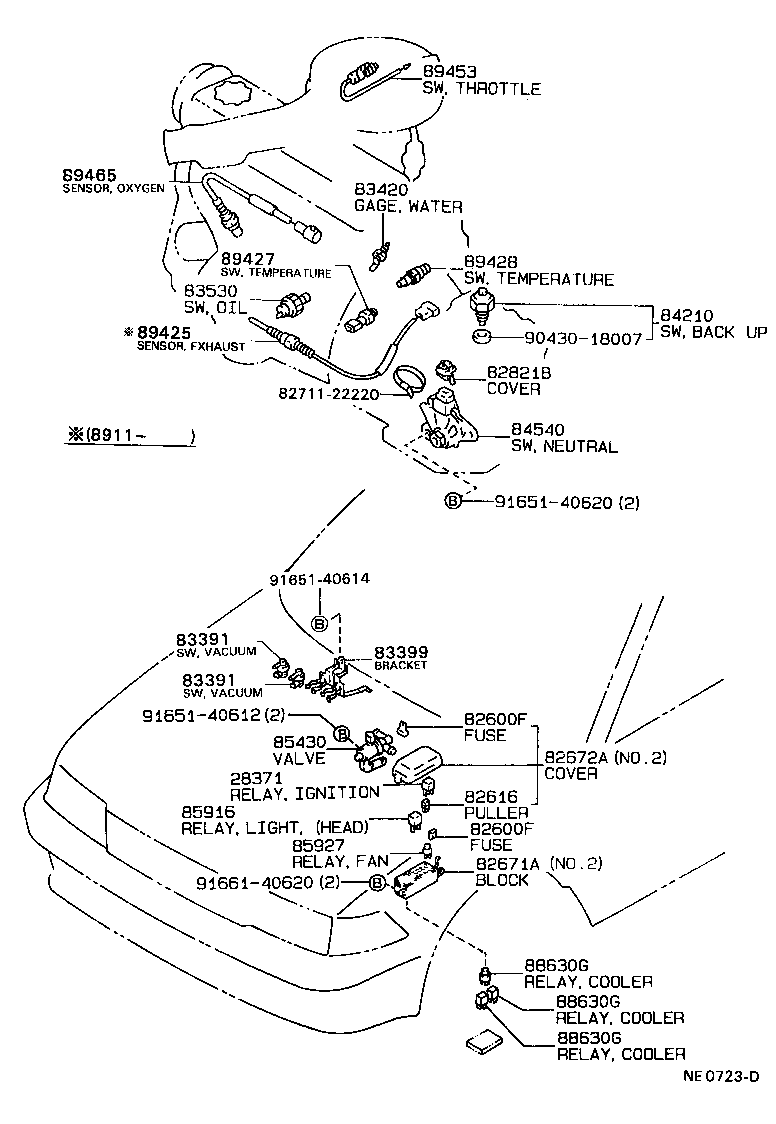

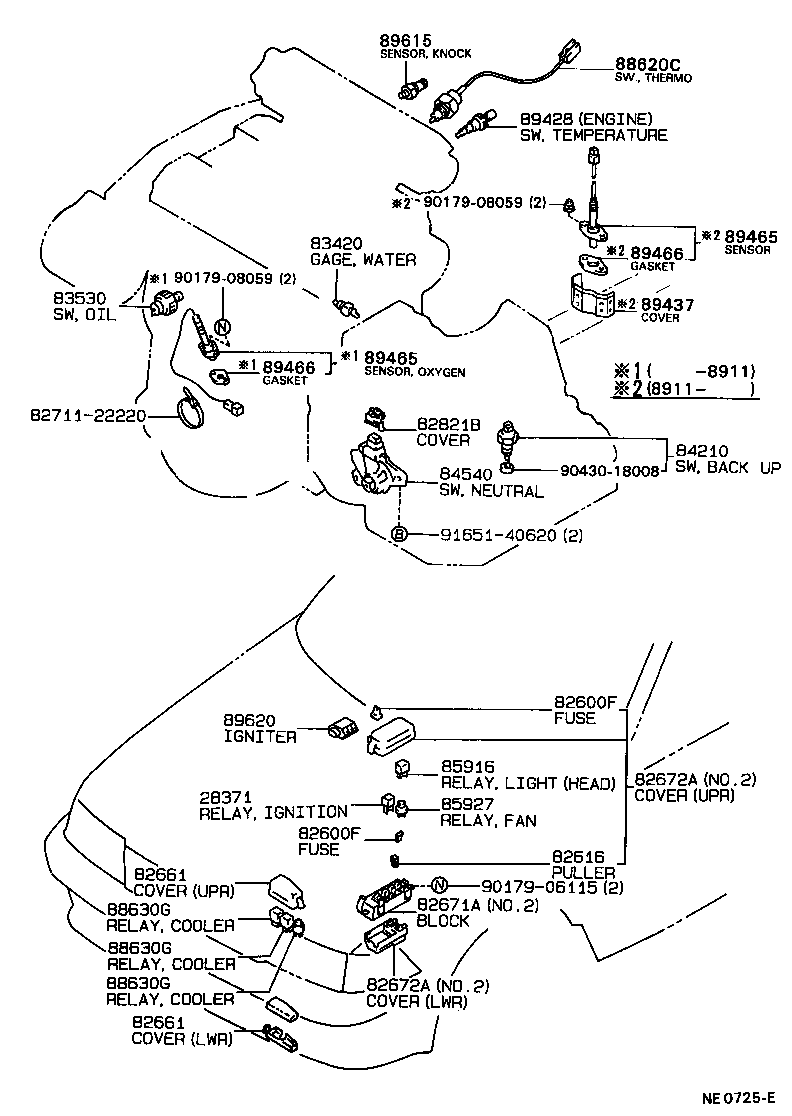

Figure 842573 842573 1987-12 → 1989-11 Figure NE1117C NE1117C 1988-08 → — Figure NE1117C NE1117C 1989-11 → — Figure 849412A 849412A 1987-12 → — Figure NE0723D NE0723D 1987-12 → — Figure NE0724C NE0724C 1987-12 → — Figure NE0725E NE0725E 1987-12 → — Figure 843843 843843 1987-12 → — Figure NE0727E NE0727E 1987-12 → — Figure MEP270C MEP270C 1987-12 → — Figure NE0729C NE0729C 1987-12 → — Figure MEP271A MEP271A 1987-12 → —

Part groups

PNCDescription
28371 Relay, Ignition, NO.1
28521 Timer, Preheating
28529 Bracket, Preheating Timer, NO.1
28610 Relay Assy, Intake Heater OR Glow Plug
28621 Resistor, Glow Plug
28624 Plate, Current Sensor
81980 Flasher Assy, Turn Signal
82600F Fuse, Fuse Block
82616 Puller, Fuse
82641 Relay, Integration NO.1
82650 Breaker Assy, Wiring Circuit, NO.1
82661 Cover, Relay Block, NO.1
82671A Block, Junction
82672A Cover, Junction Block
82821B Cover, Connector
83320 Gage Assy, Fuel Sender
83361 Gasket, Fuel Sender Gage
83390 Switch Assy, Vacuum Warning
83391 Switch, Vacuum
83399 Bracket, Vacuum Switch
83420 Gage Assy, Water Temperature Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
83650 Fusee
84110 Switch Assy, Light Control, NO.1
84118 Knob, Light Control Rheostat
84119 Rheostat, Light Control
84140 Switch Assy, Headlamp Dimmer
84210 Switch Assy, Back-up Lamp
84220C Switch Assy, Transmission Position Indicator
84222 Switch, Transfer Indicator, NO.1
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84235 Switch Assy, Courtesy Lamp(FOR BACK DOOR)
84236 Switch Assy, Courtesy Lamp(FOR LUGGAGE COMPARTMENT ROOM)
84242 Switch, Glove Box Lamp
84305 Slipring, Steering Sensor
84310 Switch Assy, Turn Signal
84312 Plate, Horn Contact
84315 Slipring, Horn Contact
84329 Switch, Turn Signal
84330 Switch Assy, Hazard Warning Signal
84340 Switch Assy, Stop Lamp
84450 Switch Assy, Ignition OR Starter
84461 Switch, Level Warning
84540 Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84650 Switch Assy, Windshield Wiper
84722F Switch, Transmission Control
84724 Switch, 4 Wheel Drive Control
84727 Switch, Shift Lock Control
84730 Switch Assy, Heater Blower
84730B Bulb, Heater Blower Switch
84742 Switch, Slide Roof Limit
84790 Switch Assy, Rear Window Defogger
84810 Switch Assy, Power Window Regulator
84820 Master Switch Assy, Power Window Regulator
84870A Switch Assy, Outer Mirror
84871 Switch Assy, Outer Mirror Heater
84920 Switch Assy, Power Seat
84930 Switch Assy, Door Control
84931B Switch, Door Control
85335 Switch Assy, Washer Level Warning
85410 Solenoid Assy, Luggage Door Lock
85420E Solenoid Assy, Transmission
85420F Ring, O(FOR TRANSMISSION SOLENOID)
85430 Valve, Outer Vent Control
85432 Solenoid, Key Interlock
85440A Solenoid Assy, Four Wheel Drive Control
85500 Lighter Assy, Cigarette
85500B Bulb, Cigarette Lighter
85500F Cap, Cigarette Lighter Bulb
85513 Cover, Cigarette Lighter
85515 Stay, Cigarette Lighter Bezel
85910 Relay Assy, Circuit Opening
85910C Relay Assy (FOR HEATER BLOWER MOTOR)
85912 Relay, Defogger
85916 Relay, Light Control
85921 Relay, Sliding Roof Control
85927 Relay, Cooling Fan
85927A Relay, Cooling Fan, NO.2
85930 Relay Assy, Power Window
85933 Computer, Shift Lock Control
85940 Relay Assy, Windshield Wiper
85959A Holder, Relay
85966 Relay,Cornering Lamp Control
85980 Relay Assy, Door Control
86530 Relay Assy, Horn
87989 Relay, Mirror Control
88280A Switch Assy, Clutch
88620C Thermo Switch Assy
88630G Relay Assy, Cooler
88660C Switch Assy, Cooler Control
89140 Computer,Assy Mirror Viblation Control
89279A Cover, Computer
89373 Sensor, Lamp Failure Indicator
89390 Relay, Brake Warning
89421D Sensor, Turbo Pressure
89425 Sensor, Exhaust Gas Temperature
89427 Switch, Temperature Detect
89427E Switch, Temperature (FOR HEATER IDLE UP)
89428 Switch, Temperature Detect, NO.2
89429 Sensor, Oil Temperature
89437 Cover, Sensor
89453 Switch, Throttle Position (FOR T.C.S.)
89465 Sensor, Oxygen
89466 Gasket, Oxygen Sensor
89533 Computer, 4 Wheel Drive Control
89550 Computer Assy, Emission Control
89551 Computer, Emission Control
89615 Sensor, Knock Control
89620 Igniter Assy
89629 Bracket, Igniter Assy
89667B Bracket, Engine Control Computer, NO.1
89668B Bracket, Engine Control Computer, NO.2
89669D Bracket, Engine Control Computer, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
