Toyota Corona
1987-12 → 1992-11 · chassis AT17#,ST17#,CT17#,ET176 · catalogue 271120 · Japan
Discontinued model
Data version 1993-06
Abs & Vsc

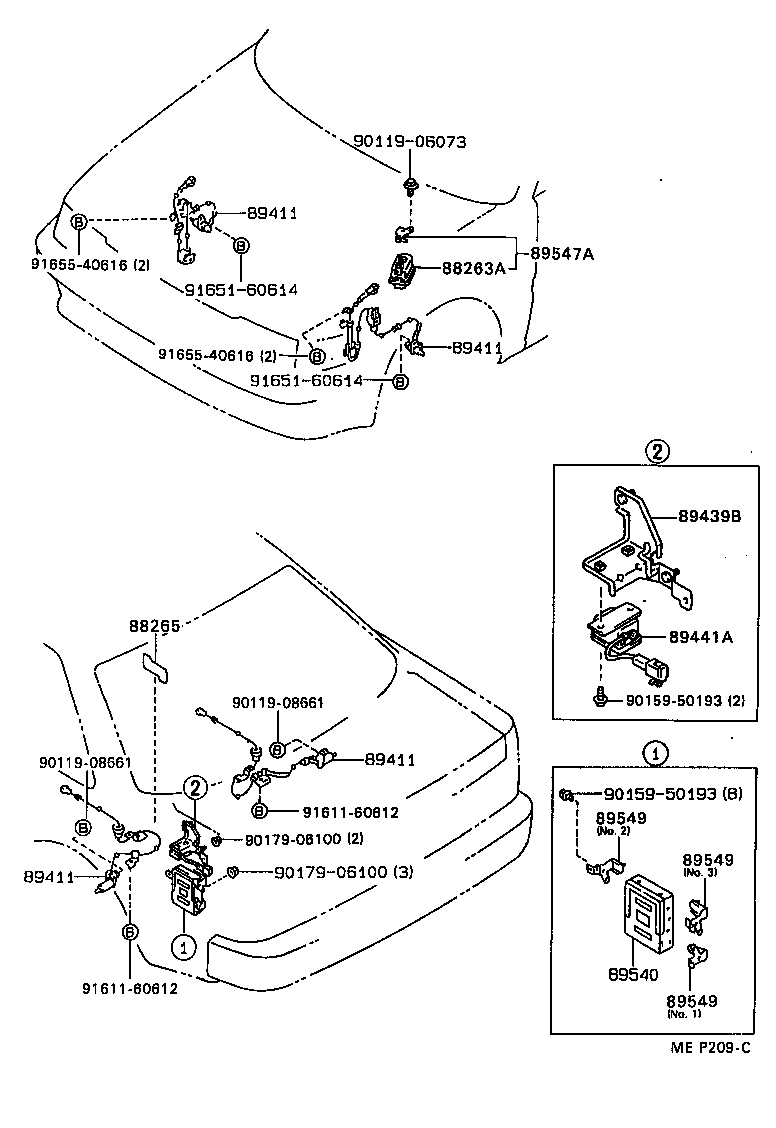

8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 88263A | Relay, Skid Control |
| 88265 | Label, Skid Control Caution |
| 89411 | Sensor, Speed |
| 89439B | Bracket, Sensor |
| 89441A | Sensor, Deceleration |
| 89540 | Computer Assy, Skid Control |
| 89547A | Relay, Skid Control W/Bracket |
| 89549 | Bracket, Skid Control Computer |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
