Toyota Corona
1987-12 → 1992-11 · chassis AT17#,ST17#,CT17#,ET176 · catalogue 271120 · Japan
Discontinued model
Data version 1993-06

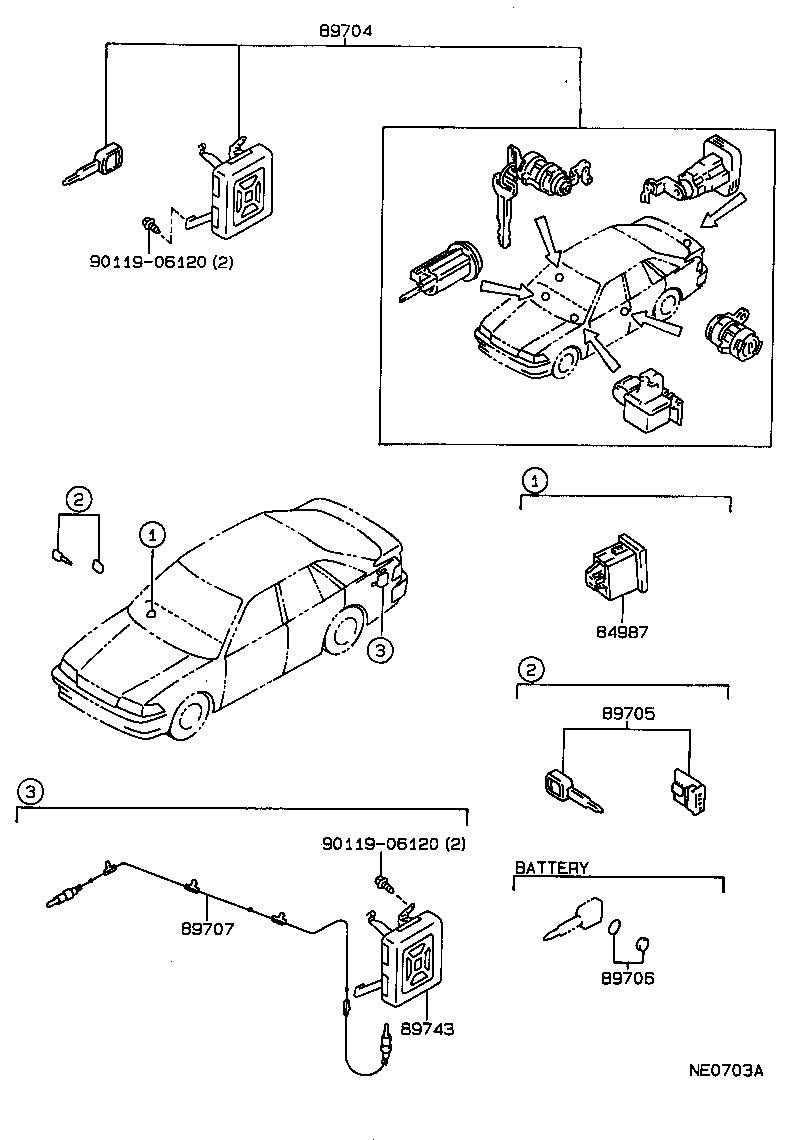

Wireless Door Lock
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 84987 | Switch, Wireless Door Lock Main |
| 89689 | Clamp, Wireless Door Lock |
| 89704 | Control Set, Wireless Door Lock |
| 89705 | Transmitter, Door Control |
| 89706 | Battery Set, Transmitter |
| 89707 | Cord Sub-assy, Wireless Door Lock |
| 89743 | Receiver, Door Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
