Toyota Corona
1987-12 → 1992-11 · chassis AT17#,ST17#,CT17#,ET176 · catalogue 271120 · Japan
Discontinued model
Data version 1993-06
Heating & Air Conditioning - Heater Unit & Blower
14 part groups · 3 illustrations
Part groups

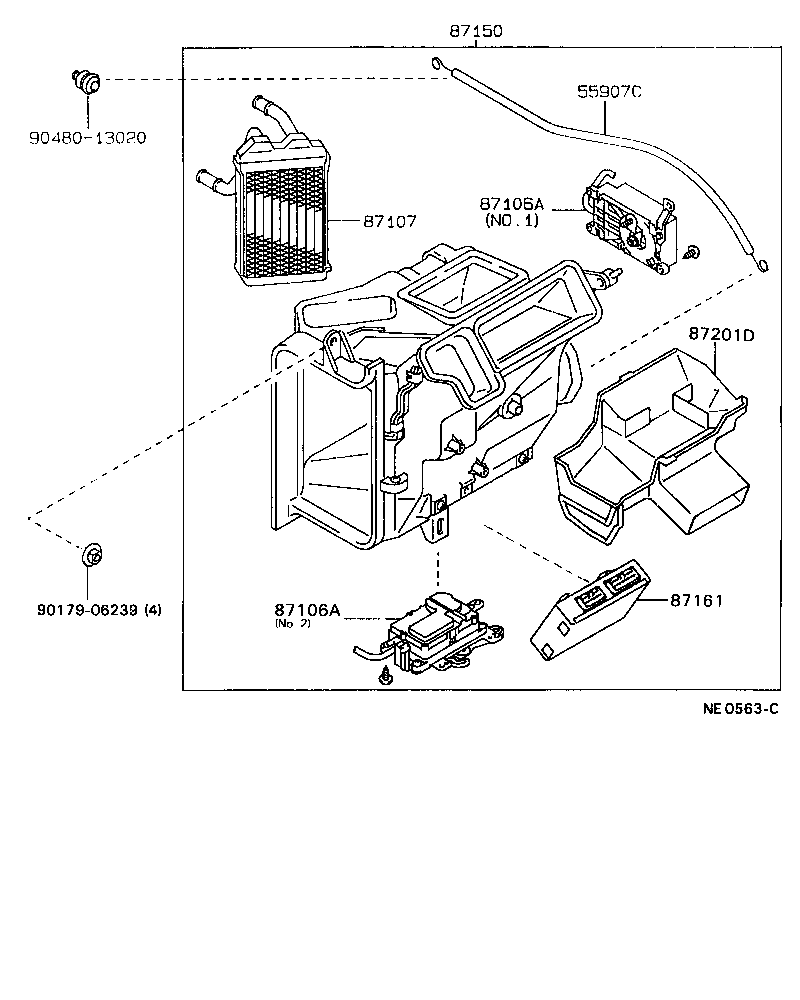

| PNC | Description |
|---|---|
| 55907C | Cable Sub-assy, Water Valve Control |
| 87103 | Motor Sub-assy, Heater Blower, W/Fan |
| 87105 | Fan Sub-assy, Heater Blower |
| 87106A | Servo Sub-assy, Damper |
| 87107 | Unit Sub-assy, Heater Radiator |
| 87130 | Blower Assy, Heater, Front |
| 87138 | Resistor, Heater Blower |
| 87150 | Radiator Assy, Heater |
| 87151 | Plate, Damper |
| 87161 | Amplifier, Heater Servo Motor |
| 87201D | Duct Sub-assy, Air |
| 87660 | Servo Assy, Air Conditioner |
| 88585A | Shaft, Heater Air Damper |
| 88655B | Switch, Water Temperature |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
