Toyota Corona

1987-12 → 1992-11 · chassis AT17#,ST17#,CT17#,ET176 · catalogue 271120 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

25 part groups · 7 illustrations

Illustrations

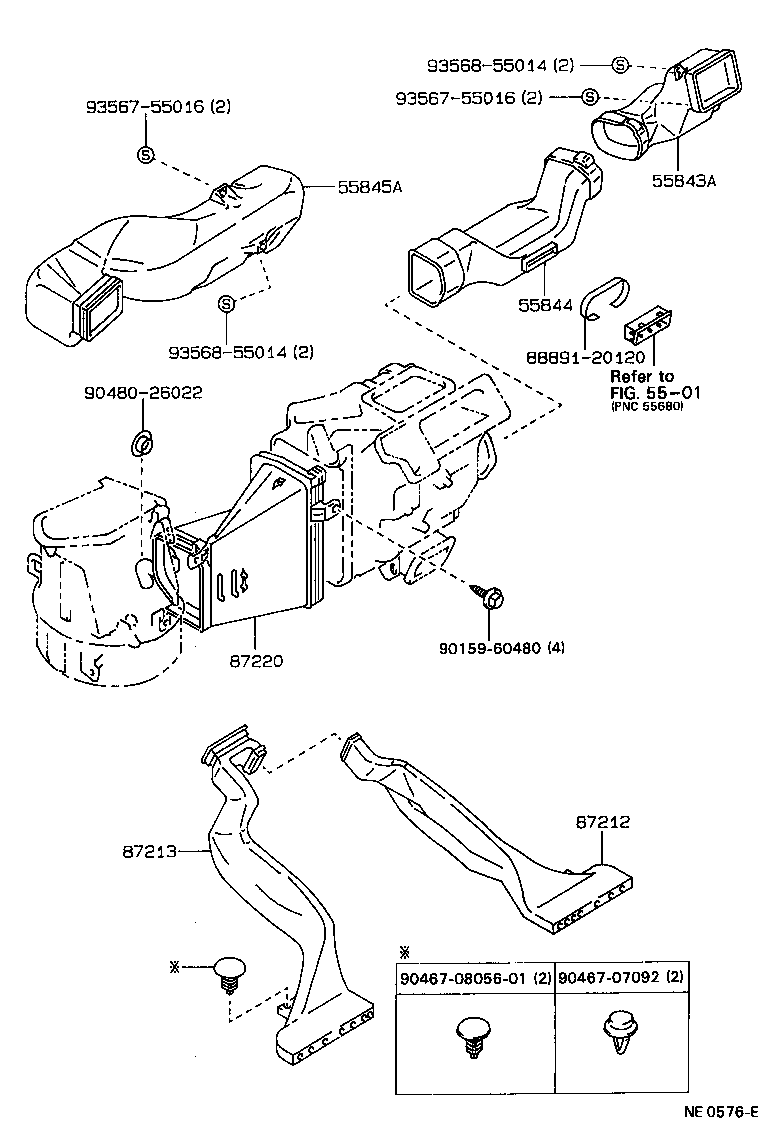

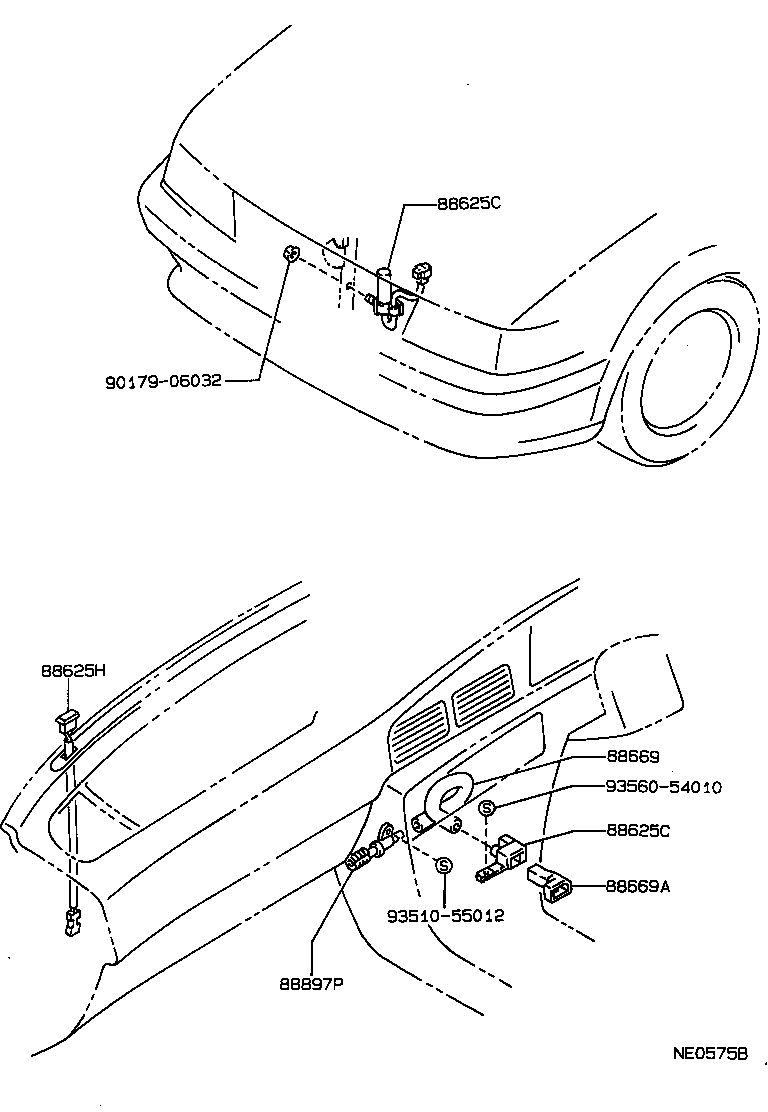

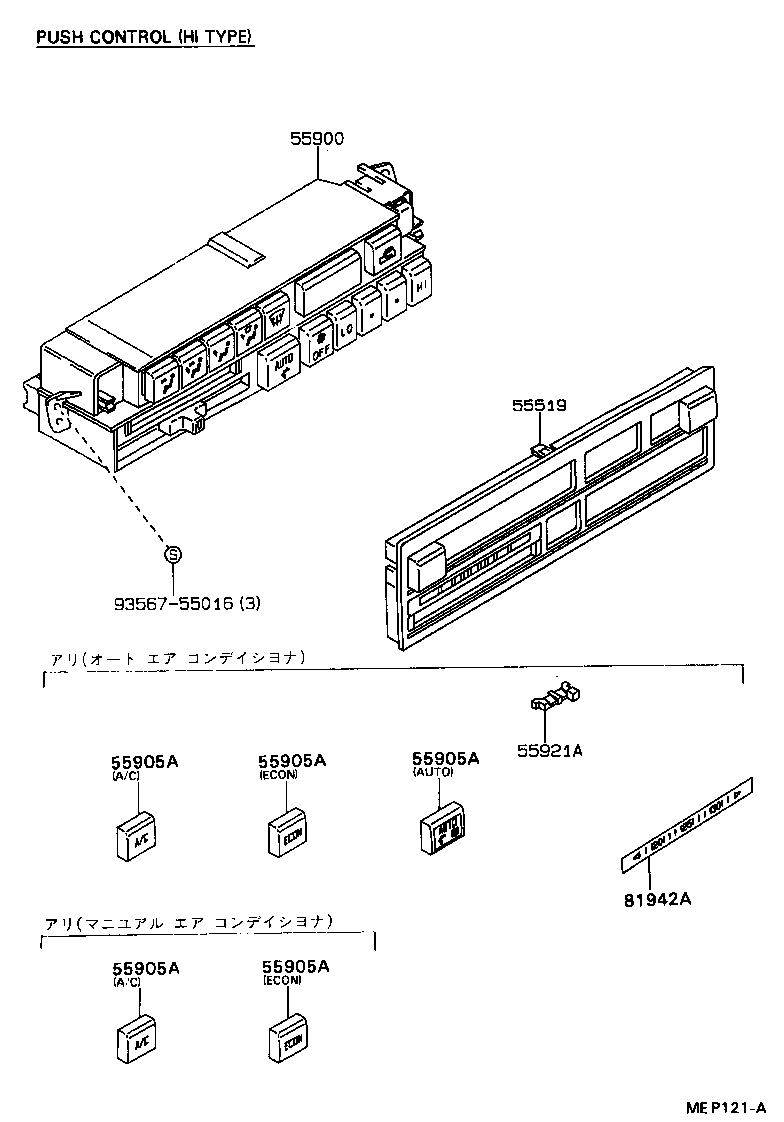

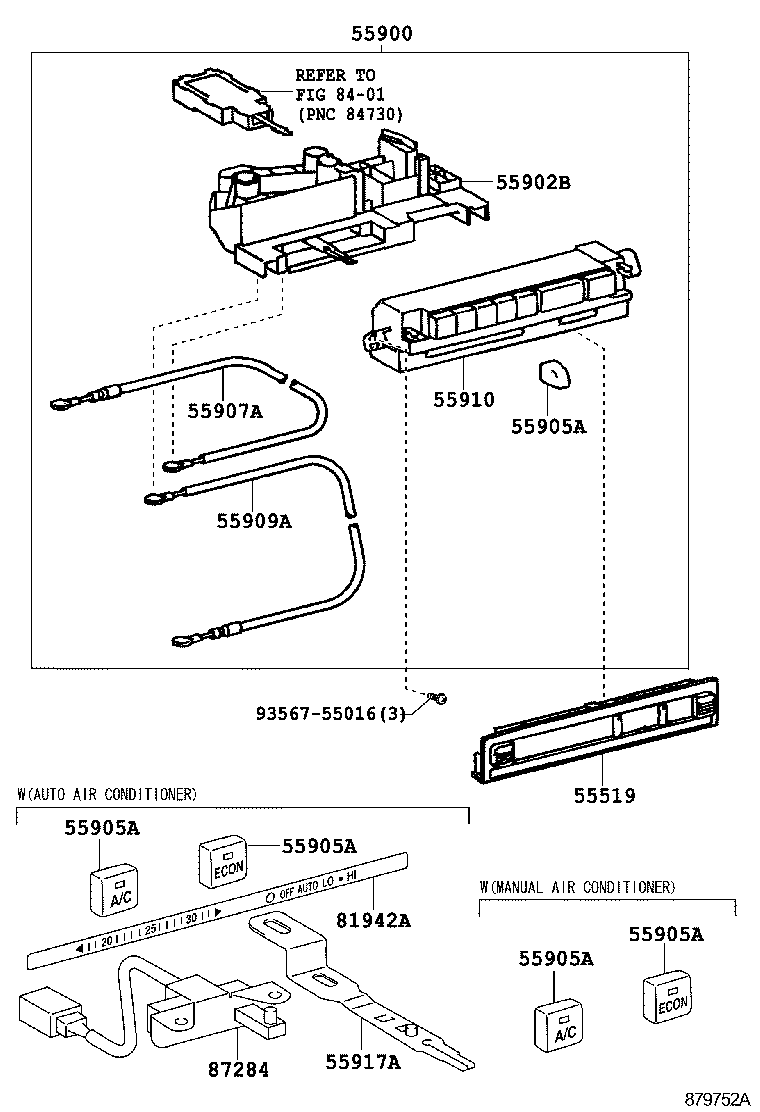

Figure 873205 873205 1987-12 → 1989-11 Figure 873205 873205 1987-12 → — Figure 879752A 879752A 1989-11 → — Figure 879752A 879752A 1991-06 → — Figure MEP121A MEP121A 1987-12 → — Figure NE0575B NE0575B 1987-12 → — Figure NE0576E NE0576E 1987-12 → —

Part groups

PNCDescription
55519 Plate, Heater Control Name
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55900 Control Assy, Air Conditioner
55902B Control Sub-assy, Heater
55905A Knob, Heater Control
55906A Cable Sub-assy, Defroster Damper Control
55907A Cable Sub-assy, Water Valve Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
55917A Lever, Temperature Damper Control
55921A Retainer, Heater Control
55931A Shaft, Heater Control Lever
81942A Sheet, Heater Control Name, NO.1
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87220 Duct Assy, Air
87284 Resistor Sub-assy, Variable
88625C Thermistor, Cooler
88625H Thermistor, Cooler (SOLAR SENSOR)
88669 Hose, Cooler Air
88669A Hose (FOR COOLER THERMISTOR)
88897P Aspirator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
