Toyota Corona

1992-02 → 1996-01 · chassis AT190,CT19#,ST19# · catalogue 271130 · Japan

Discontinued model Data version 1996-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

23 part groups · 5 illustrations

Illustrations

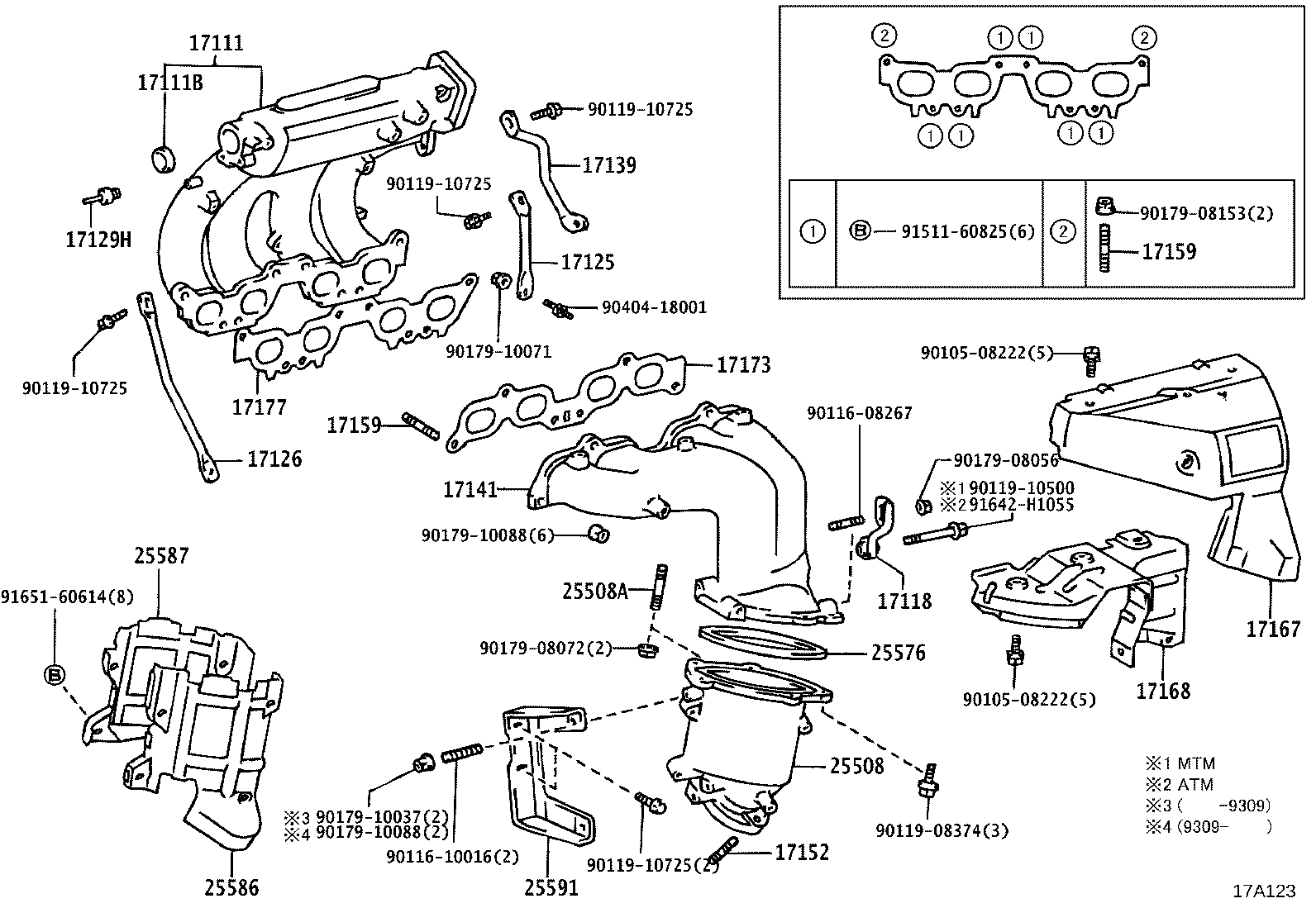

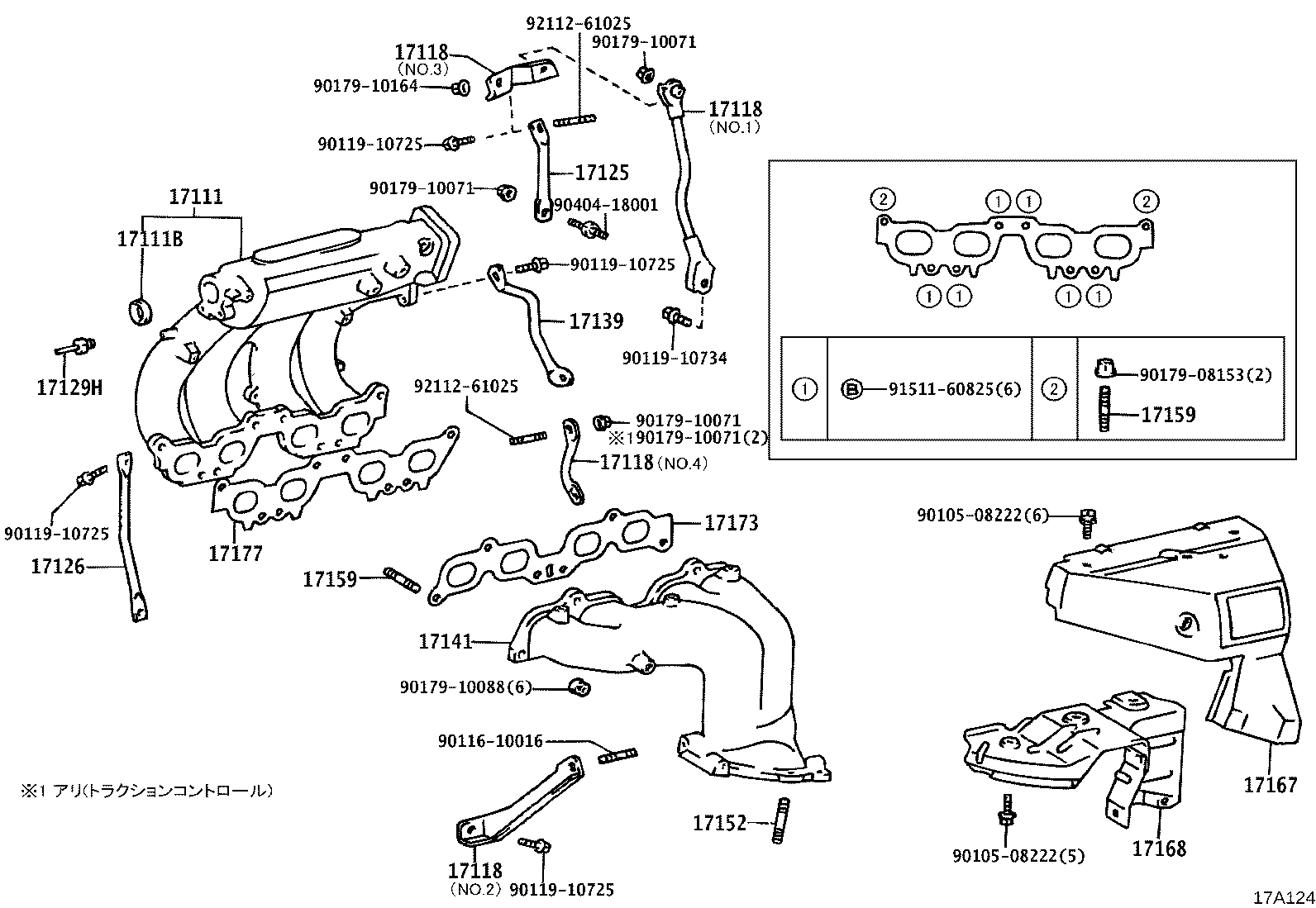

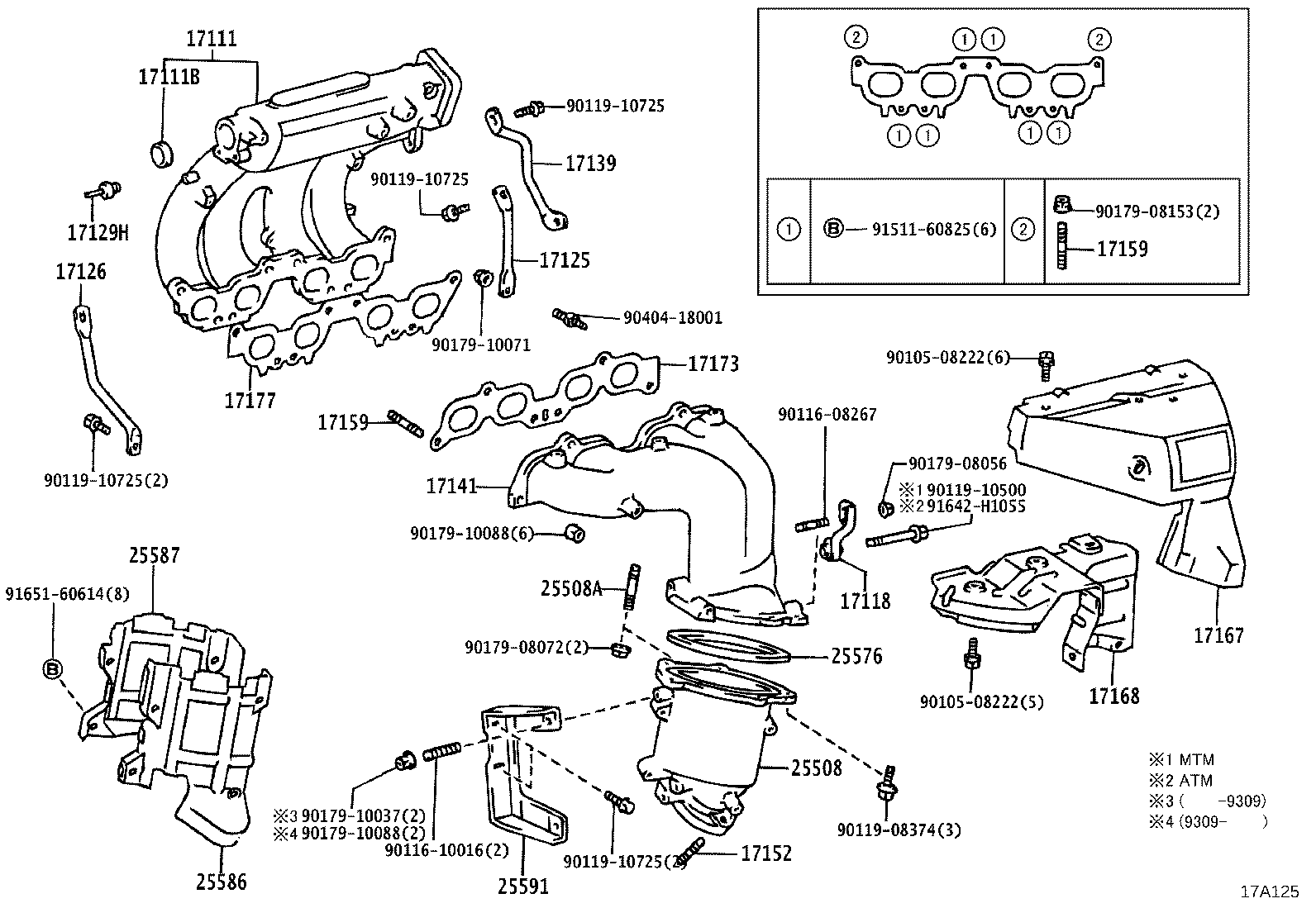

Figure MAE747E MAE747E 1992-02 → — Figure MAG059A MAG059A 1992-02 → — Figure 17A124 17A124 1992-02 → — Figure 17A125 17A125 1992-02 → — Figure 17A123 17A123 1992-02 → —

Part groups

PNCDescription
17111 Manifold, Intake
17111B Plug, NO.2
17118 Stay, Manifold
17119 Stay, Manifold, NO.2
17125 Stay, Surge Tank, NO.1
17126 Stay, Surge Tank, NO.2
17129 Tank, Intake Air Surge
17129H Union, NO.4
17139 Stay, Manifold, NO.2
17141 Manifold, Exhaust
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17173 Gasket, Exhaust Manifold TO Head
17176 Gasket, Air Surge Tank TO Intake Manifold
17177 Gasket, Intake Manifold TO Head, NO.1
25508 Converter Sub-assy, Manifold
25508A Bolt, Stud(FOR MANIFOLD CONVERTER)
25576 Gasket, Manifold Converter
25586 Insulator, Manifold Converter, NO.1
25587 Insulator, Manifold Converter, NO.2
25591 Bracket, Manifold Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
