Toyota Corona

1992-02 → 1996-01 · chassis AT190,CT19#,ST19# · catalogue 271130 · Japan

Discontinued model Data version 1996-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (ATM)

5 part groups · 4 illustrations

Illustrations

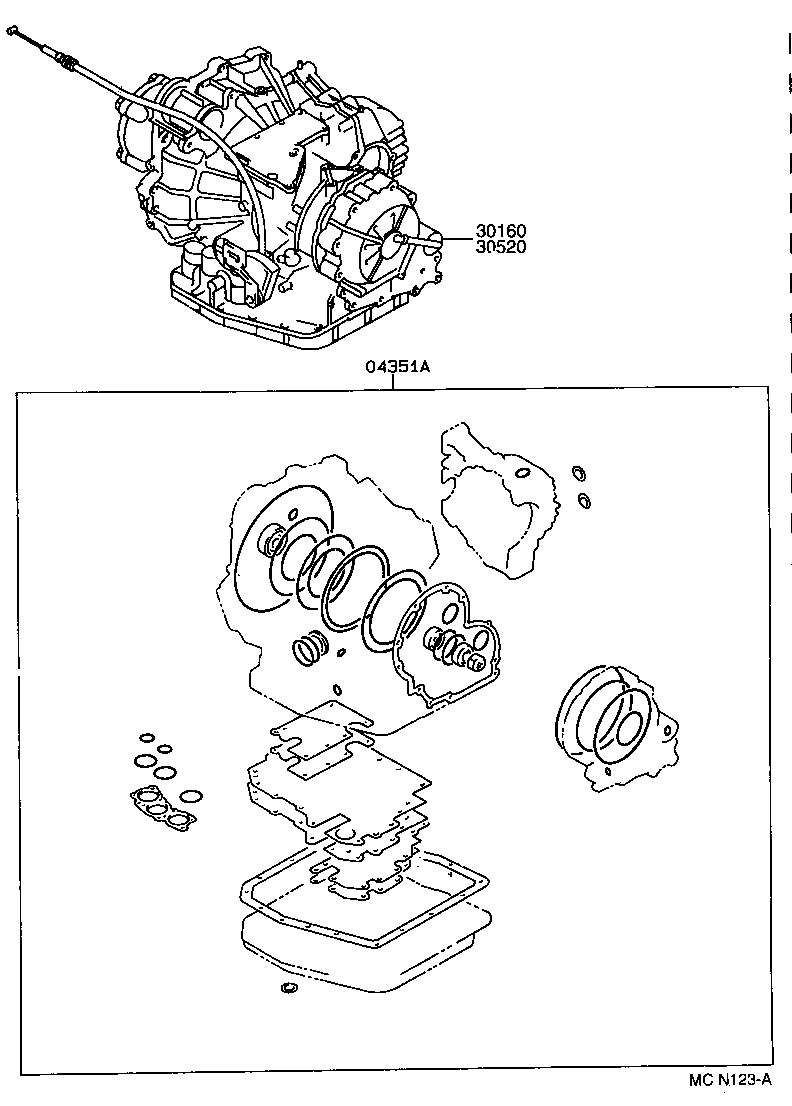

Figure MCN122A MCN122A 1992-02 → 1993-05 Figure MCN122A MCN122A 1993-05 → — Figure MCN570B MCN570B 1993-05 → — Figure MCN123A MCN123A 1992-02 → —

Part groups

PNCDescription
04351A Gasket Kit, Transaxle Overhaul(ATM)
30130 Transaxle Assy, Rebuilt
30160 Transaxle Assy, Automatic W/Transfer, Rebuilt
30500 Transaxle Assy, Automatic
30520 Transaxle Assy, Automatic W/Transfer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
