Toyota Corona

1992-02 → 1996-01 · chassis AT190,CT19#,ST19# · catalogue 271130 · Japan

Discontinued model Data version 1996-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Master Cylinder

19 part groups · 2 illustrations

Illustrations

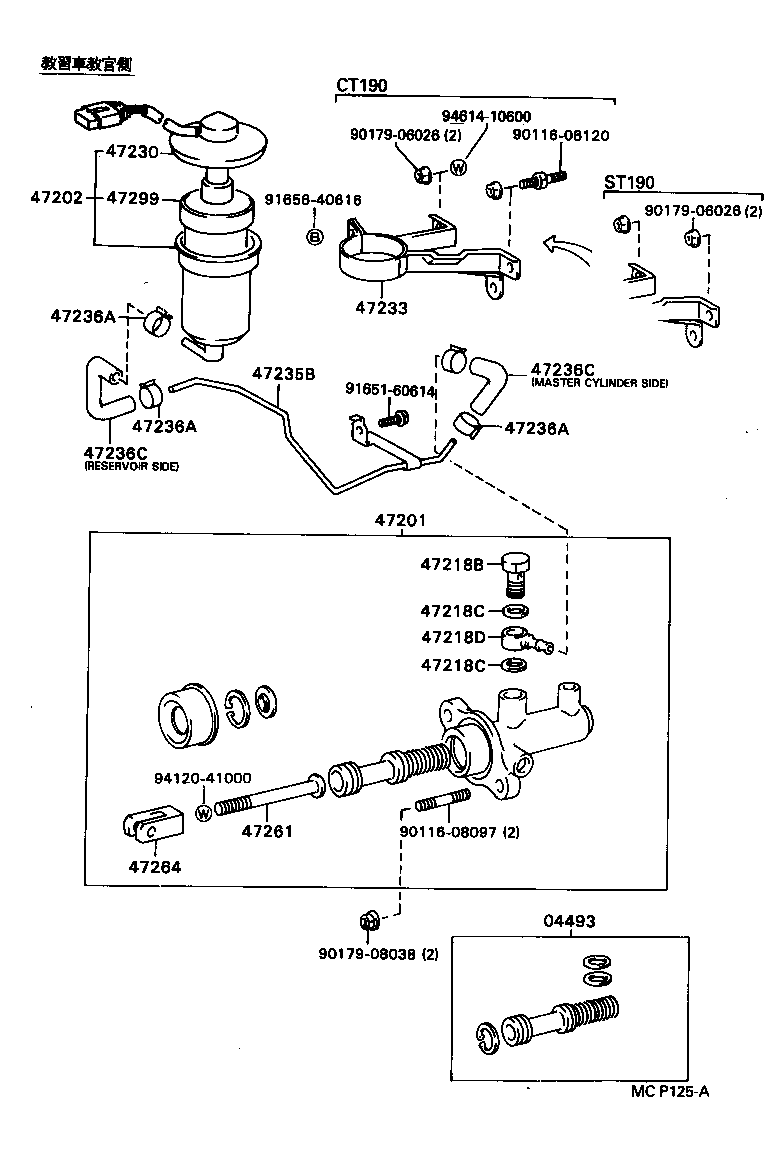

Figure MCN044 MCN044 1992-02 → — Figure MCP125A MCP125A 1992-11 → —

Part groups

PNCDescription
04493 Cylinder Kit, Brake Master
47201 Cylinder Sub-assy, Brake Master
47202 Reservoir Sub-assy, Brake Master Cylinder
47210J Gasket(FOR MASTER CYLINDER)
47210T Bolt(FOR BRAKE MASTER CYLINDER)
47218B Bolt, Union(FOR MASTER CYLINDER FLUID OUTLET)
47218C Gasket(FOR MASTER CYLINDER FLUID OUTLET)
47218D Union(FOR MASTER CYLINDER FLUID OUTLET)
47230 Cap Assy, Brake Master Cylinder Reservoir Filler
47233 Bracket, Reservoir
47235B Tube, Brake Master Cyrinder Reservoir, NO.2
47236A Clip(FOR RESERVOIR TUBE)
47236C Hose, Reservoir Tube
47255 Grommet, Master Cylinder Reservoir
47261 Rod, Master Cylinder Push
47264 Clevis, Master Cylinder Push Rod
47265 Boot, Master Cylinder
47275 Gasket, Brake Master Cylinder
47299 Strainer, Brake Master Cylinder Reservoir
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
