Toyota Corona
1992-02 → 1996-01 · chassis AT190,CT19#,ST19# · catalogue 271130 · Japan
Discontinued model
Data version 1996-11

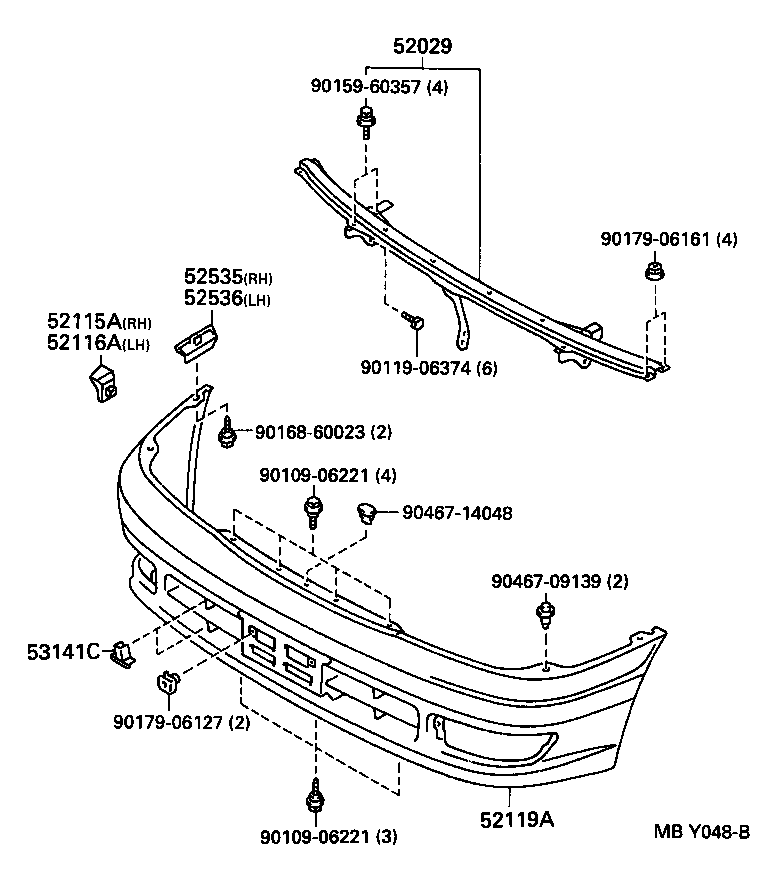

Front Bumper & Bumper Stay
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52029 | Reinforcement Sub-assy, Front Bumper, Upper |
| 52115A | Support, Front Bumper Side, RH |
| 52116A | Support, Front Bumper Side, LH |
| 52119A | Cover, Front Bumper |
| 52125A | Bracket, Fog Lamp Mounting, RH |
| 52126A | Bracket, Fog Lamp Mounting, LH |
| 52535 | Retainer, Front Bumper Side, RH |
| 52536 | Retainer, Front Bumper Side, LH |
| 53141C | Garnish, Radiator Grille |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
