Toyota Corona
1992-02 → 1996-01 · chassis AT190,CT19#,ST19# · catalogue 271130 · Japan
Discontinued model
Data version 1996-11
Instrument Panel & Glove Compartment

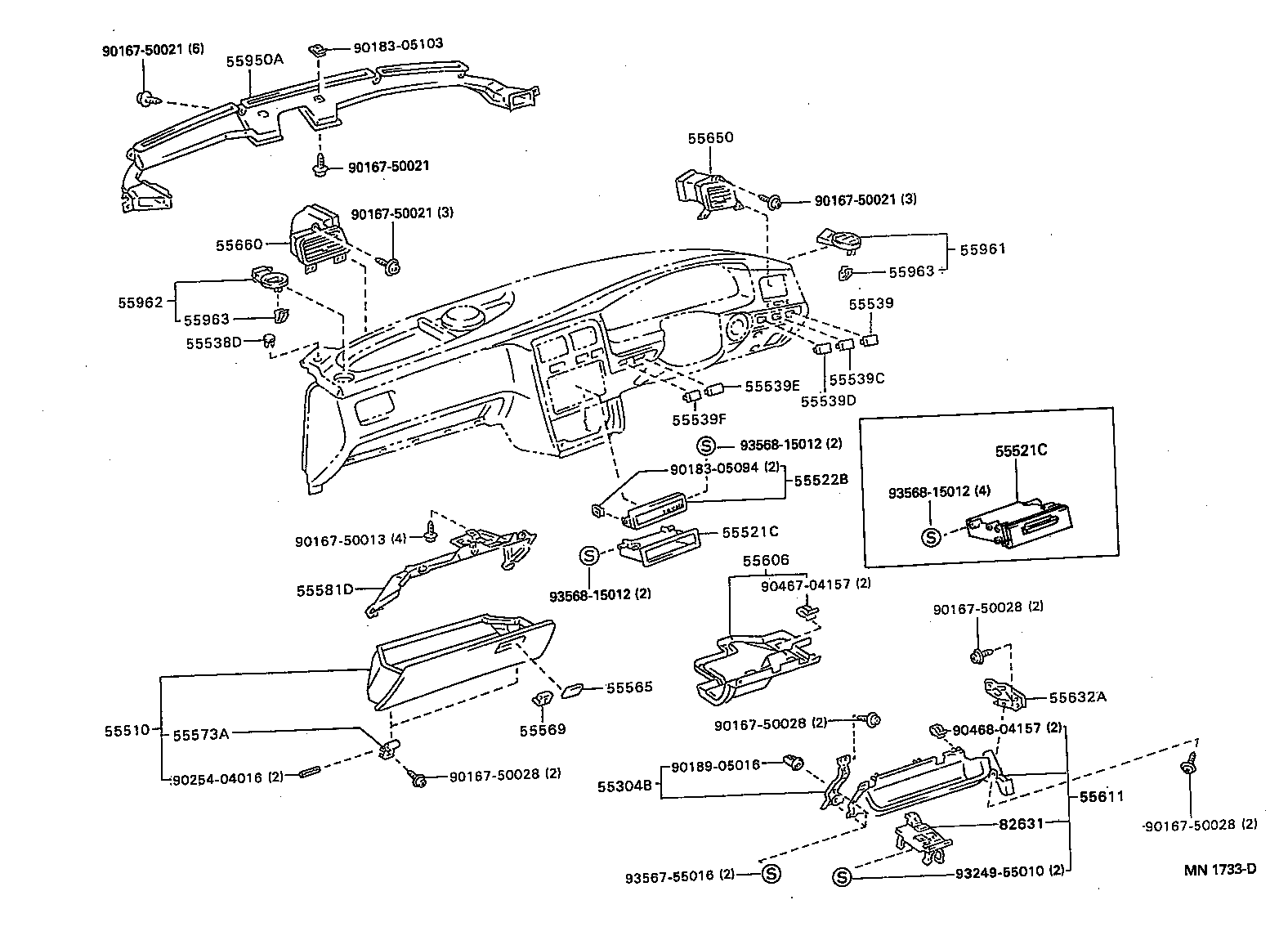

44 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55301 | Panel Sub-assy, Instrument |
| 55304B | Bracket Sub-assy, Instrument Panel Bracket Mounting |
| 55304C | Bracket Sub-assy, Instrument Panel Bracket Mounting |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55308C | Bracket Sub-assy, Instrument Panel, Center |
| 55328 | Pin, Instrument Panel, NO.1 |
| 55331 | Reinforcement, Instrument Panel |
| 55401E | Pad Sub-assy, Instrument Panel Safety |
| 55405B | Panel Sub-assy, Instrument Cluster Finish, Center |
| 55411G | Panel, Instrument Cluster Finish, NO.1 |
| 55420A | Panel Assy, Instrument Cluster Finish, Center |
| 55432B | Panel, Instrument Panel Finish, Lower |
| 55445B | Plate, Instrument Panel Finish |
| 55458D | Cover, Instrument Lower, RH |
| 55459D | Cover, Instrument, Lower LH |
| 55462A | Extension, Instrument Safety Pad Insert, RH |
| 55463A | Extension, Instrument Safety Pad Insert, LH |
| 55476C | Garnish, Instrument Panel Finish Plate |
| 55479D | Garnish, Instrument Cluster Finish Panel, Lower |
| 55510 | Door Assy, Glove Compartment |
| 55521C | Cover, Stereo Opening |
| 55522B | Cover, Radio Tuner Opening |
| 55534A | Cover, Illumination Lamp Hole |
| 55538D | Cover, Sunshine Sensor Hole |
| 55539 | Cover, Spare Switch Hole |
| 55539C | Cover, Spare Switch Hole |
| 55539D | Cover, Spare Switch Hole |
| 55539E | Cover, Spare Switch Hole |
| 55539F | Cover, Spare Switch Hole |
| 55565 | Handle, Glove Compartment Door Lock |
| 55569 | Cover, Glove Compartment Door Lock |
| 55573A | Hinge, Glove Compartment Door |
| 55581D | Box, Shell, Upper |
| 55606 | Cover Sub-assy, Instrument Panel Under, NO.1 |
| 55611 | Tray, Instrument Panel Under |
| 55632A | Support, Instrument Panel Under Tray, NO.2 |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55950A | Nozzle Assy, Defroster |
| 55961 | Nozzle, Side Defroster, NO.1 |
| 55962 | Nozzle, Side Defroster, NO.2 |
| 55963 | Retainer, Side Defroster |
| 78472 | Support, Throttle Control Cable |
| 82631 | Holder, Fuse |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
