Toyota Corona
1992-02 → 1996-01 · chassis AT190,CT19#,ST19# · catalogue 271130 · Japan
Discontinued model
Data version 1996-11

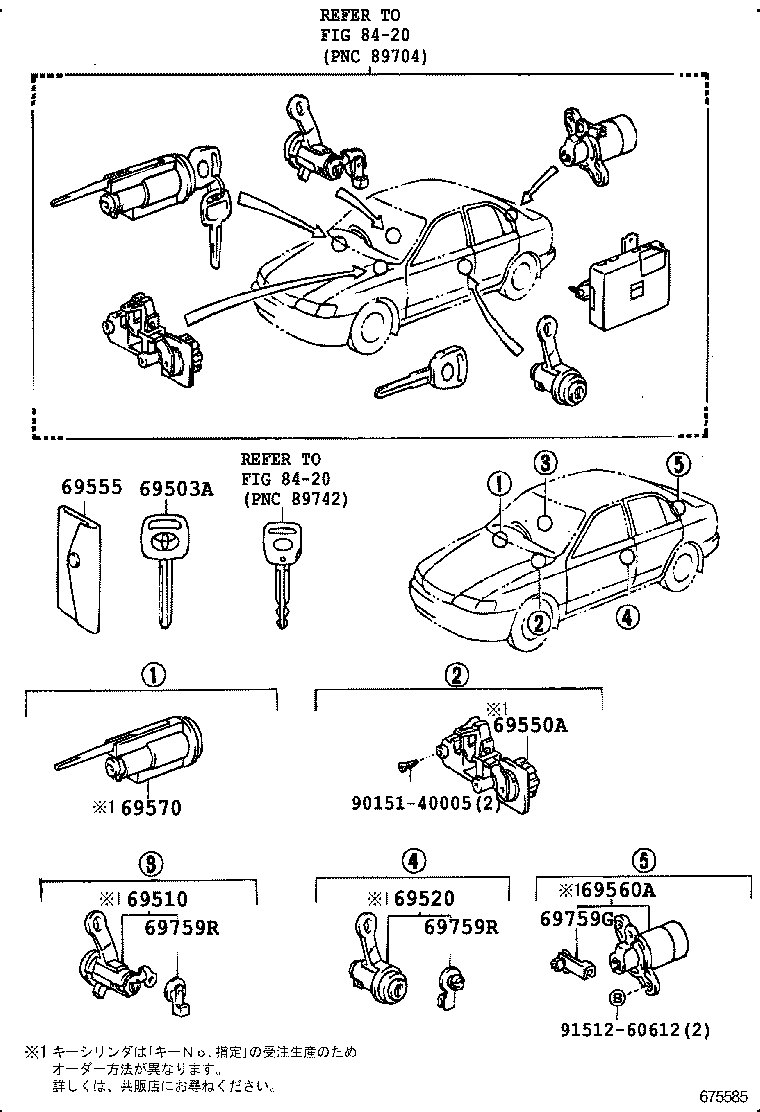

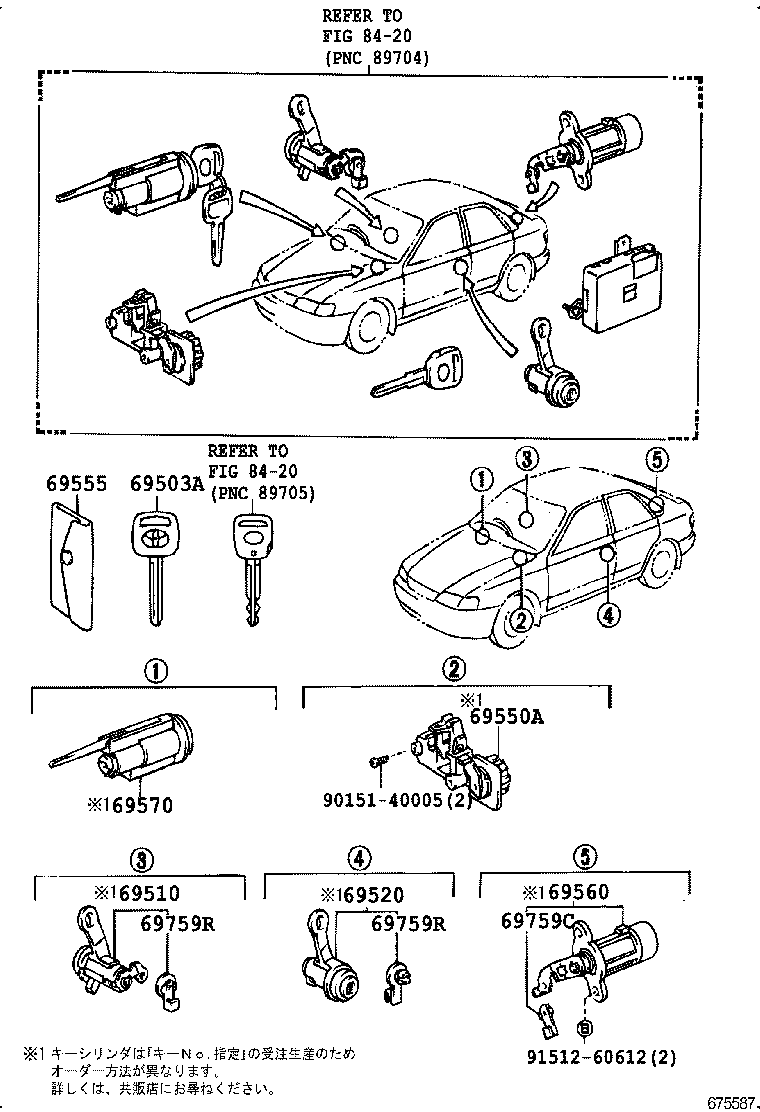

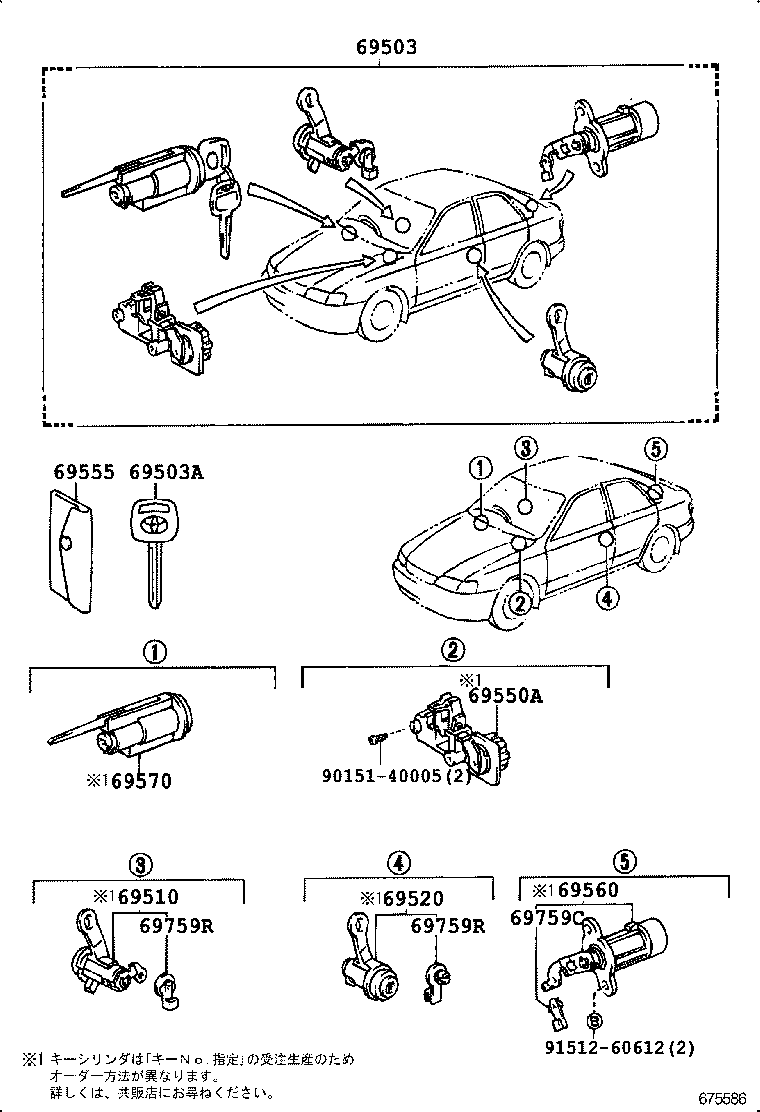

Lock Cylinder Set
12 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 69503 | Cylinder Set, Lock |
| 69503A | Key, Blank |
| 69510 | Cylinder Assy, Front Door Lock, RH |
| 69520 | Cylinder Assy, Front Door Lock, LH |
| 69550A | Cylinder Assy, Glove Compartment Door Lock |
| 69555 | Cover, Key |
| 69560 | Cylinder Assy, Back Door Lock |
| 69560A | Cylinder Assy, Luggage Compartment Door Lock |
| 69570 | Cylinder Assy, Ignition Switch Lock |
| 69759C | Snap, Back Door Lock Cylinder |
| 69759G | Snap, Luggage Door Lock Cylinder |
| 69759R | Snap, Front Door Lock Cylinder |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
