Toyota Corona

1992-02 → 1996-01 · chassis AT190,CT19#,ST19# · catalogue 271130 · Japan

Discontinued model Data version 1996-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

35 part groups · 10 illustrations

Illustrations

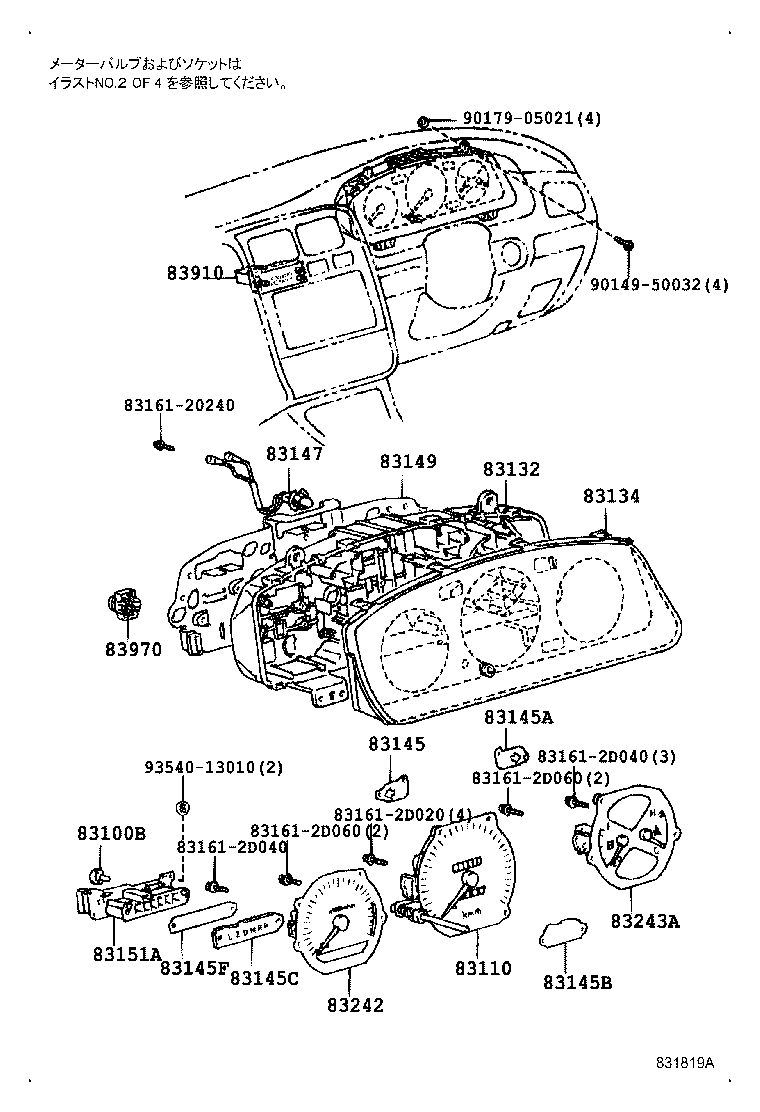

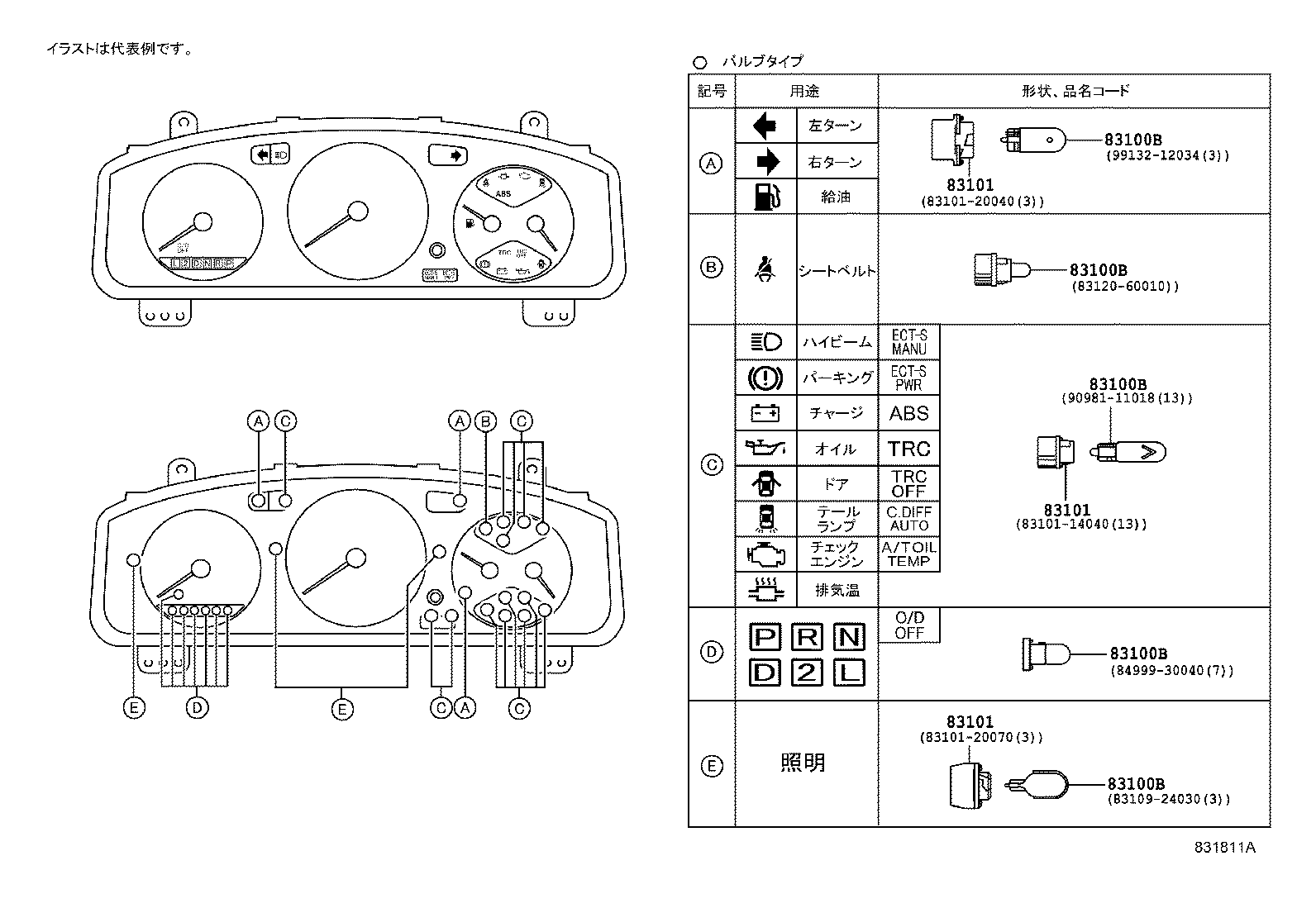

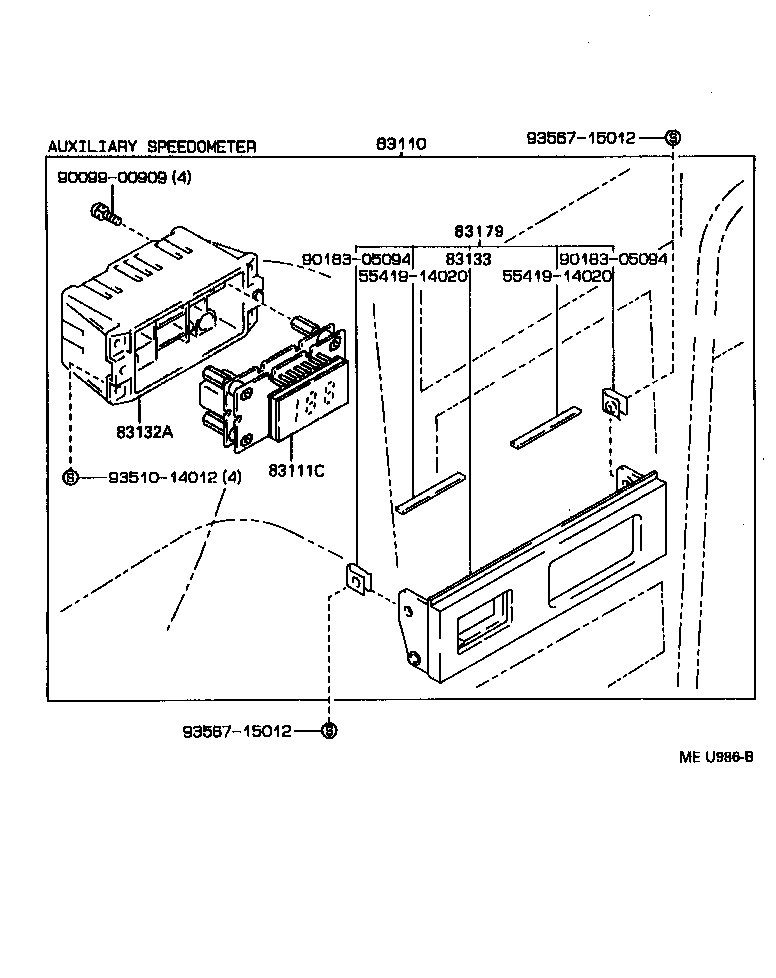

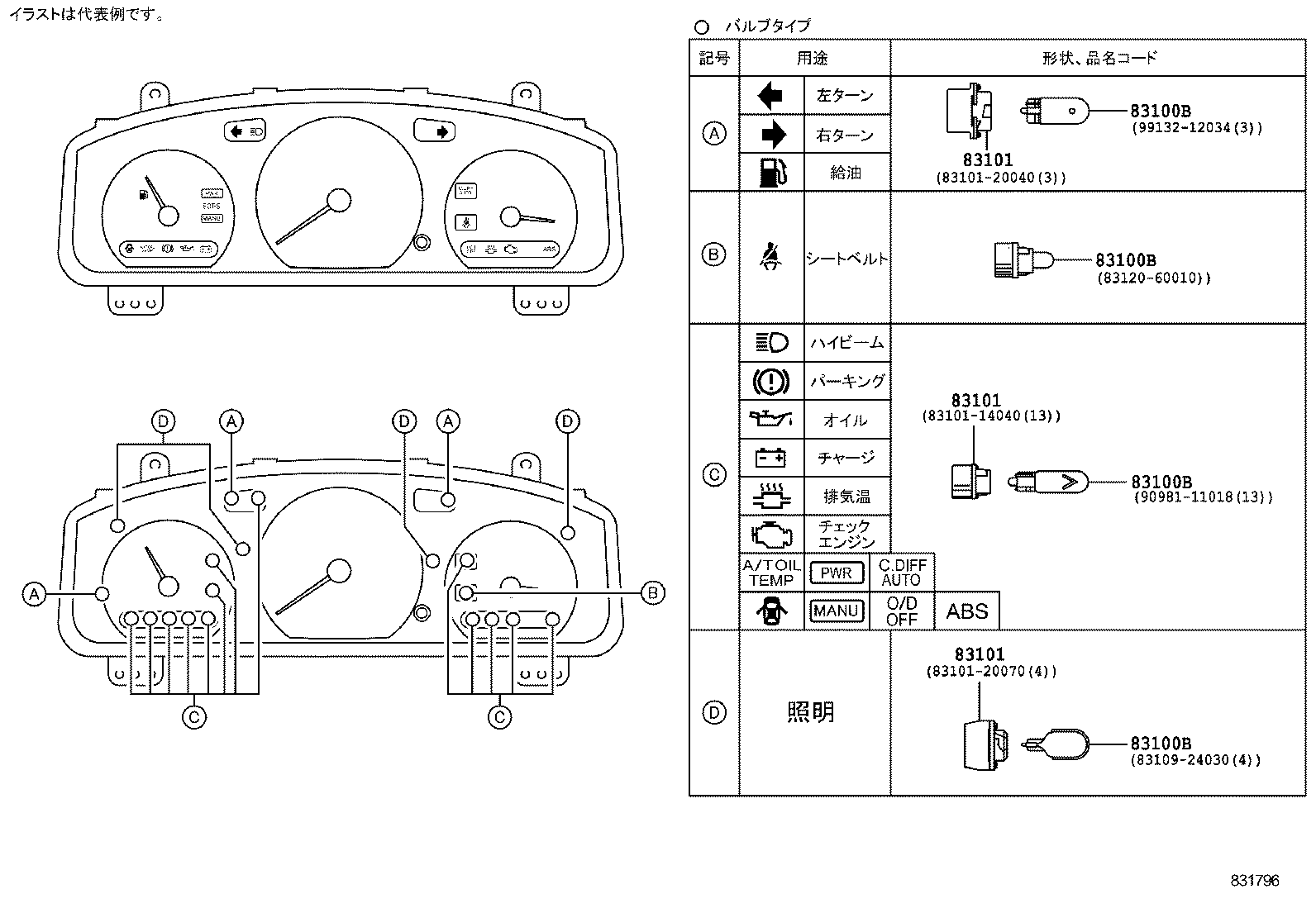

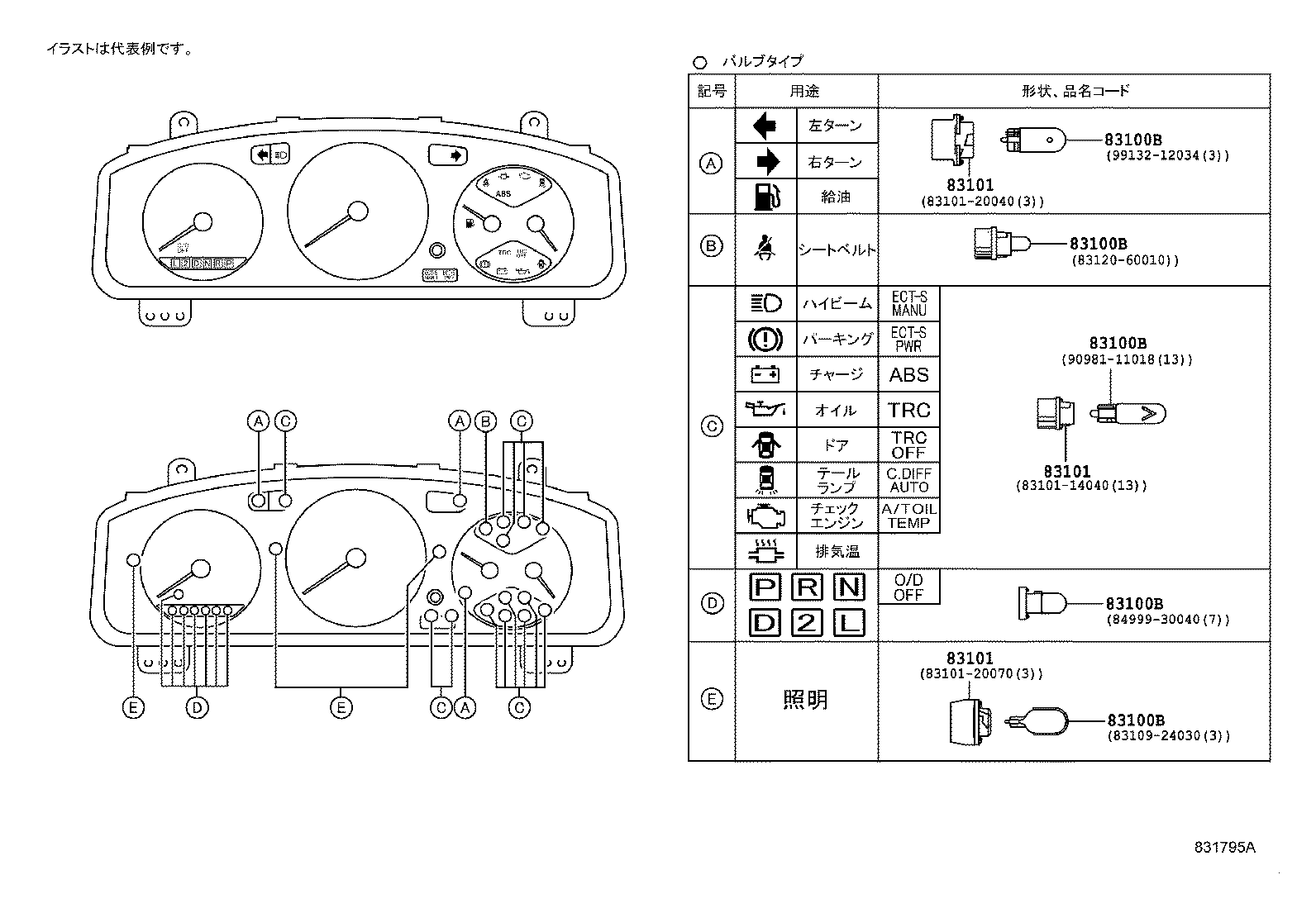

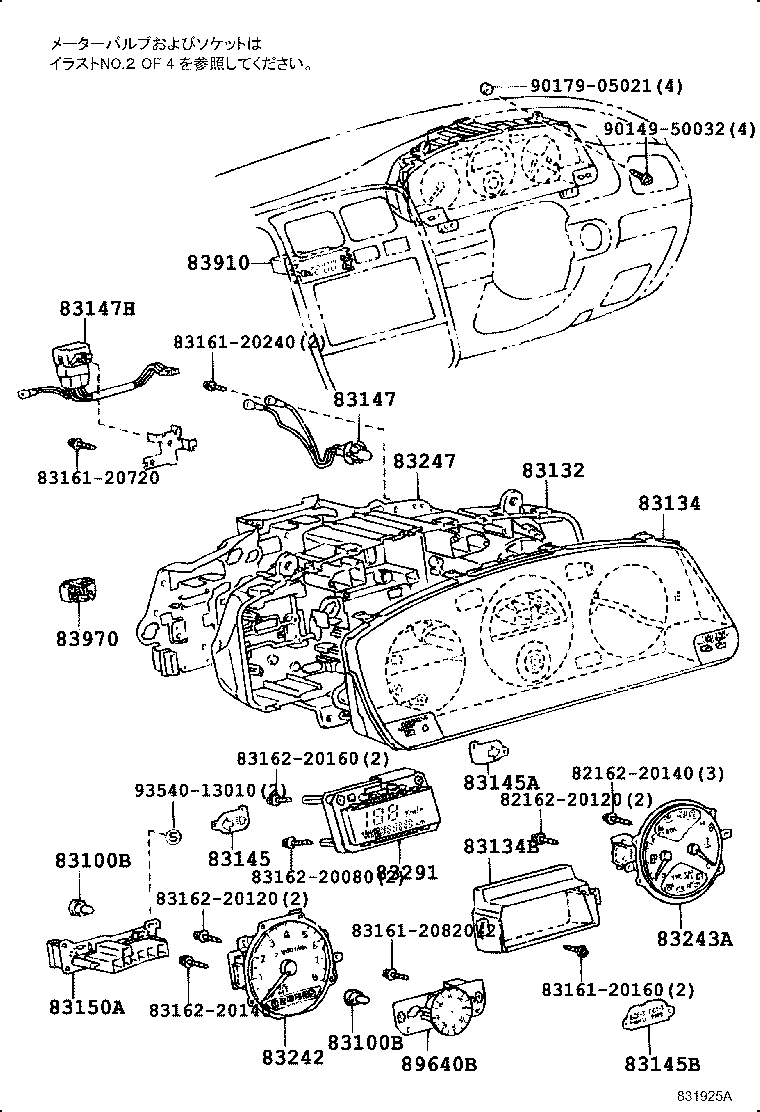

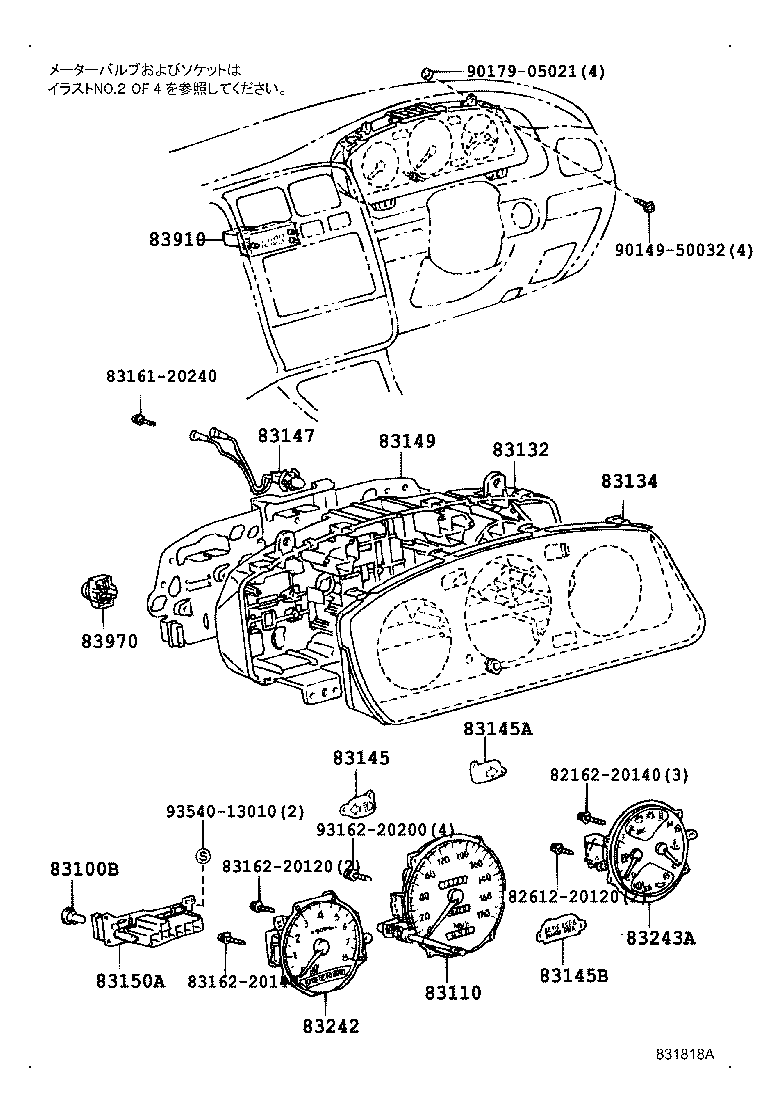

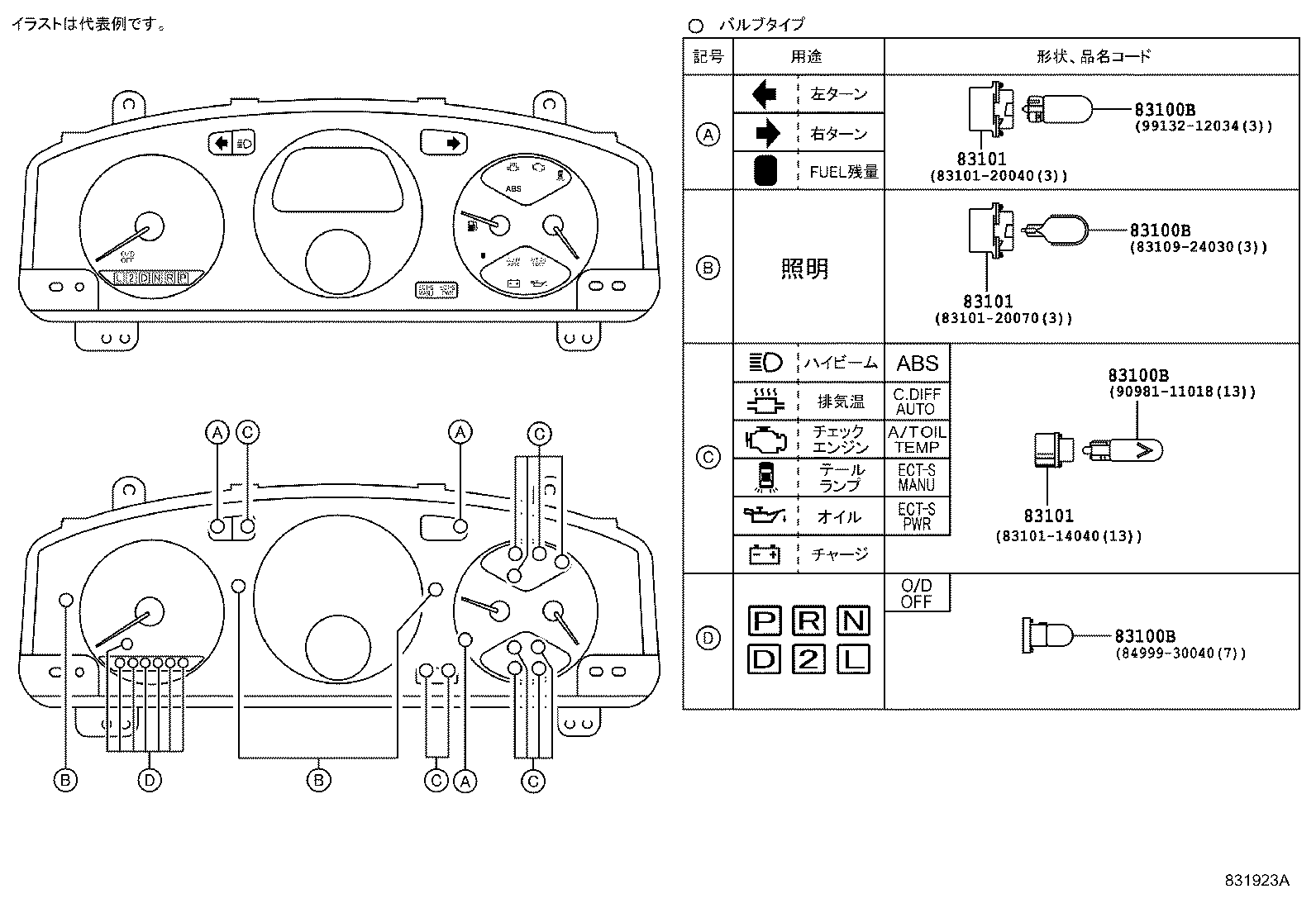

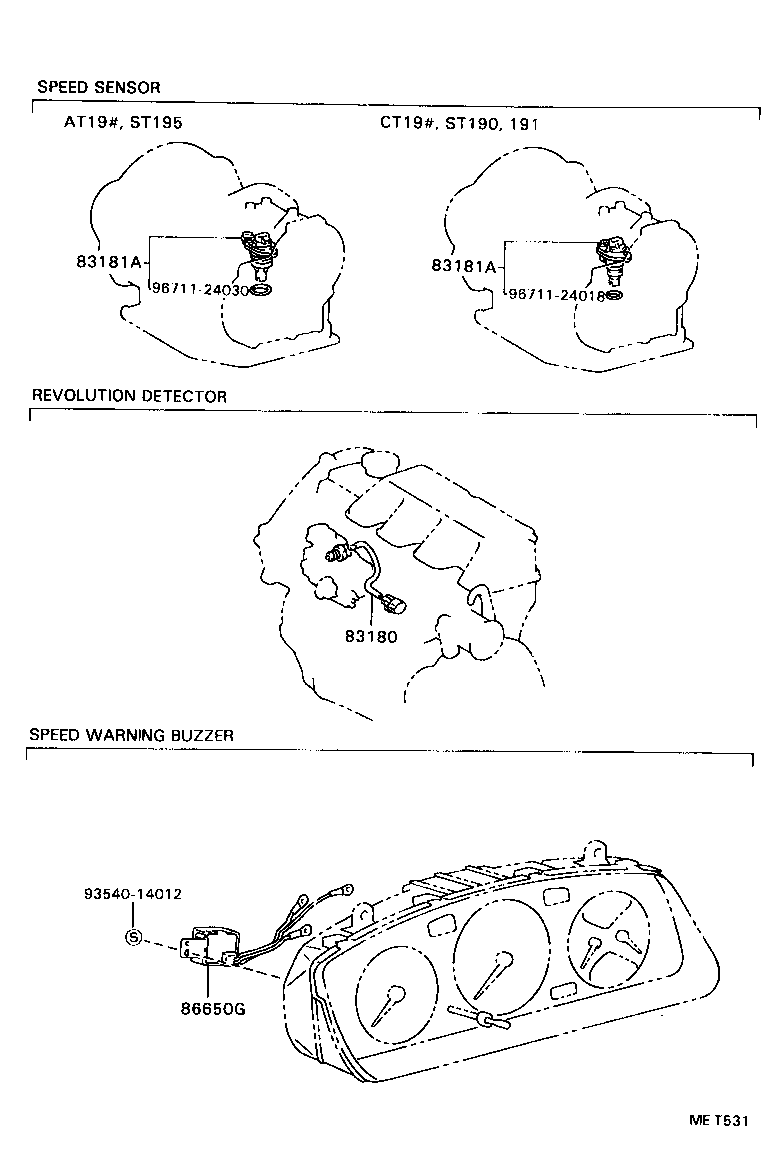

Figure 831817A 831817A 1992-02 → — Figure 831818A 831818A 1992-02 → 1994-02 Figure 831819A 831819A 1994-02 → — Figure 831925A 831925A 1992-02 → 1994-02 Figure 831796 831796 1992-02 → — Figure 831795A 831795A 1992-02 → 1994-02 Figure 831811A 831811A 1994-02 → — Figure 831923A 831923A 1992-02 → 1994-02 Figure MET531 MET531 1992-02 → — Figure MEU986B MEU986B 1992-11 → —

Part groups

PNCDescription
83100B Bulb, Combination Meter, NO.1
83101 Socket Sub-assy, Combination Meter Bulb
83110 Speedometer Assy
83111C Body Assy, Speedometer
83132 Case, Combination Meter
83132A Case, Meter
83133 Plate, Combination Meter, NO.1
83134 Cover, Combination Meter, NO.1
83134B Cover, Combination Meter, NO.2
83145 Lens, Meter, NO.1
83145A Lens, Meter, NO.2
83145B Lens, Meter, NO.3
83145C Lens, Meter, NO.4
83145E Lens, Meter, NO.6
83145F Lens, Meter, NO.7
83145T Lens, Meter, NO.8
83145U Lens, Meter, NO.9
83145V Lens, Meter, NO.10
83147 Lamp, Meter NO.1
83147H Lamp, Meter NO.4
83149 Plate, Meter Circuit
83150A Indicator Assy
83151A Lamp Assy, Indicator
83179 Cover, Combination Meter, Hole
83180 Detector Assy, Revolution
83181A Sensor, Speedometer
83242 Tachometer Assy, Engine
83243A Gauge Sub-assy, Fuel Receiver
83244 Gauge Sub-assy, Water Temperature Receiver
83247 Plate, Meter Circuit
83291 Computer, Combination Meter
83910 Clock Assy
83970 Buzzer Assy, Reverse Warning
86650G Buzzer Assy
89640B Compass Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
