Toyota Corona
1992-02 → 1996-01 · chassis AT190,CT19#,ST19# · catalogue 271130 · Japan
Discontinued model
Data version 1996-11
Rear Wiper

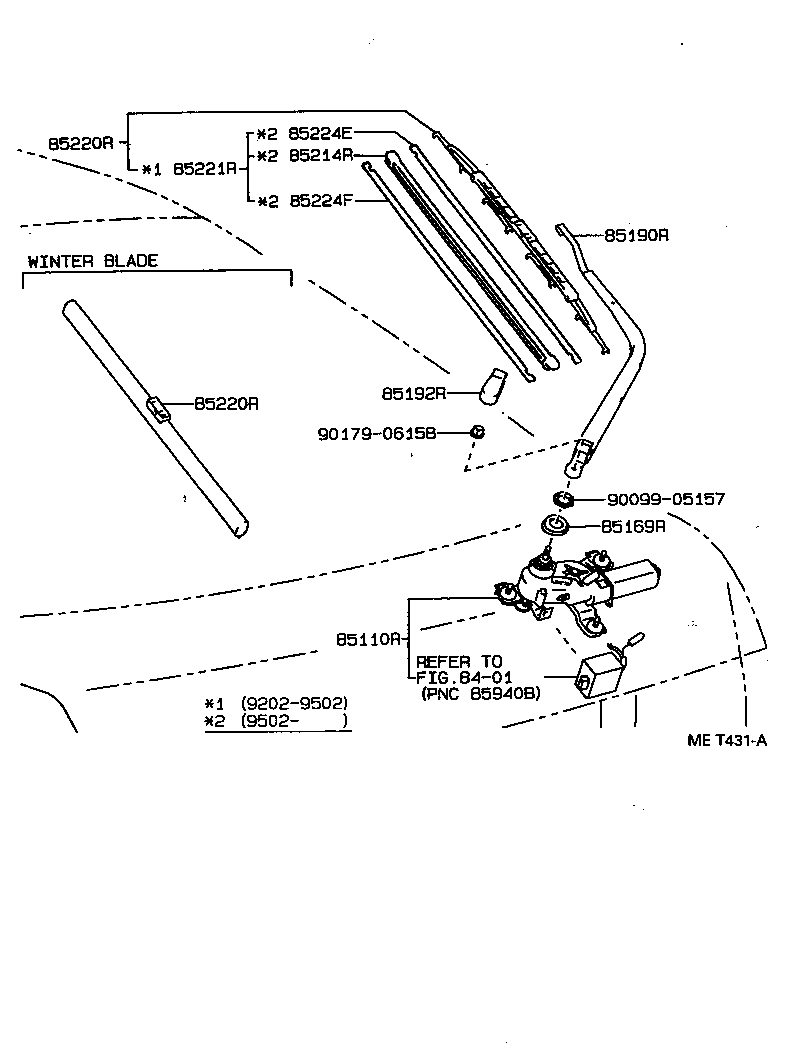

14 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 85105A | Clip, Rear Wiper Protector |
| 85110R | Motor Assy, Rear Wiper |
| 85120R | Motor And Bracket Assy, Rear Wiper |
| 85132A | Cover, Rear Wiper Shaft |
| 85148R | Nut, W/Washer Packing, Rear Wiper Link Pivot |
| 85168U | Cover, Rear Wiper |
| 85169R | Washer, Rear Wiper Link Pivot, NO.1 |
| 85190R | Arm Assy, Rear Wiper |
| 85192R | Cover, Rear Wiper Arm |
| 85214R | Rubber, Rear Wiper |
| 85220R | Blade Assy, Rear Wiper |
| 85221R | Blade, Rear Wiper |
| 85224E | Plate, Rear Wiper Rubber Backing, NO.1 |
| 85224F | Plate, Rear Wiper Rubber Backing, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
