Toyota Corona
1992-02 → 1996-01 · chassis AT190,CT19#,ST19# · catalogue 271130 · Japan
Discontinued model
Data version 1996-11

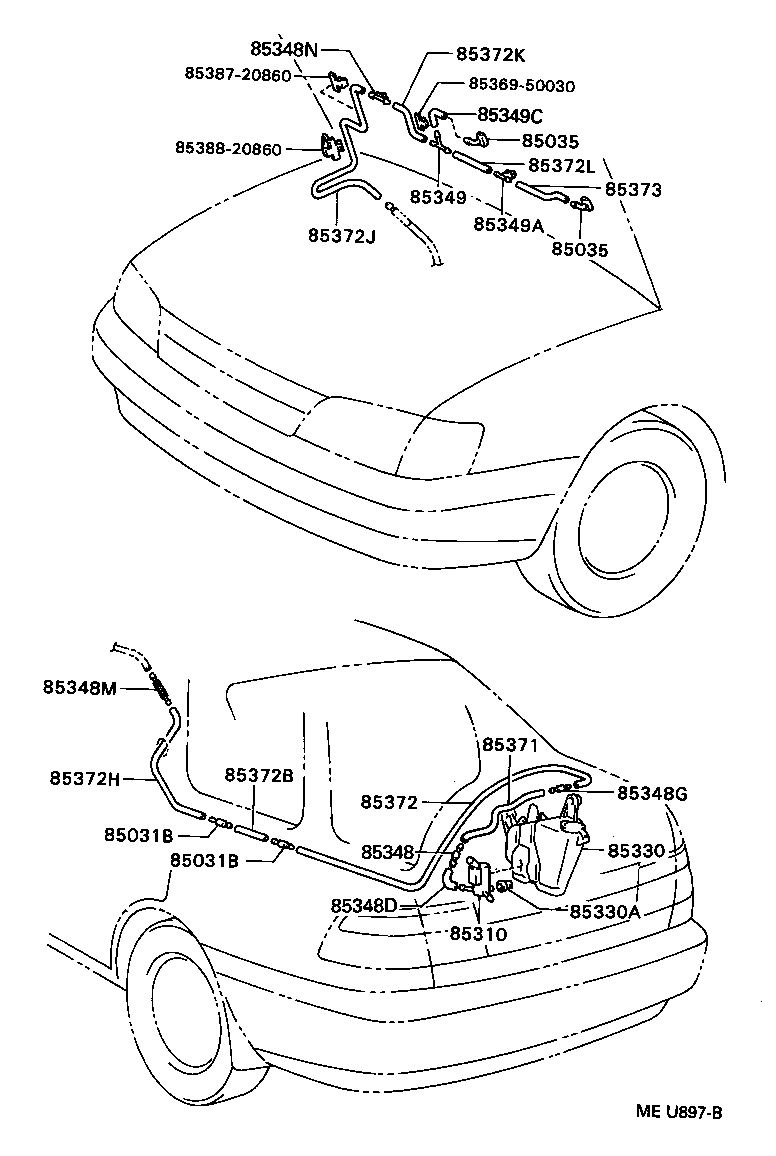

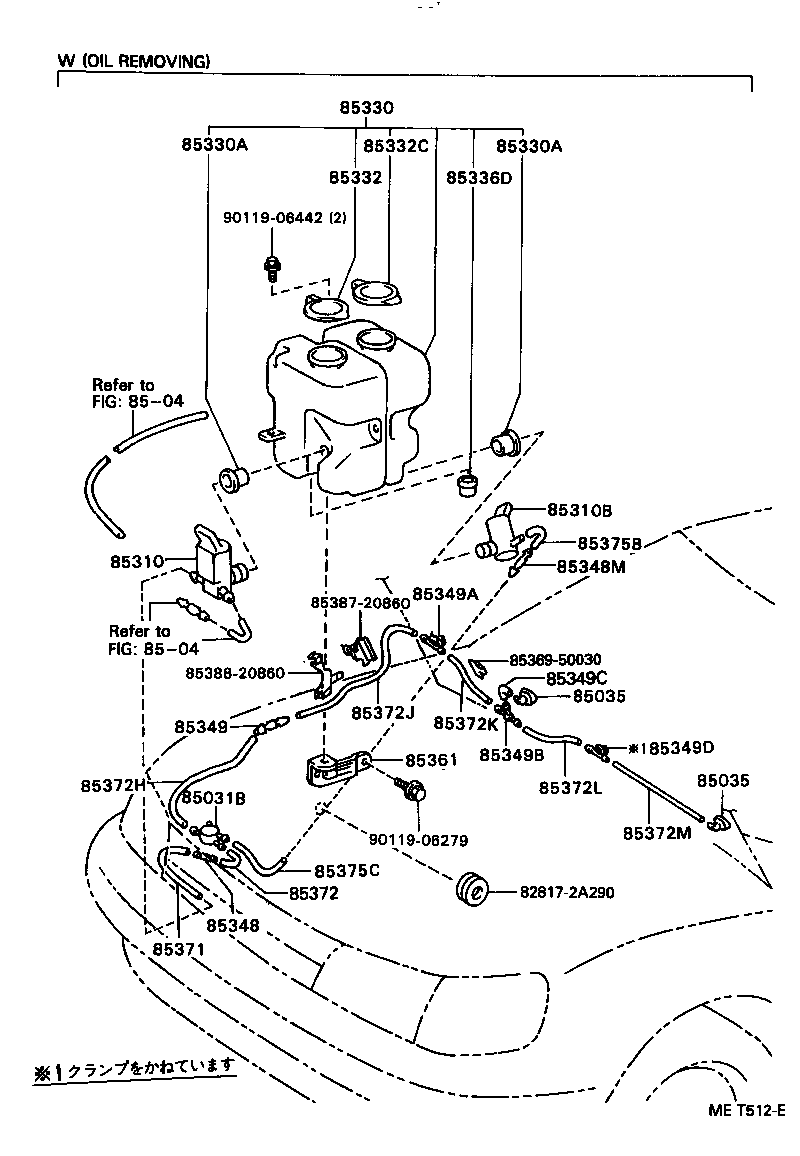

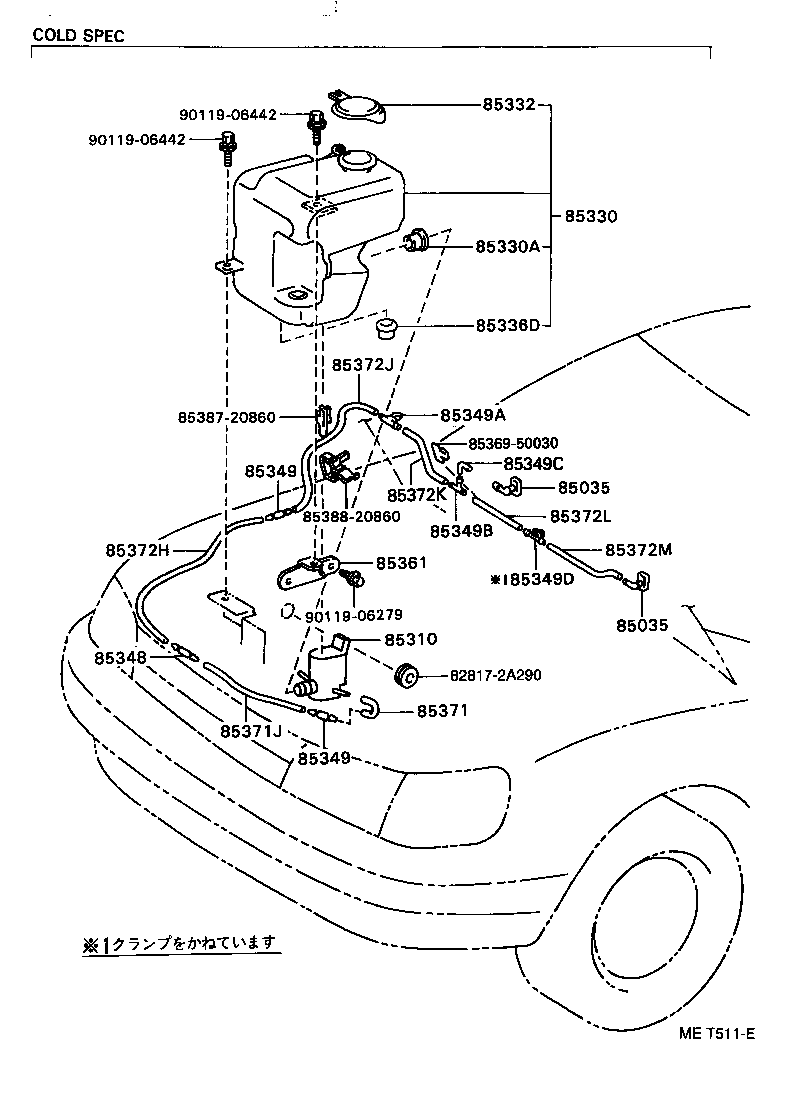

Windshield Washer
32 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 85031B | Valve Sub-assy, Washer |
| 85035 | Nozzle Sub-assy, Washer |
| 85310 | Motor And Pump Assy, Windshield Washer |
| 85310B | Motor & Pump Assy, Windshield Washer |
| 85330 | Jar Assy, Windshield Washer |
| 85330A | Bush, Windshield Washer Jar |
| 85332 | Cap, Windshield Washer Jar |
| 85332C | Cap, Front Washer Tank |
| 85336D | Packing, Windshield Washer Jar |
| 85348 | Joint, Windshield Washer Hose, NO.1 |
| 85348D | Joint, Windshield Washer Elbow, NO.1 |
| 85348G | Joint, Windshield Washer Hose, NO.2 |
| 85348M | Joint, Windshield Washer Hose, NO.3 |
| 85348N | Joint, Windshield Washer Hose, NO.4 |
| 85349 | Joint, Windshield Washer Hose, NO.1 |
| 85349A | Joint, Windshield Washer Hose, NO.2 |
| 85349B | Joint, Windshield Washer Hose, NO.3 |
| 85349C | Joint, Windshield Washer Elbow, NO.4 |
| 85349D | Joint, Windshield Washer Hose, NO.4 |
| 85361 | Holder, Windshield Washer |
| 85371 | Hose, Windshield Washer (FROM MOTOR TO JOINT) |
| 85371J | Tube, Rubber |
| 85372 | Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1 |
| 85372B | Hose, Windshield Washer (FROM JOINT TO JOINT), NO.2 |
| 85372H | Hose, Windshield Washer (FROM JOINT TO JOINT), NO.3 |
| 85372J | Hose, Windshield Washer (FROM JOINT TO JOINT), NO.4 |
| 85372K | Hose, Windshield Washer (FROM JOINT TO JOINT), NO.5 |
| 85372L | Hose, Windshield Washer (FROM JOINT TO JOINT), NO.6 |
| 85372M | Hose, Windshield Washer (FROM JOINT TO JOINT), NO.7 |
| 85373 | Hose, Windshield Washer (FROM JOINT TO NOZZLE) |
| 85375B | Hose, Windshield Washer (OIL REMOVING NO.1) |
| 85375C | Hose, Windshield Washer (OIL REMOVING NO.2) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
