Toyota Corona

1992-02 → 1996-01 · chassis AT190,CT19#,ST19# · catalogue 271130 · Japan

Discontinued model Data version 1996-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

4 part groups · 2 illustrations

Illustrations

Figure MET516

MET516 1992-02 → —

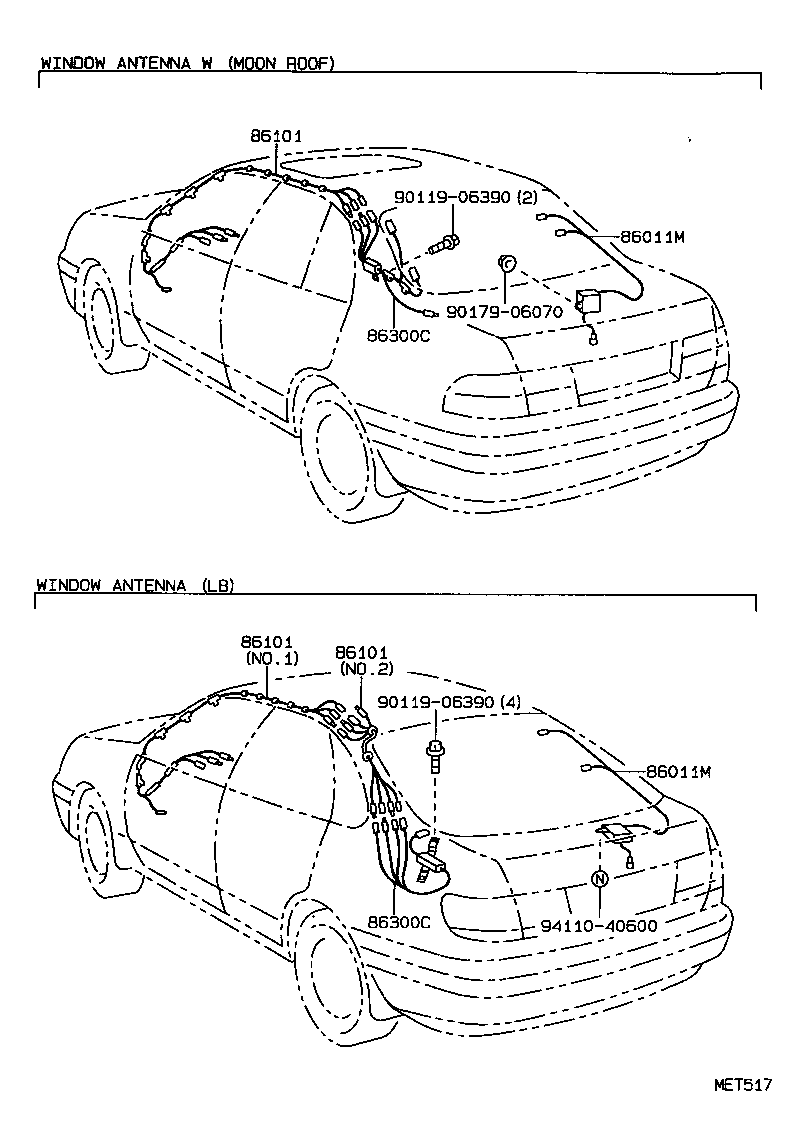

Figure MET517

MET517 1992-02 → —

Part groups

PNC	Description
86011M	Filter, Noise
86101	Cord Sub-assy, Antenna
86300	Antenna Assy, W/Holder
86300C	Antenna Assy, Amplifier, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
