Toyota Corona

1992-02 → 1996-01 · chassis AT190,CT19#,ST19# · catalogue 271130 · Japan

Discontinued model Data version 1996-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mirror

17 part groups · 2 illustrations

Illustrations

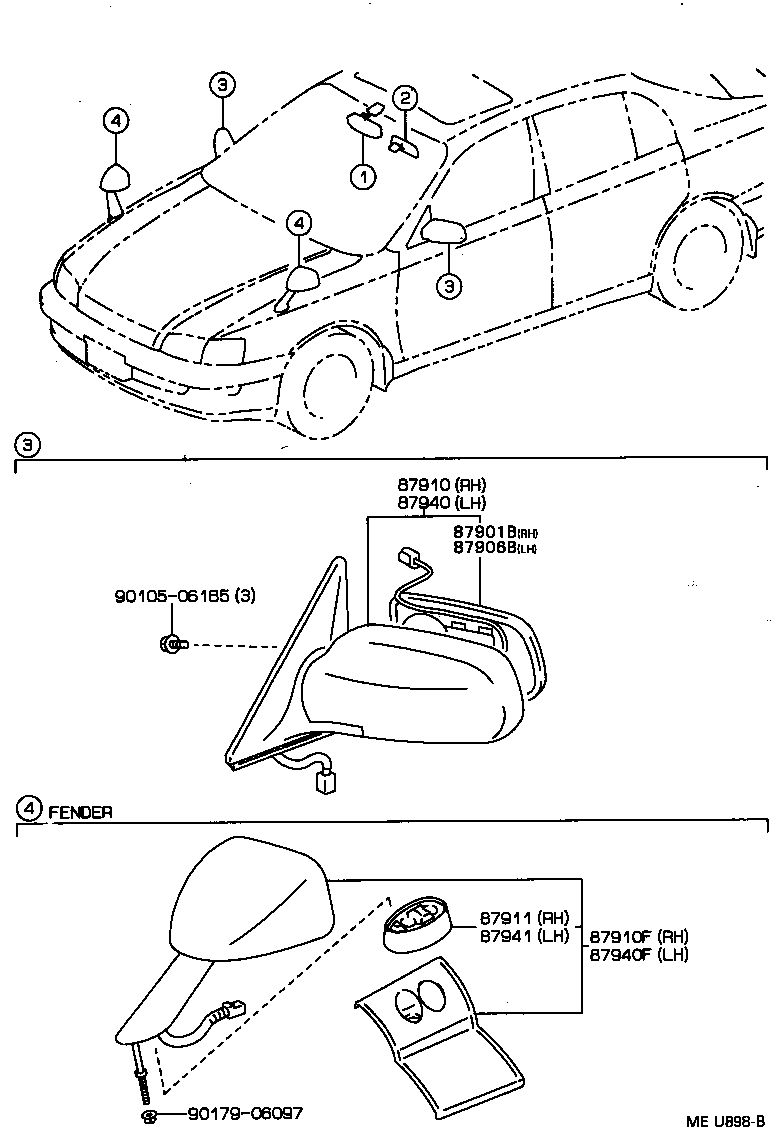

Figure MET496E MET496E 1992-02 → — Figure MEU898B MEU898B 1992-02 → —

Part groups

PNCDescription
87808 Holder Sub-assy, Inner Mirror
87810 Mirror Assy, Inner Rear View
87810A Mirror Assy Inner Rear View, NO.2
87816 Spring, Inner Rear View Mirror
87817 Spacer, Inner Rear View Mirror
87825 Spring, Inner Rear View Mirror Setting
87827 Absorber, Inner Rear View Mirror
87834 Cover, Inner Rear View Mirror Stay Holder
87834A Cover, Inner Rear View Mirror Stay Holder, NO.2
87901B Mirror Sub-assy, Outer Rear View, RH
87906B Mirror Sub-assy, Outer Rear View, LH
87910 Mirror Assy, Outer Rear View, RH
87910F Mirror Assy, Fender, RH
87911 Gasket, Outer Rear View Mirror, RH
87940 Mirror Assy, Outer Rear View, LH
87940F Mirror Assy, Fender, LH
87941 Gasket, Outer Rear View Mirror, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
