Toyota Corona

1992-02 → 1996-01 · chassis AT190,CT19#,ST19# · catalogue 271130 · Japan

Discontinued model Data version 1996-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

13 part groups · 2 illustrations

Illustrations

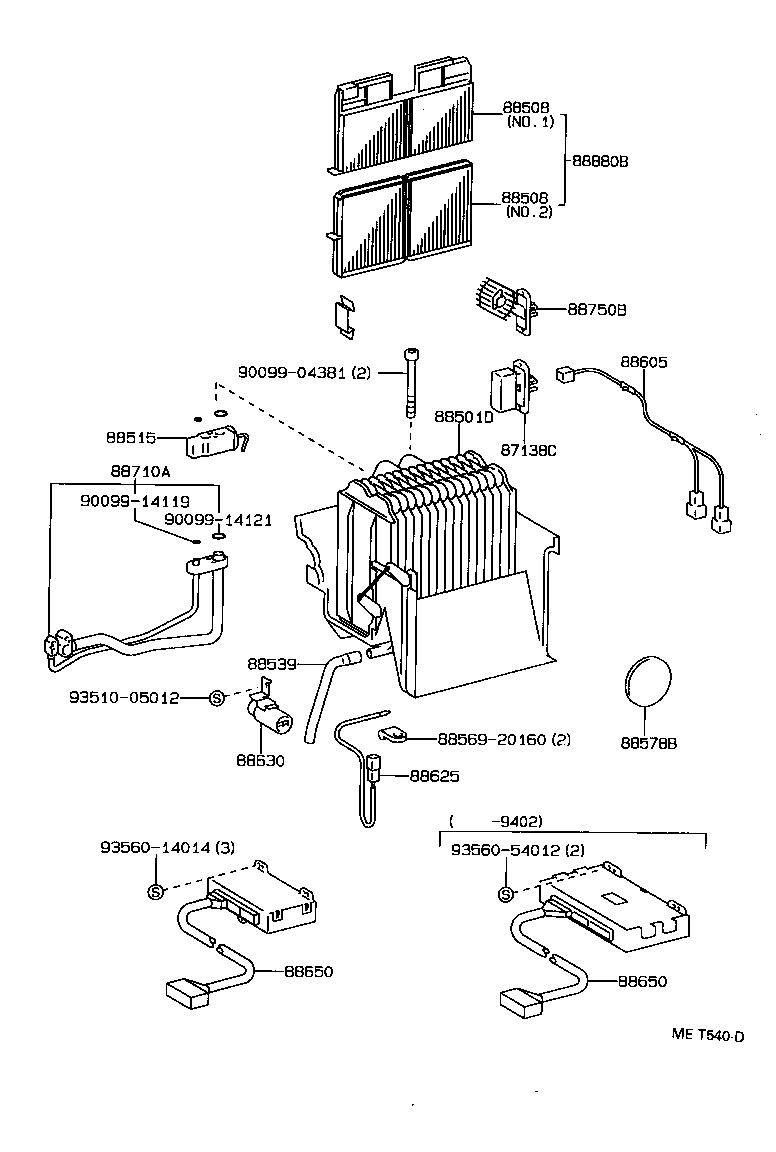

Figure 87H458 87H458 1992-02 → — Figure MET540D MET540D 1992-02 → —

Part groups

PNCDescription
87138C Resistor, Blower
88501D Evaporator Sub-assy, Cooler, NO.2
88508 Filter Sub-assy, Clean Air
88515 Valve, Cooler Expansion
88539 Hose, Cooler Unit Drain, NO.1
88578B Packing, Cooling Unit, NO.1
88605 Harness Sub-assy, Cooler Wiring, NO.1
88625 Thermistor, Cooler, NO.1
88630 Relay Assy, Cooler
88650 Amplifier Assy, Cooler Stabilizer
88710A Tube Assy, Air Conditioner
88750B Transistor Assy, Blower Resistor
88880B Filter Assy, Clean Air
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
