Toyota Corona

1992-02 → 1996-01 · chassis AT190,CT19#,ST19# · catalogue 271130 · Japan

Discontinued model Data version 1996-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

22 part groups · 4 illustrations

Illustrations

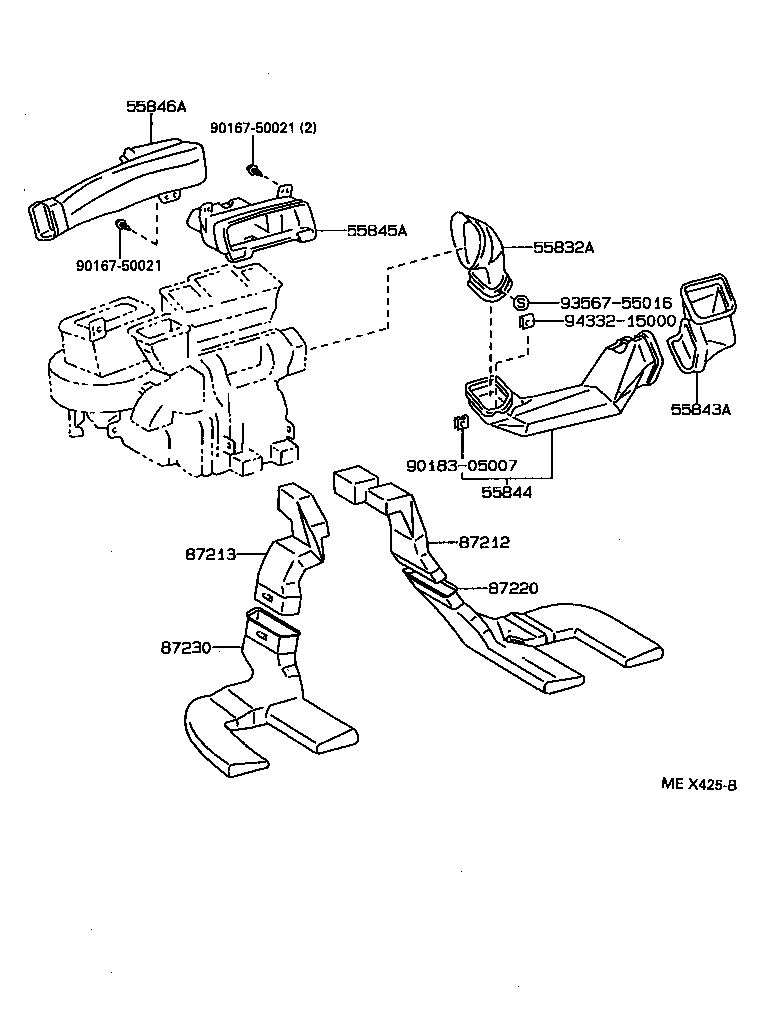

Figure MET448C MET448C 1992-02 → — Figure MET449C MET449C 1992-02 → — Figure MEX425B MEX425B 1992-02 → — Figure MET541B MET541B 1992-02 → —

Part groups

PNCDescription
55538A Cover, Cooler Switch Hole
55832A Connector, Instrument Panel Register, NO.2
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55846A Duct, Heater TO Register, NO.4
55900 Control Assy, Air Conditioner
55900B Bulb, Air Conditioner Control
55905A Knob, Heater Control
55905B Knob, Heater Control, NO.2
55905D Knob Sub-assy, Control
55906 Cable Sub-assy, Heater Control
55909A Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
81942A Sheet, Heater Control Name, NO.1
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87220 Duct Assy, Air
87230 Duct Assy, Air, Heater
88625C Thermistor, Cooler
88669A Hose (FOR COOLER THERMISTOR)
88897P Aspirator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
