Toyota Corona

1996-01 → 2001-12 · chassis AT21#,CT21#,ST21# · catalogue 271140 · Japan

Discontinued model Data version 2002-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

22 part groups · 7 illustrations

Illustrations

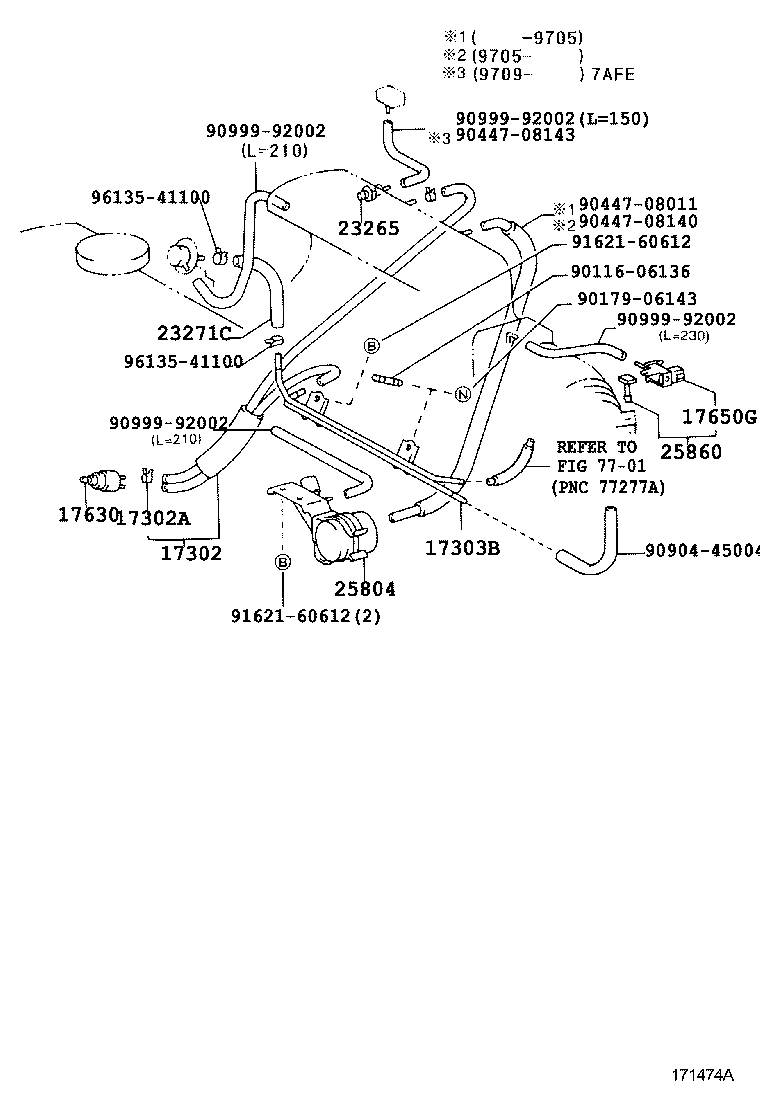

Figure 170020 170020 1996-01 → — Figure 171474A 171474A 1996-01 → — Figure 170240A 170240A 1996-01 → 1997-12 Figure 171186C 171186C 1997-12 → — Figure 176941B 176941B 1996-01 → 1996-07 Figure 171476A 171476A 1996-07 → — Figure 170696D 170696D 1996-12 → —

Part groups

PNCDescription
17302 Hose Sub-assy, Air
17302A Clip, Hose
17303B Pipe Sub-assy, Air, NO.1
17341D Hose, NO.1(FOR IDLE-UP)
17341P Hose, Air
17341T Hose, Air, NO.1
17342B Hose, NO.2(FOR IDLE-UP)
17343B Hose, NO.3(FOR IDLE-UP)
17361G Tube, Air(FOR IDLE-UP)
17630 Valve Assy, Air Control
17650E Valve, Vacuum Switching
17650G Valve, Duty Vacuum Switching
23265 Filter, Gas, NO.1
23271C Hose, Fuel
23281 Valve, Vacuum Transmitting, NO.1
25693A Damper, Egr Vacuum Modulator
25701 Valve Set, Emission Control
25760 Hose Assy, Vacuum Transmitting
25770 Hose Assy, Vacuum Transmitting, NO.2
25804 Valve Set, Vacuum Control
25819 Valve Assy, Vacuum Regulating
25860 Valve Assy, Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
