Toyota Corona
1996-01 → 2001-12 · chassis AT21#,CT21#,ST21# · catalogue 271140 · Japan
Discontinued model
Data version 2002-07

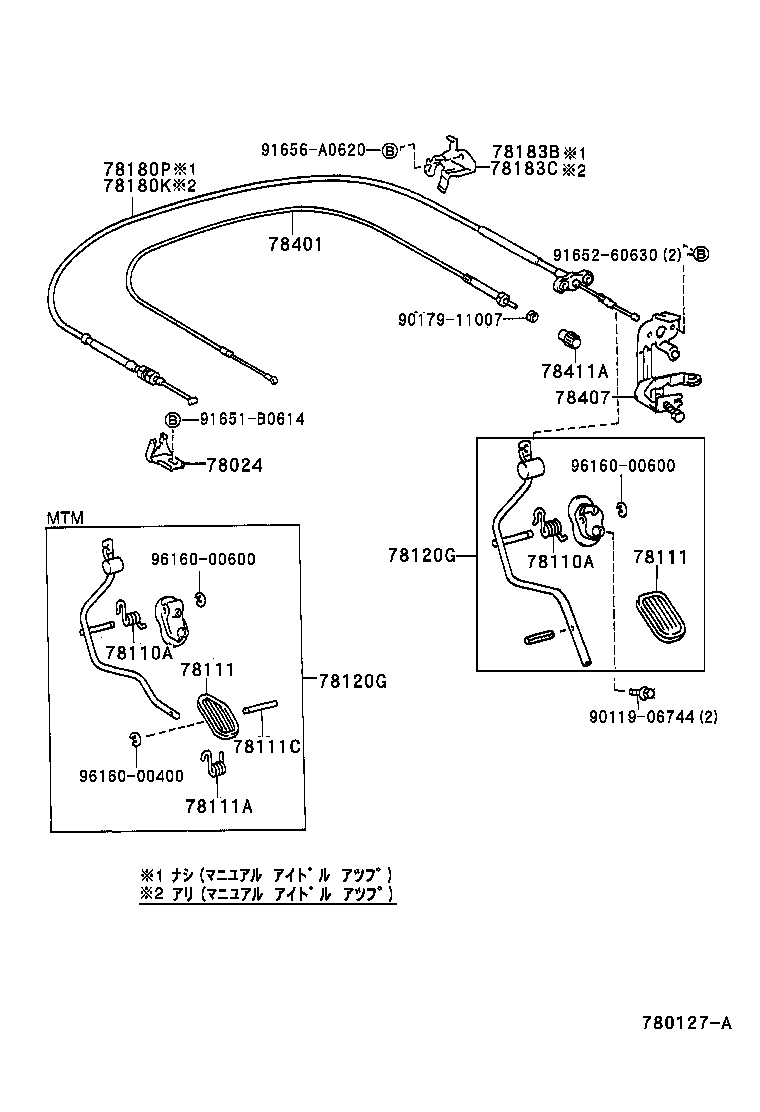

Accelerator Link
18 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 78010F | Pedal Assy, Accelerator |
| 78024 | Bracket Sub-assy, Accelerator Control Cable |
| 78110A | Spring (FOR ACCELERATOR PEDAL ROD) |
| 78111 | Pedal, Accelerator |
| 78111A | Spring (FOR ACCELERATOR PEDAL) |
| 78111C | Pin (FOR ACCELERATOR PEDAL) |
| 78120G | Rod Assy, Accelerator Pedal |
| 78180K | Cable Assy, Accelerator Control |
| 78180P | Cable Assy, Accelerator Control |
| 78183B | Clamp, Accelerator Control Cable |
| 78183C | Clamp, Accelerator Control Cable |
| 78183D | Clamp, Accelerator Control Cable |
| 78183E | Clamp, Accelerator Control Cable |
| 78184B | Bracket, Accelerator Control Cable |
| 78185A | Clamp, Accelerator Control Cable, NO.2 |
| 78401 | Cable Sub-assy, Throttle Control |
| 78407 | Arm Sub-assy, Throttle Control |
| 78411A | Knob, Throttle Control Cable |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
