Toyota Corona

1996-01 → 2001-12 · chassis AT21#,CT21#,ST21# · catalogue 271140 · Japan

Discontinued model Data version 2002-07

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fog Lamp

7 part groups · 2 illustrations

Illustrations

Figure 810386A

810386A 1996-01 → 1997-12

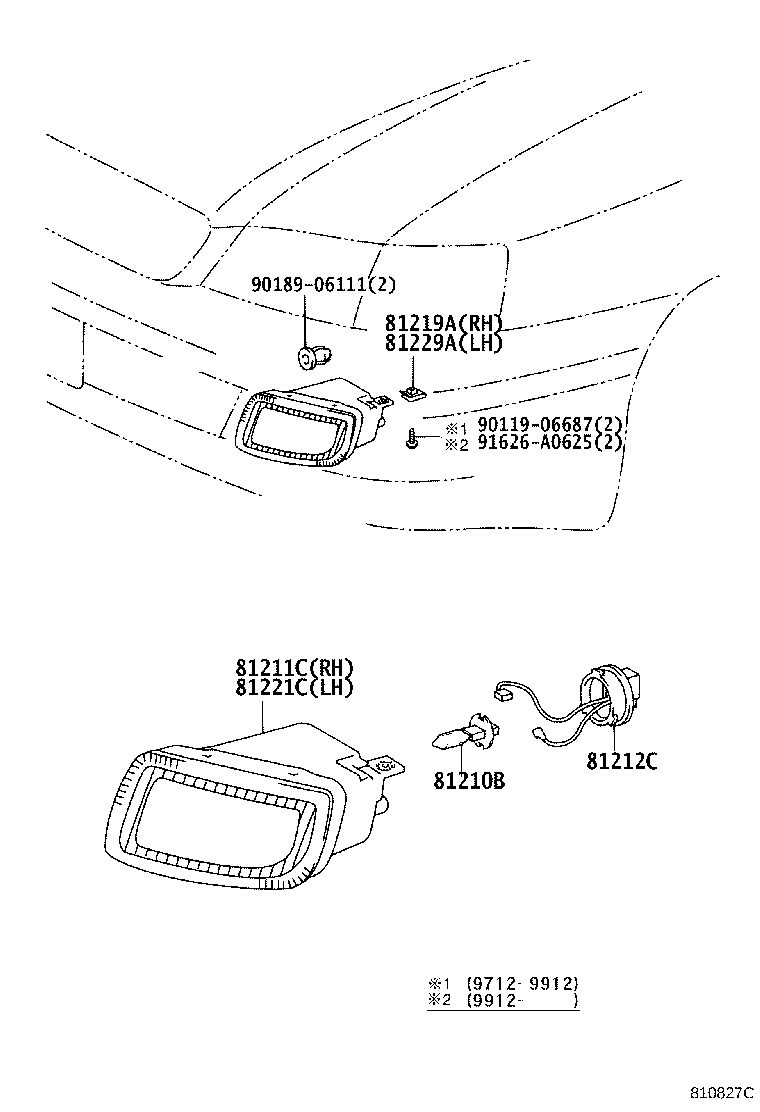

Figure 810827C

810827C 1997-12 → —

Part groups

PNC	Description
81210B	Bulb, Fog Lamp
81211C	Lamp Unit, Fog Lamp, RH
81212C	Cover, Fog Lamp
81215A	Socket & Wire, Fog Lamp
81219A	Bracket, Fog Lamp, RH
81221C	Lamp Unit, Fog Lamp, LH
81229A	Bracket, Fog Lamp, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
