Toyota Corona
1996-01 → 2001-12 · chassis AT21#,CT21#,ST21# · catalogue 271140 · Japan
Discontinued model
Data version 2002-07

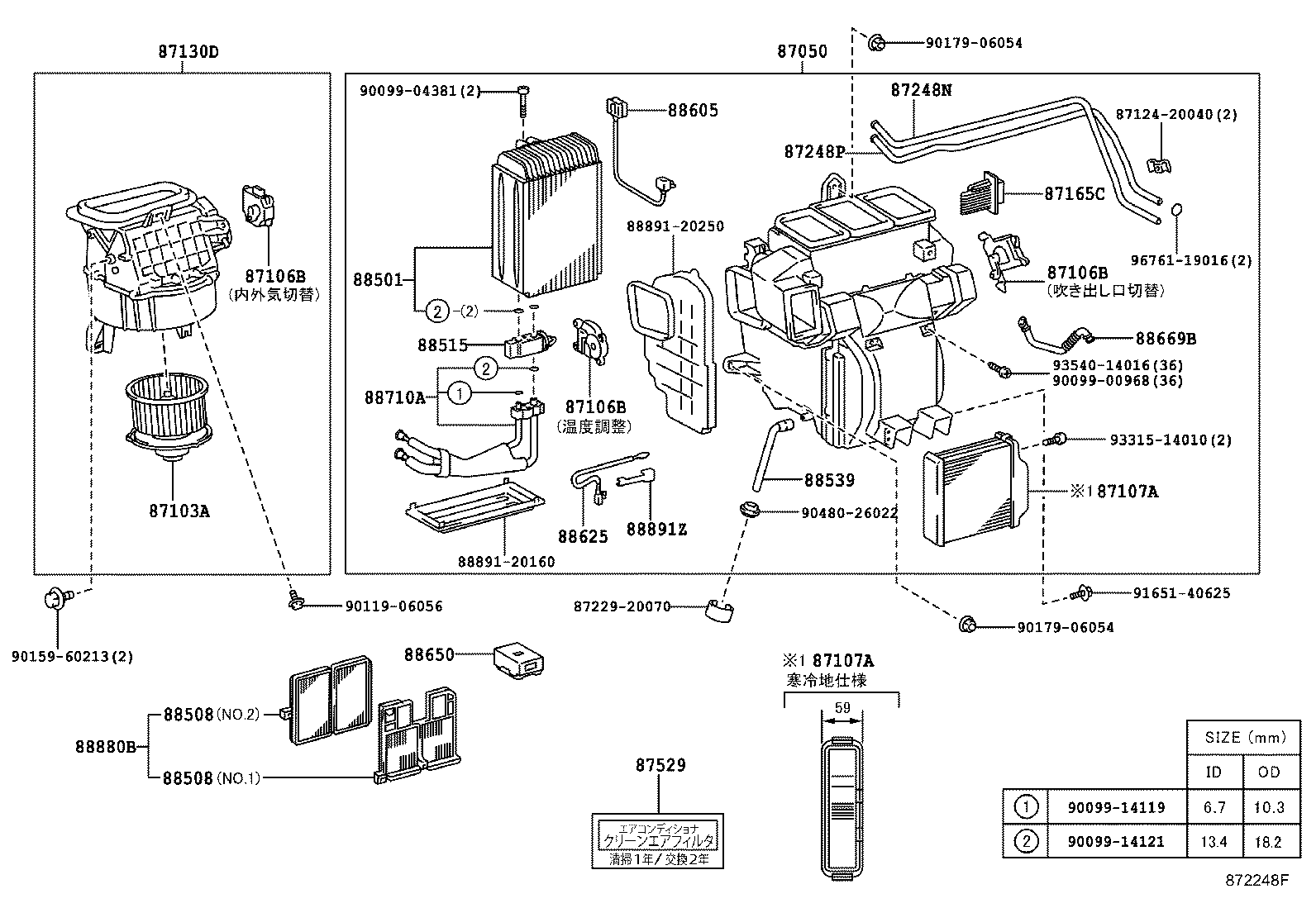

Heating & Air Conditioning - Cooler Unit
21 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 87050 | Radiator Assy, Air Conditioner |
| 87103A | Motor Sub-assy, Cooling Unit, W/Fan |
| 87106B | Servo Sub-assy, Damper(FOR COOLING UNIT) |
| 87107A | Unit Sub-assy, Heater Radiator |
| 87130D | Blower Assy |
| 87138C | Resistor, Blower |
| 87165C | Control, Blower Motor |
| 87248N | Pipe, Heater Water Inlet |
| 87248P | Pipe, Heater Water Outlet |
| 87529 | Plate, Air Filter Caution |
| 88501 | Evaporator Sub-assy, Cooler, NO.1 |
| 88508 | Filter Sub-assy, Clean Air |
| 88515 | Valve, Cooler Expansion |
| 88539 | Hose, Cooler Unit Drain, NO.1 |
| 88605 | Harness Sub-assy, Cooler Wiring, NO.1 |
| 88625 | Thermistor, Cooler, NO.1 |
| 88650 | Amplifier Assy, Cooler Stabilizer |
| 88669B | Hose, Cooler Air |
| 88710A | Tube Assy, Air Conditioner |
| 88880B | Filter Assy, Clean Air |
| 88891Z | Bracket, Cooler Thermistor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
