Toyota Premio/Allion

2001-12 → 2007-05 · chassis AZT240,NZT240,ZZT24# · catalogue 271150 · Japan

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 8 illustrations

Illustrations

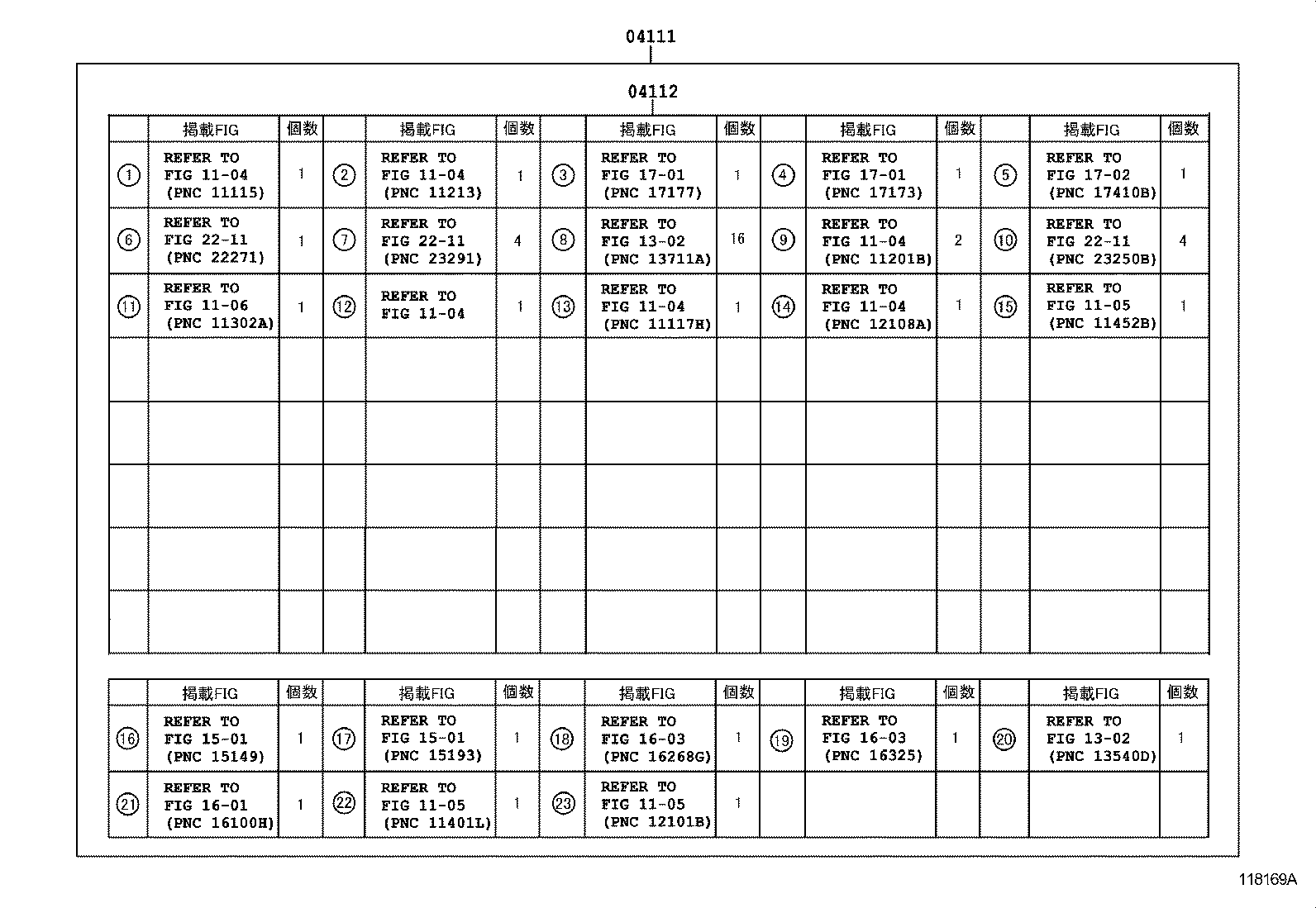

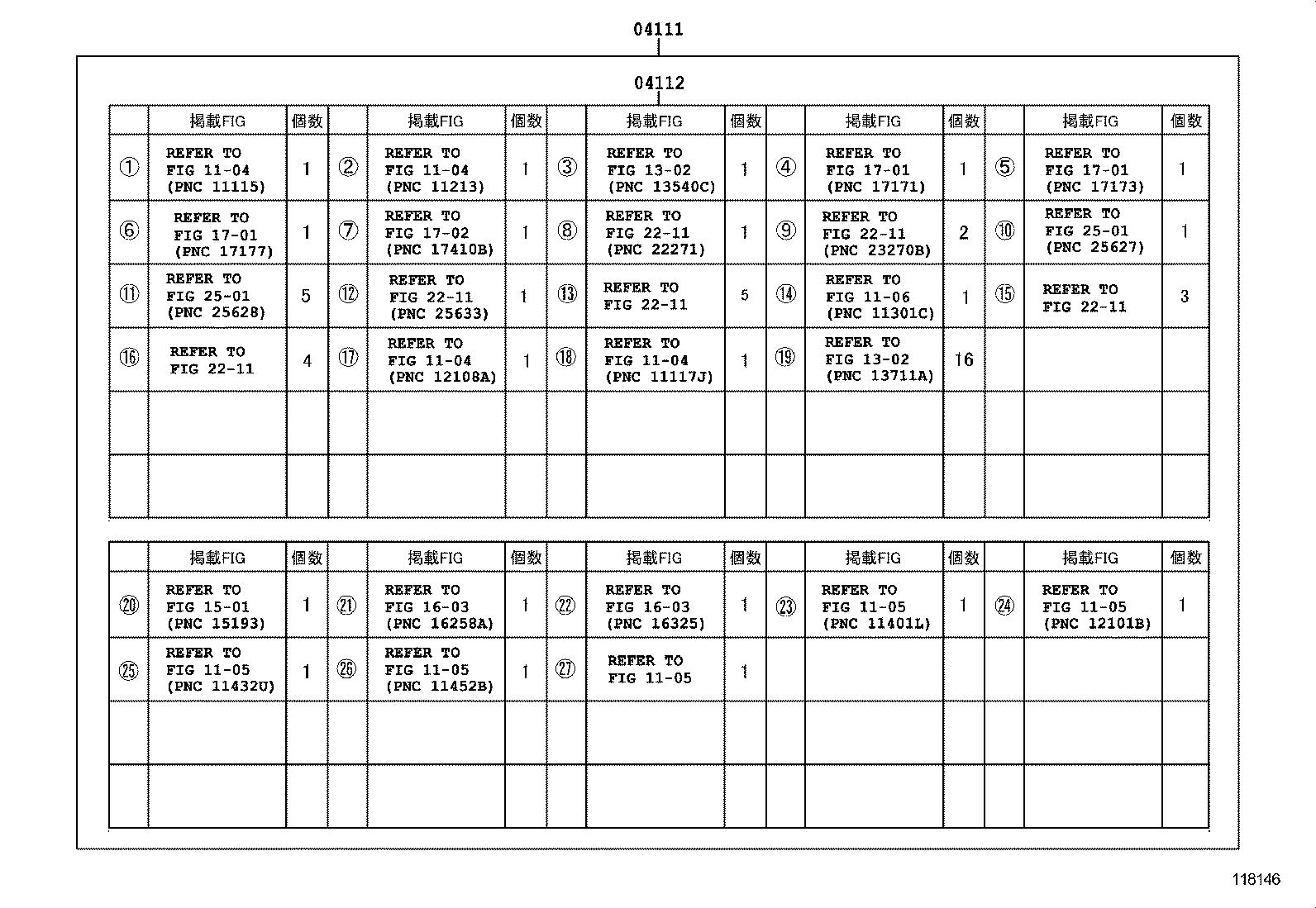

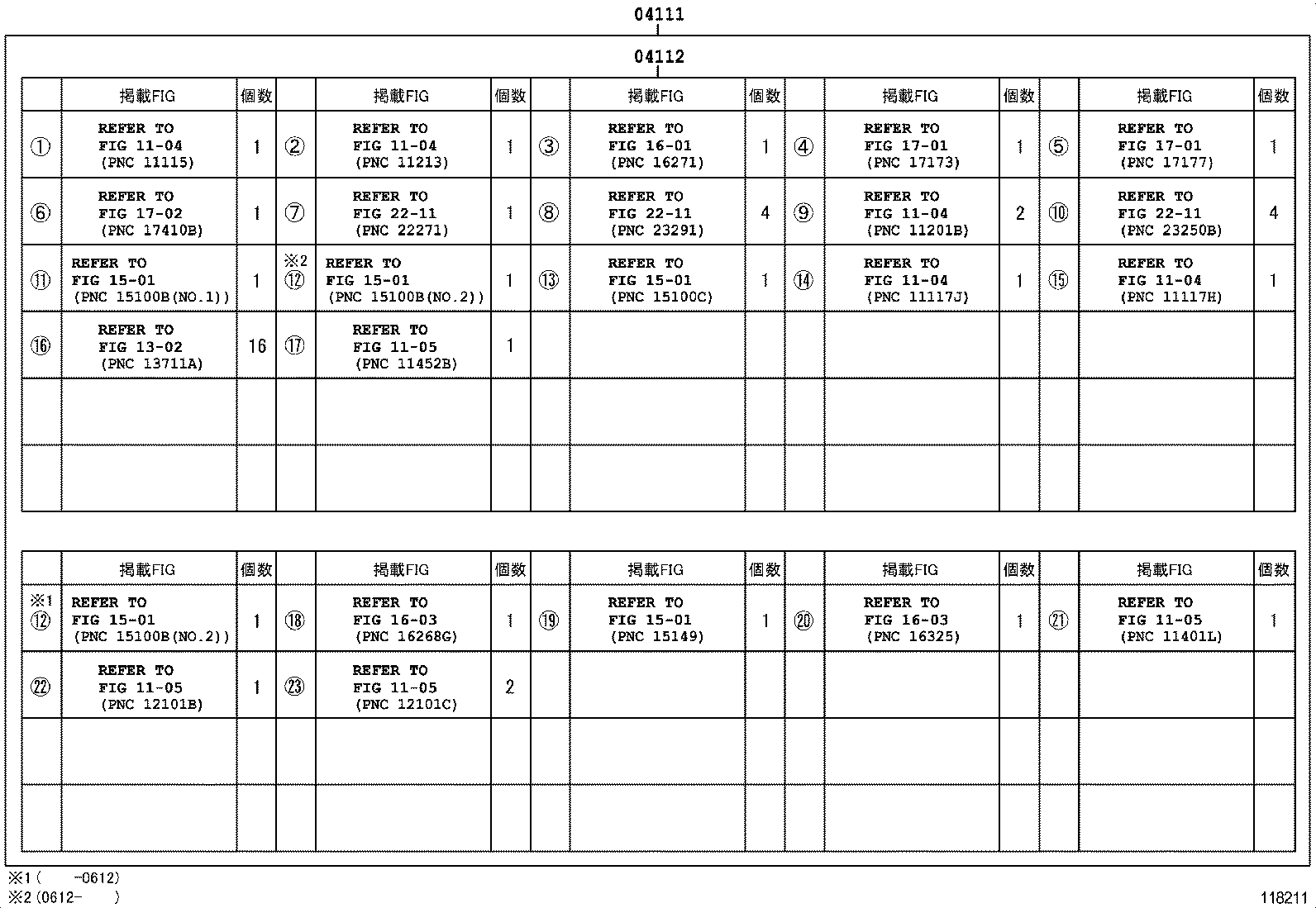

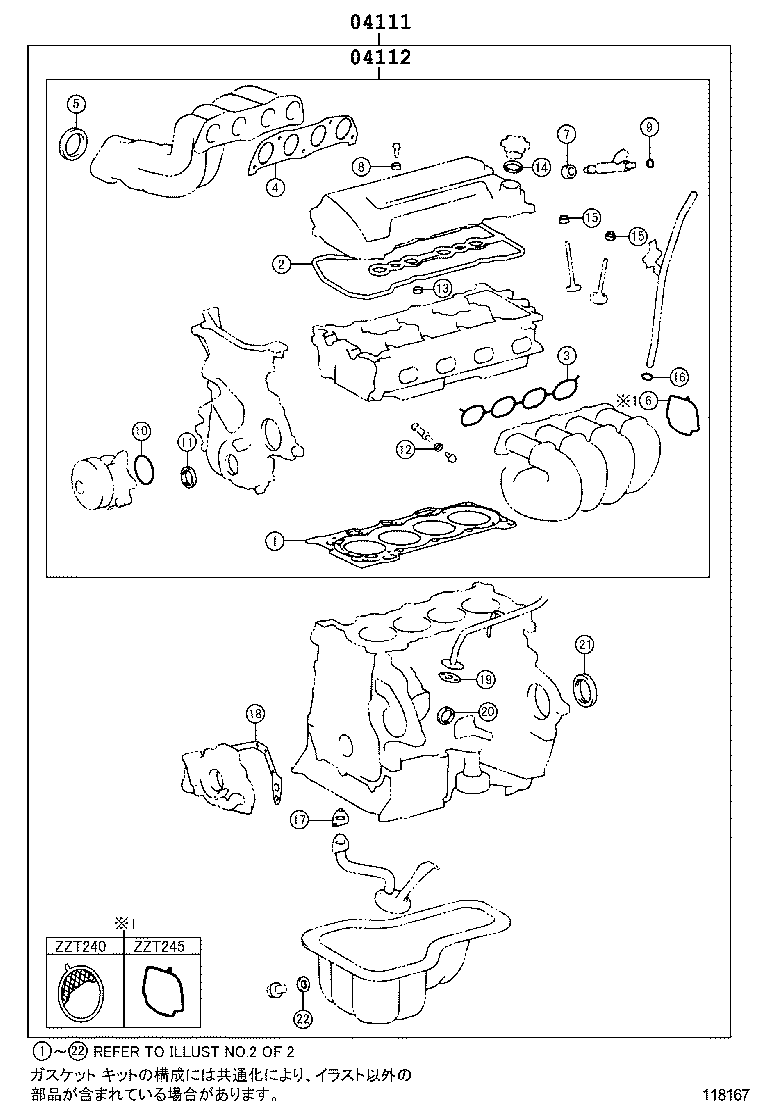

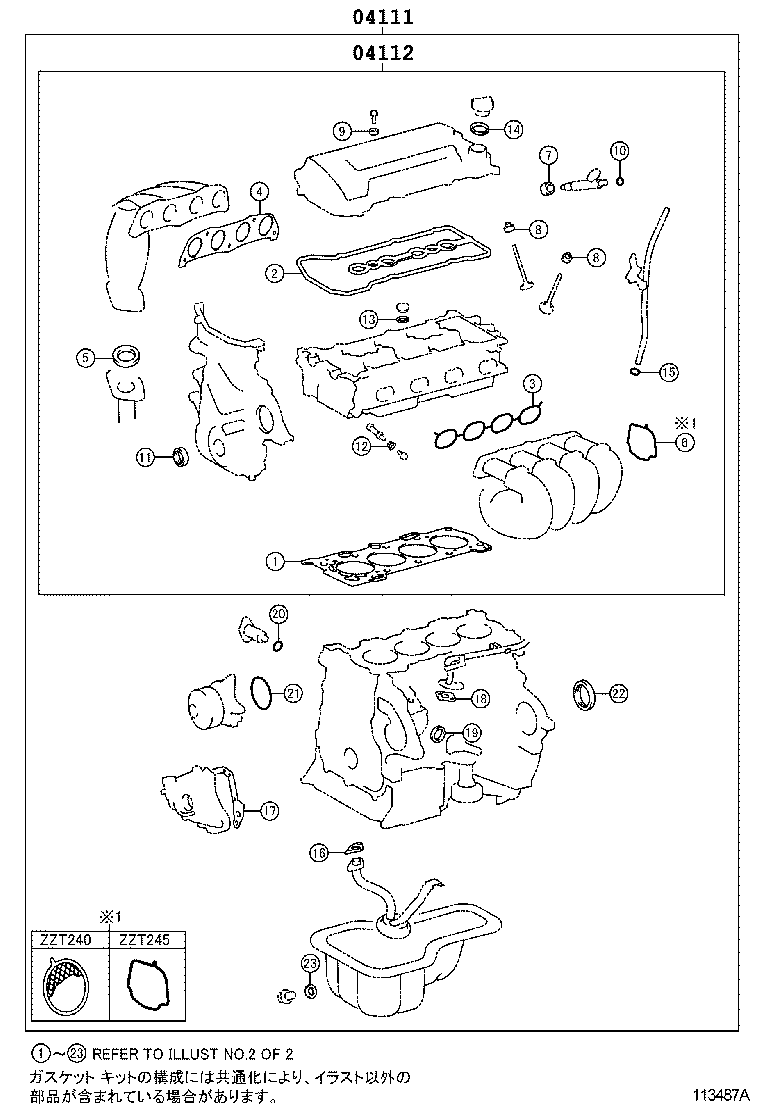

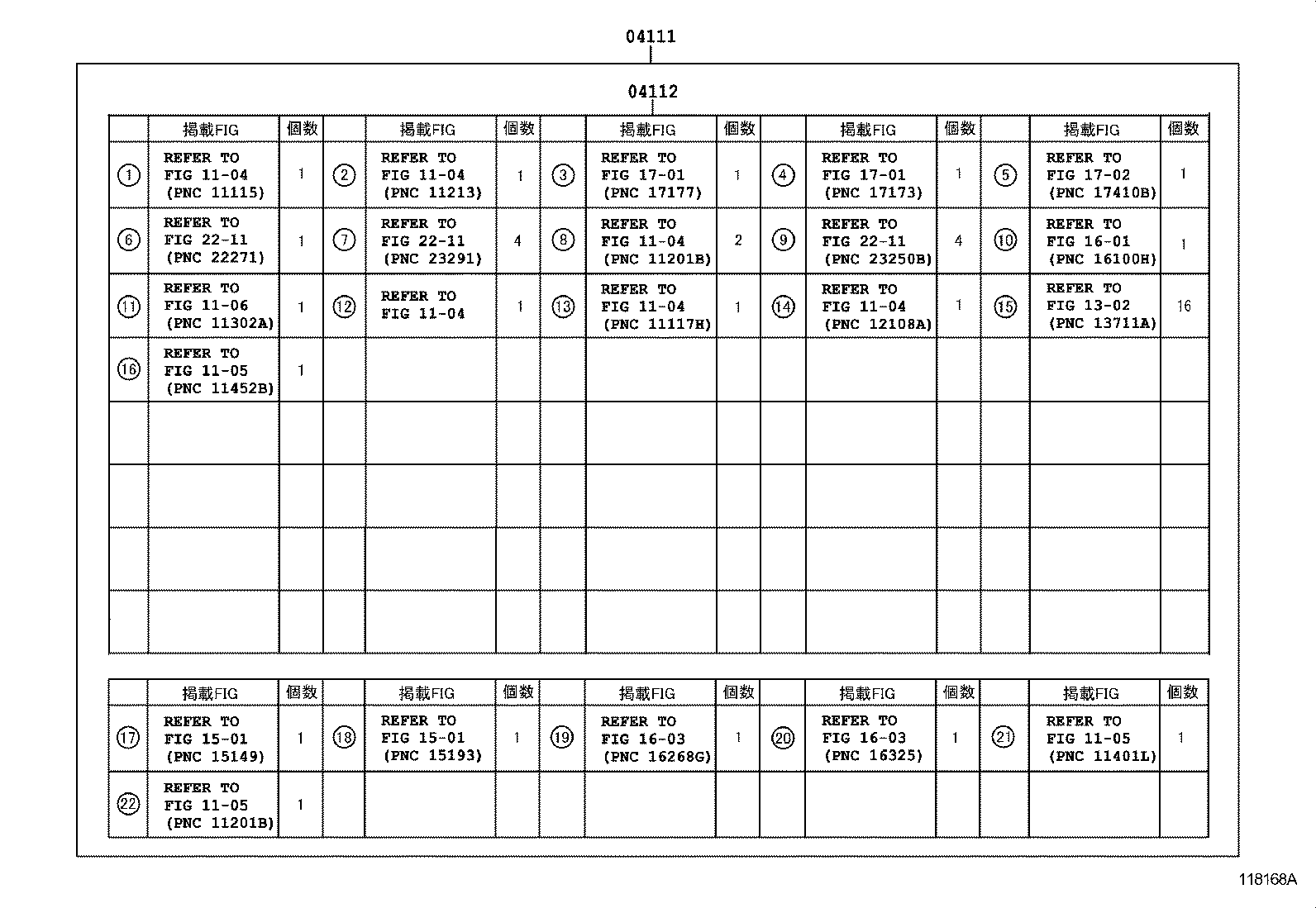

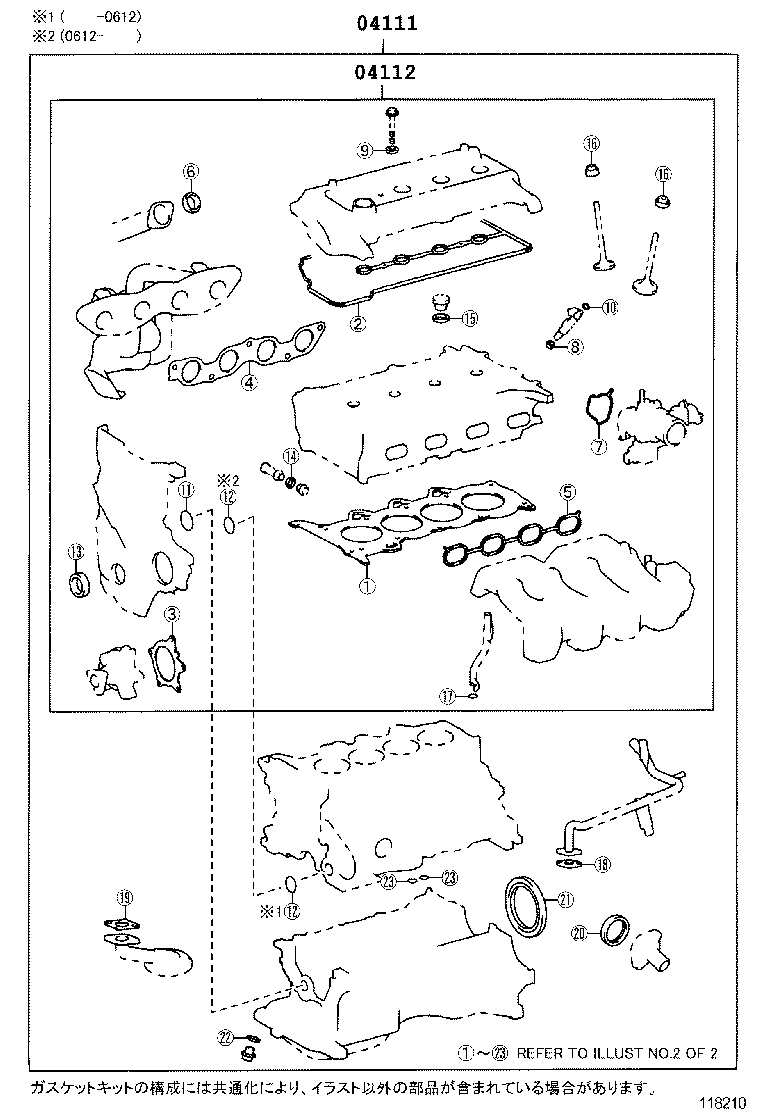

Figure 118147 118147 2001-12 → — Figure 118146 118146 2001-12 → — Figure 118210 118210 2001-12 → — Figure 118211 118211 2001-12 → — Figure 118167 118167 2001-12 → 2004-12 Figure 118168A 118168A 2001-12 → 2004-12 Figure 113487A 113487A 2004-12 → — Figure 118169A 118169A 2004-12 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
