Toyota Premio/Allion

2001-12 → 2007-05 · chassis AZT240,NZT240,ZZT24# · catalogue 271150 · Japan

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Block

33 part groups · 5 illustrations

Illustrations

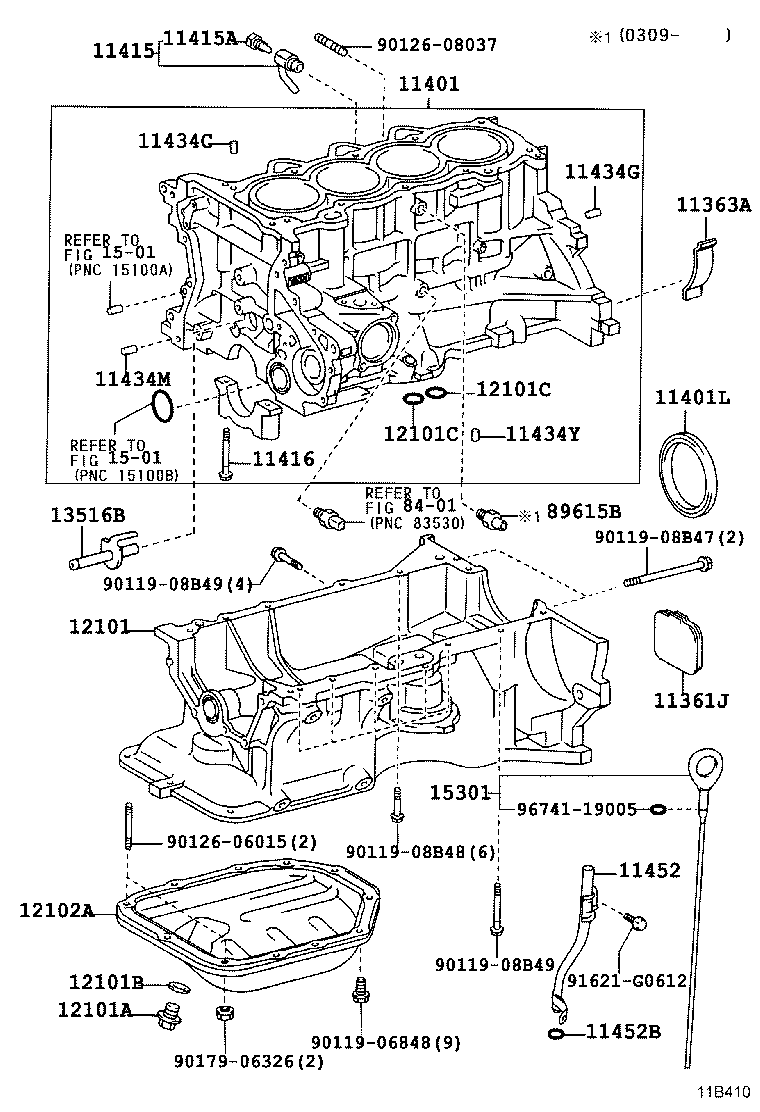

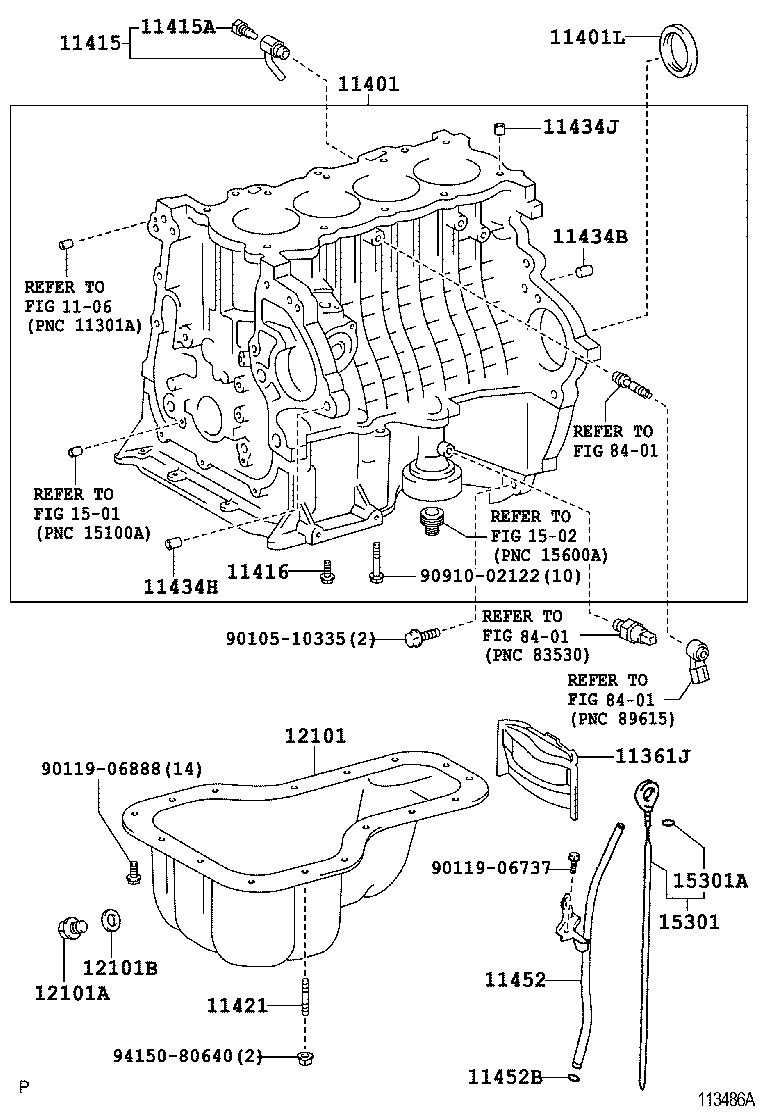

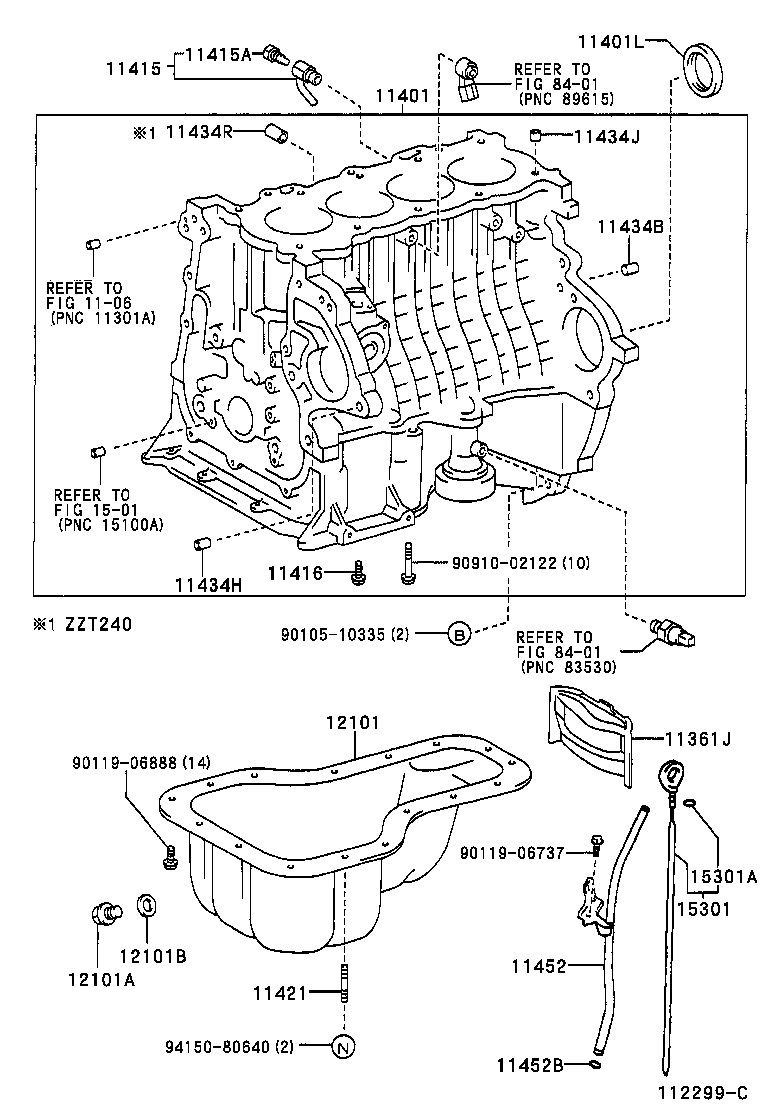

Figure 112805D 112805D 2001-12 → — Figure 11B410 11B410 2001-12 → — Figure 112299C 112299C 2001-12 → 2004-12 Figure 112299C 112299C 2001-12 → — Figure 113486A 113486A 2004-12 → —

Part groups

PNCDescription
11361J Cover, Flywheel Housing Under
11363A Cover, Flywheel Housing Side
11401 Block Sub-assy, Cylinder
11401L Seal, Engine Rear Oil
11415 Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK)
11415A Plug, Water Drain Cock(FOR CYLINDER BLOCK)
11416 Bolt(FOR CRANKSHAFT BEARING CAP SET)
11416A Pin, Ring(FOR CRANKSHAFT BEARING CAP SET)
11420 Crankcase Assy, Stiffening
11421 Bolt, Stud(FOR OIL PAN)
11432T Plug, W/Head Straight Screw, NO.3(FOR CYLINDER BLOCK)
11432U Gasket, Straight Screw Plug NO.1(FOR CYLINDER BLOCK)
11434A Pin, Straight(FOR TIMING GEAR COVER SET)
11434B Pin, Straight(FOR CLUTCH HOUSING SET)
11434C Pin, Straight (FOR CYLINDER HEAD SET)
11434G Pin, Straight(FOR END PLATE)
11434H Pin, Ring (FOR TIMING BELT COVER SET)
11434J Pin, Ring (FOR CYLINDER HEAD SET)
11434M Pin, Straight(FOR CHAIN TENSIONER)
11434R Pin, Straight(FOR DRIVE SHAFT BEARING BRACKET)
11434Y Pin, Straight(FOR OIL PAN)
11452 Guide, Oil Level Gage
11452B Ring, O(FOR OIL LEVEL GAGE GUIDE)
12101 Pan Sub-assy, Oil
12101A Plug(FOR OIL PAN DRAIN)
12101B Gasket(FOR OIL PAN DRAIN PLUG)
12101C Ring, O(FOR OIL PAN)
12102A Pan Sub-assy, Oil, NO.2
13516B Jet, Oil
15301 Gage Sub-assy, Oil Level
15301A Ring, O(FOR OIL LEVEL GAGE)
15678B Filter, Oil Control Valve
89615B Sensor, Knock Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
