Toyota Premio/Allion
2001-12 → 2007-05 · chassis AZT240,NZT240,ZZT24# · catalogue 271150 · Japan
Discontinued model
Data version 2007-10
Shift Lever & Retainer
25 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 33502 | Plate Sub-assy, Shift Lever |
| 33504C | Screw (FOR SHIFT LEVER KNOB SETTING) |
| 33504F | Knob Sub-assy, Shift Lever |
| 33544 | Insert, Shift Lever, NO.1 |
| 33550D | Bulb, Position Indicator Lamp |
| 33550E | Cap, Position Indicator Lamp |
| 33560 | Unit Assy, Shift Lock Control |
| 33563 | Button, Shift Lock Release |
| 33623 | Button, Shift Lever Knob |
| 33623A | Spring, Compression (FOR SHIFT LEVER KNOB BUTTON) |

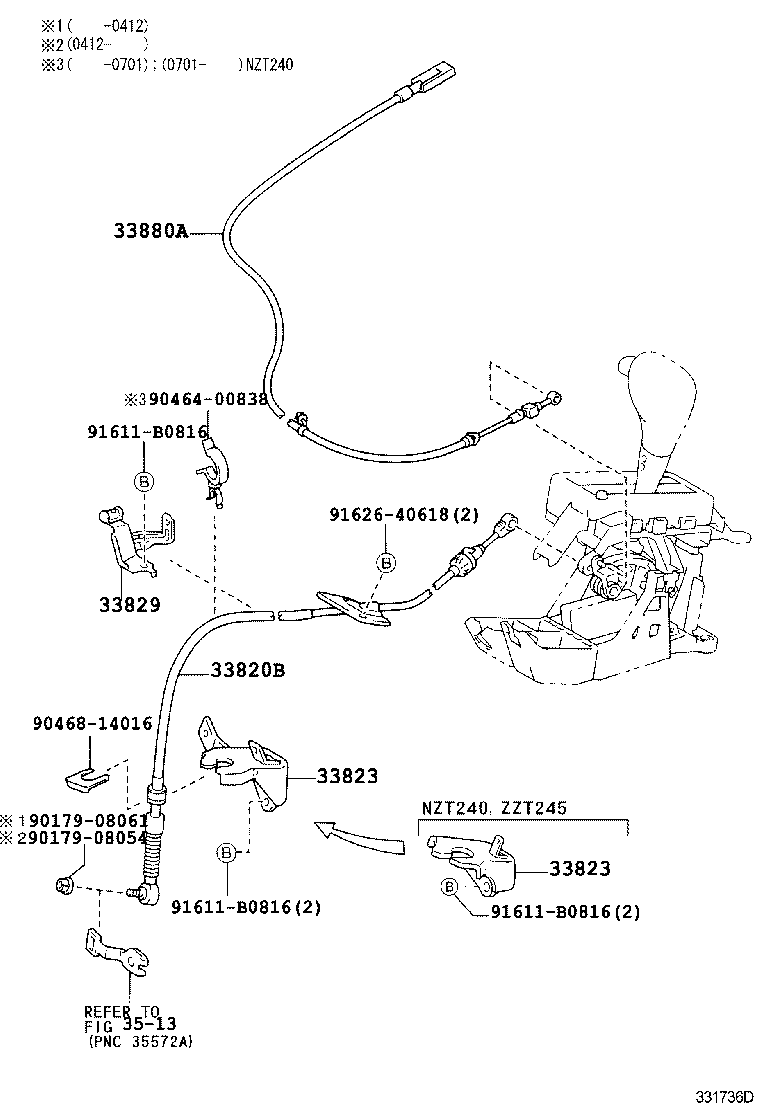

| 33820B | Cable Assy, Transmission Control |
| 33823 | Bracket, Transmission Control Cable, NO.1 |
| 33829 | Support, Transmission Control Cable |
| 33866 | Spring, Shift Lock Release |
| 33880A | Cable Assy, Parking Lock (FOR FLOOR SHIFT) |
| 35586C | Pin, Toggle Lever Support |
| 35906 | Wire Sub-assy, Indicator Lamp |
| 35907 | Housing Sub-assy, Position Indicator (FOR FLOOR SHIFT) |
| 35921 | Plate, Control Position Indicator |
| 35953 | Guide, Position Indicator Light |
| 35971A | Housing, Position Indicator, Upper |
| 35974 | Housing, Position Indicator, Lower |
| 35975 | Cover, Slide (FOR POSITION INDICATOR) |
| 35976 | Cover, Slide, NO.2 (FOR POSITION INDICATOR) |
| 35976B | Cover, Shift Lever Knob (FOR FLOOR SHIFT) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
