Toyota Premio/Allion

2001-12 → 2007-05 · chassis AZT240,NZT240,ZZT24# · catalogue 271150 · Japan

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

14 part groups · 2 illustrations

Illustrations

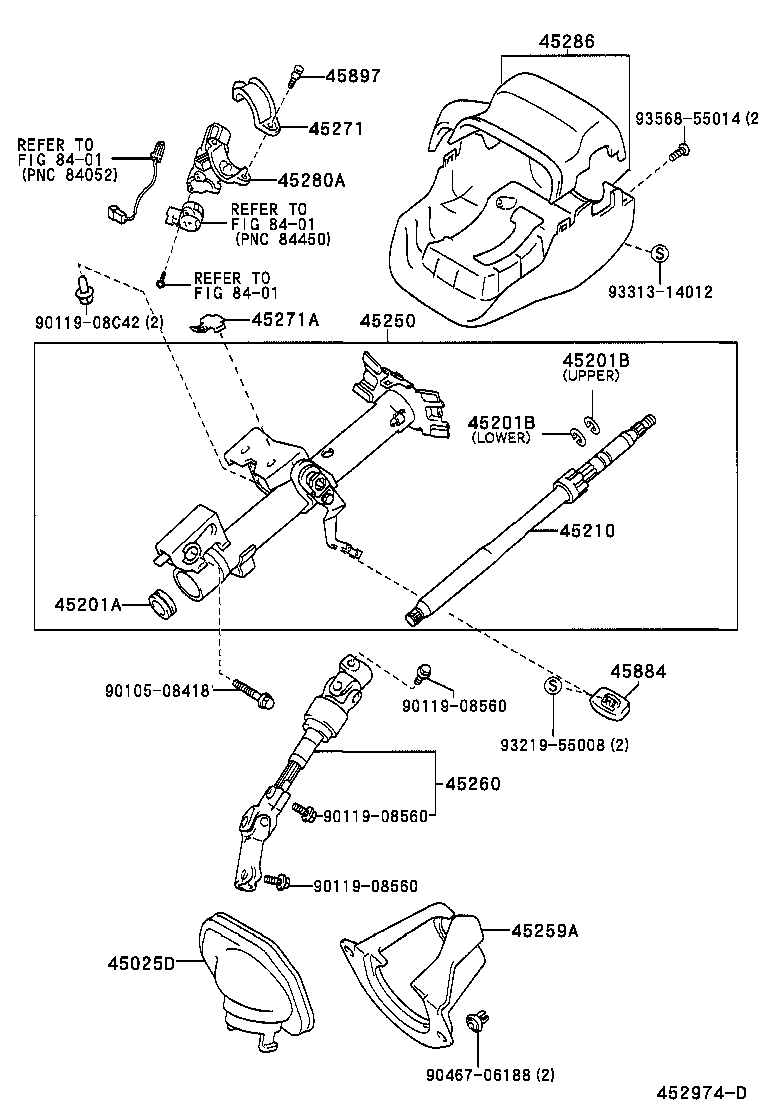

Figure 452973D 452973D 2001-12 → — Figure 452974D 452974D 2001-12 → —

Part groups

PNCDescription
45025D Cover Sub-assy, Steering Column Hole, NO.1
45201A Bearing(FOR STEERING MAIN SHAFT)
45201B Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
45210 Shaft Assy, Steering Main
45221 Shaft, Steering Intermediate
45250 Column Assy, Steering
45259A Sheet, Column Hole Cover Silencer
45260 Shaft Assy, Steering Intermediate, NO.2
45271 Clamp, Steering Column, Upper
45271A Clamp, Steering Column, Upper NO.2
45280A Bracket Assy, Steering Column, Upper
45286 Cover, Steering Column
45884 Bracket, Tilt Lever
45897 Bolt, Steering Lock Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
